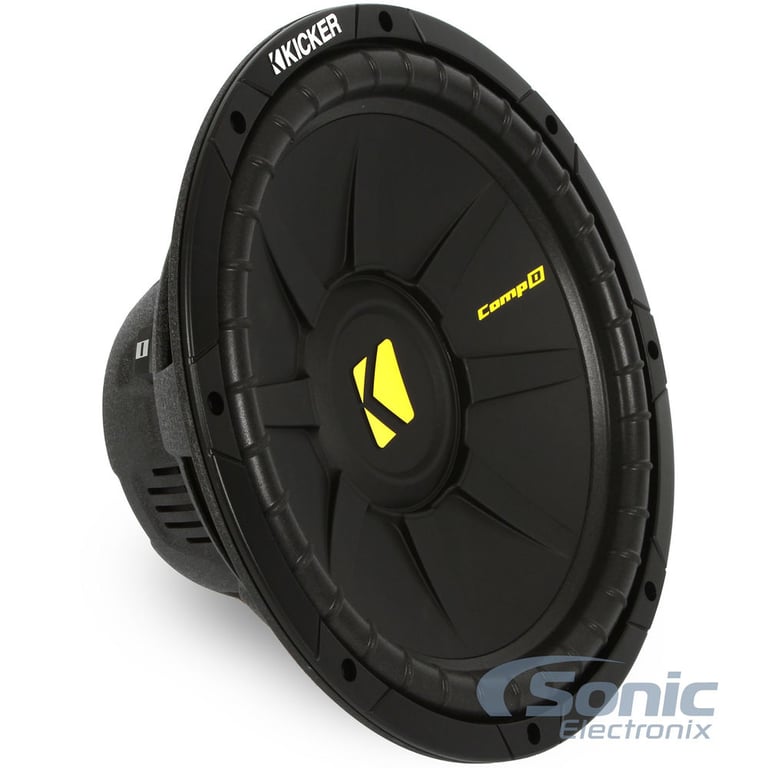

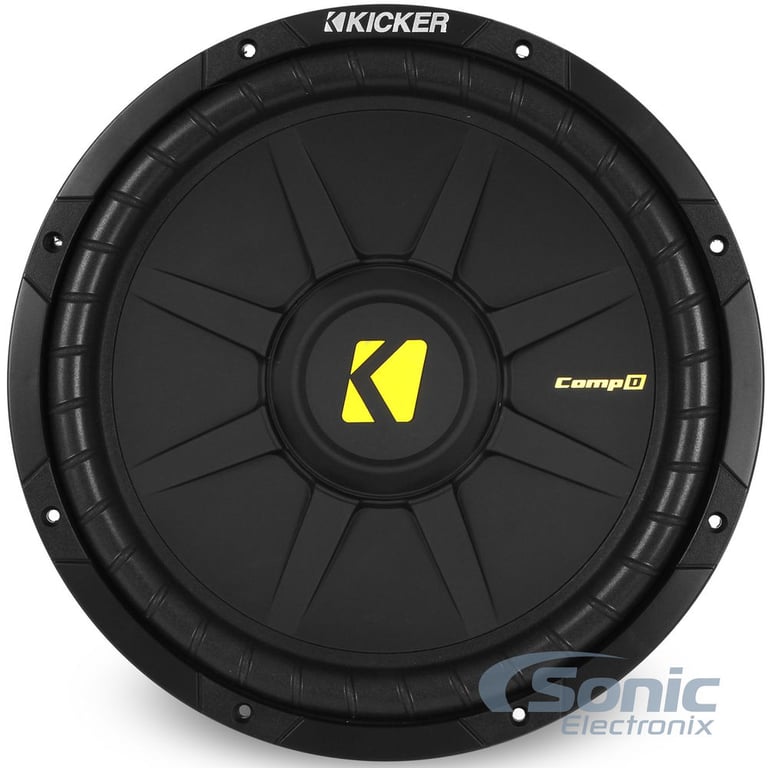

Kicker 12" CompD 4 Ohm (40CWD124) Open Box Complete

600W Peak (300W RMS) 12" Comp-D Series Dual 4-Ohm Subwoofer

Kicker
Shop all Kicker
highlight-star-icon

• 600W Peak
• 300W RMS
• Injection-Molded Polypropylene Cone
• Ribbed Polyurethane Surround
• Large-Diameter Spider
• High-Strength Spiralead Tinsel Leads

Learn more about the ls-40cwd124-obc

We apologize

This item has been discontinued

Description


Kicker brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.






Kicker Audio: Quality, Performance, and Passion
(Sonic at Stillwater Designs HQ)



Legendary Kicker Bass

CompD Subwoofers are equipped with proven construction, inheriting elite innovations for world-class KICKER power, durability and hard-hitting, high-performance bass.

"Bass is what we are all about… it's our specialty. From the very start, we've been known for rich sound. It's the KICKER heritage, and it's carried out through all we do," said KICKER founder and President Steve Irby.

Available in 2- or 4-Ohm impedances, dual-voice-coil CompD Subwoofers make convenience priority with its wiring flexibility (series/parallel/stereo), leading to easy impedance matching with CX-Series Amplifiers for the biggest bass possible. CompD Subwoofers are founded on legendary engineering that is tried and true, building upon the success of the KICKER's original Competition Series from 1986.

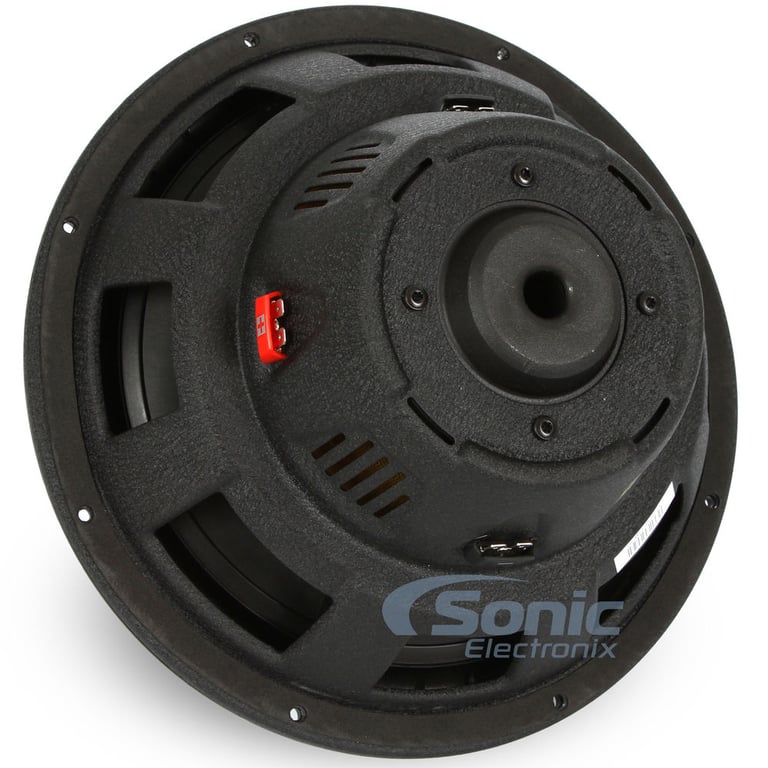

CompD Subwoofers are ideal for vented or sealed enclosures, or even in free-air applications, and handle more power than any previous Comp Series generation. Each is equipped with a lightweight, injection-molded polypropylene cone and tough, ribbed polyurethane surround for eliminating flex and distortion. The heavy-duty motor structure includes a rip-resistant, large-diameter spider that supplies less flex, longer life and better accuracy. High-strength Spiralead tinsel leads weave through the large spider for max signal transfer. High-temp coil wire winding around a vented pole piece and innovative Quad Venting slots contribute to the woofers' efficient cooling attributes and durability.

Its full-coverage, steel basket is shallower than previous Comp baskets, fitting into more applications, and it incorporates 1/4-inch, heavy-duty spade connections.

Kicker Authorized Dealer

General Features:

  • Item Condition: Like New, Open Box, Complete
    Not Refurbished
  • 12" CompD Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Recommended Power Range: 100 - 300 watts RMS
  • Impedance: Dual 4 ohm
  • Injection-Molded Polypropylene Cone
  • Ribbed polyurethane surround
  • Large-diameter spider
  • High-strength Spiralead tinsel leads
  • Frequency response: 27-500 Hz
  • Resonance Frequency (Fs): 30 Hz
  • Top-mount depth: 5-3/8"
  • Sensitivity: 88.3dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Also Found As: 40-CWD124, CWD12-4, 40CWD12-4, CWD124, 40 CWD124, 40CW124, CWD12, Comp D 124, Comp D124, CompD 124, CompD10, Comp-D124, CompD12-4

Tips for Installing the 40CWD124 Subwoofer


Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker 12" CompD 4 Ohm (40CWD124) Open Box Complete Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker 12" CompD 4 Ohm (40CWD124) Open Box Complete Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker 12" CompD 4 Ohm (40CWD124) Open Box Complete Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Kicker 12" CompD 4 Ohm (40CWD124) Open Box Complete Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
CompD Series
Subwoofer Size
12"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
27 - 500 Hz
Sensitivity
88.3 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Ribbed Poly-Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
3.5 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
2.25 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/8"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30 Hz
Equivalent Compliance (Vas)
95.18 liters
Total Speaker Q Value (Qts)
.559
Electrical Q Value (Qes)
.591
Electrical Resistance of Voice Coil (Re)
3.36 ohm
Mechanical Q Value (Qms)
10.22
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

40CWD124-2

Weight:

11.00lbs

Internal SKU:

ls-40cwd124-obc

Internal Product ID:

124467
