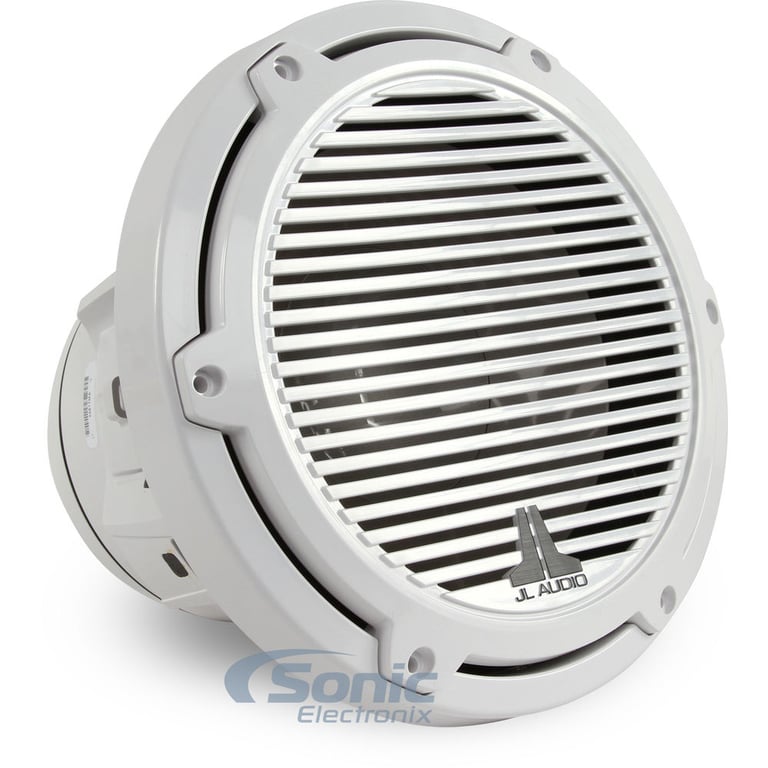

JL Audio M8IB5-CG-WH - White Classic Grille (Open Box Complete)

200W 8" M-Series Single 4-ohm Infinite-baffle Marine Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

• 50-200W RMS
• Mica-Filled Polypropylene Cone
• Synthetic Rubber Surround
• Polymer Basket is Corrosion and UV-resistant
• Marine-grade Stainless Steel Mounting Hardware
• Marine-Grade Brass Connection Terminals

Learn more about the ls-m8ib5cgwh-obc

We apologize

This item has been discontinued

Description


JL Audio brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

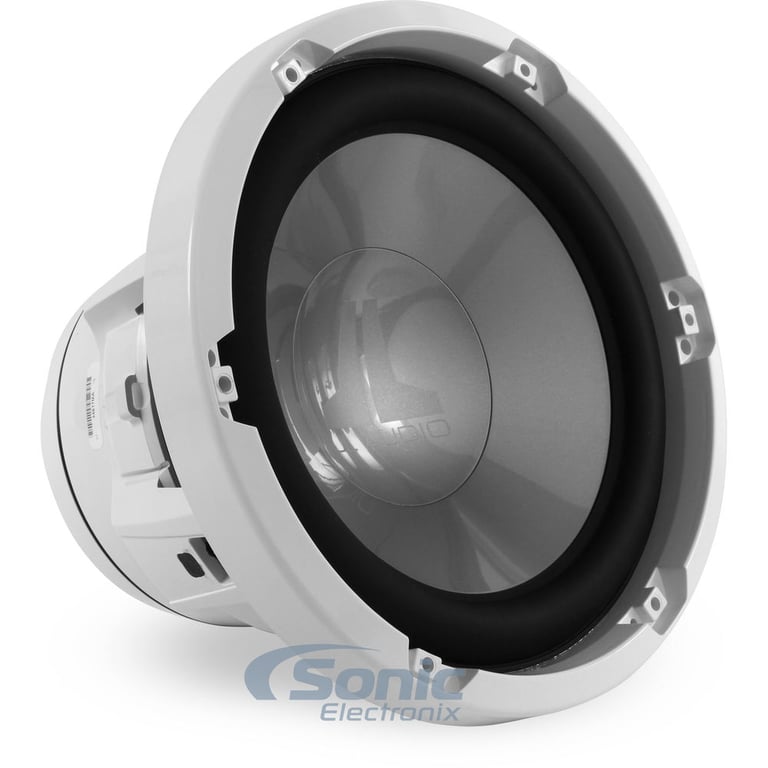

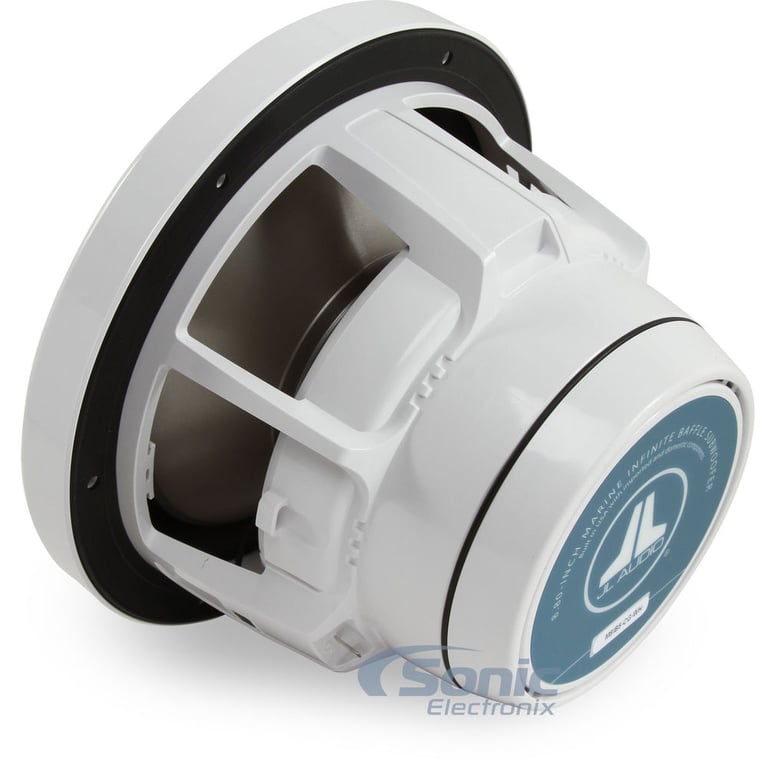

M-Series 8-inch Marine Subwoofer Driver for Infinite-Baffle Use

JL Audio M8IB5-CG-WH

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M-Series infinite-baffle woofers are designed to operate without a dedicated enclosure. The M8IB5 is best used with amplifier power in the 50W - 200W range and is optimized to operate with a large volume of air behind it (at least 1.5 cu. ft. / 42.5 l). If you need a subwoofer driver that operates in a smaller sealed enclosure, select our M10W5, instead. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.


JL Audio M8IB5-SG-WH


General Features:

  • Item Condition: Like New, Open Box, Complete
    Not Refurbished






  • 8" M-Series Infinite Baffle Marine Subwoofer
  • Power Handling:
    • RMS: 200 watts
  • Impedance: 4 ohm
  • Recommended power range: 50 - 200 watts RMS
  • Injection-Molded mica-filled polypropylene cone bodies
  • Synthetic rubber surround specifically formulated with UV inhibitors
  • Marine grade progressive roll synthetic fiber spider
  • Plated marine-grade brass connection terminals
  • Proprietary Dynamic Motor Analysis (DMA) technology
  • Long linear excursion for enhanced output and reduced distortion
  • Specifically engineered Centrex polymer baskets are corrosion & UV-resistant
  • Stainless steel mounting hardware included
  • Efficiency: 86.7 dB
  • Xmax: 14 mm
  • Mounting Depth: 5.18"
  • Cutout Diameter: 7.375"
  • Minimum Enclosure Volume: 1.50 cu ft / 42.5 L (or larger)
  • Infinite Baffle Use: Yes
  • Color: White
  • Matching Amplifiers:
  • Authorized Internet Dealer
  • 90 Day Manufacturer's Warranty
Check out the JL Audio M8IB5 Owner's Manual

Subwoofer Wiring Guide


Specifications & Details


Subwoofer Specifications
Subwoofer Size
8"
RMS Power Handling
50-200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86.7 dB
Subwoofer Design
Round / Circle
Main Cone Color
White
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Rubber
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.50 cubic feet
Minimum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
5.18"
Cutout Diameter
7.375"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M8IB5-CG-WH-2

Weight:

8.90lbs

Internal SKU:

ls-m8ib5cgwh-obc

Internal Product ID:

124739
