See all parts that fit your 1980 Colt

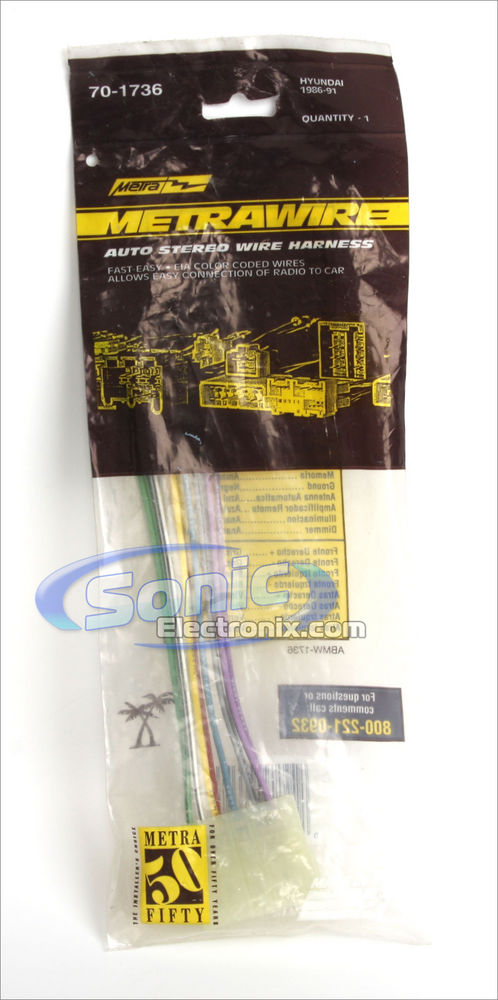

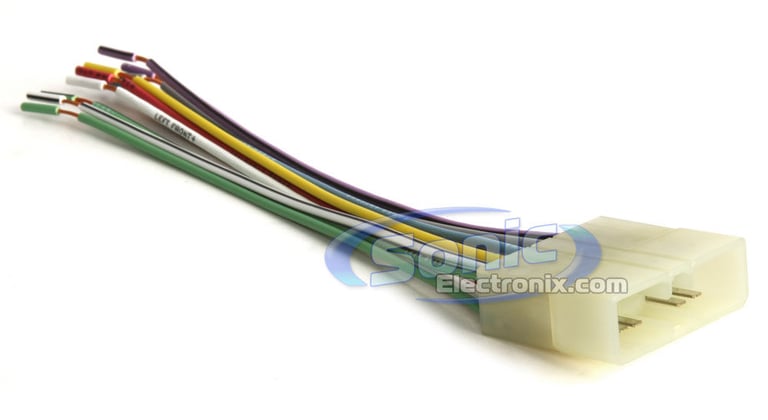

Metra 70-1736

Wiring Harness for 1986-1991 Hyundai and Mitsubishi Vehicles

Metra
Shop all Metra
highlight-star-icon

Wiring Harness for 1986-1992 Hyundai Vehicles • Plugs into car harness at radio • Power/4 Speaker • Allows for the installation of an aftermarket radio using the existing factory wiring and connectors

Learn more about the met-701736

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Description


Metra brand icon

Authorized dealer

Product Features:
  • Plugs into car harness at radio
  • Power/4 Speaker
  • 11-Pin plug
  • Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
  • No cutting of factory wiring needed
  • 1-year Manufacturer's warranty
Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
Compatible with the following vehicle:
  • Hyundai:
    • 1986 - 1991 Excel
    • 1989 - 1991 Sonata
    • 1991 S Coupe
  • Mitsubishi:
    • 1989 - 1991 Galant
    • 1986 - 1991 Cordia
    • 1987 - 1991 Precis
