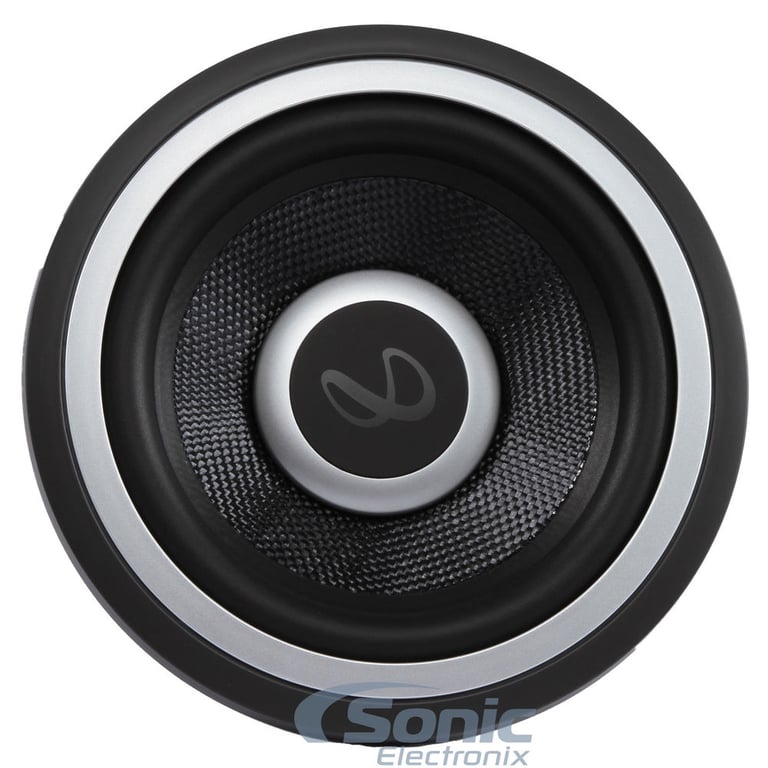

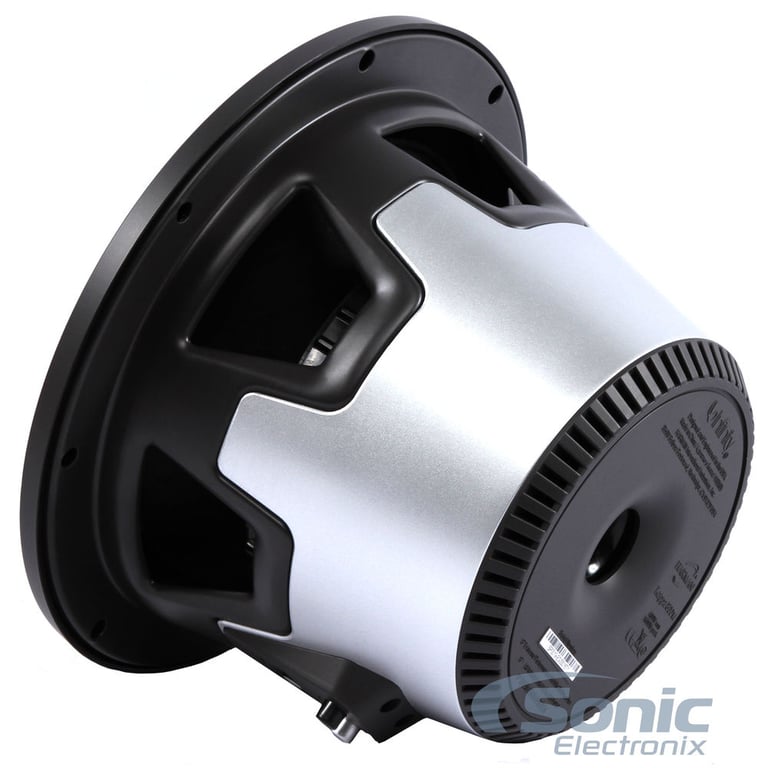

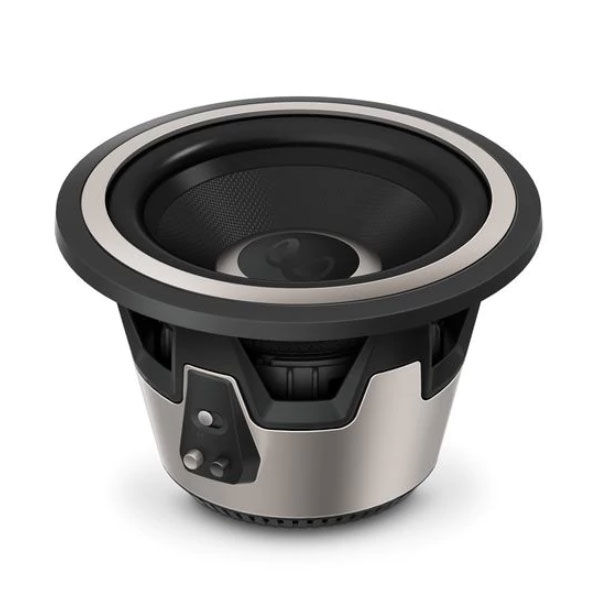

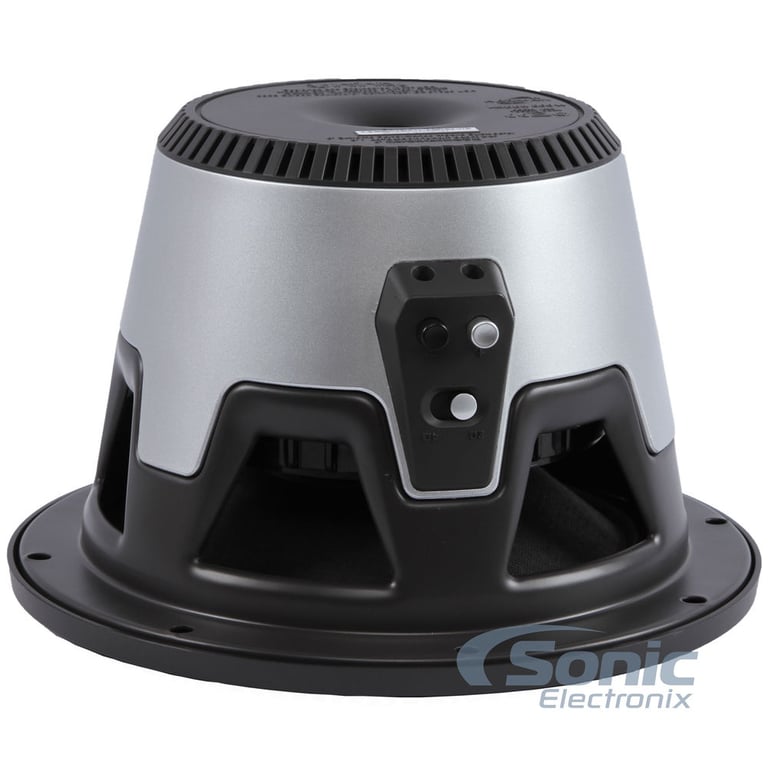

Infinity Kappa 800W

1600W Peak (400W RMS) 8" Kappa Series Selectable Smart Impedance (SSI) Subwoofer

Infinity
Shop all Infinity
highlight-star-icon

• 400 Watts RMS
• 1600 Watts Max
• Acoustically damped glass-fiber cone
• Proprietary aero-cooling design
• Acoustically damped glass-fiber cone
• Premium screw down terminals
• Two-sided, ducted airflow design

Learn more about the kappa800w

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

infsubka83wdssiam thumbnail

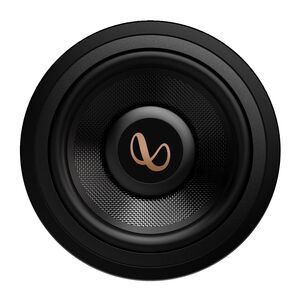

Infinity Kappa 83WDSSI (INFSUBKA83WDSSIAM)

OUR PRICE: $279.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
R1675X2 main

Rockford Fosgate Prime R1675X2

180W Peak (90W RMS) 6.75" Prime Series 2 Way Coaxial 4-ohm Speakers

59

Description


Infinity brand icon

Authorized dealer


The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • 8" Selectable Smart Impedance (SSI) Kappa Series Subwoofer

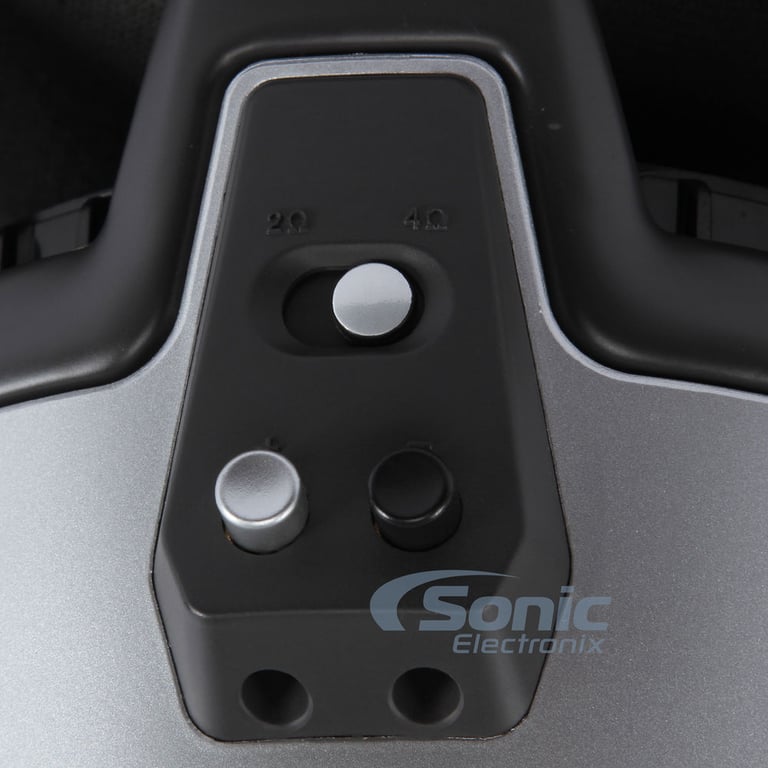

    • Choose between 2 or 4 ohm impedance at the flip of a switch
  • Power Handling:
    • Peak: 1600 watts
    • RMS: 400 watts
  • Recommended power range: 34 - 200W RMS
  • Proprietary aero-cooling design keeps the voice coil cool

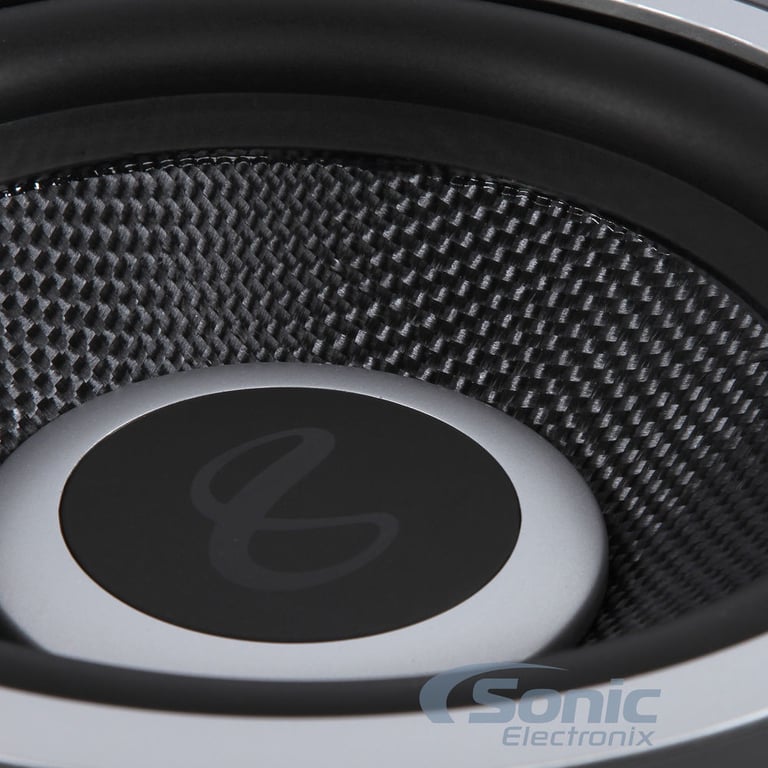

  • Acoustically damped glass-fiber cone
  • Premium screw down terminals
    • Accommodates up to 8 gauge wire
  • Aero-cooled voice coil
    • Two-sided, ducted airflow design
    • Increases power handling and improves reliability
  • Voice Coil Diameter: 2"
  • Top-mount depth: 5-3/4"
  • Cutout diameter: 7-1/2"
  • Frequency Response: 34 - 200 Hz
  • Sensitivity: 89 dB
  • Resonance Frequency (Fs): 34.5 Hz
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

What is Included:

  • Subwoofer
  • Foam Mounting Gasket
  • 3mm Hex Wrench
  • Owner's manual
Infinity Kappa 800W owner’s manual

PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Product history:

Infinity Kappa 83WDSSI-2 thumbnail
(newest, current model)
Infinity Kappa 800W thumbnail
(previous model, replaced by Infinity Kappa 83WDSSI (INFSUBKA83WDSSIAM))
Infinity KAPPA 83WDSSI thumbnail
(previous model, replaced by Infinity Kappa 800W)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Infinity Kappa 800W Subwoofer

Mono Amp

Wiring Guide to Wire 2 Infinity Kappa 800W Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Infinity Kappa 800W Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Infinity Kappa 800W Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

R2-W8D2 small

Alpine R2-W8D2

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.6 dB

$239.95

List price $360.00

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

SW-EV68D2 small

Sundown Audio E8 v.6 D2 8" (E8V6D2)

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Pressed Foam Surround
• Mount depth: 4.98"
• Sensitivity: 82.4 dB

$169.99

List price $203.99

R2-W8D4 small

Alpine R2-W8D4

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 4 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.7 dB

$239.95

List price $360.00

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

DES84 small

Diamond Audio DES84

• Peak Power: 500 watts
• RMS Power: 250 watts
• Fiber-Reinforced High Strength Paper Cone
• Impedance: Dual 4 ohm
• Sensitivity: 82.1 dB

$239.99

List price $219.99

Specifications & Details


Subwoofer Specifications
Series
Kappa Series
Subwoofer Size
8"
Peak Power Handling
1600 watts
RMS Power Handling
400 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Diameter
2"
Frequency Response
34 - 200 Hz
Sensitivity
89 dB
Xmax (millimeters)
9.25 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Glass Carbon Fiber
Woofer Surround
Glass Fiber
Magnet Type
Ferrite
Subwoofer Grille
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.4 cubic feet
Optimum Ported Box Volume
1 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/4"
Cutout Diameter
7-1/2"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
34.5 Hz
Equivalent Compliance (Vas)
12.87 liters
Total Speaker Q Value (Qts)
0.412
Electrical Q Value (Qes)
0.46
Electrical Resistance of Voice Coil (Re)
2 or 4 ohms
Mechanical Q Value (Qms)
4
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Kappa 800W

Weight:

9.51lbs

Internal SKU:

kappa800w

Internal Product ID:

125245
