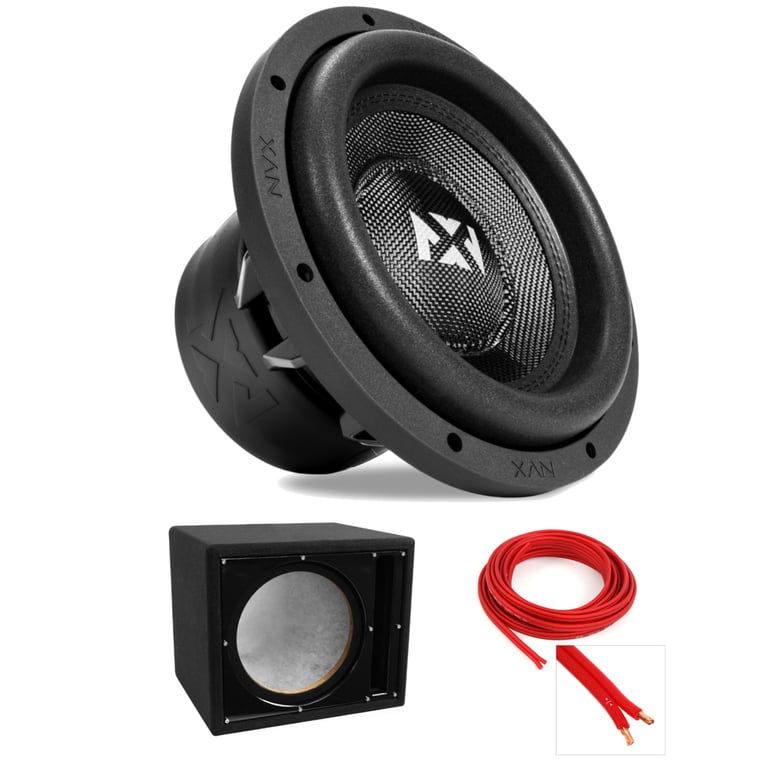

NVX VCW104 + Ported Enclosure

750W 10" VC-Series Dual 4-ohm Car Subwoofer + Ported Enclosure

NVX
Shop all NVX
highlight-star-icon

• RMS Power: 1000 Watts
• 3” 4-Layer High Temperature Black Aluminum Voice coil
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll foam surround with black nylon stitching
• 165 oz. Triple stacked High Energy ferrite magnet
• Die Cast aluminum vented basket
• Includes Ported Enclosure

Learn more about the vcw104_bbx110bk

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Description


NVX brand icon

Authorized dealer

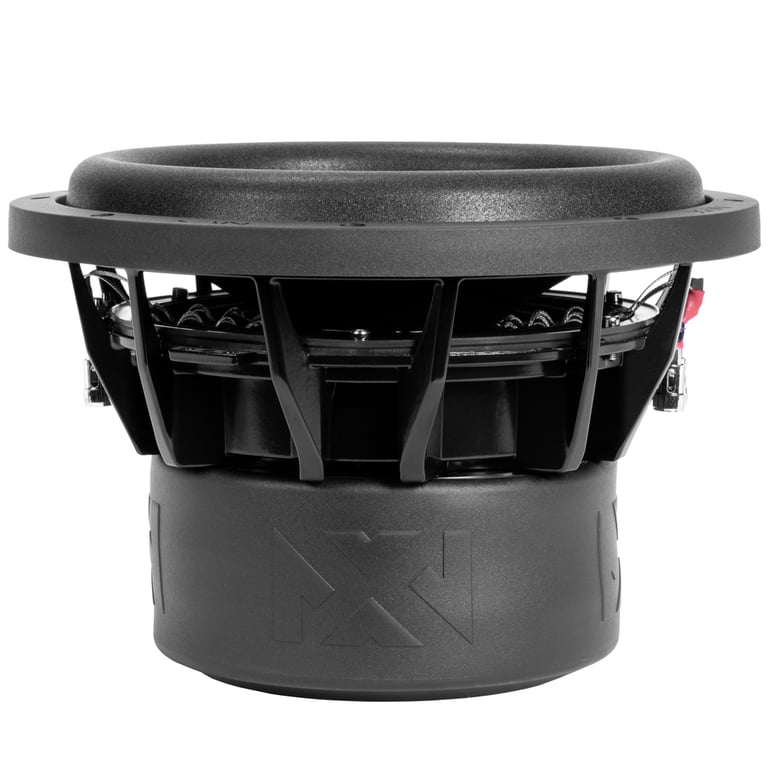

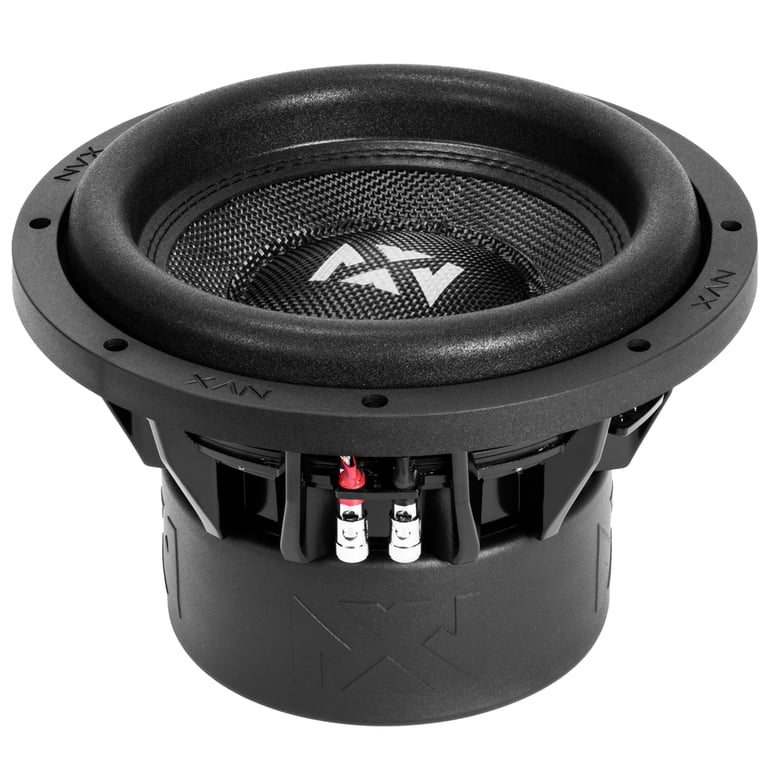

NVX V3 12 Inch Subwoofer
Roll Bolt-On Spiders 3 Inch Voice Coil Foam Surround
T-Yoke With Vented Magnet Gap

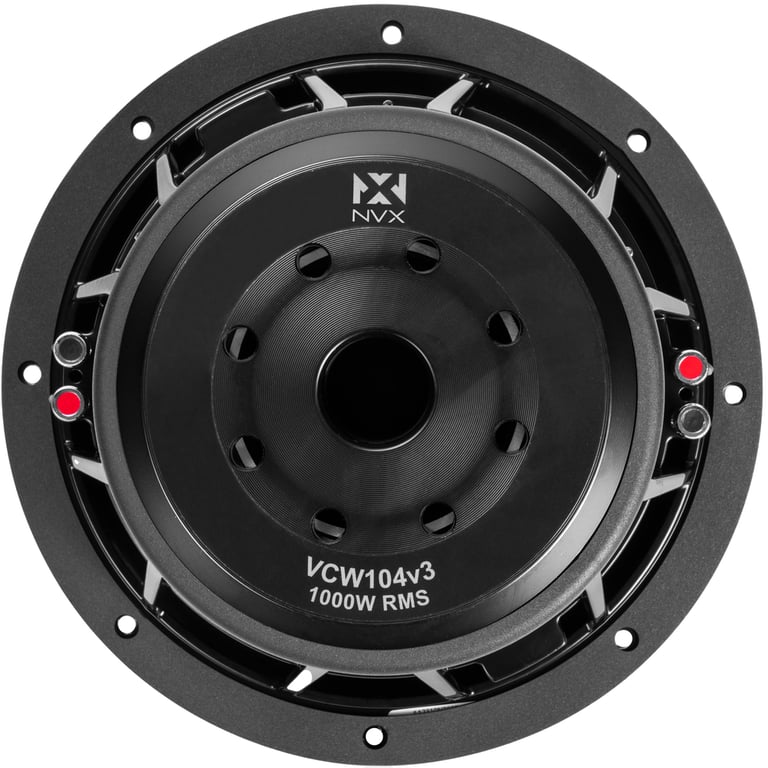

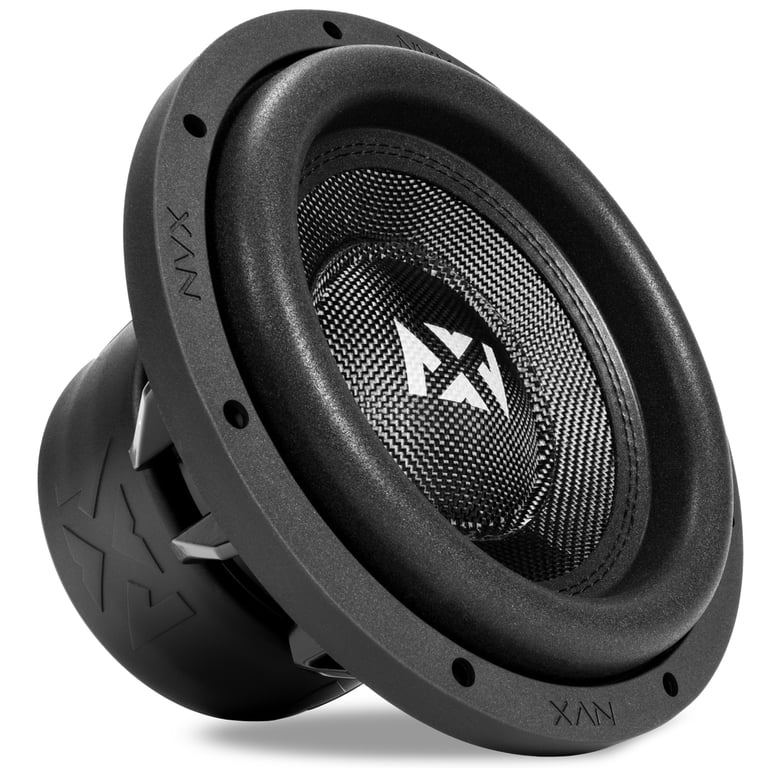

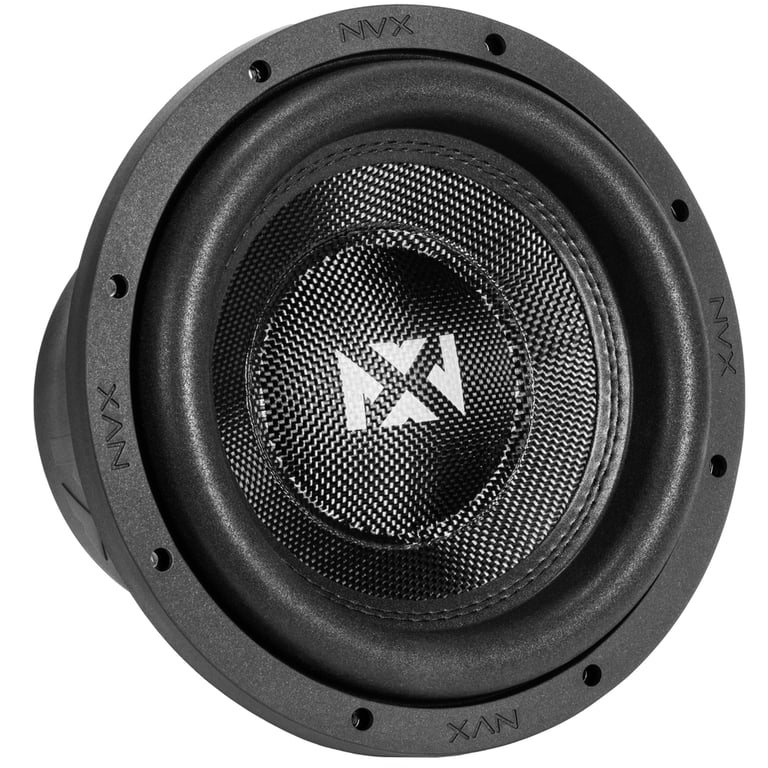

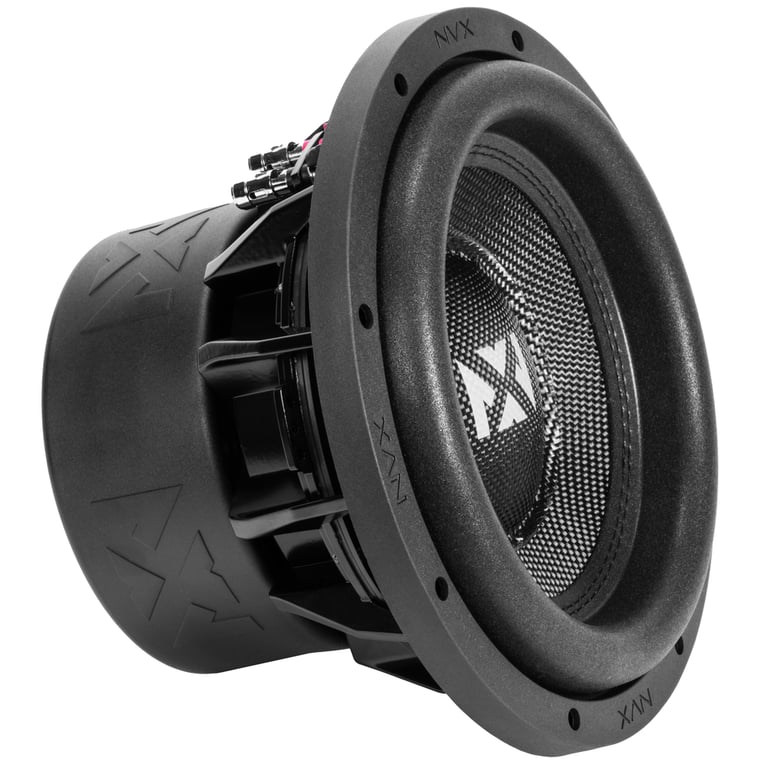

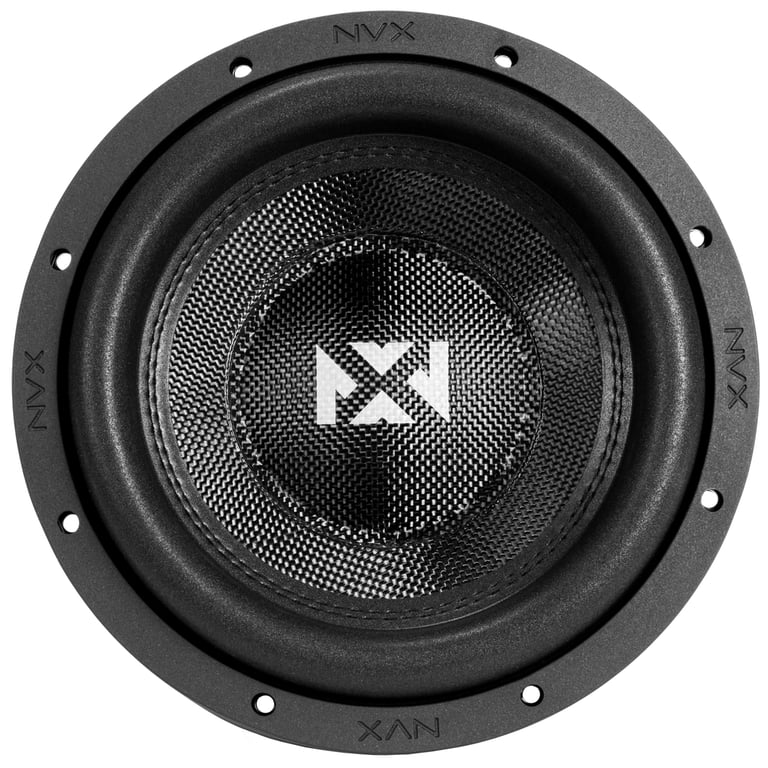

NVX VCW104 Version 3 (VCW104v3)

2000W Peak (1000W RMS) 10" VC-Series v3 Dual 4-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 10" Dual 4 ohm VC Series Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000 watts
  • Carbon Fiber Enhanced Non-Pressed Paper Cone

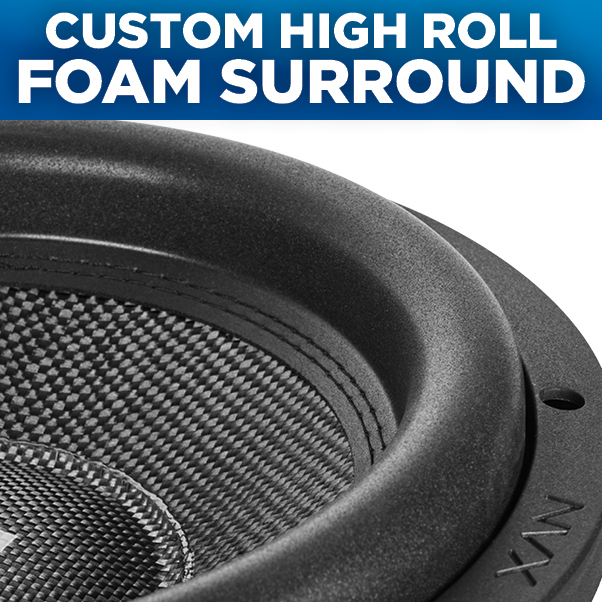

  • Custom High Roll Foam Surround with black nylon stitching
  • Die cast aluminum vented basket

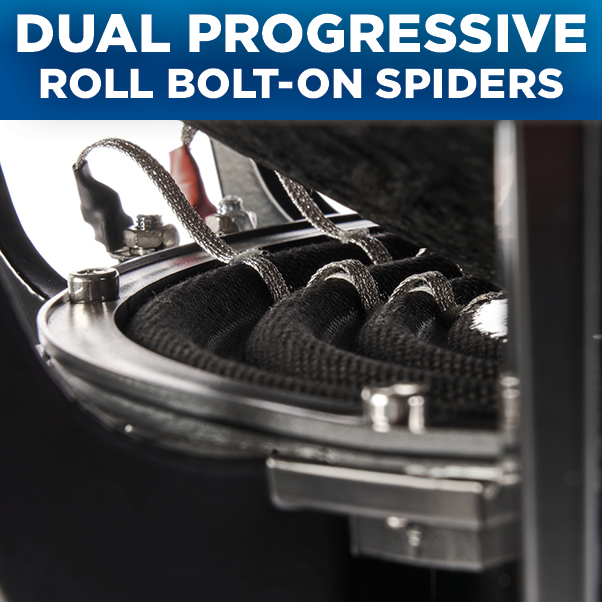

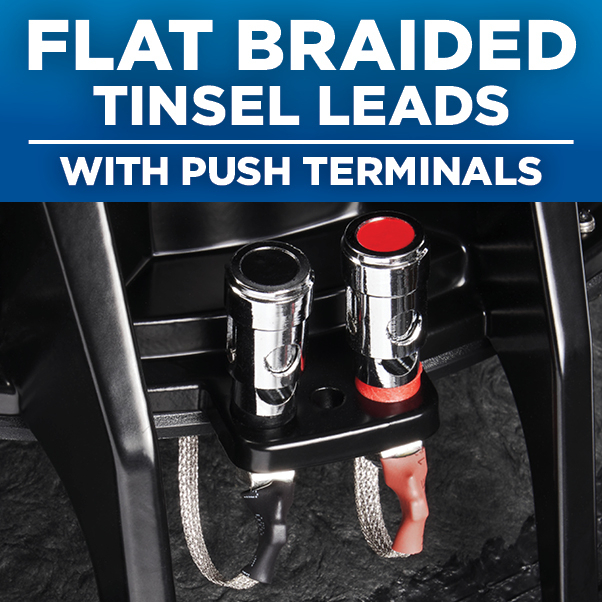

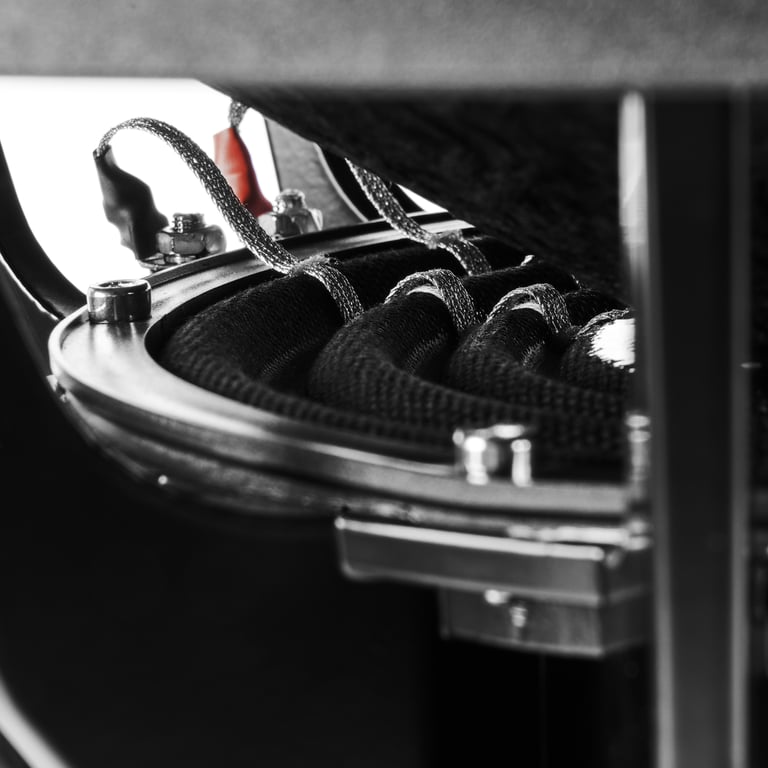

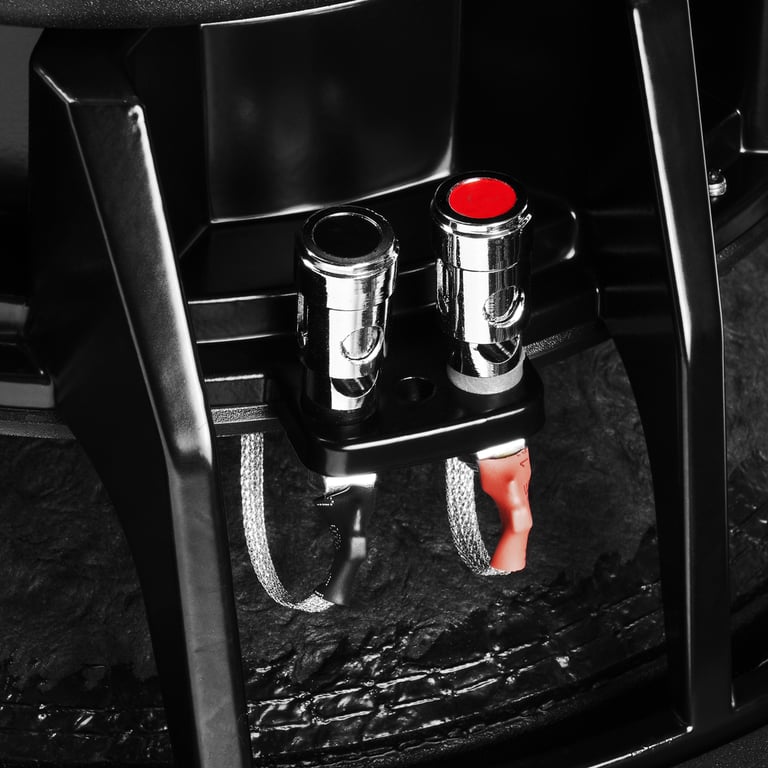

  • Dual progressive-roll spiders with integrated flat-braided leads

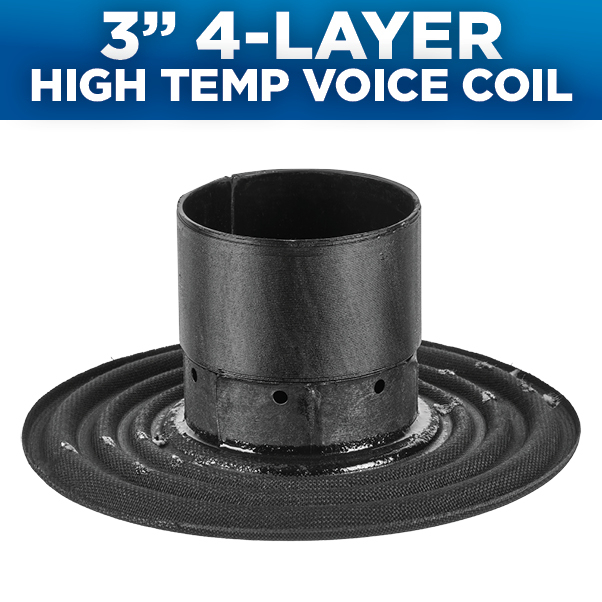

  • 3.0" 4-Layer High Temperature Black Aluminum Voice coil
  • Optimized high-velocity pole vent

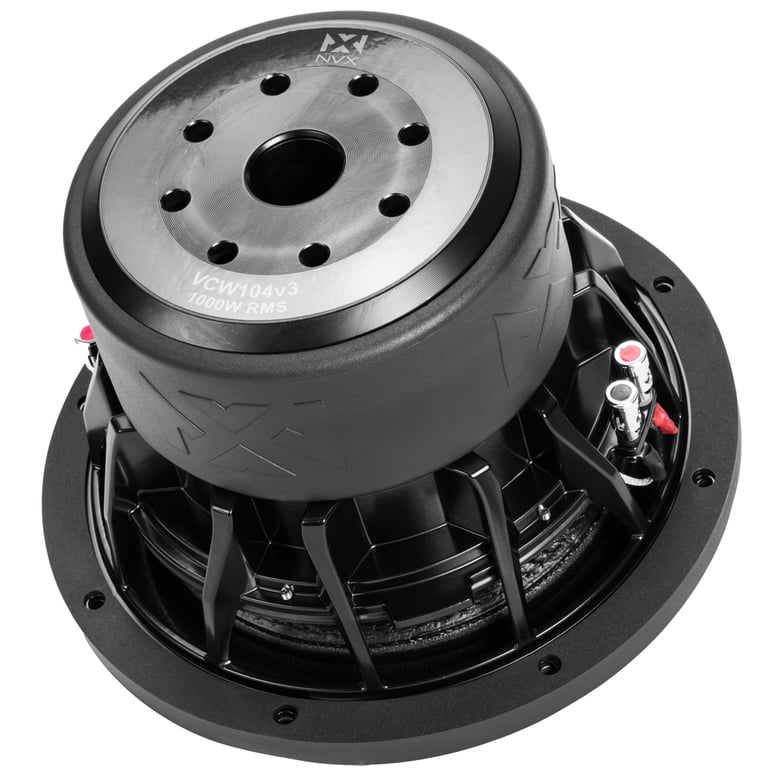

  • One-piece T-Yoke with integrated gap venting
  • 165 oz. Triple Stacked High Energy Y35 Ferrite with protective rubber boot
  • 22 mm Xmax (one-way) for massive air movement
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 32.4 Hz
  • Sensitivity: 82 dB (1W/1m)
  • Optimal sealed box volume: .55 cubic feet
  • Optimal ported box volume: 1.25 cubic feet
  • Top-mount depth: 6.30"
  • Cutout diameter: 9.65"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

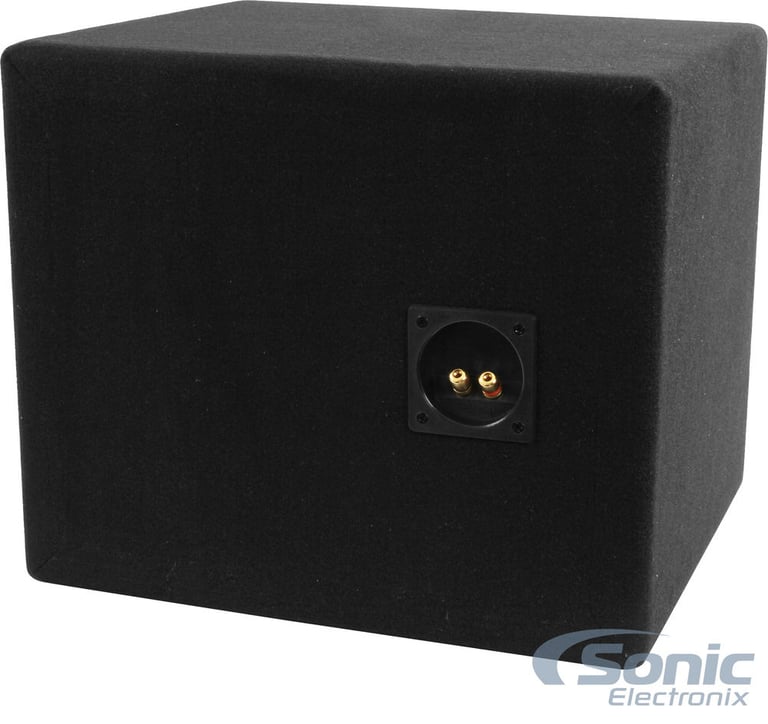

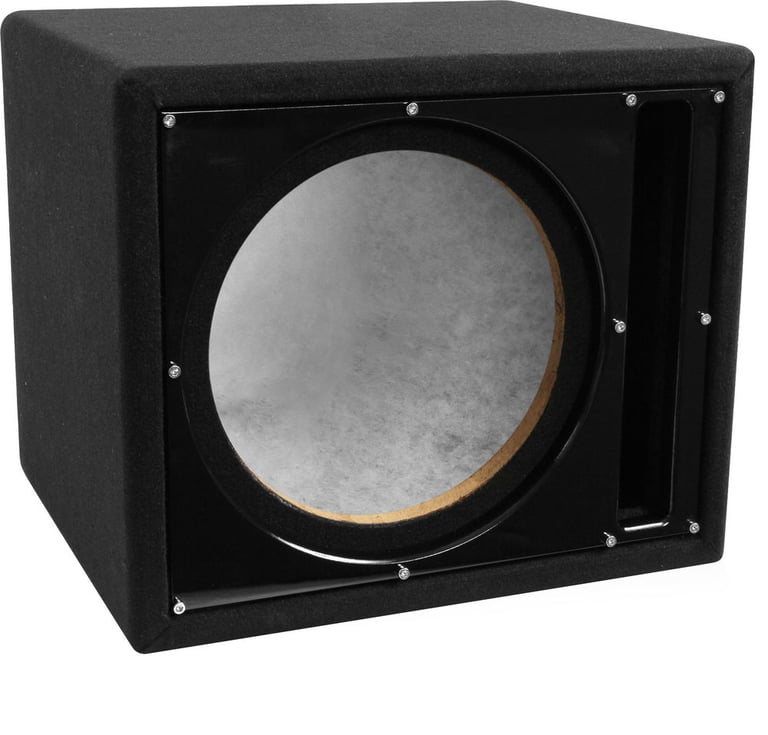

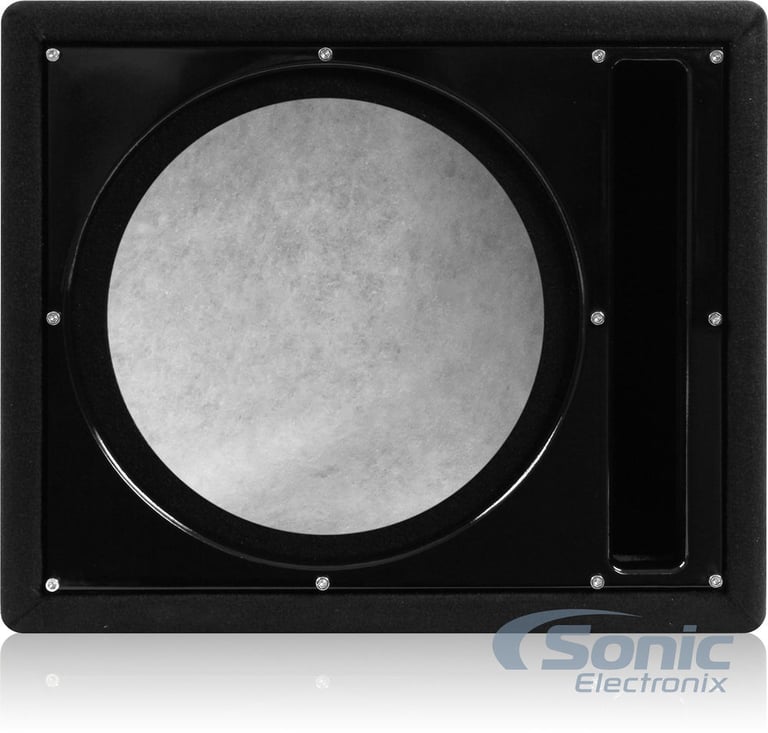

Belva BBX110BK (BLACK)

1.065 cu ft Single 10" Ported Car Subwoofer Box Enclosure with Custom Black Baffle
Quantity: 1

General Features:

  • 10" Single Ported Subwoofer Enclosure
  • Black high gloss front face board
  • Covered in black carpet
  • Durable 3/4" Medium Density Fiberboard (MDF) construction
  • Subwoofer mounting depth: 10"
  • Subwoofer cutout diameter: 9.5"
  • Mounting Ring Width: .75"
  • Total box volume: 1.065 cubic feet
  • Dimensions: 14"W x 16.5"L x 14"H
  • Also available in Blue and Red
  • Authorized Internet Dealer
  • 30-Day Return Policy

Port Specifications:

  • Rectangular Slot Port
  • Number of ports: 1
  • Estimated port tuned frequency (fb): 47 Hz
  • Port dimensions: 7"Length

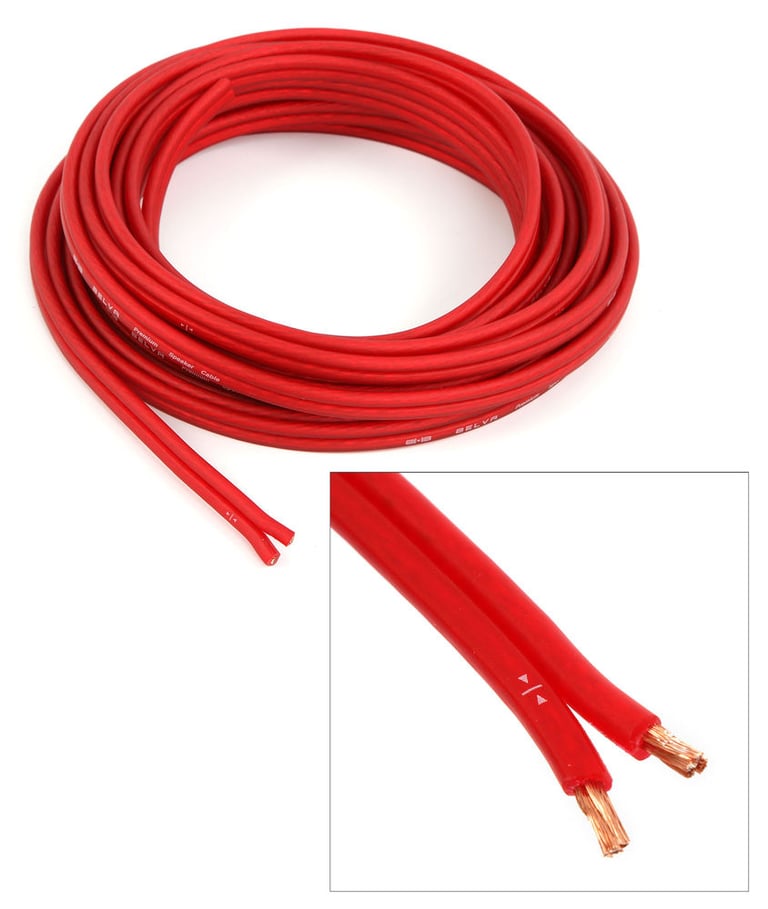

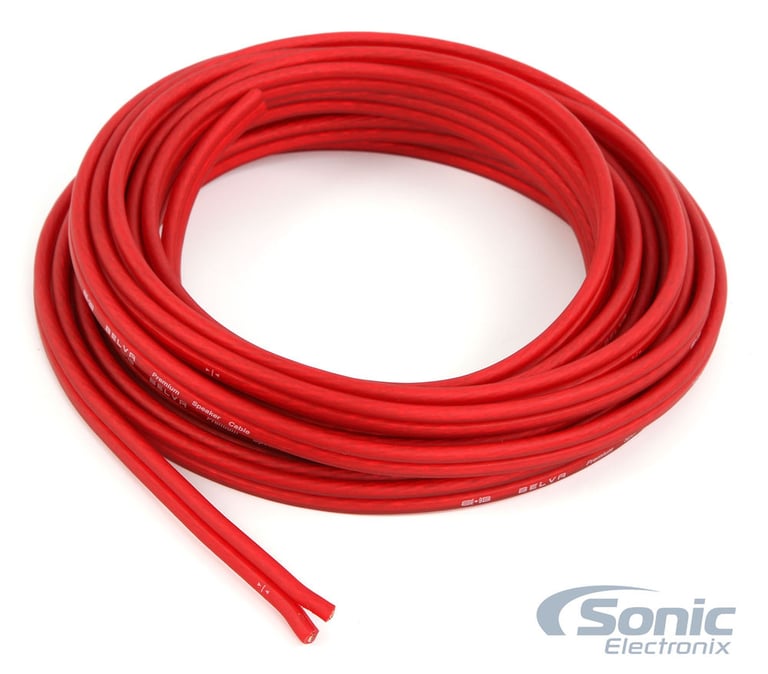

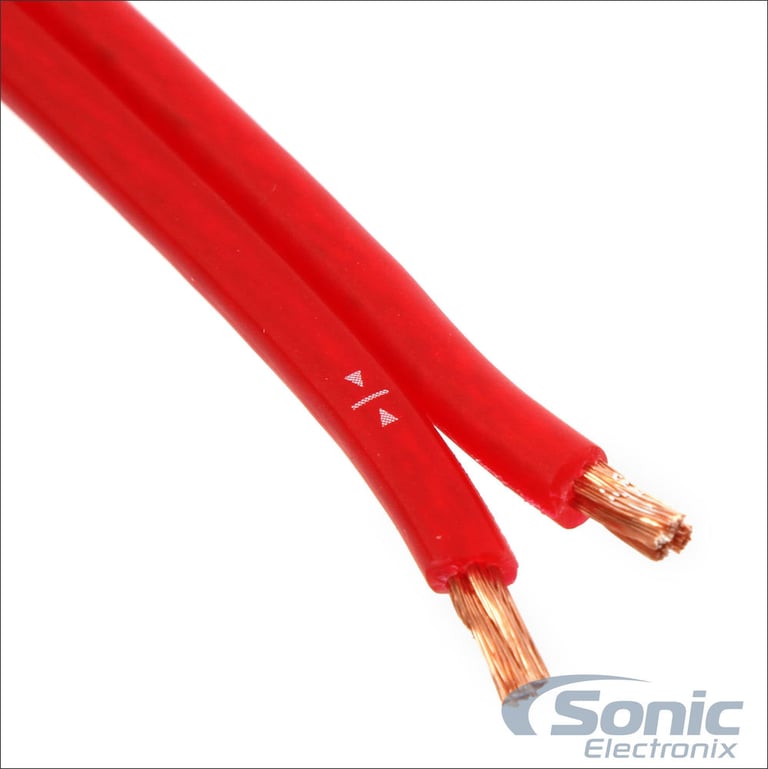

Belva BBSW127

12 Gauge 7 Meter (23 Ft) Speaker Wire (CCA)
Quantity: 1

General Features:

  • 12 Gauge Speaker Wire
  • High strand count for maximum flexibility
  • Ultra-flexible PVC blended jacket for easy installation
  • Packed in resealable bag
  • Length: 7m (23 Ft)
  • Also available in 16 Gauge
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

CP210-W0v3 small

JL Audio BassWedge CP210-W0v3

•Dual 10" 10W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(9)

$349.99

List price $349.99

DL7R122 small

Kicker DL7R122 (45DL7R122)

• Ported enclosure with 2 12" Solo-Baric L7R Series Subwoofer
• 1200 watts RMS (2400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 15-7/8" H x 15-1/4" W x 20-3/8" W2

(8)

$519.96

List price $699.99

CP112-W0v3 small

JL Audio BassWedge CP112-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$279.99

List price $279.99

Specifications & Details


Subwoofer Specifications
Series
VC Series
Subwoofer Size
10"
RMS Power Handling
750 watts
Peak Power Handling
1500 watts
Woofer Composition
Woven Fiber Pressed Paper
Woofer Surround
Foam
Sensitivity
83 dB
Frequency Response
20 - 200 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type

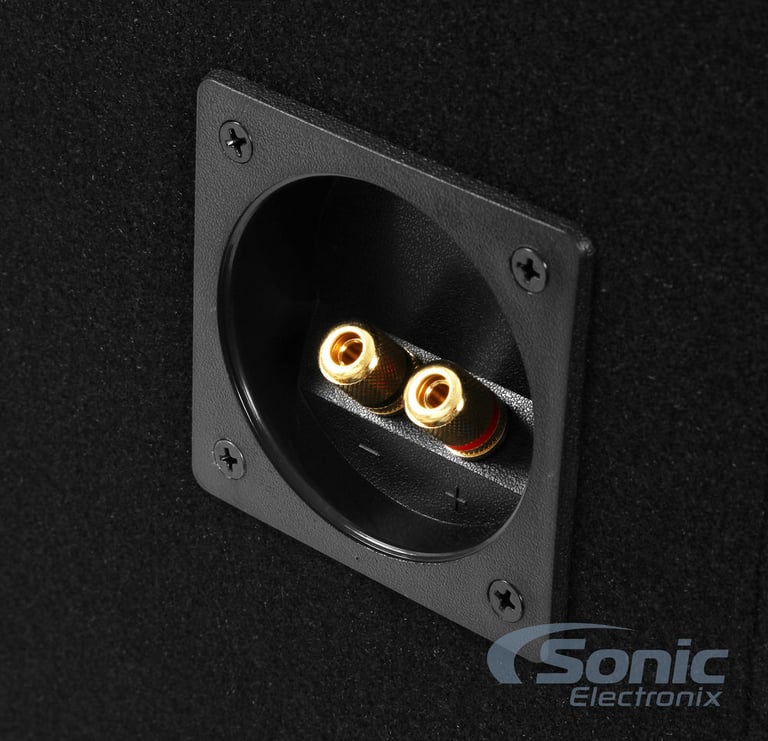

Spring posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VCW104_BBX110BK

Weight:

46.15lbs

Internal SKU:

vcw104_bbx110bk

Internal Product ID:

126675
