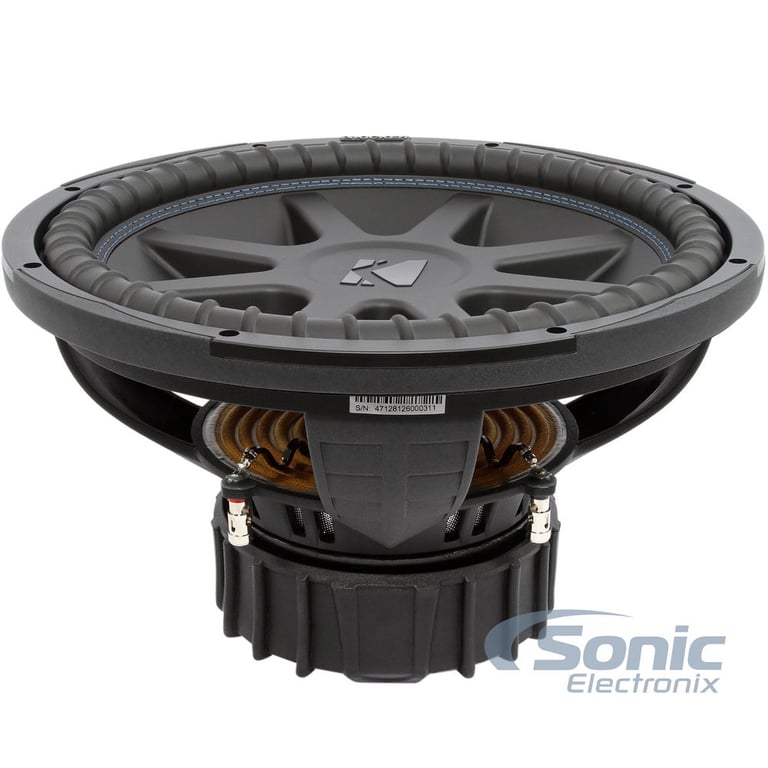

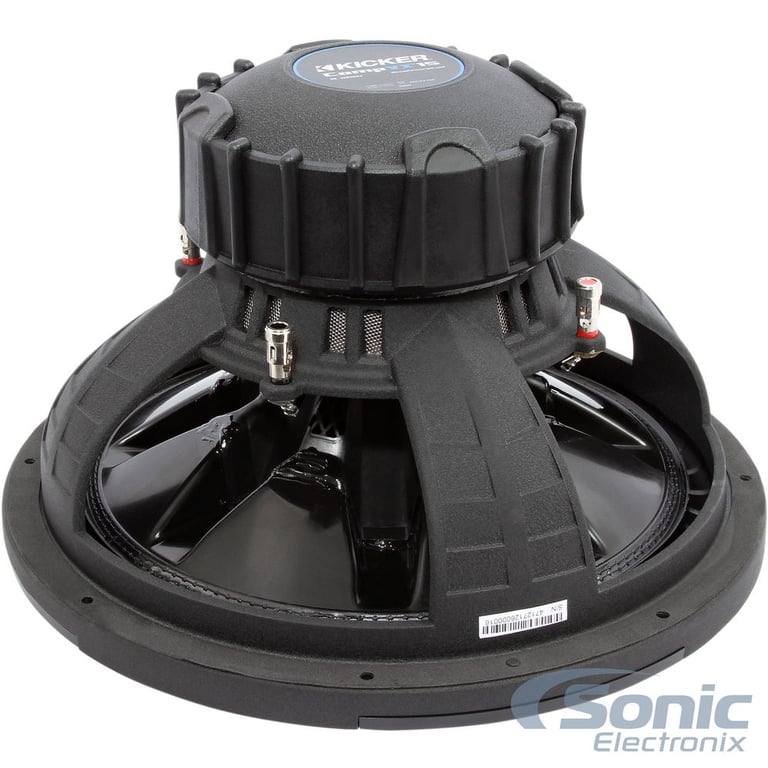

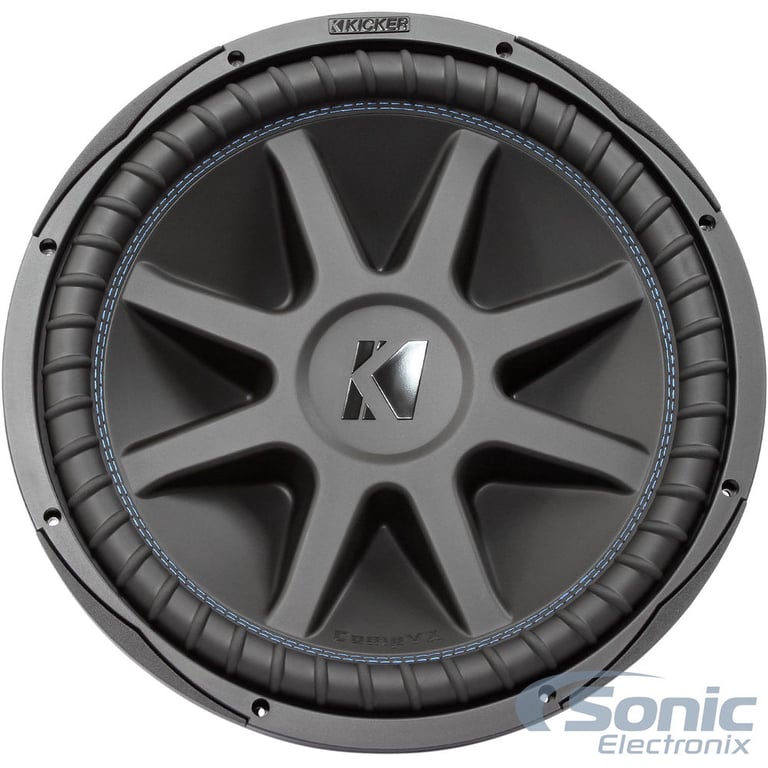

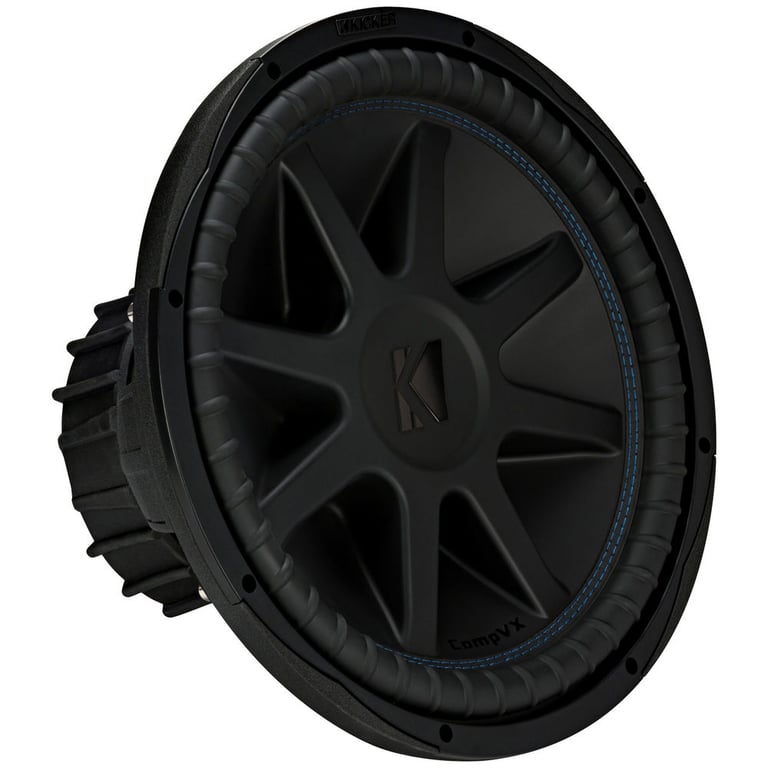

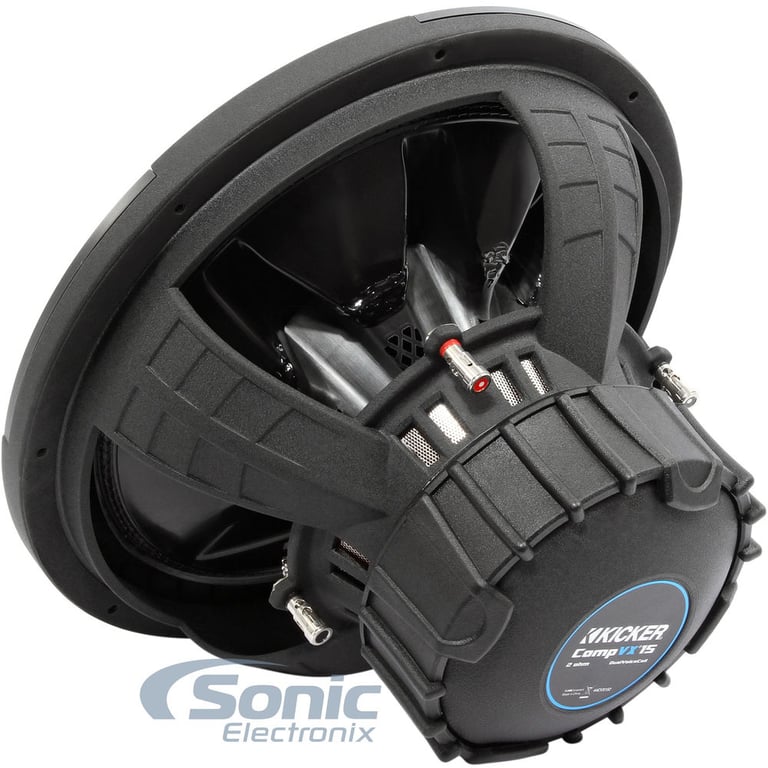

Kicker CompVX CVX152 (44CVX152)

2000W Peak (1000W RMS) 15” CompVX Series Dual 2-ohm Subwoofer

Kicker
Shop all Kicker
highlight-star-icon

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8-1/2"
• Sensitivity: 91.6 dB

Learn more about the 44cvx152

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

50cvx152 thumbnail

Kicker CVX152 (50CVX152)

OUR PRICE: $429.99

View item

Loading...

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Hifonics ZS5768CX

500W Peak (180W RMS) 5x7" / 6x8” Zeus Series 4-ohm Coaxial Speakers

4
-18.92%

$29.99

List price $36.99

Description


Kicker brand icon

Authorized dealer

Product Details:

  • 15" Dual 2 ohm CompVX Series Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000 watts
  • Polypropylene Cone
  • Ribbed Santoprene Surround
  • Forged Aluminum frame
  • Perimeter venting for max air flow
  • Oversized suspension system
  • High-strength insulated tinsel leads
  • Perimeter venting for thermal management
  • Uniplate™ extended pole piece & backplate for superior heat dissipation
  • Satin nickel spring-loaded speaker terminals
  • 20.65 mm Xmax
  • Massive ceramic magnet and extra stout voice coils
  • Signature double Blue surround stitching
  • SoloKon™ cone reinforcement
  • Frequency Response: 18 - 500 Hz
  • Resonance Frequency (Fs): 26 Hz
  • Sensitivity: 91.6 dB
  • Recommended sealed box volume: 1.8 cubic feet - 5.2 cubic feet
  • Recommended ported box volume: 3 cubic feet - 5 cubic feet
  • Top-mount depth: 8-1/2"
  • Cutout diameter: 13-13/16"
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

  • Priced Individually

Product history:

Kicker 50CVX152 thumbnail
(newest, current model)
Kicker CVX152-2 thumbnail
(previous model, replaced by Kicker CVX152 (50CVX152))
Kicker 10CVX152 thumbnail
(previous model, replaced by Kicker CompVX CVX152 (44CVX152))
Kicker CVX152 thumbnail
(previous model, replaced by Kicker 15" CompVX 2 Ohm (10CVX152))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker CompVX CVX152 (44CVX152) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker CompVX CVX152 (44CVX152) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker CompVX CVX152 (44CVX152) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Kicker CompVX CVX152 (44CVX152) Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

Specifications & Details


Subwoofer Specifications
Series
CompVX Series
Subwoofer Size
15"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
18 - 500 Hz
Sensitivity
91.6 dB
Xmax (millimeters)
20.65 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Ribbed Santoprene
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.8 cubic feet
Maximum Sealed Box Volume
5.2 cubic feet
Minimum Ported Box Volume
3 cubic feet
Maximum Ported Box Volume
5 cubic feet
Top-Mount Depth (Mounting Depth)
8-1/2"
Cutout Diameter
13-13/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
26 Hz
Equivalent Compliance (Vas)
113.052 liters
Total Speaker Q Value (Qts)
0.321
Electrical Q Value (Qes)
0.329
Electrical Resistance of Voice Coil (Re)
4.23 ohm
Mechanical Q Value (Qms)
13.465
What is in the box?
Paperwork
User manual
Warranty/Registration card
Brand sticker/decal
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

CVX152-2

Weight:

25.00lbs

Internal SKU:

44cvx152

Internal Product ID:

127713
