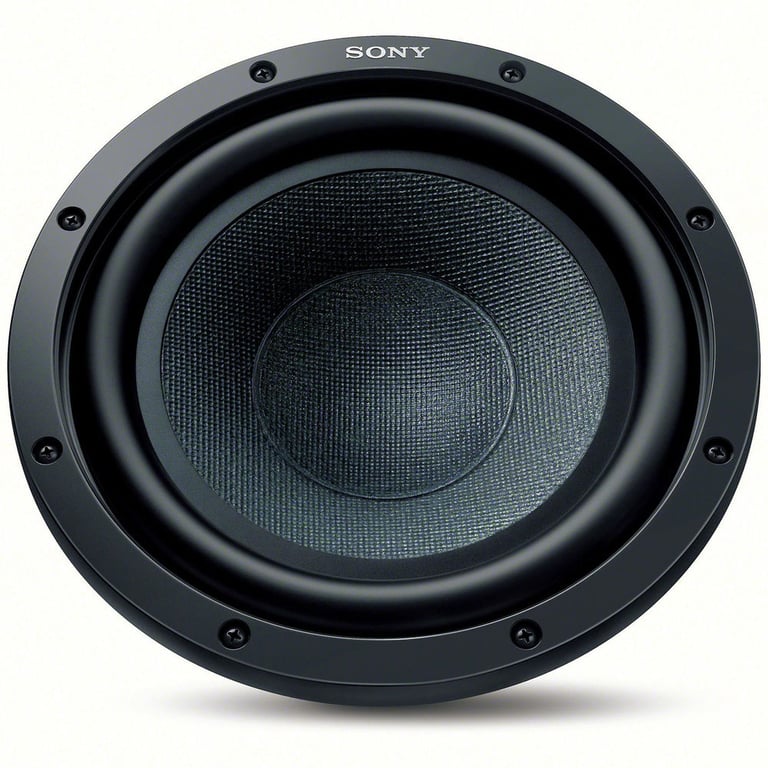

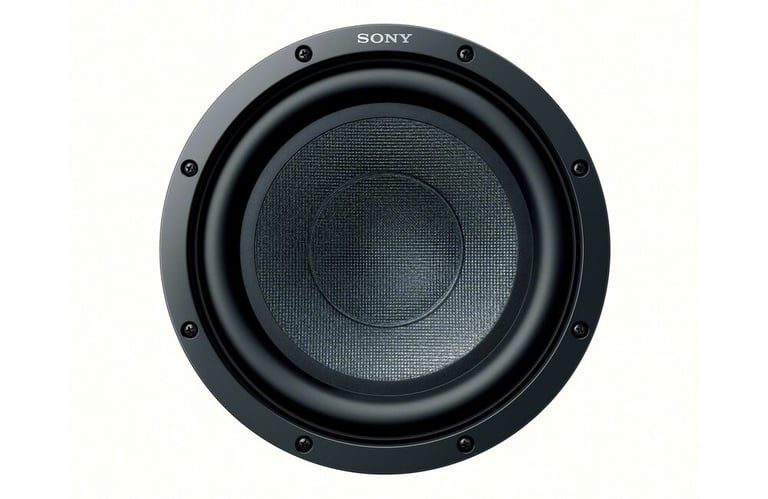

Sony XS-GSW101 (Open Box, Complete)

1800W Peak (450W RMS) 10" XS Series Single 4-Ohm Car Subwoofer

Sony
Shop all Sony
highlight-star-icon

• 450 Watts RMS
• 1,800 Watts Max
• Mica reinforced cellular glass fiber cone
• Rubber surround
• CEA 2031 rated subwoofer
• Dual layer cone with honeycomb structure
• Sensitivity: 89 dB

Learn more about the ls-xsgsw101-obc8

We apologize

This item has been discontinued

Description


Sony brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Damaged Packaging Only:
A Brand New with Damaged Packaging product is an untouched, unused product, but has damaged original packaging. While the product should be untouched and perfect condition, select packaging materials, such as original protective wrapping, if any, may be missing or damaged. The original manufacturer warranty, if any, still applies, with warranty details included in the listing description or comments. Instructions are included. Product is suitable for presenting as a gift so long as recipient appreciates a great item, not packaging.
Sony Store



Sony XS-GSW121
GS Series Subwoofer Driver

Sony's new GS Series subwoofers are the perfect solution to add outstanding bottom end to your audio system. Whether you're building a full-blown aftermarket setup, or just looking to integrate better overall performance into your OEM system, the GS Series has you covered. This driver has been purpose-engineered to deliver outstanding sound quality and vastly better bass over other subs in its price bracket.

The XS-GSW101 is a 10" Single Voice Coil subwoofer driver intended to deliver larger, yet controlled, boomy bass. Its large surface area allows awesome air displacement to reach fantastically low frequencies. It accomplishes this through maximized overall build quality, delivering a solid 450 watts RMS with an excursion peaking at 6.4mm. In addition, the XS-GSW101 has a very respectable frequency response of 25 - 500 Hz, making it very easy to blend (crossover) into your full-range stage.


Premium Sound Requires A Premium Build


Premium Sound Requires A Premium Build

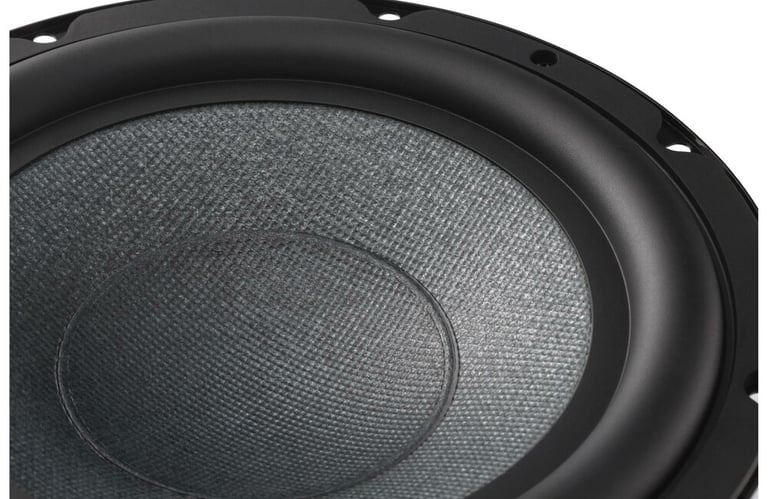

The XS-GSW101 single voice coil subwoofer driver cone is constructed using a mica reinforced cellular (MRC) honeycomb design for reduced weight and increased rigidity, delivering deep bass response. A subwoofer's cone can naturally bend and warp due to the force exerted by the motor of the driver. If allowed, the sound produced is inaccurate and poor quality. The XS-GSW121 is engineered to counteract this, thereby delivering superb response.

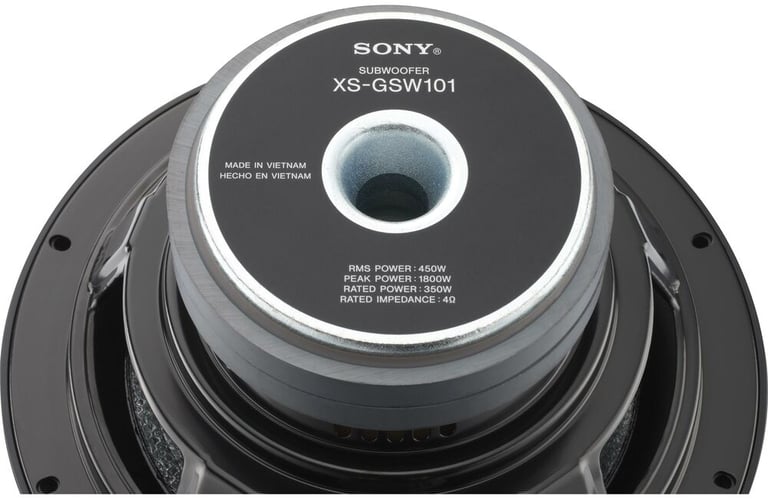

Motor Design for Outstanding Output

Motor Design for Outstanding Output


The XS-GSW101 woofer uses a powerful, high-energy ferrite magnet to control cone travel and deliver outstanding power handling. The XS-GSW101 subwoofer is CEA 2031 rated for 450 watts, 350 Watts RMS and can handle peak power of 1,800 watts. This more-than-middling figure makes the XS-GSW101 perfect for a system starving for low end bass output. 450 Watts RMS won't shake a vehicle, but bring life to an otherwise bland audio system and deliver that thump we all love.



Maximize Power Delivery

Maximize Power Delivery

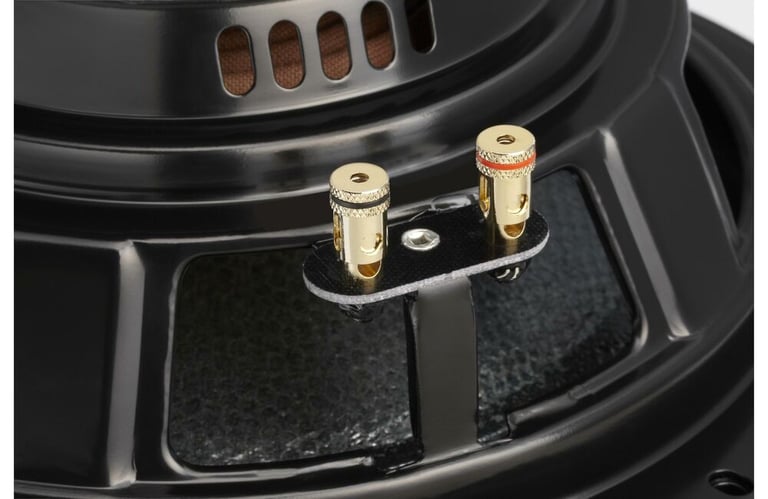

The XS-GSW101 gold-plated, spring-loaded binding posts provide secure wire connections for high power handling. These terminals are capable of accepting a 10-gauge speaker wire to maximize power delivery - or more wattage, if you prefer - and performance. By accepting a slightly larger wire than most traditional 10" drivers, the XS-GSW101 is able to deliver more power than some other 10" subs. Moreover, the gaps in the stamped steel frame allow the driver to breathe, greatly reducing the risk of burning out the subwoofer's motor.





General Features:

  • 10" 4 ohm GS Series Subwoofer
  • Power Handling:
    • Peak: 1,800 watts
    • RMS: 350 watts
    • CEA Rated power: 450 watts
  • CEA 2031 Rated
  • Mica reinforced cellular glass fiber cone
  • Rubber surround
  • Dual layer cone, with a honeycomb core to increase flexural rigidity, up to 10 times more than polypropylene
  • Gold-plated spring-loaded binding posts
  • Single voice coil
  • Ferrite magnet
  • Top-mount depth: 5-1/8"
  • Cutout diameter: 9-1/4"
  • Frequency Response: 28 - 500Hz
  • Sensitivity: 89 dB
  • Resonance Frequency (Fs): 39
  • Authorized Internet Dealer
  • 30 Day Sonic Electronix Warranty
  • Priced Individually

Check out the XS-GSW101 Owner's Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Sony XS-GSW101 (Open Box, Complete) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Sony XS-GSW101 (Open Box, Complete) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Sony XS-GSW101 (Open Box, Complete) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Sony XS-GSW101 (Open Box, Complete) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
GS Series
Subwoofer Size
10"
Peak Power Handling
1,800 watts
RMS Power Handling
450 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
28 - 500 Hz
Sensitivity
89 dB
Xmax (millimeters)
6.4 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Reinforced Cellular Glass-Fiber
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.84 cubic feet
Optimum Ported Box Volume
1.37 cubic feet
Cutout Diameter
9-1-4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
39 Hz
Equivalent Compliance (Vas)
1.08 liters
Total Speaker Q Value (Qts)
.39
Electrical Q Value (Qes)
.42
Electrical Resistance of Voice Coil (Re)
3.7 ohm
Mechanical Q Value (Qms)
5.29
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
30 days
Labor Warranty Duration
30 days
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

XS-GSW101-2

Weight:

12.00lbs

Internal SKU:

ls-xsgsw101-obc8

Internal Product ID:

182011
