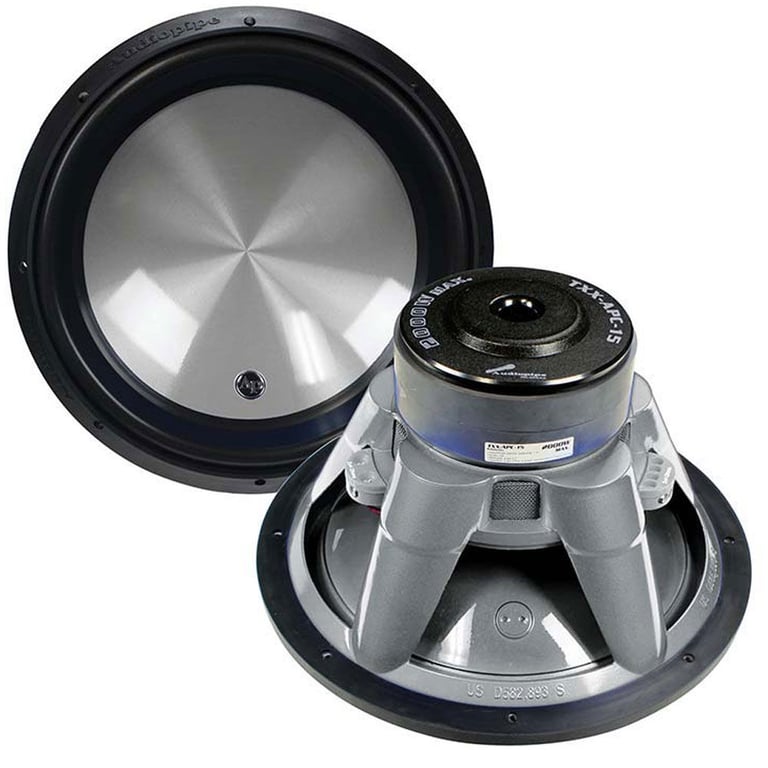

Audiopipe TXX-APC-15FG

2,000W Peak (1,000W RMS) 15" Eye Candy Dual 2/4-Ohm Car Subwoofer

Audiopipe
Shop all Audiopipe
highlight-star-icon

• Peak Power: 2,000W
• RMS Power: 1,000W
• Aluminum Cone

Learn more about the txxapc15fg

We apologize

This item has been discontinued


Loading...
40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

45
GM1483B main

Scosche GM1483B / GM1483 Dash Kit

Install a new Single-DIN car stereo in select 1995-2023 vehicles from GMC, Chevrolet, Cadillac trucks (Black)

119
-54.55%

$6.34

List price $13.95

MDA1B main

Scosche MDA1B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

366
-33.07%

$5.99

List price $8.95

70-1858 main

Metra 70-1858 Wiring Harness

Install a new car stereo in select 1986-2006 vehicles from Chevrolet, GMC, Pontiac

63
95-3003G main

Metra 95-3003G Dash Kit

Double DIN Stereo Dash Kit for select 1995-2000 vehicles from GMC, Chevrolet, Cadillac

17
-57.59%

$13.99

List price $32.99

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

Limited time!
DCPA1013 main

Dual DCPA1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

5
-24.48%

$289.99

List price $383.99

FH-S722BS main

Pioneer FH-S722BS

Double DIN CD Receiver with Bluetooth, Amazon Alexa and SiriusXM Ready

7
-11.54%

$229.99

List price $260.00

FRING46 main

NVX FRING46

Universal 4x6" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

1
-45.02%

$10.99

List price $19.99

REF467F main

Infinity REF467F (INFSPKRF467FUS)

270W Peak (90W RMS) 4x6" Reference Series 2-Way Coaxial 3-ohm Speakers

-21.44%

$109.95

List price $139.95

Description


Audiopipe brand icon

Authorized dealer

General Features:

  • 15" 2/4 Ohm Dual Voice Coil Eye Candy Subwoofer
  • Power Handling:
    • Peak: 2,000 watts
    • RMS: 1,000 watts
  • One-piece aluminum cone
  • Dual 4-layer aluminum voice coils
  • Color: Flat gray
  • Top-mount depth: 8-1/4"
  • Frequency Response: 20-600 Hz
  • Sensitivity: 98.6 dB
  • Resonance Frequency (Fs): 32
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiopipe TXX-APC-15FG Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiopipe TXX-APC-15FG Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiopipe TXX-APC-15FG Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Audiopipe TXX-APC-15FG Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

Specifications & Details


Subwoofer Specifications
Series
Eye Candy
Subwoofer Size
15"
Peak Power Handling
2,000 watts
RMS Power Handling
1,000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Diameter
3"
Frequency Response
20 - 600 Hz
Sensitivity
32 dB
Xmax (millimeters)
.51 mm
Subwoofer Design
Round / Circle
Woofer Composition
Aluminum
Magnet Structure
Double Stacked
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
2.0 cubic feet
Maximum Sealed Box Volume
3.0 cubic feet
Minimum Ported Box Volume
3.0 cubic feet
Maximum Ported Box Volume
3.5 cubic feet
Top-Mount Depth (Mounting Depth)
8-1/4"
Cutout Diameter
13-7/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32 Hz
Equivalent Compliance (Vas)
48 liters
Total Speaker Q Value (Qts)
.5
Electrical Q Value (Qes)
.75
Electrical Resistance of Voice Coil (Re)
2 x 3.6 ohm
Mechanical Q Value (Qms)
2.6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TXX-APC-15FG

Weight:

37.00lbs

Internal SKU:

txxapc15fg

Internal Product ID:

128575
