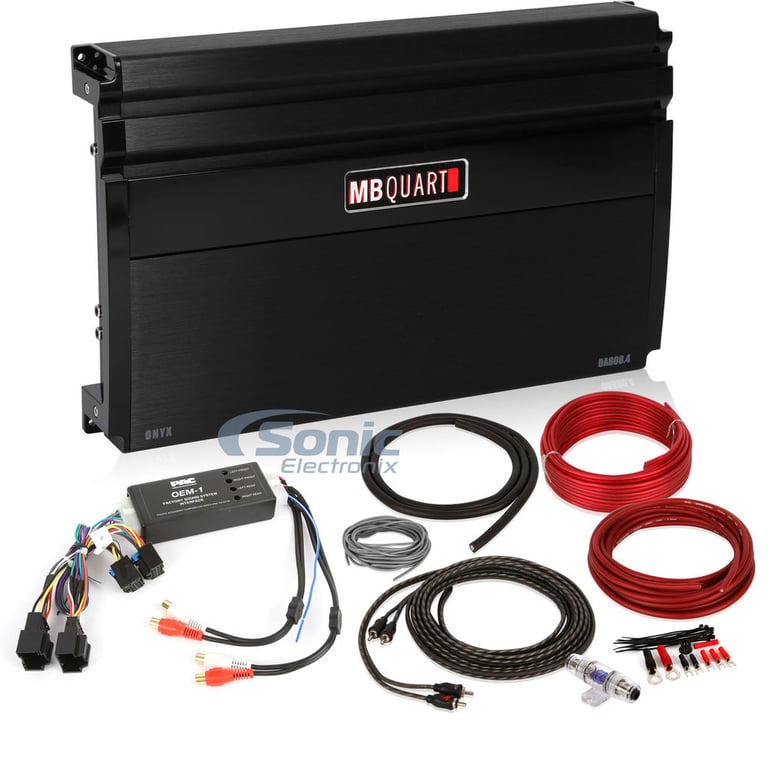

MB Quart OA800.4 Amplifier Installation Kit for Factory 2006-13 GM Systems

General Features:

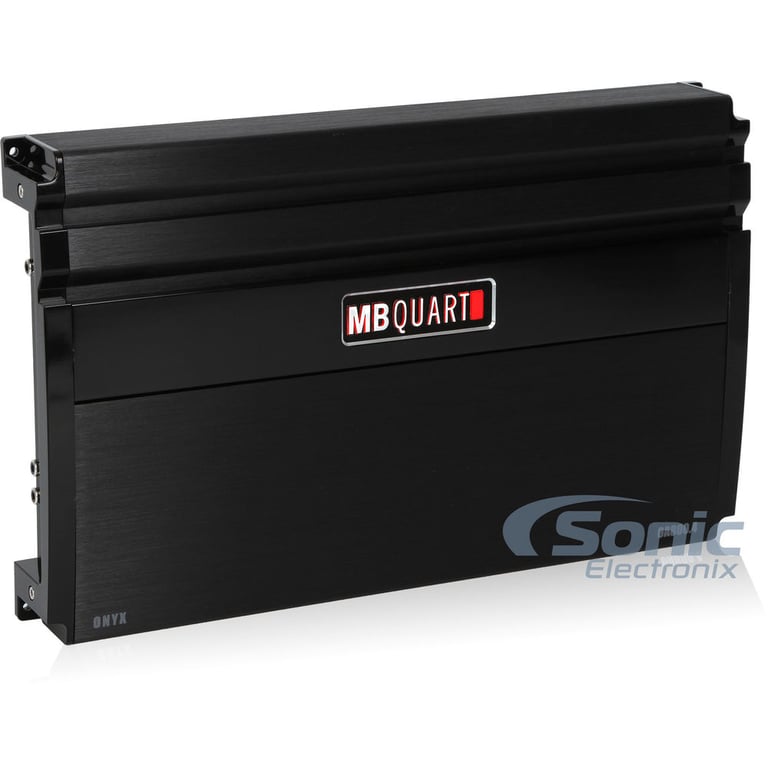

• Onyx Series 4-Channel Class SQ Car Amplifier
• RMS Power Rating:
• 4 ohm: 100 watts x 4 chan.
• 2 ohm: 200 watts x 4 chan.
• Bridged, 4 ohm: 400 watts x 2 chan.
• FLUID-FETS MOSFET Circuit maximizes power efficiency while improving sound quality

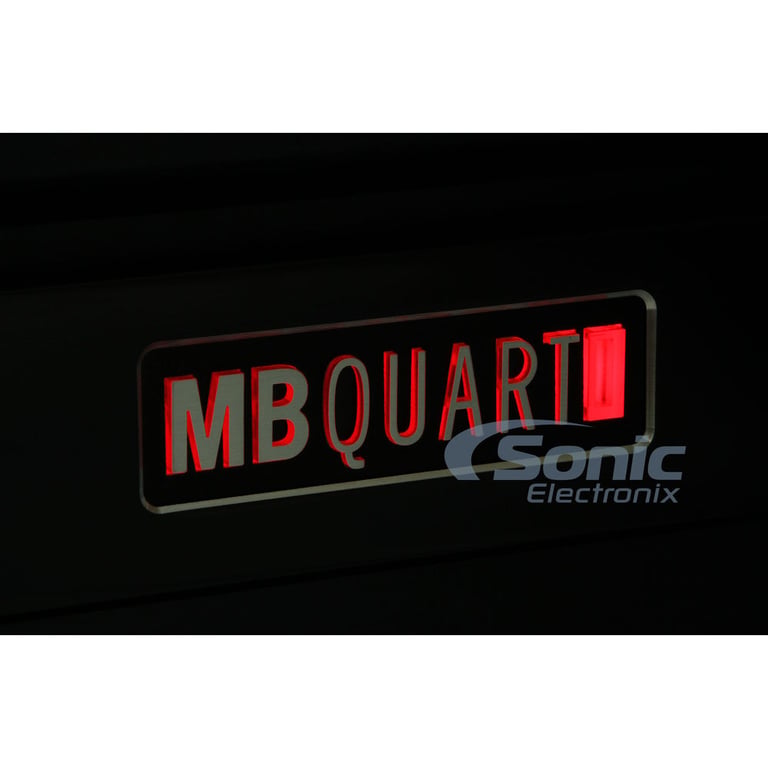

• Heavy duty aluminum alloy heat-sink with illuminated MB Quart logo
• LED power (green) and protect (red) indicators
• Unbalanced RCA jack inputs
• Built-in system diagnostics
• 2-Ohm Stable operation, bridgeable to 4-ohm

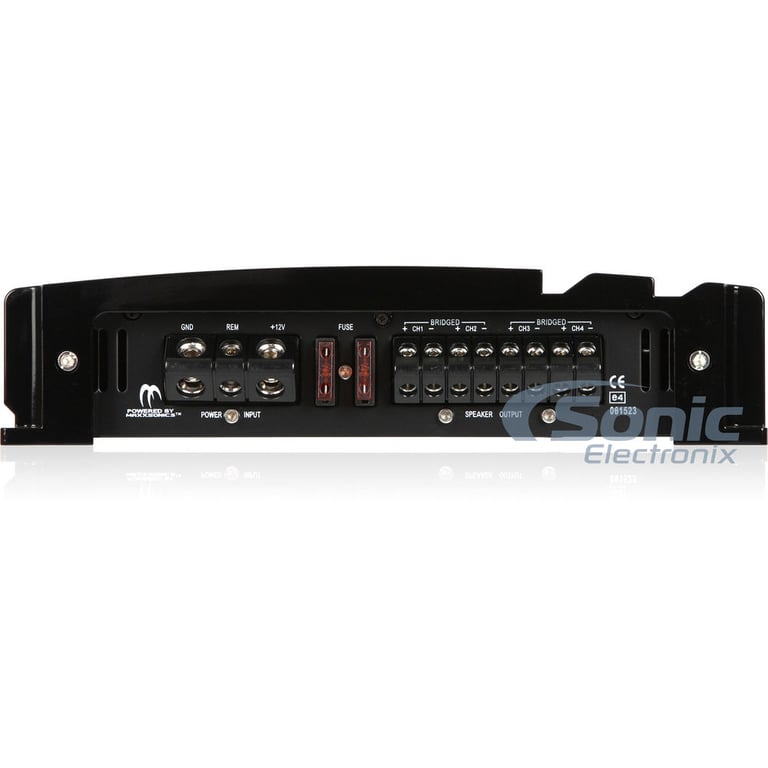

• 16 AWG speaker output connections
• Full-range Preamp RCA outputs to daisy chain multiple amps
  Full-range only if a full range signal is connected to input
• 3-way protection circuitry (thermal, overload, and speaker short protection)

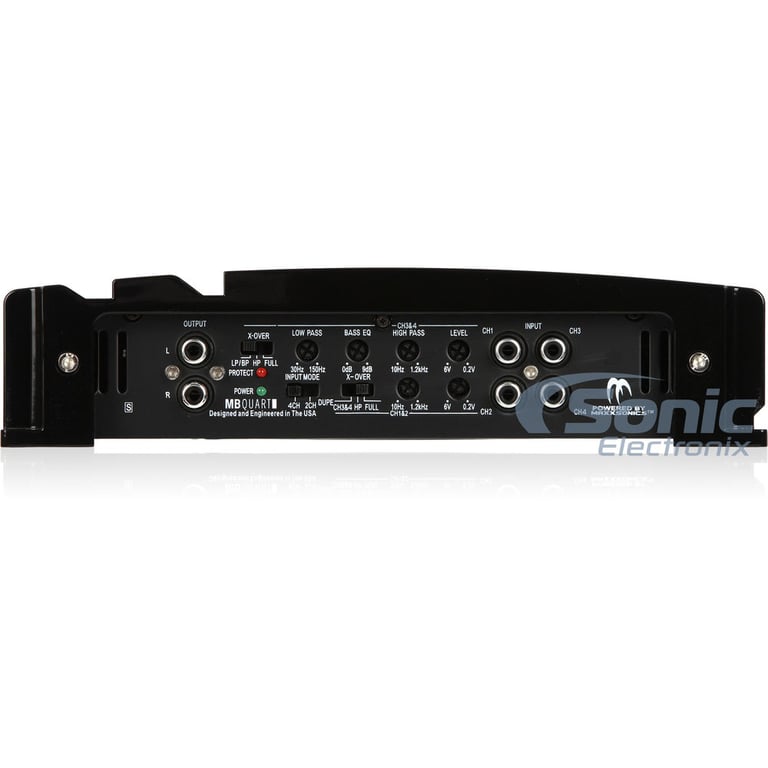

• Selectable input modes: 4ch / 2ch , allows for one set of inputs to be used
• Input sensitivity: 200mV - 6V
• Selectable crossover modes: LP / HP / FULL
• Variable high-pass filter: 10 - 1,200 Hz
• Variable low-pass filter (Ch 3 & 4 only): 30 - 150 Hz
• Variable Bass Boost (Bass EQ, Ch 3 & 4 only): 0 - +9 dB at 45Hz
• Frequency response: 10 - 45,000 Hz
• Damping factor: >180
• Signal-to-noise Ratio: >92dB
• Total harmonic distortion: 0.05%
• Channel separation: >80dB
• Recommended Fuse Rating: 40A x 2
• Dimensions: 14.17"L x 9.45"W x 2.23"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

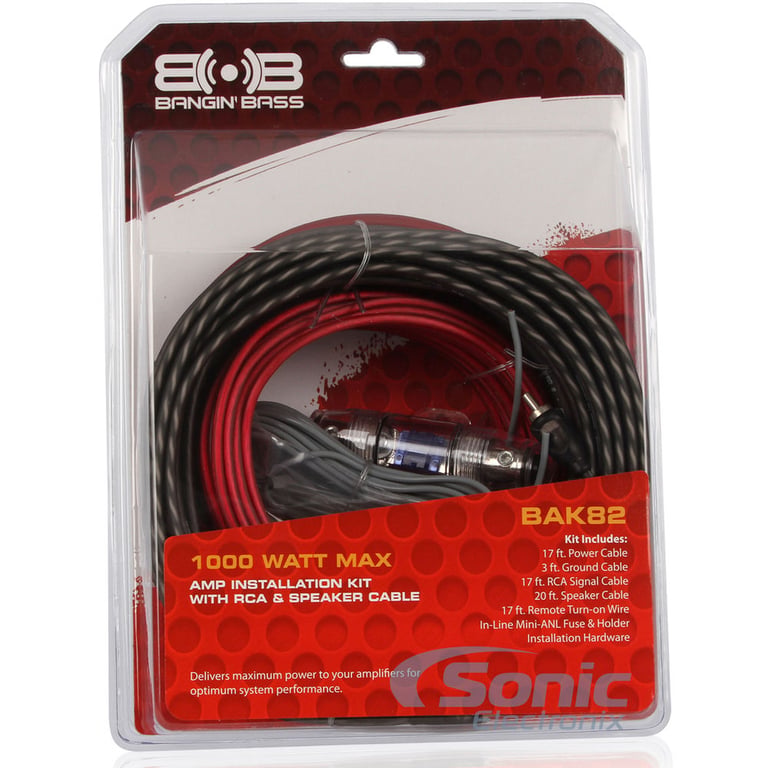

• Complete 4 Gauge 4-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper

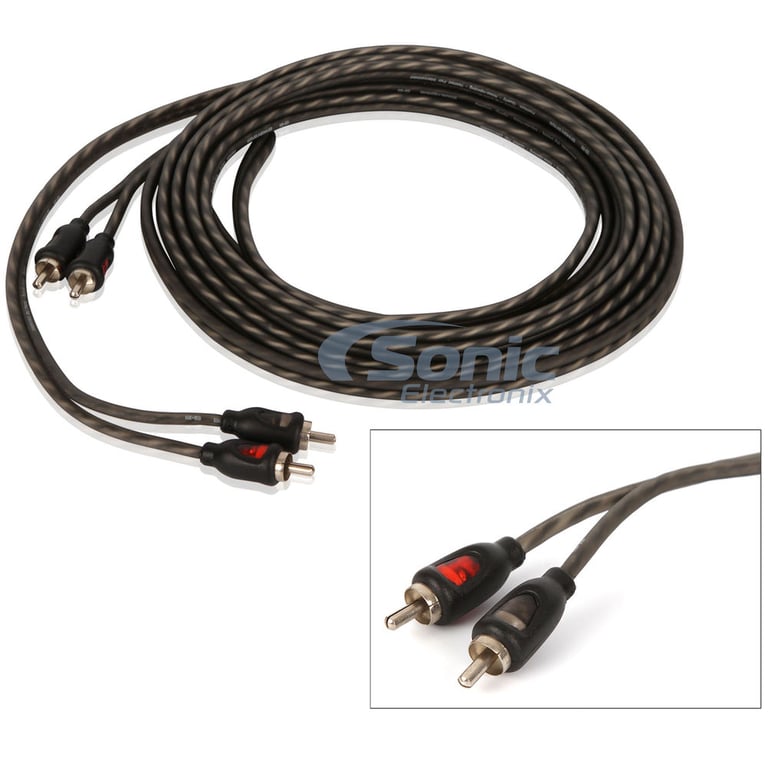

• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
• Also available as 2-Channel Kit
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

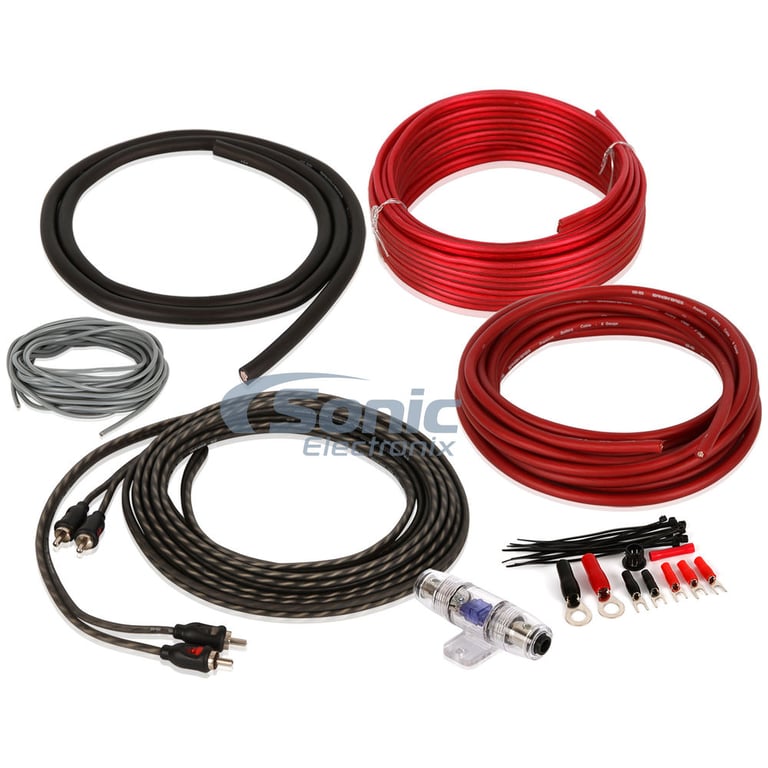

Kit includes:

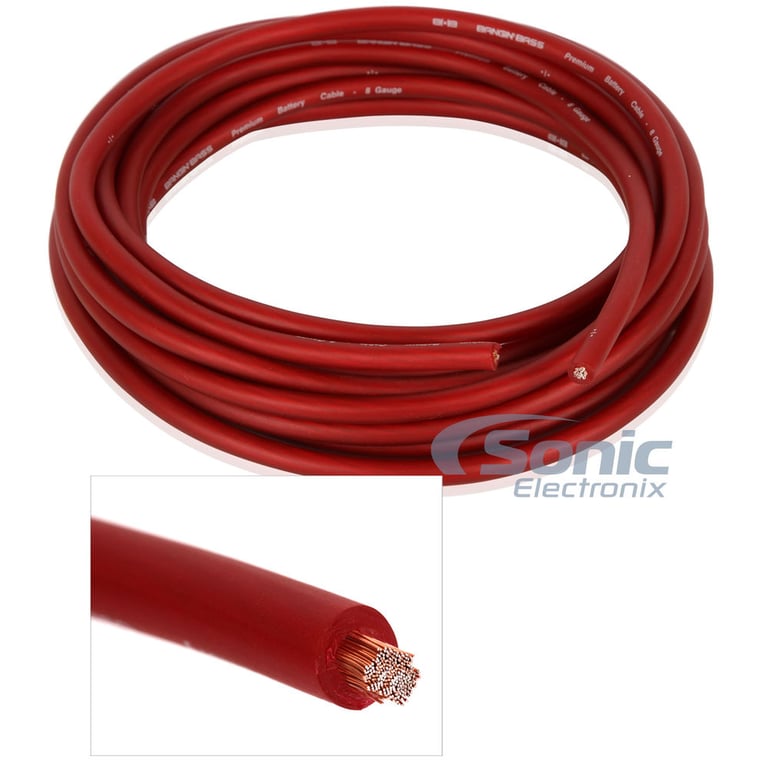

1. 17 ft. (5.2 meters) Red 4 gauge power wire

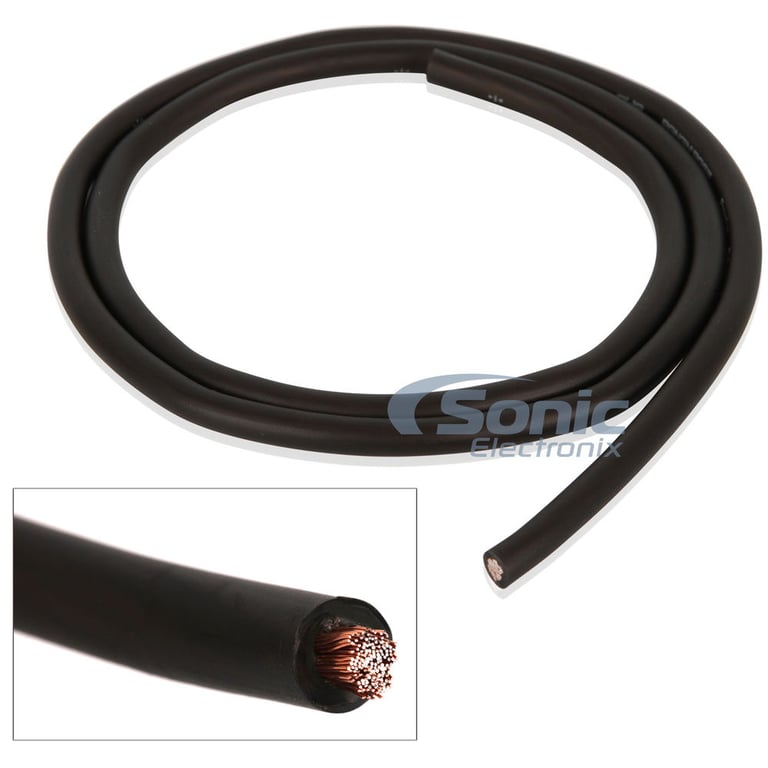

2. 3 ft. (.91 meters) Black 4 gauge ground wire

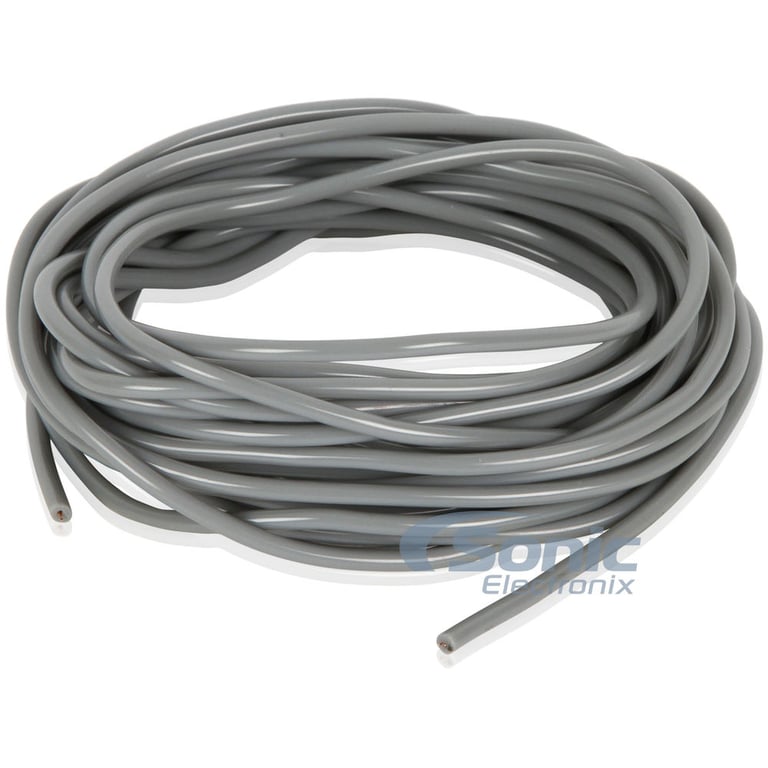

3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
4. 17 ft. (5.2 meters) Helical Twist 4-channel RCA interconnect cable

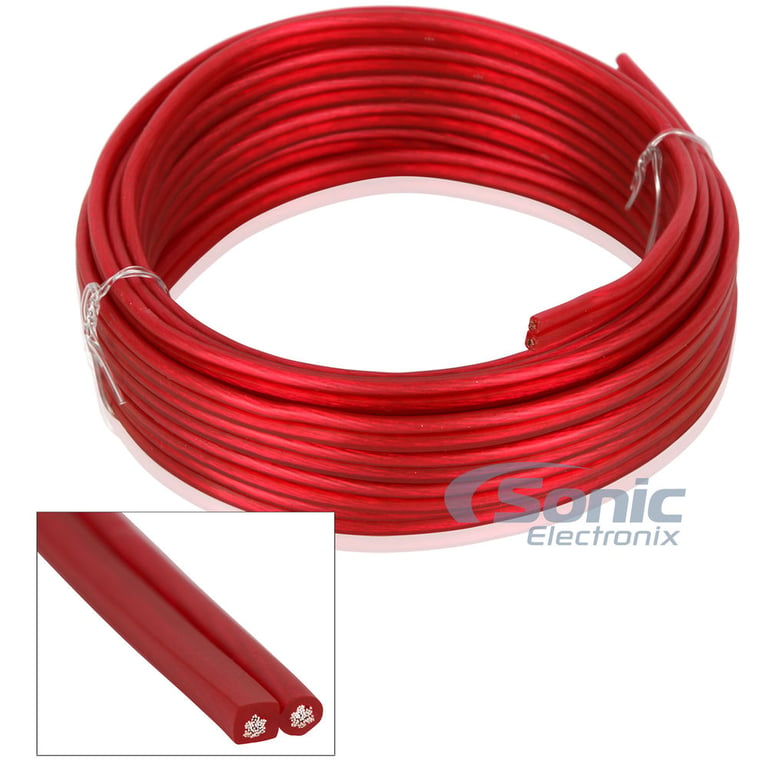

5. 65 ft. of Speaker Wire

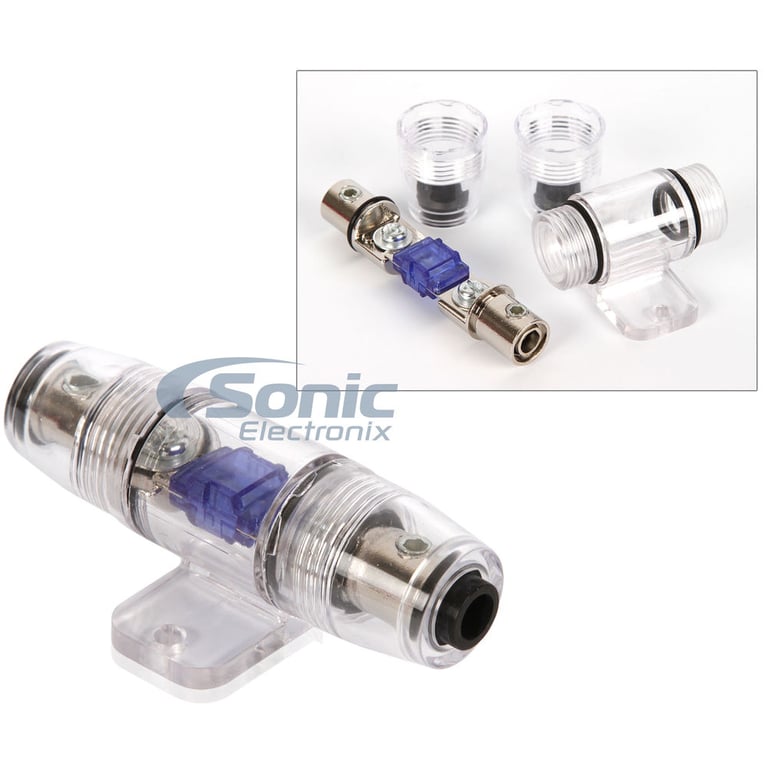

6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet

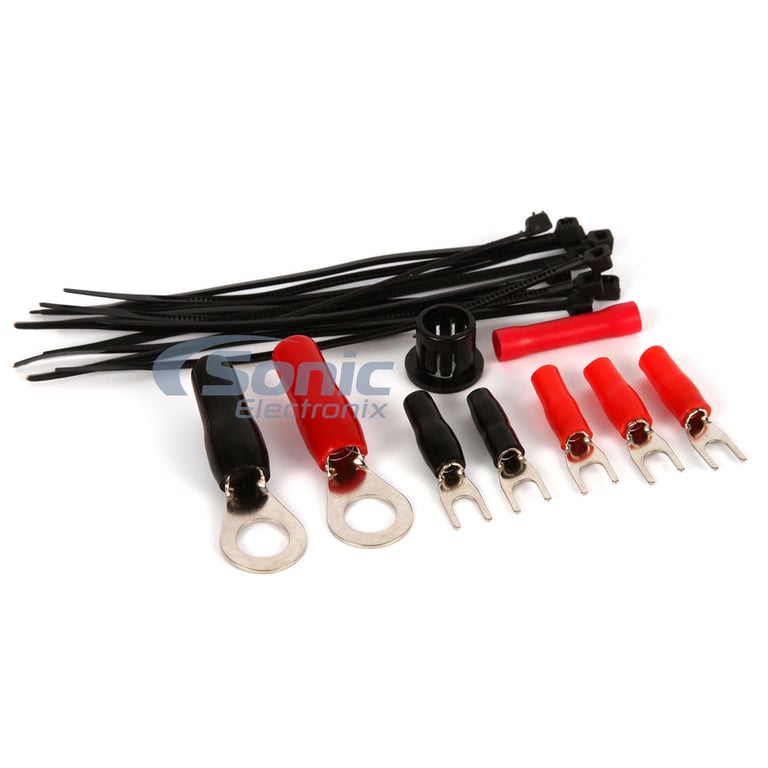

8. One 4 Gauge red chrome plated ring terminals
9. One 4 Gauge black chrome plated ring terminal
10. Three 18 Gauge red Spade terminal
11. Two 18 Gauge black Spade terminal
12. One 18 Gauge red butt connector
13. Ten 4" Black zip ties

Product Features:

• Interface that Allows the Replacement or Addition of an Amplifier in Select GM Vehicles
• Interface is transformer isolated
• Maintains phase
• Linear from 20-20,000 Hz
• Provides 2:1 gain and infinite attenuation

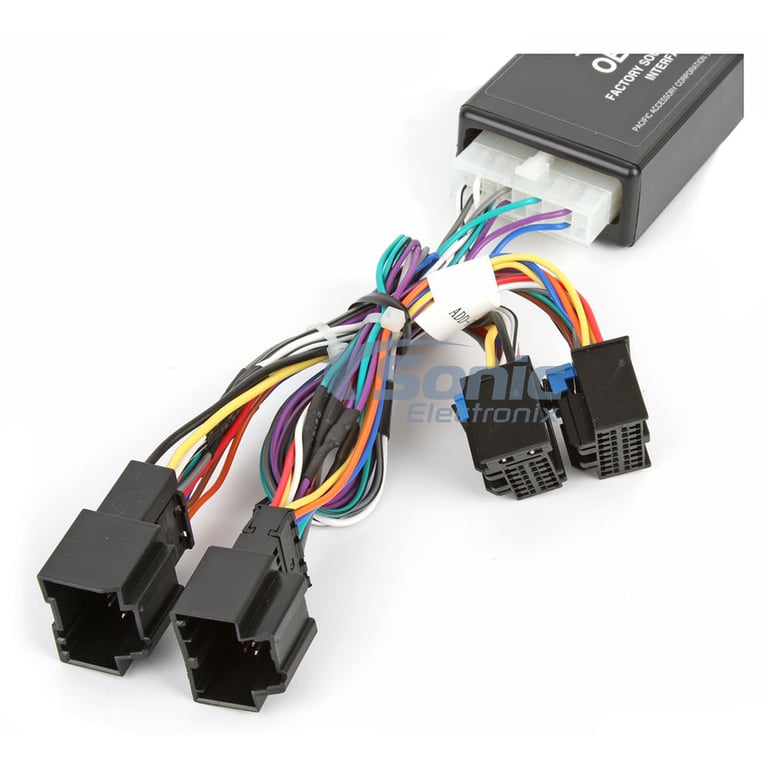

• Input connectors plug into factory stereo and vehicle harness
• Not compatible with premium factory amplified systems
• Not compatible with Navigation equipped vehicles
• Warning chimes will sound through the front left RCA output
• Four female RCA output jacks connect to amplifier
• 1-year Manufacturer's warranty

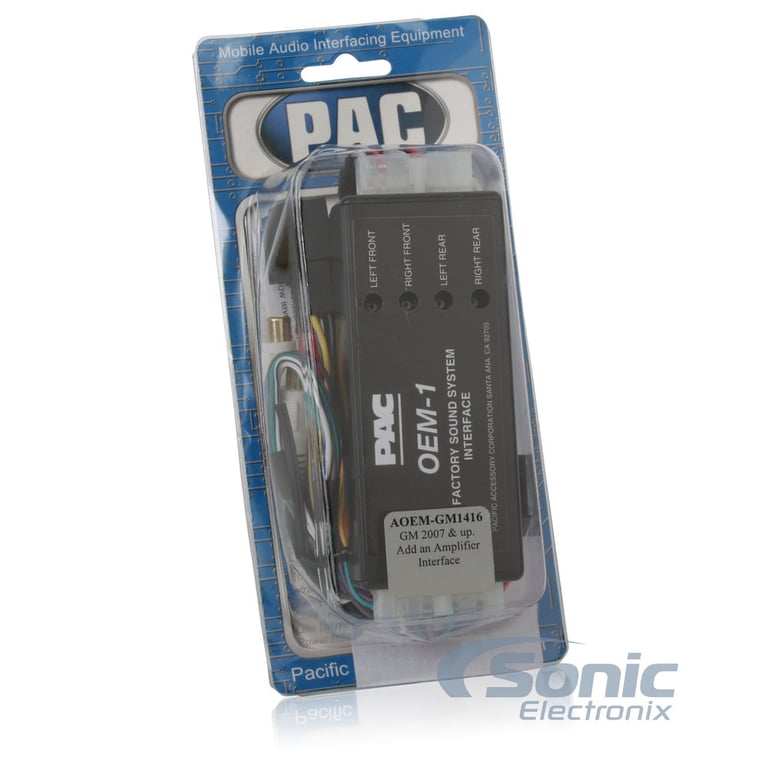

This AOEM Kit Includes the following:

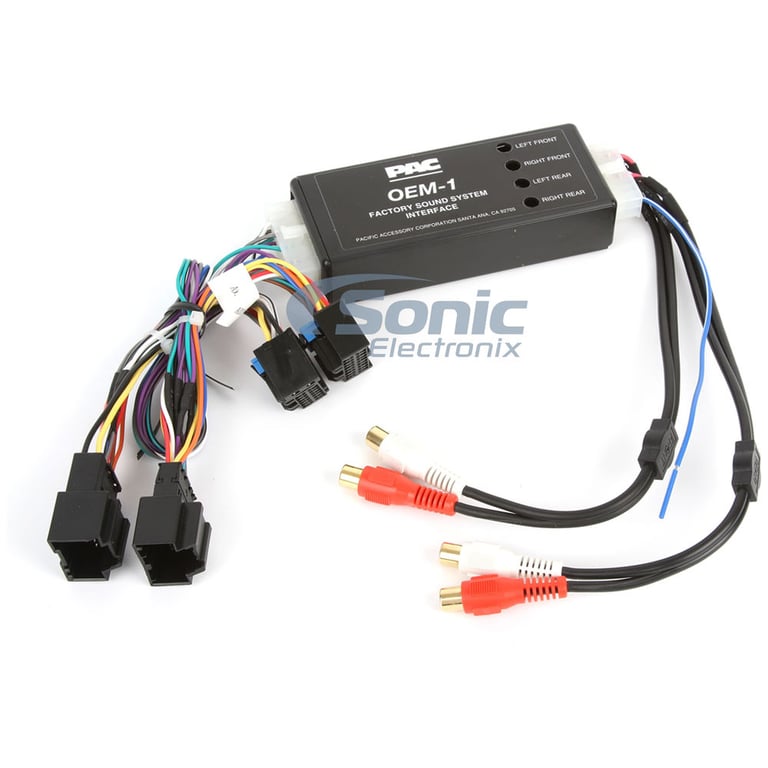

• PAC OEM-1

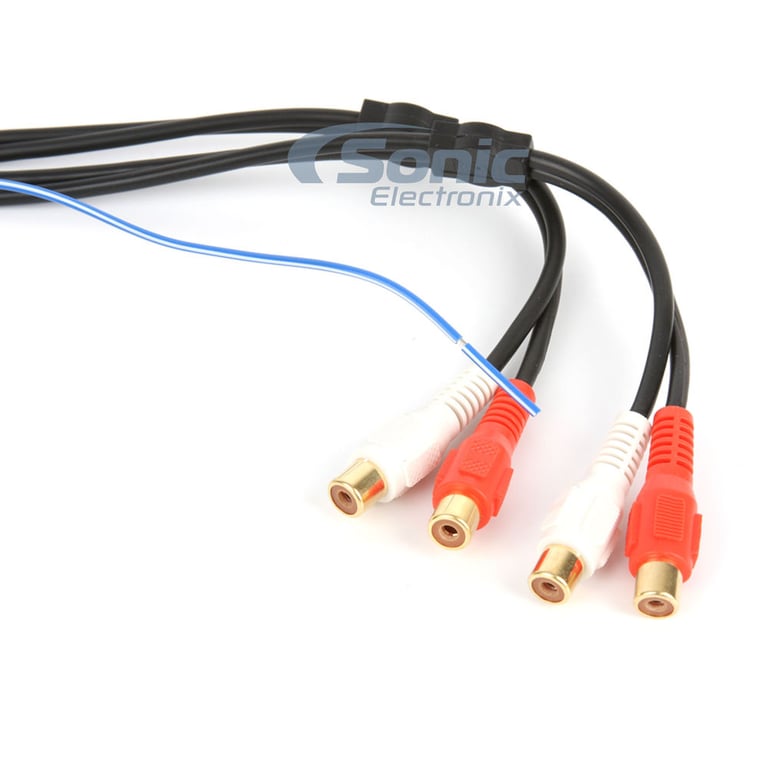

• PAC AMP-RCA
• PAC ADD-GM1416
