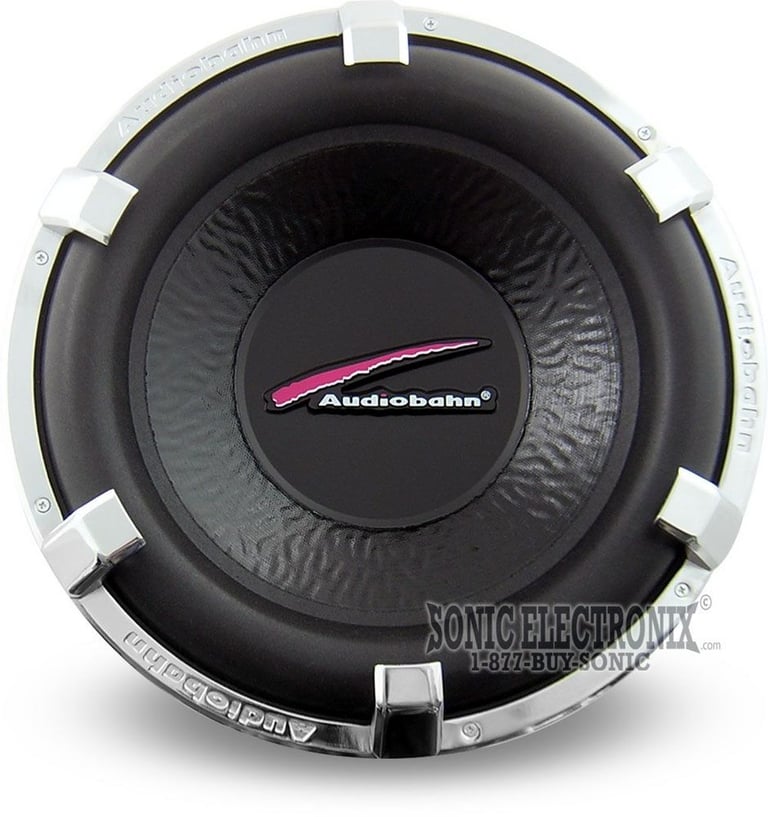

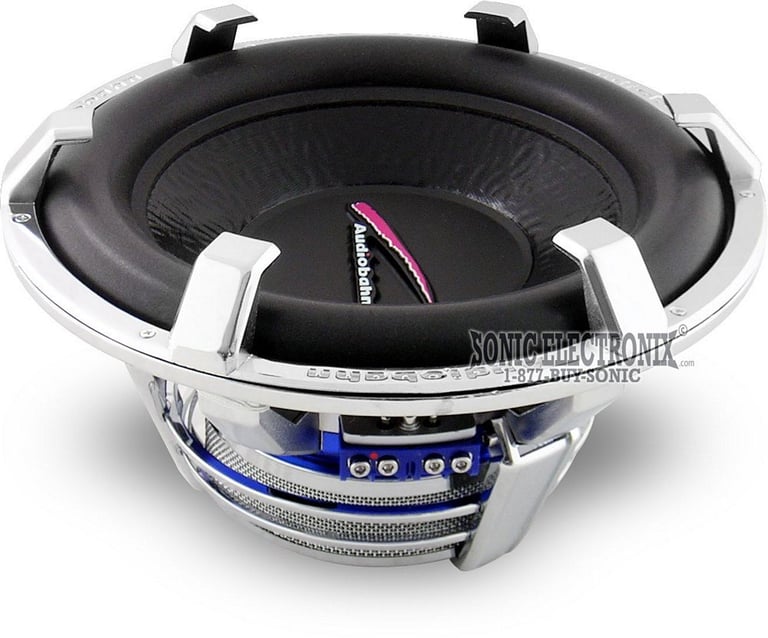

Audiobahn AW1200N R/B

(Factory Refurbished) 12" High Excursion Series Subwoofer

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

12" 700W RMS High Excursion Woofer • KM3 Coated for little to no cone distortion • Single 4 Ohm • Chrome Finish • 120 oz. Magnet • PHAT 2" Foam Surround

Learn more about the LS-aw1200n-RB

We apologize

This item has been discontinued

Product Highlights


12" 700W RMS High Excursion Woofer • KM3 Coated for little to no cone distortion • Single 4 Ohm • Chrome Finish • 120 oz. Magnet • PHAT 2" Foam Surround

Description


Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

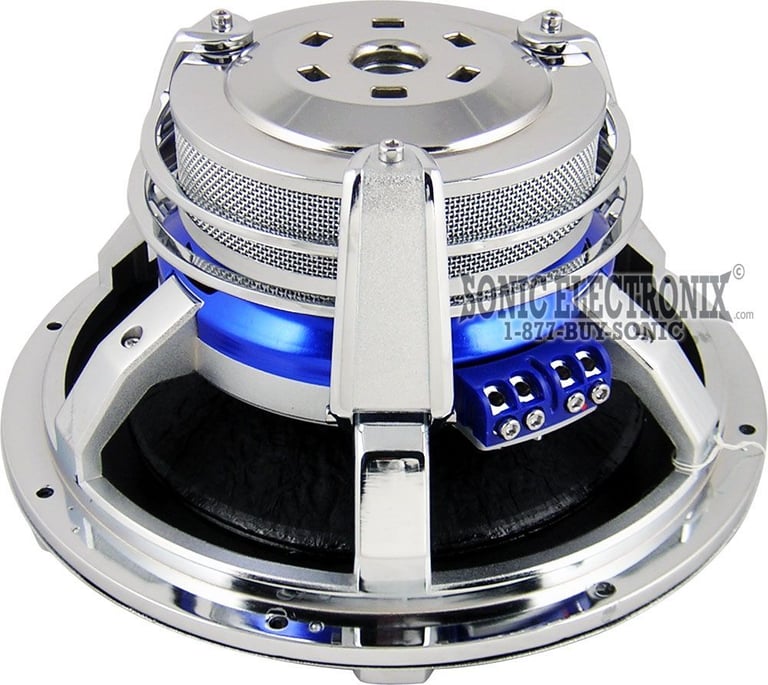

  • New Design with Chrome Finished Cast Basket
  • Aluminum Voice Coil Former
  • Extended Pole Piece
  • Vented Oversized Back Plate
  • Flat Spider
  • Convex Dust Cap
  • 120 oz. Magnet
  • RMS Power Handling: 700 watts
  • Peak Power Handling: 1400 watts approx.
  • Frequency Response: 20Hz - 500Hz
  • Sensitivity: 92.7dB
  • Impedance: Single 4 ohm
  • Operation in 2 ohm or 8 ohm
  • Poly Coated Cone
  • PHAT 2" Treated Foam Surround
  • KM3 Coated for little to no cone distortion
  • 2" 4-layer ASV Voice Coil
  • Mounting Depth: 5-5/8"
  • Mounting Hole: 11-1/8"
  • Woofer Diameter: 12-3/4"
  • Multi-Connect Lug Lock Terminals
  • Factory refurbished with 90 days warranty
  • 90 SonicElectronix.com warranty

Product history:

Audiobahn AW1200N-RB thumbnail
(newest, current model)
(previous model, replaced by Audiobahn AW1200N R/B)
Audiobahn AW1200X-RB thumbnail
(previous model, replaced by Audiobahn AW1200Q R/B)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiobahn AW1200N R/B Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiobahn AW1200N R/B Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiobahn AW1200N R/B Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Audiobahn AW1200N R/B Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1400 watts approx.
RMS Power Handling
700 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 500 Hz
Sensitivity
92.7 dB
Woofer Surround
Foam
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
5-5/8"
Cutout Diameter
11-1/8"

Item Details


Manufacturer:

Model Number:

AW1200N-RB

Weight:

18.00lbs

Internal SKU:

LS-aw1200n-RB

Internal Product ID:

13333
