Pioneer AVIC-F700BT Open Box

(Missing Harness) Double DIN In-dash 5.8" TFT-LCD Touchscreen Monitor with Built-in GPS Navigation, Built-in Bluetooth Hands-Free Technology, CD, MP3 Receiver, USB, SD Card and 3.5mm Aux Inputs

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

In-dash CD, MP3 Receiver with Built-in GPS Navigation, USB input, and Bluetooth • 5.8" LCD Touchscreen display • 50W x 4 chan. Max • 20W x 4 chan. RMS • Intelligent and conversational voice command • 3 Sets of 2V preamp outputs • Sirius, XM, HD Radio Ready

Learn more about the LS-avicf700bt-OB

We apologize

This item has been discontinued

Product Highlights


In-dash CD, MP3 Receiver with Built-in GPS Navigation, USB input, and Bluetooth • 5.8" LCD Touchscreen display • 50W x 4 chan. Max • 20W x 4 chan. RMS • Intelligent and conversational voice command • 3 Sets of 2V preamp outputs • Sirius, XM, HD Radio Ready

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

We all know that the Pioneer AVIC-D3 was a great product. What could ever replace Pioneer's AVIC-D3? The feature-packed AVIC-F series in-dash navigation will certainly be this outstanding replacement and much, much more for many years to come!

Integration

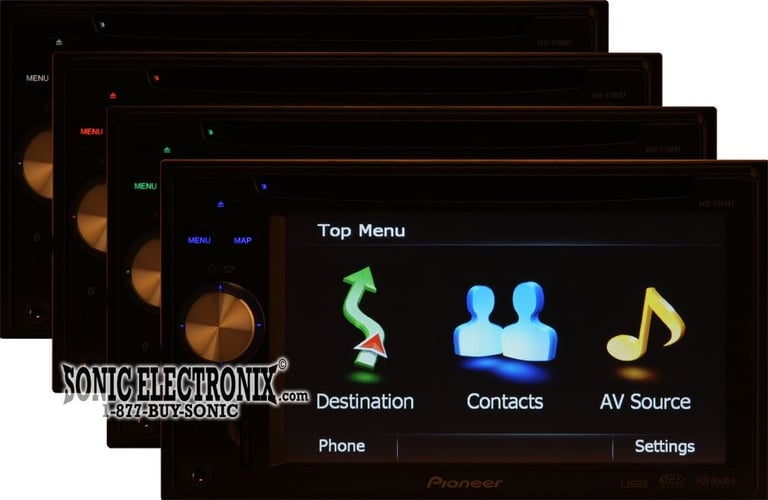

Integration is a crucial element to the AVIC-F Series design, just like the old AVIC-D3. The front-panel is an entirely new look with a much more minimalistic and upgraded look. Users are given the choice of 32,768 customizable illumination colors, allowing this double DIN receiver to integrate into any dash seamlessly.

HDD Navigation
Where the AVIC-D3 failed, the AVIC-F units will triumph. The AVIC-D3's obsolete DVD-based GPS navigation system has been replaced by an all new hard drive based GPS software that holds over 12 million points of interest. No more shuffling navigation discs, no more stopping or pausing your music! Users will also experience a much smoother and faster response system while navigating since everything has already been preloaded onto the hard drive. In addition, the built-in navigation is at an "always-on" power state that is always ready to go when you are.

Bluetooth, iPod, USB, and... what more can you ask for? Oh yeah, Satellite and HD Radio!
The AVIC-F90BT, AVIC-F900BT, and the AVIC-F700BT all has built-in Bluetooth technology that allow users to make hands-free phone calls with caller ID and call status displayed on the screen. You won't have to buy any additional accessories or add-ons. It is also capable of controlling any iPod audio or video sources through its USB port that supports other media devices that contains AAC, MP3, and WMA files.

The AVIC-F units all feature an SD Card Reader, USB port and RCA audio/video auxiliary inputs. In addition, all AVIC-F series will be able to receive Sirius or XM Satellite Radio and HD Radio with additional accessories.

Conversational Voice Command
Last but not least is the unique voice control technology built-in each of the AVIC-F units. You can now control what music you want to play without even the push of a button. You could simply say "Play artist Chris Brown" and it will play all songs with that artist. In addition, you could likewise do the same for hands-free dialing. What's unique about the voice command feature is its ability to decipher pausing words or fill-in words such as "ummm, uhhh... the uhhhh..." It will still recognize names even if you say "Call uhhh Alison" If phonebook entry Alison has more than one number, the AVIC-F unit will ask "Found three numbers for Alison, which would you like to dial?" It's almost like a SCIFI movie or something from iRobot. This breakthrough feature will definitely impress you and everyone else riding in your car!

General Features:

  • In-dash CD, MP3 Receiver with Built-in GPS Navigation
  • 5.8" LCD Touchscreen display
  • 32,768 Customizable illumination colors
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels
  • CD Text Display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 90-Day repair only warranty

Playback and Audio Features:

  • Playback of CD, CD-R, CD-RW, AAC, MP3, and WMA
  • SuperTuner IIID with 18FM/6AM presets
  • DTS and Dolby Digital encoding capable
  • EEQ (3-band parametric equalizer with 5 curves)
  • Intelligent and conversational voice command capable media browsing and playback controls

Expandability Options:

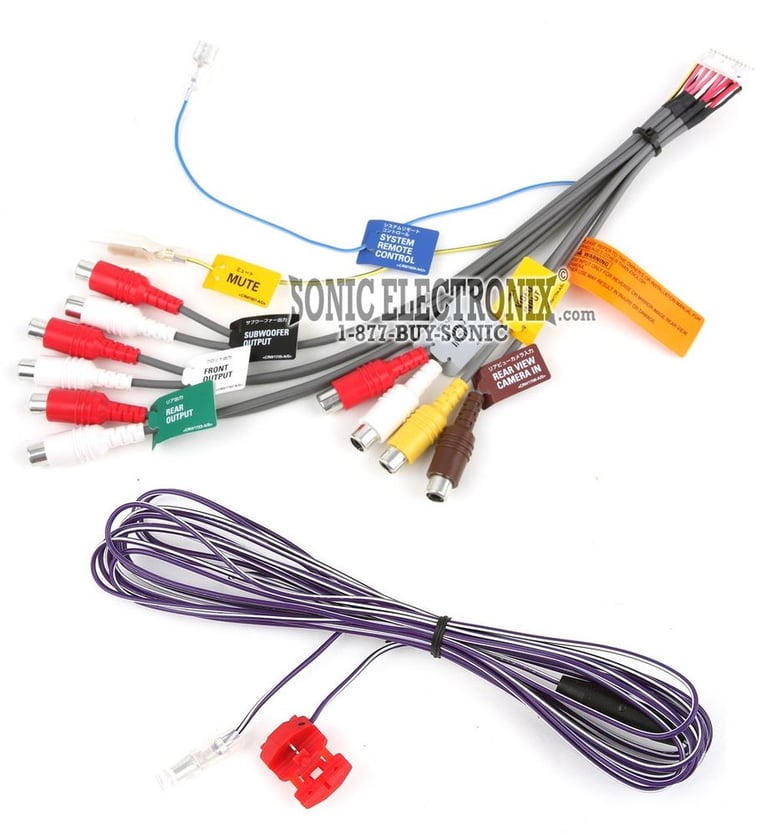

  • 3 Sets of 2V preamp outputs (front, rear and subwoofer)
  • SIRIUS or XM Satellite Radio Ready: A subscription is required for service as well as either the Pioneer SIRIUS Satellite Radio Package or Pioneer XM Radio Package **Coming Soon!**
    • Note: New Pioneer models such as the AVIC-F Series are not compatible with older TERK XM Satellite Radio components
  • HD Radio Ready: Pioneer GEX-P10HD HD Radio tuner required and sold separately
  • Bluetooth Ready: Built-in Bluetooth technology with integrated microphone and voice command controls and dialing
  • iPod Ready: Direct connection through USB but Pioneer CD-IU230V USB-to-iPod adapter is required and sold separately
    • Compatible iPods using Direct Connection:
      • iPod Video: 5th Generation
      • iPod Classic
      • iPod Touch
      • iPod Nano: All models
  • Front-panel auxiliary input: SD Card and 3.5mm (headphone jack) allows connection to portable media storage and devices such as MP3 players, etc.
  • Rear auxiliary input: RCA Audio/Video Input
  • Backup Camera Ready: Pioneer ND-BC2 standard backup camera or Pioneer ND-BC20PA backup camera with Parking Assistant are required and sold separately
  • CD Changer controls

Navigation Features:

  • 12 Million points of interest
  • Built-in TeleAtlas map database, covering all US states, Canada, Alaska, and Hawaii
  • Text-to-speech technology
  • POI creator interface (allow users to set their own POI location)
  • "Always-on" Navigation with no need for navigation discs

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Detachable Controls
Wireless Remote
No
Peak Power Output
50 watts x 4 channel
RMS Power Output
20 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
2 volts
Built-In Equalizer
EEQ - 3 Band Parametric EQ
Display Type
TFT-LCD Display
Touchscreen
Yes
Expandability Features
Inputs
Audio/Video (Rear)
Auxiliary (Front)
Memory Card Slot
SD
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Navigation Features
Map Database
Tele Atlas
Maps
Complete 50 USA
Canada
Map Dimensional Display
2D
3D
Points of Interest
12 Million

Item Details


Manufacturer:

Model Number:

AVIC-F700BT-OB

Weight:

7.00lbs

Internal SKU:

LS-avicf700bt-OB

Internal Product ID:

16700
