JL Audio SB-GM-AVAL/12W3v3

12" 4 ohms Loaded Stealthbox Subwoofer Enclosure with 2 12W3v3-8 Subwoofers for Chevrolet/Cadillac 2001-Up

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• 1000W Max
• 500W RMS
• Replaces Factory Mid-Gate and Retains Folding Function

Learn more about the sbgmaval12w3v3

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Product Highlights


• 1000W Max
• 500W RMS
• Replaces Factory Mid-Gate and Retains Folding Function

Description


JL Audio brand icon

Authorized dealer

Subwoofer Features:

  • 12" Single 4 Ohm W3v3 Series Subwoofers
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Final Impedance: 2 ohm
  • Mineral-filled polypropylene upper cone with a metallic JL Audio medallion logo gives the W3's a whole new, classy and sophisticated look
  • DMA-optimized, long linear excursion capability to virtually eliminate distortion and increase sound output
  • Perform outstanding in compact sealed or ported enclosures
  • DMA (Dynamic Motor Analysis) modeling to deliver unsurpassed dynamic stability and low-distortion operation within intended power range
  • Sensitivity: 87 dB
  • Free Air Resonance (Fs): 28.28 Hz
  • Electrical "Q" (Qes): 0.553
  • Mechanical "Q" (Qms): 6.936
  • Total Speaker "Q" (Qts): 0.512
  • Equivalent Compliance (Vas): 2.729 cu. ft (not recommended box size)
  • Xmax Linear Excursion: 0.510 in. / 13.0 mm
  • Driver Displacement: 0.071 cu. ft.
  • Net weight: 14.50 lbs.
  • 1-year SonicElectronix.com warranty (subwoofer only)

Enclosure Features:

  • Wired for 2 ohm
  • For 2001-Up Chevrolet Avalanche and 2002-Up Cadillac Escalade

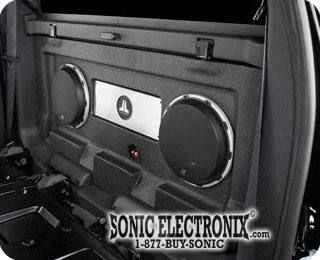

  • Replaces the factory mid-gate and retains folding function to allow access between cabin and bed
  • Rear glass storage is lost
  • Will not fit Hummer H2 SUT
  • Front, easy access terminals

*JL Audio Stealthboxes are special-ordered for each customer and usually ship within 7-14 business days. As such, orders for Stealthboxes cannot be canceled unless it is unavailable.


Best selling similar products

SB-D-QDRAMD/10TW1 small

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Two JL Audio 10TW1-4 Subwoofers
• RMS: 600 watts per pair / 300 watts each
• For 2002-Up Dodge Ram
• Stealthbox Installs underneath rear seat

(3)

$1699.99

List price $1699.99

SB-GM-4GSUVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-4GSUVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1249.99

List price $1249.99

SB-GM-3GSLVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-3GSLVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1199.99

List price $1199.99

SB-J-GCHWK2/10W3v3/BK small

JL Audio Stealthbox® SB-J-GCHWK2/10W3v3/BK

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W3v3-2
• 500 Watts RMS Power Handling
• Stealthbox Installs into passenger-side rear cargo panel

(3)

$1199.99

List price $1199.99

SB-GM-SLVCC3/10TW3/BK2 small

JL Audio Stealthbox® SB-GM-SLVCC3/10TW3/BK2

• Sealed truck enclosure with 2 10" TW3 Shallow Mount Series Subwoofer
• Designed for select 2007-2013 vehicles from Chevrolet, GMC
• 800 watts per pair / 400 watts each RMS
• Final Impedance: 4-ohm
• Includes two JL Audio 10TW3-D8 subwoofers
• Installs easily under the truck's rear seat location

(4)

$1999.99

List price $1999.99

SB-GM-VETC6/10W1v3 small

JL Audio Stealthbox® SB-GM-VETC6/10W1v3

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W1v3-2
• 300 Watts RMS Power Handling
• Stealthbox Installs neatly into the rear corner of the hatch

(3)

$1149.99

List price $1149.99

SBX-F-MAVG1/10TW1 small

JL Audio Stealthbox® SBX-F-MAVG1/10TW1

• Sealed enclosure with 1 10" Stealth Series Subwoofer
• 300 watts RMS
• Final Impedance: 2-ohm
• Dimensions: 5-1/4" L x 16" H x 26-5/8" W

(1)

$849.99

List price $849.99

SB-GM-SLVCRW/10TW3 small

JL Audio Stealthbox® SB-GM-SLVCRW/10TW3

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Dual JL Audio 10TW3-D4
• 800 Watts RMS
• For 1999-2006 Chevrolet Silverado / GMC Sierra Crew Cab Trucks
• Stealthbox Installs neatly behind the rear seat

(1)

$1699.99

List price $1699.99

SB-T-TACDCG3/10TW3 small

JL Audio Stealthbox® SB-T-TACDCG3/10TW3

• Sealed enclosure with 1 10" Stealthbox Series Subwoofer
• Designed for select 2012-2015 Tacoma
• 400 watts RMS Power Rating
• Final Impedance: 2-ohm
• Designed to install neatly behind the rear seat
• Hassle-free plug and play installation

(2)

$999.99

List price $999.99

SBX-F-BRONCG6/10TW1 small

JL Audio Stealthbox® SBX-F-BRONCG6/10TW1

• Sealed enclosure with 1 10" Stealth Series Subwoofer
• 300 watts RMS
• Final Impedance: 2-ohm
• Dimensions: 5-1/4" L x 14" H x 16-1/8" W
• Designed to fit behind the Passenger Side panel

(2)

$1149.99

List price $1149.99

Specifications & Details


Subwoofer Specifications
Series
W3 v3 Series
Subwoofer Design
Round / Circle
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
500 watts
Peak Power Handling
1000 watts
Woofer Surround
Rubber
Woofer Composition
Mineral-Filled Polypropylene
Sensitivity
87 dB
Xmax (millimeters)
13 mm
Subwoofer Size
12"
Enclosure Specifications
Number of Subwoofers
2
Box Style/Shape
Vehicle Specific
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Paint
Final Wired Impedance
2-ohm
Type of Enclosure
Loaded
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SB-GM-AVAL/12W3v3

Weight:

70.00lbs

Internal SKU:

sbgmaval12w3v3

Internal Product ID:

13643
