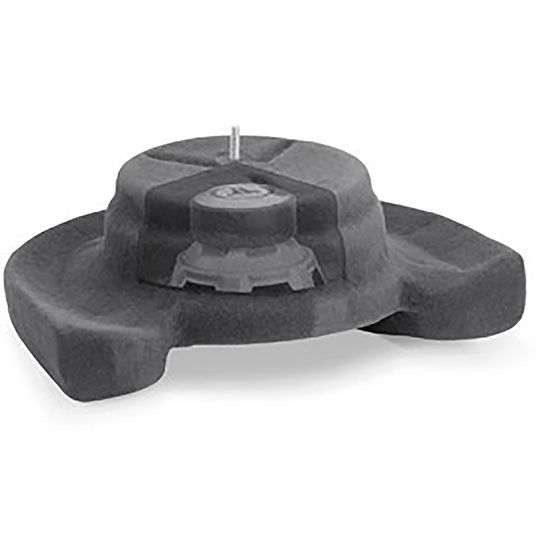

JL Audio SB-VW-NB/10W3v3

Stealthbox for 1998-2011 Volkswagen New Beetle

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W3v3-2
• 500 Watts RMS Power Handling
• Stealthbox Installs in spare tire well

See compatible vehicles Learn more about the sbvwnb10w3v3

We apologize

This item has been discontinued


Loading...
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

70-7903 main

Metra 70-7903 Wiring Harness

Install a new car stereo in select 2001-2021 vehicles from Mazda, Fiat

18
99-7506 main

Metra 99-7506 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2006-2008 MX-5 Miata (Matte Black)

2
-59.47%

$29.99

List price $73.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
Limited time!
XAV-AX4000 main

Sony XAV-AX4000

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (Sirius XM Ready)

4
-25.33%

$448.00

List price $599.99

560BRGB main

Boss Elite 560BRGB

Single DIN CD Receiver with Bluetooth (Black)

3

Product Highlights


• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W3v3-2
• 500 Watts RMS Power Handling
• Stealthbox Installs in spare tire well

Description


JL Audio brand icon

Authorized dealer




Subwoofer Features:

  • One JL Audio 10W3v3-2 Subwoofer
  • Power Handling:
    • RMS: 500 watts
  • Recommended power range: 150 - 500 watts RMS
  • Wired to a 2 ohm load
  • Mineral-filled polypropylene cone woofer
  • Nitrile-butadiene rubber surround
  • DMA-optimized, long linear excursion capability to virtually eliminate distortion and increase sound output
  • Vented reinforcement collar improves rigidity and stability of the cone, spider, and voice coil
  • Spider and lead wire assembly
  • Elevated frame cooling enhances power and sound quality
  • Floating Cone Attach Method allow the cone and surround to be aligned independently
  • Xmax: 14.0 mm
  • Sensitivity: 85.37 dB
  • Matching Amplifier: JL Audio JX500/1D
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Enclosure Features:

  • For 1998-2011 Volkswagen New Beetle
  • Down-firing design
  • Sealed enclosure
  • Binding post terminals for secure and sturdy connection and installation
  • Stealthbox® Installs in spare tire well
  • Spare tire installs onto the Stealthbox®
  • Hatch floor raises 3 inches from stock height after install
  • Kit is provided to raise the entire hatch floor, maintaining its flatness
  • Can also be installed without the spare tire, creating a 1-inch bulge
  • To remove spare tire, the Stealthbox® must be unbolted from under the car
  • VW Dealer-installed CD changer may require notching of the floor provided with Stealthbox®, depending on where it is installed
  • Will not fit convertible model
  • OEM Color: All
  • Color Match Grade: N/A


Check out the JL Audio SB-VW-NB/10W3v3 Owner's Manual

Compatible Vehicles


Please use our Fitment Guide to determine specific compatibility for the submodel and audio features

The vehicle you have selected 2006 Mazda MX-5 Miata is not compatible. Change vehicle or See list of compatible similar products


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00


Best selling similar products

SB-D-QDRAMD/10TW1 small

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Two JL Audio 10TW1-4 Subwoofers
• RMS: 600 watts per pair / 300 watts each
• For 2002-Up Dodge Ram
• Stealthbox Installs underneath rear seat

(3)

$1699.99

List price $1699.99

SB-GM-4GSUVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-4GSUVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1249.99

List price $1249.99

SB-GM-3GSLVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-3GSLVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1199.99

List price $1199.99

SB-J-GCHWK2/10W3v3/BK small

JL Audio Stealthbox® SB-J-GCHWK2/10W3v3/BK

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W3v3-2
• 500 Watts RMS Power Handling
• Stealthbox Installs into passenger-side rear cargo panel

(3)

$1199.99

List price $1199.99

SB-GM-SLVCC3/10TW3/BK2 small

JL Audio Stealthbox® SB-GM-SLVCC3/10TW3/BK2

• Sealed truck enclosure with 2 10" TW3 Shallow Mount Series Subwoofer
• Designed for select 2007-2013 vehicles from Chevrolet, GMC
• 800 watts per pair / 400 watts each RMS
• Final Impedance: 4-ohm
• Includes two JL Audio 10TW3-D8 subwoofers
• Installs easily under the truck's rear seat location

(4)

$1999.99

List price $1999.99

SB-GM-VETC6/10W1v3 small

JL Audio Stealthbox® SB-GM-VETC6/10W1v3

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W1v3-2
• 300 Watts RMS Power Handling
• Stealthbox Installs neatly into the rear corner of the hatch

(3)

$1149.99

List price $1149.99

SB-GM-SLVCRW/10TW3 small

JL Audio Stealthbox® SB-GM-SLVCRW/10TW3

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Dual JL Audio 10TW3-D4
• 800 Watts RMS
• For 1999-2006 Chevrolet Silverado / GMC Sierra Crew Cab Trucks
• Stealthbox Installs neatly behind the rear seat

(1)

$1699.99

List price $1699.99

SBX-F-BRONCG6/10TW1 small

JL Audio Stealthbox® SBX-F-BRONCG6/10TW1

• Sealed enclosure with 1 10" Stealth Series Subwoofer
• 300 watts RMS
• Final Impedance: 2-ohm
• Dimensions: 5-1/4" L x 14" H x 16-1/8" W
• Designed to fit behind the Passenger Side panel

(2)

$1149.99

List price $1149.99

SBX-F-MAVG1/10TW1 small

JL Audio Stealthbox® SBX-F-MAVG1/10TW1

• Sealed enclosure with 1 10" Stealth Series Subwoofer
• 300 watts RMS
• Final Impedance: 2-ohm
• Dimensions: 5-1/4" L x 16" H x 26-5/8" W

(1)

$849.99

List price $849.99

SB-H-PIO1K/10TW3 small

JL Audio Stealthbox® SB-H-PIO1K/10TW3

• Single JL Audio 10TW3-D4 Subwoofer
• Power handling: RMS 400 watts
• Sealed fiberglass enclosure
• Stealthbox® seamlessly installs beneath the driver's seat

$1299.99

List price $1299.99

Specifications & Details


Subwoofer Specifications
Subwoofer Design
Round / Circle
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
500 watts
Woofer Surround
Nitrile Butadiene Rubber NBR
Woofer Composition
Mineral-Filled Polypropylene
Sensitivity
85.37 dB
Frequency Response
25 - 250 Hz
Xmax (millimeters)
14 mm
Subwoofer Size
10"
Enclosure Specifications
Number of Subwoofers
1
Box Style/Shape
Vehicle Specific
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Graphite
Box Finish
Carpet
Final Wired Impedance
2-ohm
Type of Enclosure
Loaded
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SB-VW-NB/10W3v3

Weight:

55.00lbs

Internal SKU:

sbvwnb10w3v3

Internal Product ID:

13653
