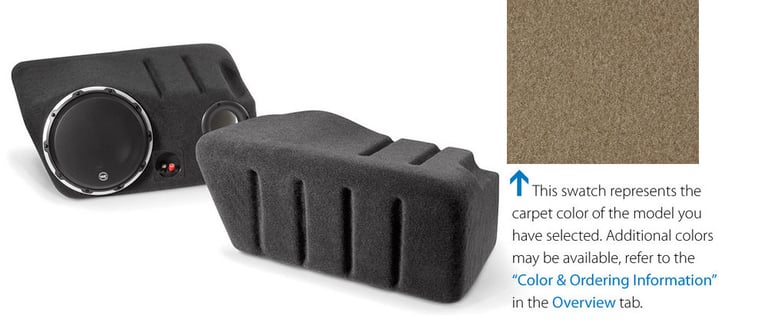

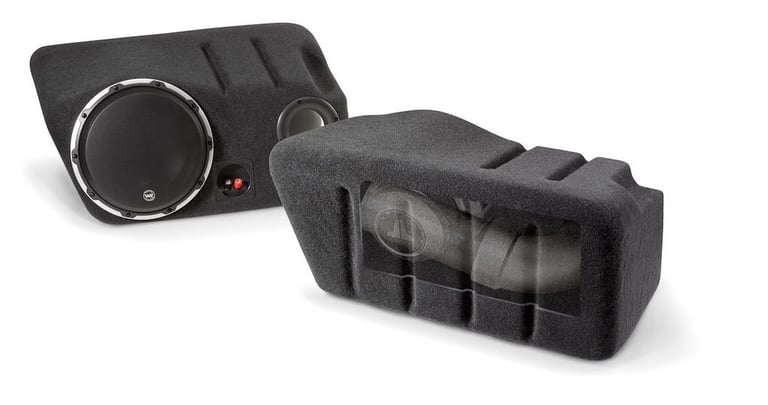

JL Audio SB-GM-SXT/PASS/TN2 (TAN)

Chevrolet Silverado / GMC Sierra Extended Cab 2003-2007, Passenger Side 10" Dual 4 ohms Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with 1 10W6v2-D4 Subwoofer

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

Passenger Side 10" Dual 4 ohm Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with 1 10W6v2-D4 Subwoofer • 1200W Max • 600W RMS • For 1999-2006 Chevrolet Silverado and GMC Sierra Extended Cab trucks with full-bench rear seat

Learn more about the sbgmsxtpasstn2

We apologize

This item has been discontinued


Loading...
XFHD5R main

NVX XFHD5R

600W Peak (300W RMS) 5.25" XF-Series 2 Way Coaxial 2-ohm Rear Tour Pak Speakers for select 1998-2013 vehicles from Harley Davidson Touring Models

1
-22.22%

$139.99

List price $179.99

Rockford Fosgate Punch P1 P152-S

200W Peak (100W RMS) 5.52" Punch Series 2 Way Component 4-ohm Speaker System

13

Product Highlights


Passenger Side 10" Dual 4 ohm Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with 1 10W6v2-D4 Subwoofer • 1200W Max • 600W RMS • For 1999-2006 Chevrolet Silverado and GMC Sierra Extended Cab trucks with full-bench rear seat

Description


JL Audio brand icon

Authorized dealer

Subwoofer Features:

  • 10" Dual 4 Ohm W6v2 Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Impedance: Dual 4 ohm
  • Polypropylene cone woofer
  • OverRoll Surround
  • W-Cone
  • Floating-Cone Attach Method
  • Plateau-Reinforced Spider Attachment
  • Radially Cross-Drilled Pole Piece
  • Massive Forced-Air-Cooled Aluminum Alloy Frame
  • Highly Linear, DMA-Optimized Motor System
  • Huge Diameter, Progressive Roll Spider
  • Co-Extruded Double Lead Wires
  • Ultra-Long Voice Coil
  • 1-year SonicElectronix.com warranty (subwoofer only)

Enclosure Features:

  • Wired for 2 ohm
  • For 1999-2006 Chevrolet Silverado and GMC Sierra Extended Cab trucks with full-bench rear seat
  • Also fits 2007 Extended Cab "Classic" trucks
  • Color: TAN
  • Down-firing design
  • Ported enclosure
  • May require rewiring of voice coils when dual units are installed (depending on amplifier used)

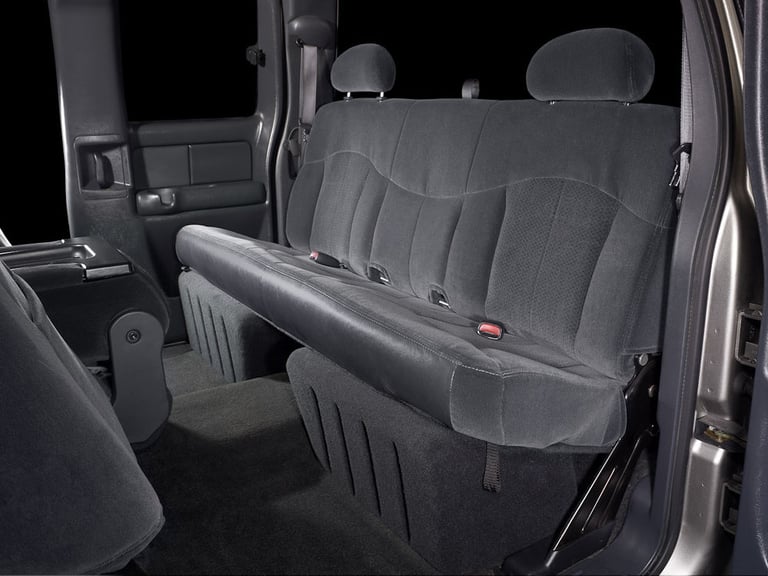

  • Permits the installation of amplifiers and does not affect the folding of the rear seats
  • A steel mesh grille is included to protect the subwoofer driver
  • Will not fit trucks with rear split-bench seats

Please Note: Some JL Audio Stealthboxes are not designed to perfectly match OEM colors. Some colors will contrast with OEM colors in order to provide a stylish setup. If you are looking for the closest color match, please select the JL Audio Stealthbox color that is as close to your OEM color as possible and indicate your vehicle's interior color when ordering.


Loading...
HD13.SBWR main

Precision Power HD13.SBWR

300W RMS Loaded Single 10" Amplified Sealed Saddlebag Enclosure for select 1998-2013 vehicles from Harley Davidson (Brake Side)

2
-20.00%

$999.99

List price $1249.99

RPMPODVM65 main

Cerwin-Vega RPMPODVM65

500W Peak (120W RMS) 6.5" RPM Stroker Series Speaker Kick Pods for Harley-Davidson Motorcycles

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

SB-D-QDRAMD/10TW1 small

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Two JL Audio 10TW1-4 Subwoofers
• RMS: 600 watts per pair / 300 watts each
• For 2002-Up Dodge Ram
• Stealthbox Installs underneath rear seat

(3)

$1699.99

List price $1699.99

SB-GM-4GSUVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-4GSUVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1249.99

List price $1249.99

SB-GM-3GSLVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-3GSLVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1199.99

List price $1199.99

Specifications & Details


Subwoofer Specifications
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
Dual 4 ohms; wired to a final impedance of 2 ohms
RMS Power Handling
600 watts
Peak Power Handling
1200 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Sensitivity
84 dB
Subwoofer Size
10"
Enclosure Specifications
Number of Subwoofers
1
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Tan
Box Finish
Carpet
Box Type
Ported
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SB-GM-SXT/PASS/TN2

Weight:

60.00lbs

Internal SKU:

sbgmsxtpasstn2

Internal Product ID:

13770
