Pioneer TS-G1020S (Open Box, Good)

420W Peak (60W RMS) 4" G-Series 2-way 4-ohm Coaxial Car Speakers

Pioneer
Shop all Pioneer
highlight-star-icon

• 210 watts Peak Each, 30 watts RMS Each
• 1-3/16" Polyethylene Terephthalate (PET) Balanced Dome tweeters
• Mica Injected Polypropylene - MIPP cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

Learn more about the ls-tsg1020s-u7

We apologize

This item has been discontinued

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

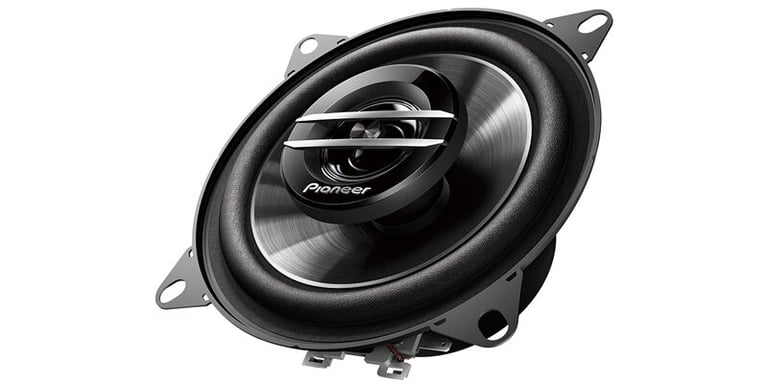

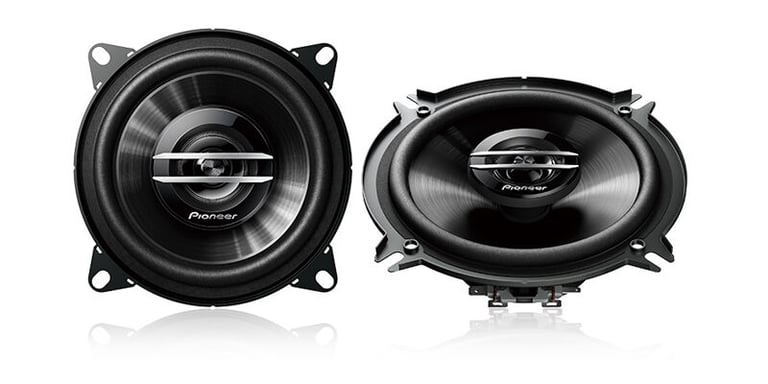

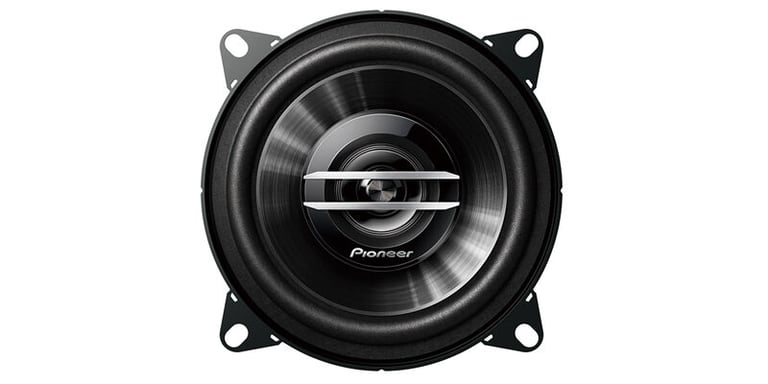

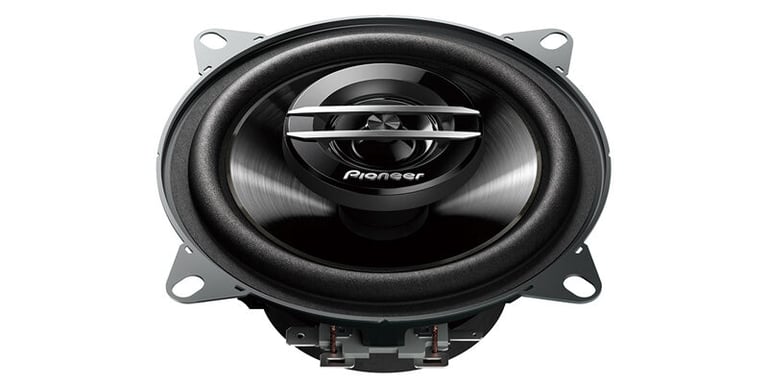

Pioneer TS-G1020S

TS-G1020S speakers are excellent choices to replace a bad set of factory 4" speakers. Their two-way design handles 210 watts max. power (30 watts nominal) and features Pioneer’s extremely strong and lightweight IMPP™ (Injection Molded Polypropylene) with MICA Composite Cone Woofer for improved sensitivity and reduced distortion. You don't get just basic, run-of-the-mill features either. The Conex damper delivers higher power handling and deeper bass, and the 1-3/16" Balanced dome tweeter reproduces highs with great performance and musicality.

These speakers are designed with a shallow mounting depth for easy install into a wide variety of vehicles. Speaker grilles are not included.

Product Details:

  • 4" G-Series (TSG) 2-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 420 watts per pair / 210 watts each
    • RMS: 60 watts per pair / 30 watts each
  • Mica Injected Polypropylene - MIPP cone material
  • Rubber-Coated Cloth speaker surround
  • 1-3/16" Polyethylene Terephthalate (PET) Balanced Dome tweeters
  • Ferrite magnet motor structure
  • Progressive flex suspension system supports the voice coil
  • Excellent choice to replace a bad set of factory 4" speakers
  • Top-mount Depth: 1-3/4"
  • Cutout Dimensions: 4-1/4"
  • Impedance: 4 ohm
  • Frequency Response: 35 - 27000 Hz
  • Sensitivity: 87 dB
  • Authorized Internet Dealer
  • MFR #: TS-G1020S
  • 1-year Manufacturer's Warranty

  • Priced Per Pair

Specifications & Details


Speaker Specifications
Series
G-Series (TSG)
Priced Per
Pair
Number of Speakers
2
Speaker Size
4"
Design
2-way Coaxial
Tweeter Design
Balanced Dome
Tweeter Size
1-3/16"
Tweeter Composition
Polyethylene Terephthalate (PET)
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Rubber-Coated Cloth
Peak Power Handling
210 watts
RMS Power Handling
30 watts
Total PEAK Per Pair/Set
420 watts
Total RMS Per Pair/Set
60 watts
Sensitivity
87 dB
Frequency Response
35 - 27000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Magnet Type
Ferrite
Top-Mount Depth (Mounting Depth)
1-3/4"
Cutout Dimensions
4-1/4"
General specifications
Hi-Res Certified
No
Color
Black
Speaker Grilles
No
Includes Damping Kit
without Damping Kit
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Speakers
Speakers (2)
Mounting screws (8)
Speaker connection cables (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-G1020S-3

Weight:

1.33lbs

Internal SKU:

ls-tsg1020s-u7

Internal Product ID:

215308
