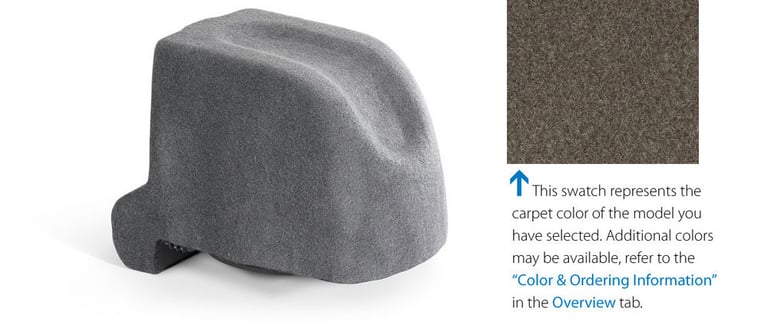

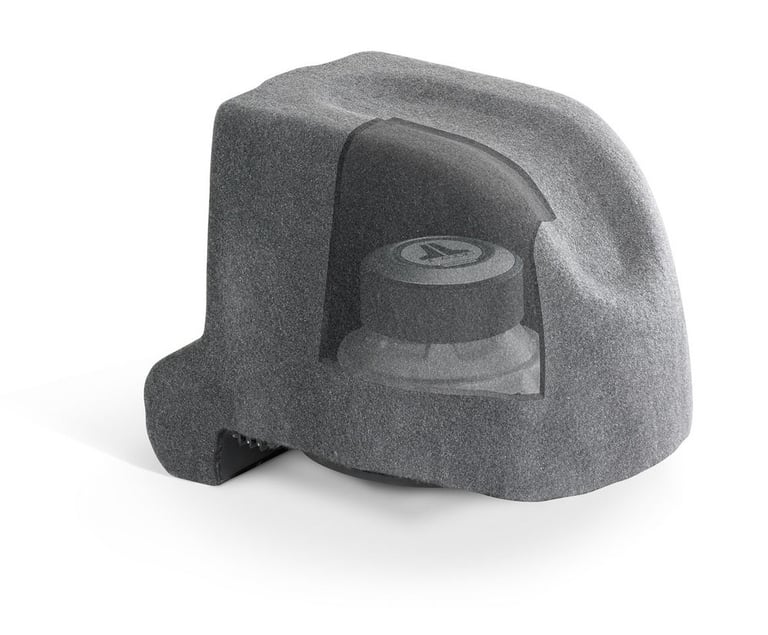

JL Audio SB-D-DAKCC/10W3v3/TN (KHAKI)

Dodge Dakota Club Cab 2005-up, 10" 4 ohms Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with 1 10W3v3-4 Subwoofer

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

10" 4 ohm Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with 1 10W3v3-4 Subwoofer • For 2005-Up Dodge Dakota Club Cab and 2006-Up Mitsubishi Raider Extended Cab vehicles • Installs between the rear jump seats and doubles as an armrest for the rear seat occupants

Learn more about the sbddakcc10w3v3tn

We apologize

This item has been discontinued


Loading...
PRO-X8.4BM main

DS18 PRO-X8.4BM (Sold Individually)

550W Peak (275W RMS) 8” PRO-X Series 4-ohm Mid-Range Loudspeaker

1

Product Highlights


10" 4 ohm Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with 1 10W3v3-4 Subwoofer • For 2005-Up Dodge Dakota Club Cab and 2006-Up Mitsubishi Raider Extended Cab vehicles • Installs between the rear jump seats and doubles as an armrest for the rear seat occupants

Description


JL Audio brand icon

Authorized dealer

Subwoofer Features:

  • 10" Single 4 Ohm W3v3 Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Impedance: Single 4 Ohm
  • Mineral-filled polypropylene cone woofer
  • Nitrile-butadiene rubber surround
  • DMA-optimized, long linear excursion capability to virtually eliminate distortion and increase sound output
  • Vented reinforcement collar improves rigidity and stability of the cone, spider, and voice coil
  • Spider and lead wire assembly
  • Elevated frame cooling enhances power and sound quality
  • Floating Cone Attach Method allow the cone and surround to be aligned independently
  • Sensitivity: 86 dB
  • 1-year SonicElectronix.com warranty (subwoofer only)

Enclosure Features:

  • Wired for 4 ohm
  • For 2005-Up Dodge Dakota Club Cab and 2006-Up Mitsubishi Raider Extended Cab vehicles
  • Color: Khaki
  • Down-firing design

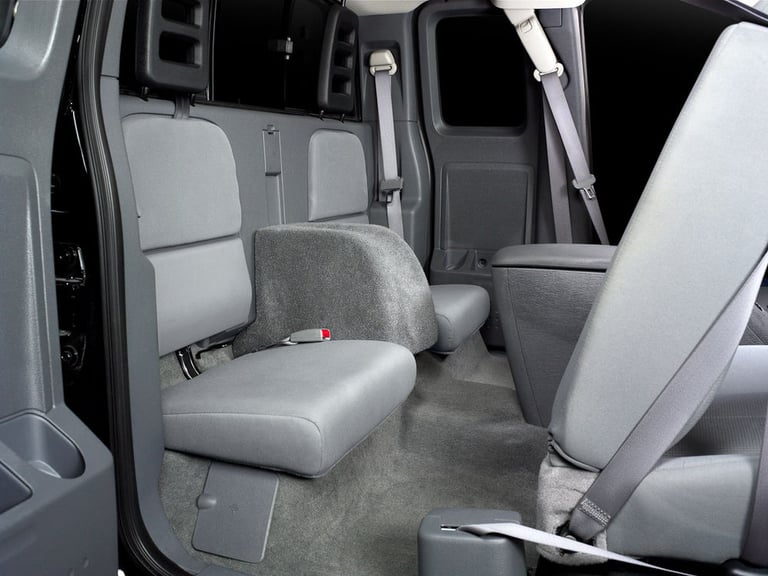

  • Installs between the rear jump seats and doubles as an armrest for the rear seat occupants
  • Installation does not impede access to jack or seat folding functions
  • Will not fit Dakota Quad-Cab or Raider Double-Cab trucks

Please Note: Some JL Audio Stealthboxes are not designed to perfectly match OEM colors. Some colors will contrast with OEM colors in order to provide a stylish setup. If you are looking for the closest color match, please select the JL Audio Stealthbox color that is as close to your OEM color as possible and indicate your vehicle's interior color when ordering.


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00


Best selling similar products

SB-D-QDRAMD/10TW1 small

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Two JL Audio 10TW1-4 Subwoofers
• RMS: 600 watts per pair / 300 watts each
• For 2002-Up Dodge Ram
• Stealthbox Installs underneath rear seat

(3)

$1699.99

List price $1699.99

SB-GM-4GSUVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-4GSUVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1249.99

List price $1249.99

SB-J-GCHWK2/10W3v3/BK small

JL Audio Stealthbox® SB-J-GCHWK2/10W3v3/BK

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W3v3-2
• 500 Watts RMS Power Handling
• Stealthbox Installs into passenger-side rear cargo panel

(3)

$1199.99

List price $1199.99

SB-GM-3GSLVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-3GSLVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1199.99

List price $1199.99

SB-GM-SLVCC3/10TW3/BK2 small

JL Audio Stealthbox® SB-GM-SLVCC3/10TW3/BK2

• Sealed truck enclosure with 2 10" TW3 Shallow Mount Series Subwoofer
• Designed for select 2007-2013 vehicles from Chevrolet, GMC
• 800 watts per pair / 400 watts each RMS
• Final Impedance: 4-ohm
• Includes two JL Audio 10TW3-D8 subwoofers
• Installs easily under the truck's rear seat location

(4)

$1999.99

List price $1999.99

SB-GM-SLVCRW/10TW3 small

JL Audio Stealthbox® SB-GM-SLVCRW/10TW3

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Dual JL Audio 10TW3-D4
• 800 Watts RMS
• For 1999-2006 Chevrolet Silverado / GMC Sierra Crew Cab Trucks
• Stealthbox Installs neatly behind the rear seat

(1)

$1699.99

List price $1699.99

SB-GM-VETC6/10W1v3 small

JL Audio Stealthbox® SB-GM-VETC6/10W1v3

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W1v3-2
• 300 Watts RMS Power Handling
• Stealthbox Installs neatly into the rear corner of the hatch

(3)

$1149.99

List price $1149.99

SB-T-TACDCG3/10TW3 small

JL Audio Stealthbox® SB-T-TACDCG3/10TW3

• Sealed enclosure with 1 10" Stealthbox Series Subwoofer
• Designed for select 2012-2015 Tacoma
• 400 watts RMS Power Rating
• Final Impedance: 2-ohm
• Designed to install neatly behind the rear seat
• Hassle-free plug and play installation

(2)

$999.99

List price $999.99

SBX-F-BRONCG6/10TW1 small

JL Audio Stealthbox® SBX-F-BRONCG6/10TW1

• Sealed enclosure with 1 10" Stealth Series Subwoofer
• 300 watts RMS
• Final Impedance: 2-ohm
• Dimensions: 5-1/4" L x 14" H x 16-1/8" W
• Designed to fit behind the Passenger Side panel

(2)

$1149.99

List price $1149.99

SB-H-PIO1K/10TW3 small

JL Audio Stealthbox® SB-H-PIO1K/10TW3

• Single JL Audio 10TW3-D4 Subwoofer
• Power handling: RMS 400 watts
• Sealed fiberglass enclosure
• Stealthbox® seamlessly installs beneath the driver's seat

$1299.99

List price $1299.99

Specifications & Details


Subwoofer Specifications
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
500 watts
Peak Power Handling
1000 watts
Woofer Surround
Nitrile Butadiene Rubber NBR
Woofer Composition
Mineral-Filled Polypropylene
Sensitivity
86 dB
Xmax (millimeters)
14 mm
Subwoofer Size
10"
Enclosure Specifications
Number of Subwoofers
1
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Khaki
Box Finish
Carpet
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SB-D-DAKCC/10W3v3/TN

Weight:

55.00lbs

Internal SKU:

sbddakcc10w3v3tn

Internal Product ID:

13827
