Kenwood P-W121B | 12" Subwoofer w/ Amplifier and Enclosure

Kenwood P-W121B

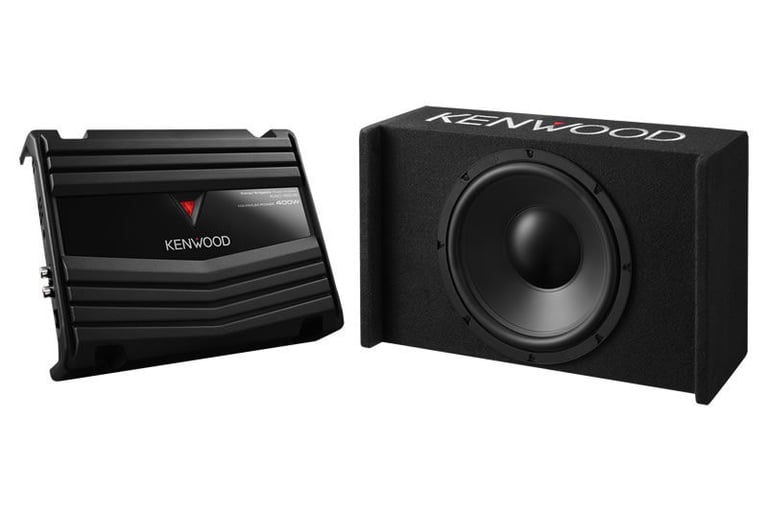

500W Max Power Single 12" Sealed Subwoofer Enclosure w/ Amplifier

500W Max Power Single 12" Sealed Subwoofer Enclosure w/ Amplifier

• 500W Single 12" Sealed Subwoofer Enclosure with Included Amplifier
• 12" Subwoofer
• Includes 170W RMS Class A/B KAC Series Amplifier
• Black Carpet Finish Enclosure
• Enclosure Dimensions: 13-3/8" D x 21-15/16" W x 7-5/16" H

We apologize

This item has been discontinued

DESCRIPTION
Kenwood

Authorized dealer

General Features:

  • 500W Single 12" Sealed Subwoofer Enclosure with Amplifier
  • Power Handling:
    • Peak: 500W
    • RMS: 300W
  • Final Impedance: 4 ohms
  • Preloaded with single 12" Subwoofers
  • Included KAC Series Class A/B amplifier
  • Sealed enclosure with black carpet finish
  • Enclosure Dimensions: 13-3/8" D x 21-15/16" W x 7-5/16" H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Subwoofer Features:

  • Polypropylene cone
  • Frequency response: 40-300 Hz
  • Sensitivity: 84dB

Amplifier Features:

  • Kenwood KAC-5207
  • Class AB Full Range 2-Ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 70 watts x 2 chan.
    • 2 ohms: 85 watts x 2 chan.
    • Bridged, 4 ohms: 170 watts x 1 chan.
  • Max power output: 500 watts
  • CTA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Soft start turn-on
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink /li>
  • Input sensitivity:
    • High level: 0.2V-5V
  • Frequency Response: 20 - 50,000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ration: 100 dB
  • Low-pass filter: 80 Hz, -18 dB/octave
  • Fuse Rating: 25A x 1
  • 10 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9-1/16"W x 6-9/16"L x 2-3/16"H

Enclosure Features:

  • Single 12" Up-or-down firing sealed subwoofer enclosure
  • Black carpet finish
FEATURES & SPECS
Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
70 watts x 2 channels
RMS Power @ 2 ohms
85 watts x 2 channels
Bridged RMS Power
170 watts x 1 channels
Amplifier Specifications
Amplifier Class
AB
Number of Channels
2
Total Peak Power Output
500 watts
Total RMS Power Output
170 watts
Maximum Input Gauge Size
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
Signal-to-Noise Ratio
100 dB
Bass/Gain Remote
No
Fan Cooled
No
CEA-2006 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
500 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Sensitivity
84 dB
Frequency Response
40 - 300 Hz
Enclosure Specifications
Number of Subs/Speakers
1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix
