See all parts that fit your 2016 Defender XT CAB HD10

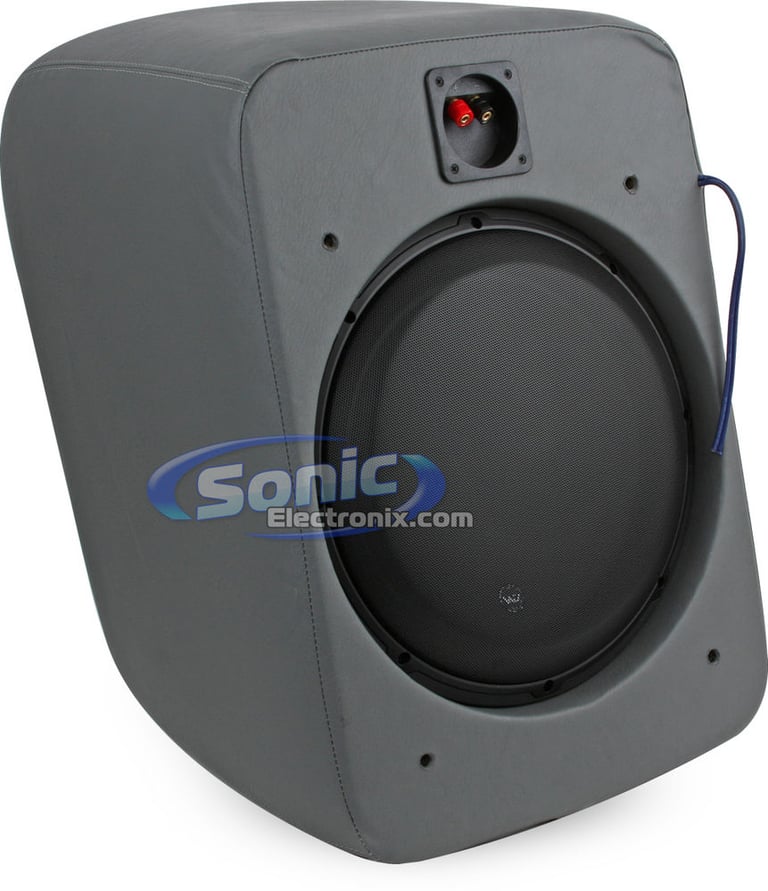

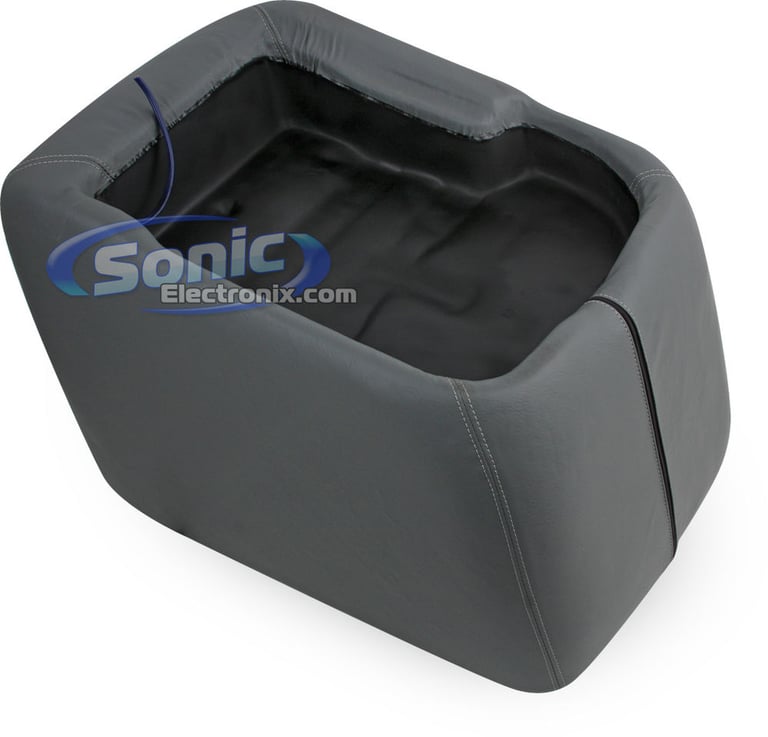

JL Audio SB-D-TRKCTR3/13W3v3/MG

Stealthbox for 2006-2008 Dodge Ram with 40/20/40 split front bench seat and Med. Slate Gray interior

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 13W3v3-2
• 600 Watts RMS Power Handling
• Stealthbox Replaces center seat

See compatible vehicles Learn more about the sbdtrkctr313w3v3mg

We apologize

This item has been discontinued


Loading...
Limited time!
MBQD-SUBA-1 main

MB Quart MBQD-SUBA-1

400W RMS Loaded Dual 10" Amplified Subwoofer Enclosure for select 2016-2025 vehicles from Can-Am

-22.81%

$764.15

List price $989.99

RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

49ST9MR4 main

Kicker ST9MR4 (49ST9MR4)

1200W Peak (600W RMS) 9" Street Series Pro Midrange 4-ohm Speakers

-9.09%

$199.99

List price $219.99

Product Highlights


• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 13W3v3-2
• 600 Watts RMS Power Handling
• Stealthbox Replaces center seat

Description


JL Audio brand icon

Authorized dealer




Subwoofer Features:

  • One JL Audio 13W3v3-2 Subwoofer
  • Power Handling:
    • RMS: 600 watts
  • Recommended power range: 150 - 600 watts RMS
  • Wired to a 2 ohm load
  • Mineral-filled polypropylene cone woofer
  • Nitrile-butadiene rubber surround
  • DMA-optimized, long linear excursion capability to virtually eliminate distortion and increase sound output
  • Vented reinforcement collar improves rigidity and stability of the cone, spider, and voice coil
  • Spider and lead wire assembly
  • Elevated frame cooling enhances power and sound quality
  • Floating Cone Attach Method allow the cone and surround to be aligned independently
  • Xmax: 15.5 mm
  • Sensitivity: 87.63 dB
  • Matching Amplifier: JL Audio XD600/1v2
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Enclosure Features:

  • For 2006-2008 Dodge Ram with 40/20/40 split front bench seat and Med. Slate Gray interior
  • Down-firing design
  • Sealed enclosure
  • Black steel mesh woofer grille is included
  • Stealthbox® Replaces center seat
  • Retains factory storage tray feature / armrest surface
  • Binding post terminals for secure and sturdy connection and installation
  • Permanent modification of factory storage mount is required
  • Will not fit Mega Cab or SRT-10 Regular Cab models
  • OEM Color: Med. Slate Gray
  • Color Match Grade: Excellent



Color Matching your Stealthbox®:

Some JL Audio Stealthboxes are not designed to perfectly match OEM colors. Some colors will contrast with OEM colors in order to provide a stylish setup. If you are looking for the closest color match, please select the JL Audio Stealthbox® color that is as close to your OEM color as possible and indicate your vehicle's interior color when ordering

Carpet Color Grade Identification
Perfect Actual exact factory color and texture (dye lot may differ slightly)
Excellent Precise color match, different texture
Good Very close to factory shade/tone
Fair Same basic color, different shade/tone
Poor Same basic color, substantially different shade/tone
Contrasts Not intended to match any factory color. Usually black. Good choice if no Good or better color match exists

Message from JL Audio: Our goal is to provide all Stealthbox® products in colors that match well with factory interiors. Because of availability issues with carpet colors, some Stealthbox® colors are not precise matches at this time. The match grades above give you an indication of how precise our color match is for each Stealthbox® model.

Check out the JL Audio SB-D-TRKCTR3/13W3v3 Owner's Manual

Compatible Vehicles


Please use our Fitment Guide to determine specific compatibility for the submodel and audio features

The vehicle you have selected 2016 Can-Am Defender XT CAB HD10 is not compatible. Change vehicle or See list of compatible similar products


Best selling similar products

SB-D-QDRAMD/10TW1 small

JL Audio Stealthbox® SB-D-QDRAMD/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Two JL Audio 10TW1-4 Subwoofers
• RMS: 600 watts per pair / 300 watts each
• For 2002-Up Dodge Ram
• Stealthbox Installs underneath rear seat

(3)

$1699.99

List price $1699.99

SB-GM-4GSUVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-4GSUVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1249.99

List price $1249.99

SB-J-GCHWK2/10W3v3/BK small

JL Audio Stealthbox® SB-J-GCHWK2/10W3v3/BK

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W3v3-2
• 500 Watts RMS Power Handling
• Stealthbox Installs into passenger-side rear cargo panel

(3)

$1199.99

List price $1199.99

SB-GM-3GSLVCNSL/10TW1 small

JL Audio Stealthbox® SB-GM-3GSLVCNSL/10TW1

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW1-2
• 300 Watts RMS Power Handling
• Stealthbox Installs Under Center Console

(2)

$1199.99

List price $1199.99

SB-GM-SLVCC3/10TW3/BK2 small

JL Audio Stealthbox® SB-GM-SLVCC3/10TW3/BK2

• Sealed truck enclosure with 2 10" TW3 Shallow Mount Series Subwoofer
• Designed for select 2007-2013 vehicles from Chevrolet, GMC
• 800 watts per pair / 400 watts each RMS
• Final Impedance: 4-ohm
• Includes two JL Audio 10TW3-D8 subwoofers
• Installs easily under the truck's rear seat location

(4)

$1999.99

List price $1999.99

SB-GM-VETC6/10W1v3 small

JL Audio Stealthbox® SB-GM-VETC6/10W1v3

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10W1v3-2
• 300 Watts RMS Power Handling
• Stealthbox Installs neatly into the rear corner of the hatch

(3)

$1149.99

List price $1149.99

SB-GM-SLVCRW/10TW3 small

JL Audio Stealthbox® SB-GM-SLVCRW/10TW3

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Dual JL Audio 10TW3-D4
• 800 Watts RMS
• For 1999-2006 Chevrolet Silverado / GMC Sierra Crew Cab Trucks
• Stealthbox Installs neatly behind the rear seat

(1)

$1699.99

List price $1699.99

SB-H-PIO1K/10TW3 small

JL Audio Stealthbox® SB-H-PIO1K/10TW3

• Single JL Audio 10TW3-D4 Subwoofer
• Power handling: RMS 400 watts
• Sealed fiberglass enclosure
• Stealthbox® seamlessly installs beneath the driver's seat

$1299.99

List price $1299.99

SBX-F-BRONCG6/10TW1 small

JL Audio Stealthbox® SBX-F-BRONCG6/10TW1

• Sealed enclosure with 1 10" Stealth Series Subwoofer
• 300 watts RMS
• Final Impedance: 2-ohm
• Dimensions: 5-1/4" L x 14" H x 16-1/8" W
• Designed to fit behind the Passenger Side panel

(2)

$1149.99

List price $1149.99

SB-T-TACDCG3/10TW3 small

JL Audio Stealthbox® SB-T-TACDCG3/10TW3

• Sealed enclosure with 1 10" Stealthbox Series Subwoofer
• Designed for select 2012-2015 Tacoma
• 400 watts RMS Power Rating
• Final Impedance: 2-ohm
• Designed to install neatly behind the rear seat
• Hassle-free plug and play installation

(2)

$999.99

List price $999.99

Specifications & Details


Subwoofer Specifications
Subwoofer Design
Round / Circle
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
600 watts
Woofer Surround
Rubber
Woofer Composition
Mineral-Filled Polypropylene
Sensitivity
87.63 dB
Frequency Response
20 - 200 Hz
Xmax (millimeters)
15.5 mm
Subwoofer Size
13.5"
Enclosure Specifications
Number of Subwoofers
1
Box Style/Shape
Vehicle Specific
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Medium Slate Gray
Box Finish
Vinyl
Final Wired Impedance
2-ohm
Type of Enclosure
Loaded
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SB-D-TRKCTR3/13W3v3/MG

Weight:

60.00lbs

Internal SKU:

sbdtrkctr313w3v3mg

Internal Product ID:

13844
