See all parts that fit your 2013 Q5

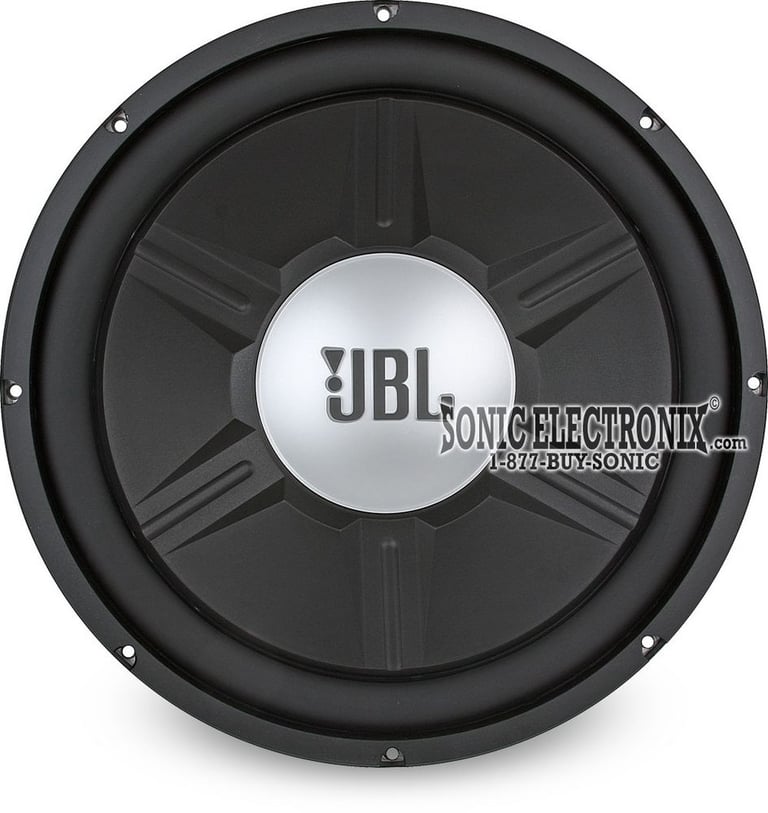

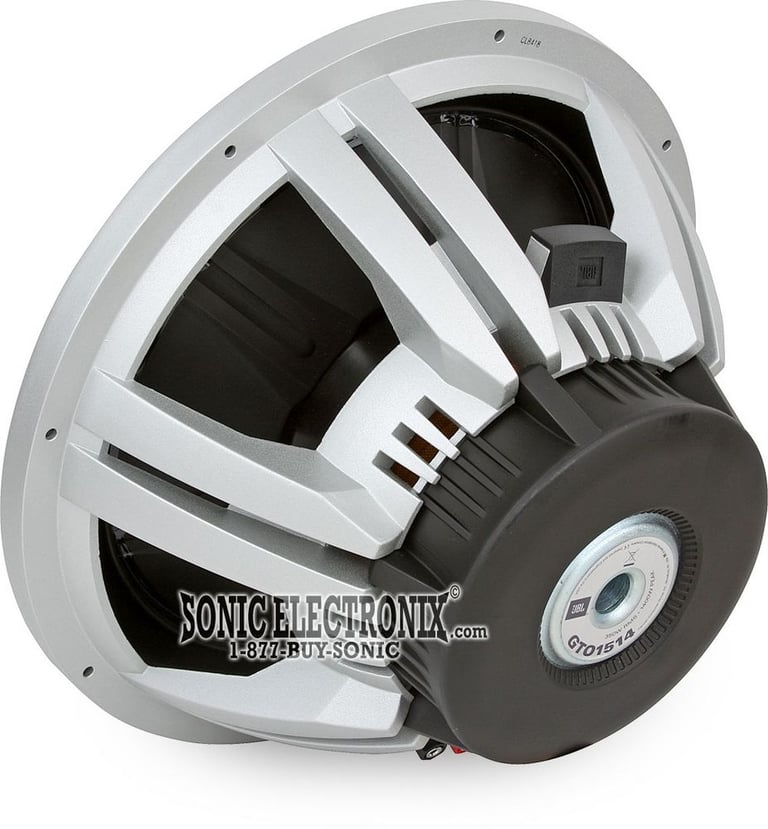

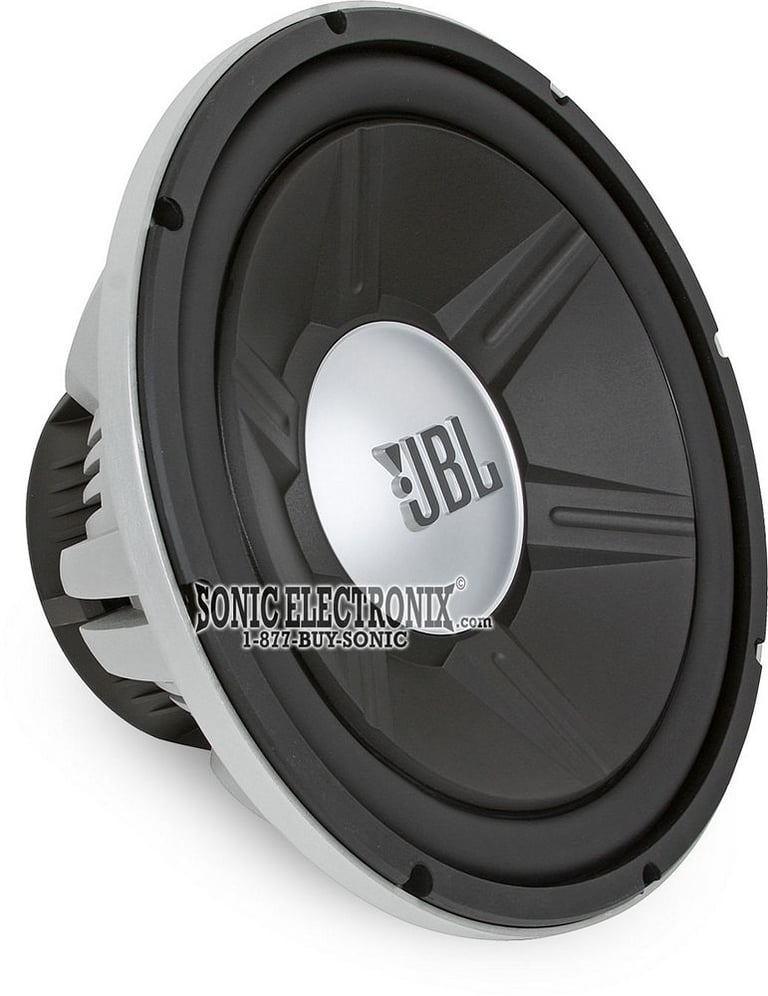

JBL GTO1514

350W 15" GTO Series Single 4 ohm Subwoofer w/ FREE Sound Dampening! (Use Bundle Offer)

JBL
Shop all JBL
Product videos
highlight-star-icon

• 1400W Peak
• 350W RMS
• Polypropylene cone woofer
• Rubber surround
• Tinsel wire protector
• Die-cast aluminum basket
• 2" Single 4 ohm voice coil

Learn more about the gto1514

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

NSP35 main

NVX NSP35

200W Peak (70W RMS) 3.5" N-Series 2 Way Coaxial Car Speakers

55
-16.67%

$49.99

List price $59.99

JL Audio C2-600cw (Sold Individually)

60W RMS 6” C2 Series Component 4-ohm Car Midwoofer

$159.99

Product Highlights


• 1400W Peak
• 350W RMS
• Polypropylene cone woofer
• Rubber surround
• Tinsel wire protector
• Die-cast aluminum basket
• 2" Single 4 ohm voice coil

Description


JBL brand icon

Authorized dealer

Grand Touring Series

Ever wonder what a high quality subwoofer sounds like? Now you not only hear one, but own one too. These affordable subwoofers are built with die-cast aluminum frames to ensure durability of the product. The Butyl Rubber surround provides a tone of bass that sounds superior to most others. The Polypropylene woofer cone provides the loudest and highest quality punch on every note. When properly powered, these hungry speakers will extend deep into the audible frequencies for an even presence of your low end bass. Get yours now and you will not regret it!

General Features:

  • 15" Single 4 ohm Grand Touring Die-Cast Series Subwoofer
  • Power Handling:
    • Peak: 1400 watts
    • RMS: 350 watts
  • Impedance: Single 4 ohm
  • Polypropylene cone woofer
  • Rubber surround
  • Tinsel wire protector
  • Die-cast aluminum basket
  • 2" Single 4 ohm voice coil
  • Frequency response: 23-400 Hz
  • Sensitivity: 93 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

JBL GTO1514 thumbnail
(newest, current model)
JBL GTO1502D thumbnail
(previous model, replaced by JBL GTO1514)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL GTO1514 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL GTO1514 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL GTO1514 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL GTO1514 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

Specifications & Details


Subwoofer Specifications
Series
GTO Series
Subwoofer Size
15"
Peak Power Handling
1400 watts
RMS Power Handling
350 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
23 - 400 Hz
Sensitivity
93 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Silver
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.5 cubic feet
Maximum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
3.5 cubic feet
Maximum Ported Box Volume
3.5 cubic feet
Top-Mount Depth (Mounting Depth)
6-13/16"
Cutout Diameter
13-15/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
25.10 Hz
Equivalent Compliance (Vas)
153.50 liters
Total Speaker Q Value (Qts)
0.49
Electrical Q Value (Qes)
0.52
Electrical Resistance of Voice Coil (Re)
3.80 ohm
Mechanical Q Value (Qms)
7.08
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

GTO1514

Weight:

23.00lbs

Internal SKU:

gto1514

Internal Product ID:

13862
