Infinity Kappa 50.9cs

5-1/4" 2-way Kappa Series Component Speakers System (KAPPA50.9CS)

Infinity
Shop all Infinity
Product videos
highlight-star-icon

5.25" Kappa Series 2-way Component Speakers System • 225W Max • 85W RMS • Woven glass fiber cone woofer • Rubber surround • Edge driven UHF dome tweeter • Direct connect computer-optimized, voice-matched outboard passive crossover

Learn more about the 509cs

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

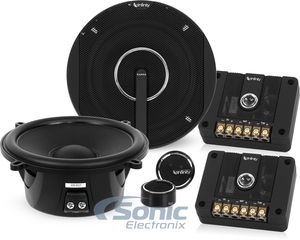

5011cs thumbnail

Infinity Kappa 50.11cs

OUR PRICE: $159.95

View item

Loading...
SAVW6 main

Scosche SAVW6

Speaker Adapters for select 1998-2018 vehicles from Volkswagen, Audi

4
72-9002 main

Metra 72-9002

Install New Speakers in select 1994-2024 vehicles from Audi, Mercedes-Benz, Chevrolet

5
-26.68%

$10.99

List price $14.99

CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
Stage1621 main

JBL Stage1 621 (STAGE1621)

350W Peak (70W RMS) 6.5" Stage1 Series 2 Way Coaxial 4-ohm Speakers

5
-50.05%

$49.95

List price $99.99

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

$119.95

Product Highlights


5.25" Kappa Series 2-way Component Speakers System • 225W Max • 85W RMS • Woven glass fiber cone woofer • Rubber surround • Edge driven UHF dome tweeter • Direct connect computer-optimized, voice-matched outboard passive crossover

Description


Infinity brand icon

Authorized dealer

Buy with the Infinity 52.9I Speakers + Infinity 120.9W Sub + RE Audio XTX500.5 Amp & Save $50.00!


Click here to buy the combo package!

Kappa: The Essence of Infinity

This Infinity Kappa 682.9cf is the essence and trademark of Infinity car audio. With all the high-end engineering and technology that goes into each Kappa speaker, you will sure that you are receiving only the highest quality components. Made with a woven glass fiber woofer cone, which contributes to low cone flex, low distortion, and enhanced acoustic clarity. Due to the increased power handling of the Kappa series, the Kappa 682.9cf feature edge-driven MMD dome tweeters that allow for a seamless sonic integration between the tweeter and the mid-woofer. Using the latest in loudspeaker engineering, each of the crossovers has computer optimized voice-matched outboard passive crossovers for flawless performance.

Unipivot: Staging Made Easy

The Infinity 682.9cf features a patented Unipivot tweeter design that ensures proper imaging when the speakers are installed. With the tweeter capable of being moved, it is positional and rotational even after the final screw secures the speaker in the door. Since most speakers are installed low in the door, the Unipivot design brings the soundstage up to the listener for more accurate and enjoyable experience. Each of the Kappa coaxial speakers, such as the Infinity Kappa 682.9cf feature adjustable tweeter level control. This switch will adjust the tweeters output by 3 dB. That simple tuning can make all the difference in your system and it ensures that your Kappa speakers will deliver exactly the sound that you are looking for.

True Four Ohm Technology

The engineers at Infinity have developed a speaker that works for all applications. The True Four Ohm Technology used in these speakers make it perfect for running directly of a headunit or with an aftermarket headunit and amplifier. All of the speakers in the Infinity Reference line feature a 2 ohm voice coil. However, when you factor in the small OEM speaker wire of most vehicles and the heating in the voice coil during use, the impedance actually seen by the amplifier will increase. Infinity has adjusted the speaker to be safely connected to any headunit.

General Features:

  • 5-1/4" Kappa Series 2-way Component Speakers System
  • Power Handling:
    • Peak: 450 watts per set / 225 watts each side
    • RMS: 170 watts per set / 85 watts each side

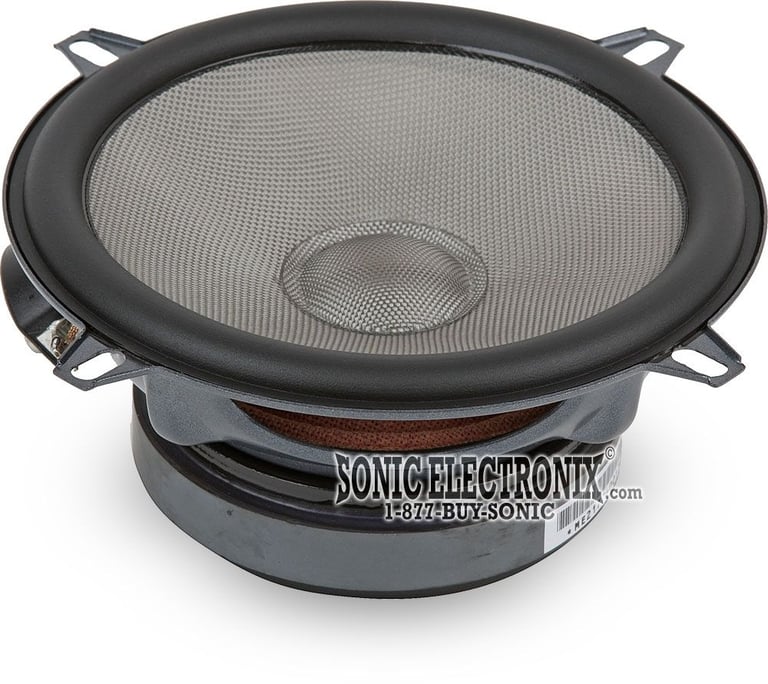

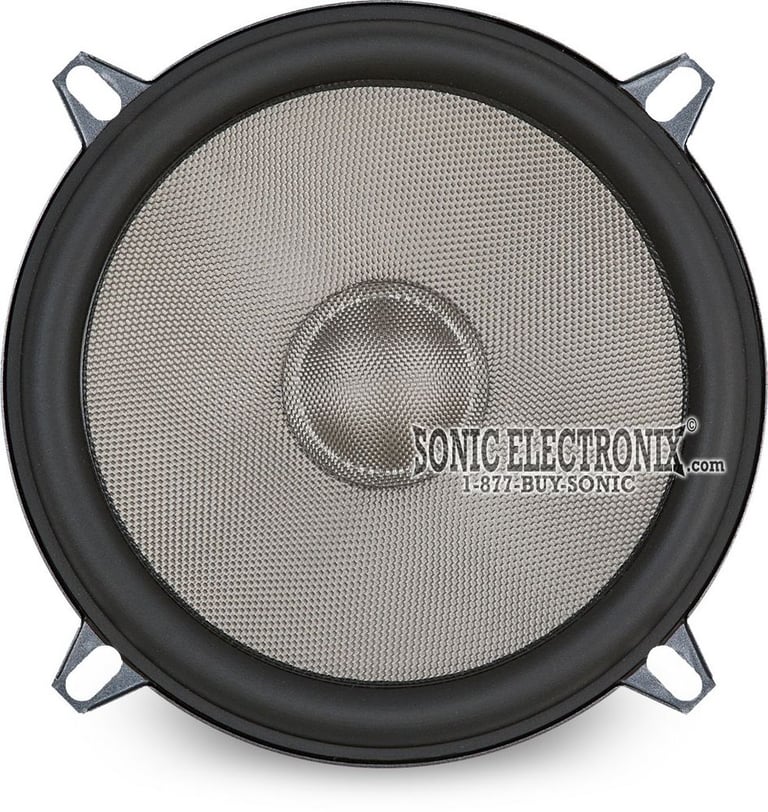

  • Woven glass fiber cone woofer
  • Rubber surround
  • Edge driven UHF dome tweeter

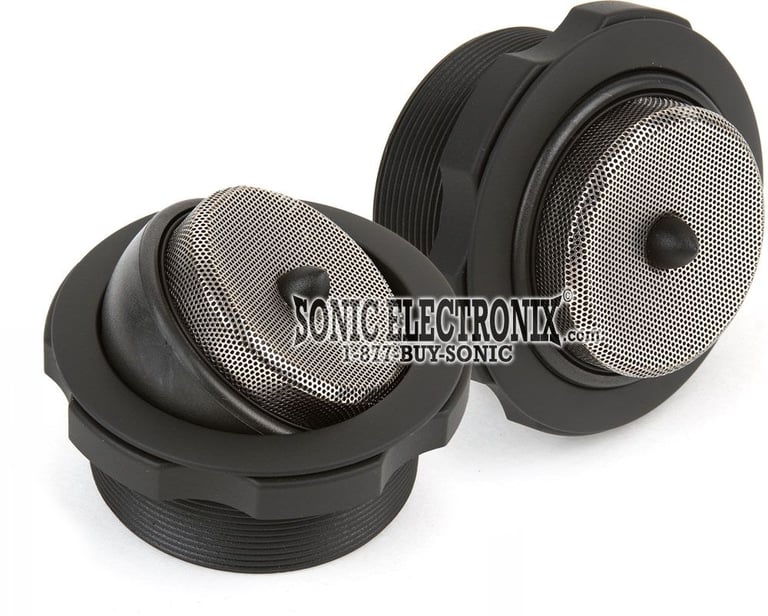

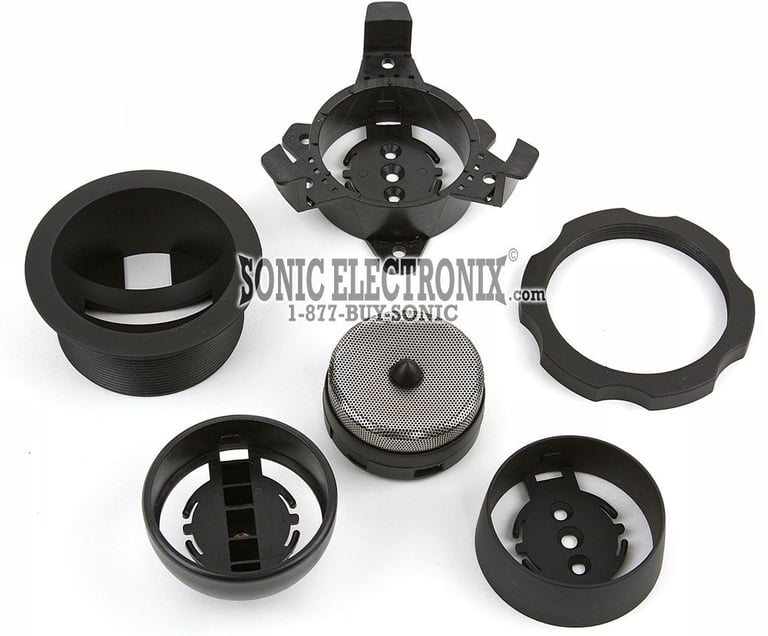

  • Unipivot patented rotating tweeter allows tweeter to be directed at the listener's location

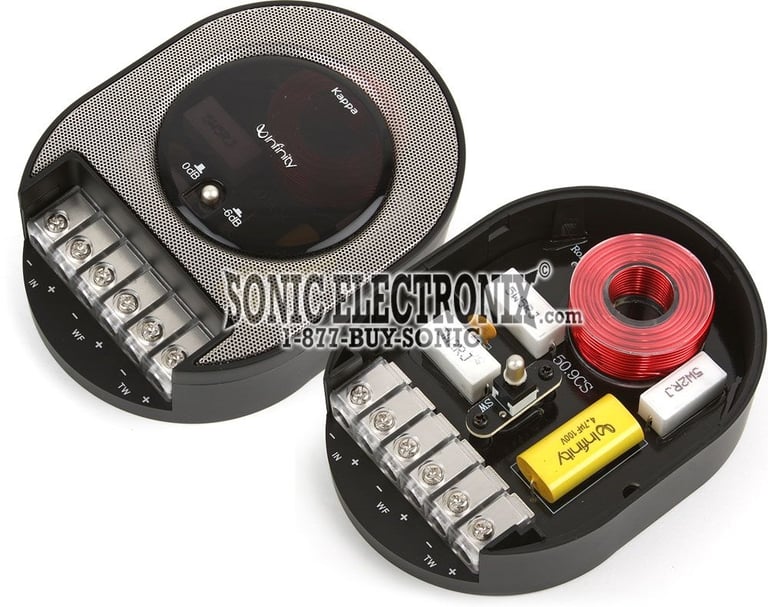

  • Direct connect computer-optimized, voice-matched outboard passive crossover for superb detail and accuracy
  • Tweeter level adjustment on passive crossover to add or subtract 3 dB output
  • 2 ohm impedance
  • Top-mount depth: 2-3/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

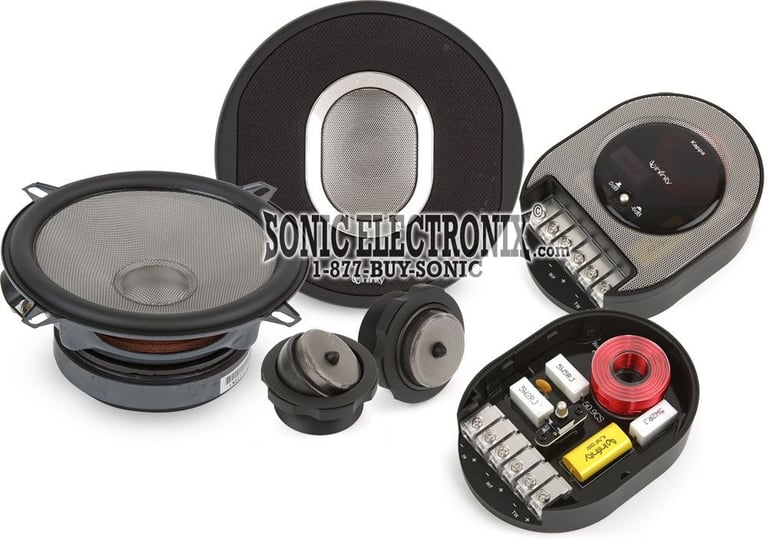

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks

Product history:

Infinity 50.11cs thumbnail
(newest, current model)
Infinity 50.9cs thumbnail
(previous model, replaced by Infinity Kappa 50.11cs)
Infinity KAPPA-50.7CS thumbnail
(previous model, replaced by Infinity Kappa 50.9cs)
Infinity 50.5CS thumbnail
(previous model, replaced by Infinity Kappa 50.7cs)

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00


Best selling similar products

Reference 5030cx small

Infinity Reference 5030cx (REF5030CX)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$99.95

List price $249.95

REF507CF small

Infinity REF507CF (INFSPKRF507CFUS)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome Tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

$219.95

List price $249.95

DB5252 small

Polk Audio DB5252 (DB 5252)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" dual Silk Dome tweeters
• UV-Resistant Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(4)

$200.00

List price $209.99

Specifications & Details


Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Composition
UHF
Woofer Composition
Woven Glass Fiber
Woofer Surround
Rubber
Peak Power Handling
225 watts
RMS Power Handling
85 watts
Sensitivity
93 dB
Frequency Response
55 - 35000 Hz
Impedance (Per Voice Coil)
2 ohm
Top-Mount Depth (Mounting Depth)
2-3/16"
Bottom-Mount Depth
2-8/16"
Cutout Dimensions
4-3/4" x 4-3/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

50.9cs

Weight:

6.50lbs

Internal SKU:

509cs

Internal Product ID:

13968

Product and How-to Videos


Customer Ratings & Reviews


Infinity Kappa 50.9cs thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

WOOOW!

I just got this installed in my car, I run them with crunch amp. and these are really loud and clear. I have never had so good speakers and never heard better.

By Sladjan on December 29, 2009
