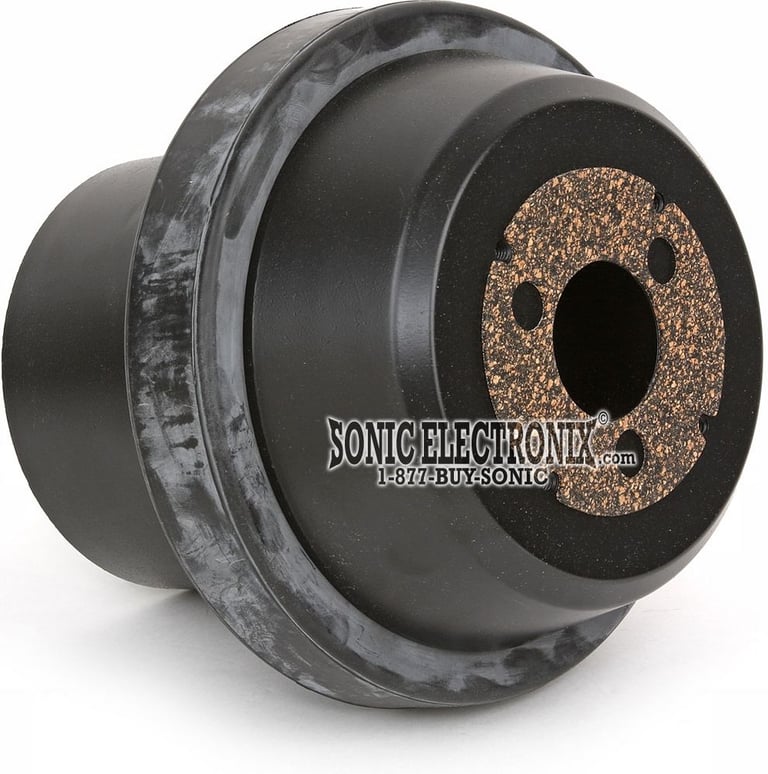

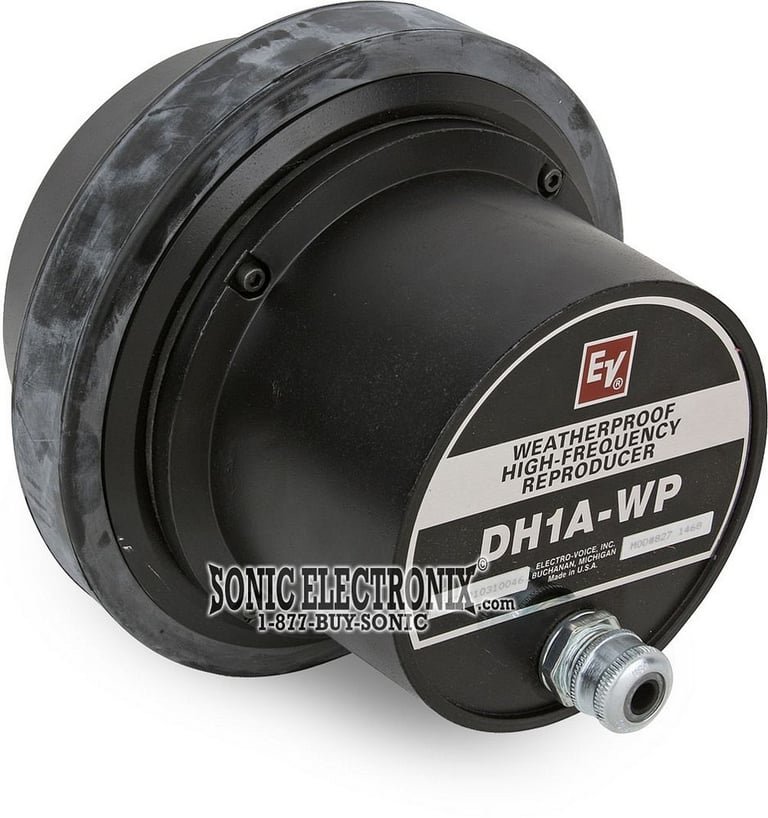

ElectroVoice EV DH1A-WP

The DH1A-WP is intended primarily for outdoor use with the HP series horns. Typical applications would include large outdoor systems such as ball parks, race tracks, and stadiums.

• 6 ohm Compression Driver for PA System / Loudsystem / DJ Horn Speaker
• Power frequency response: 500-20000 Hz (essentially flat 500-5000 Hz with 6 dB/octave rolloff to 20000 Hz, rapid rolloff beyond)
• Nominal impedance: 8 ohm
• Minimum impedance, on HP Series Horns above 500 Hz: 7 ohm at 6000 Hz
• DC resistance: 4.5 ohm
• Long-term average power capacity on HP horns, indicated bands of pink noise, 8-ohm impedance assumed:
• 24 hours, 6 dB crest factor: 50 watts (500-20000 Hz)
• 2 hours, 6 dB crest factor: 75 watts (1000-10000 Hz)
• Nominal efficiency, 1000-5000 Hz pink noise, 8 ohm impedance assumed: 25%
• Maximum long-term acoustic power output (24 hours): 10 watts
• Recommend minimum crossover frequency: 500 Hz
• Sound pressure level at 1 meter, 1 watt input averaged from 500 Hz to 5000 Hz:
• 115 dB, HP4020 horn
• 113 dB, HP6040 horn
• 111 dB, HP9040 horn
• 114 dB, HP420 horn
• 112 dB, HP640 horn
• 110 dB, HP940 horn
• 108 dB, HP1240 horn
• Throat diameter: 1.94" (4.92 cm)
• Voice coil diameter: 3" (7.62 cm)
• Voice coil construction: Rectangular edge-wound pure aluminum wire on a high-temperature polyimide form
• Diaphragm construction: Integral all-titanium construction consisting of spherical diaphragm dome and geometrically optimized suspension; a low fatigue, high temperature, long duration cure engineering polymer bonds the coil form to the diaphragm
• Electrical connection: Screw terminals, each of which will accept a pair 12-gauge wires and any smaller
• Polarity: A positive voltage applied to the positive (+) terminal produces a positive acoustic pressure in the throat
• Mechanical connection: Bolt on, 4 equally spaced holes on a 4" diameter circle, 1/4" - 10 threads, bolts supplied with HP series horns
• Dimensions: 8.88" Diameter x 8.88"H
• 1-year Manufacturer's warranty
