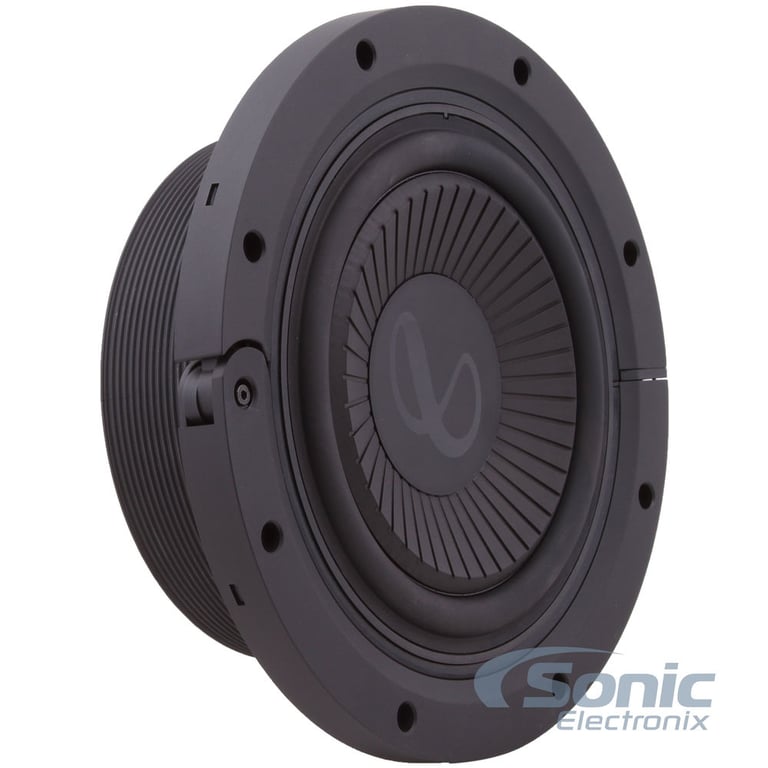

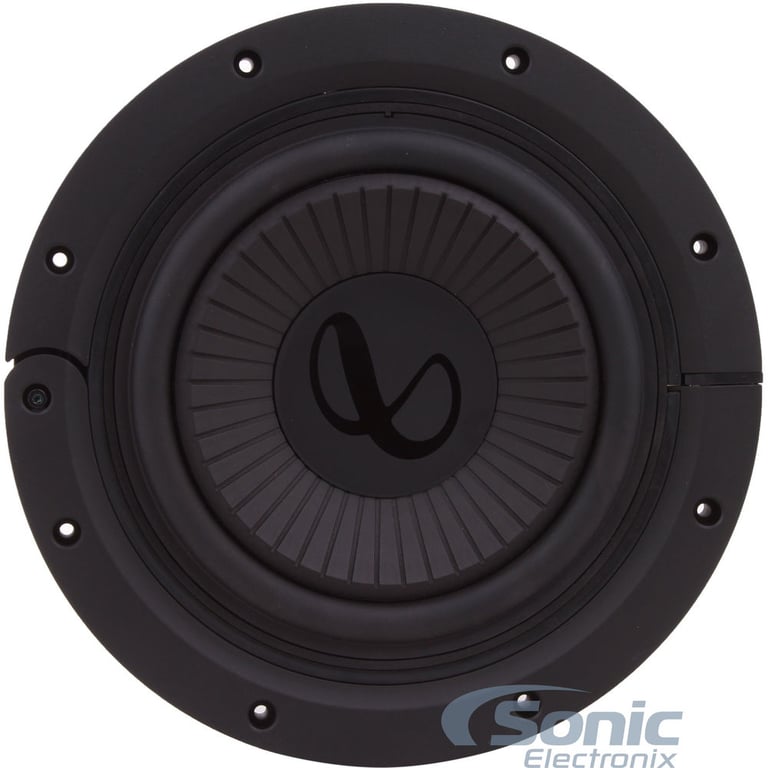

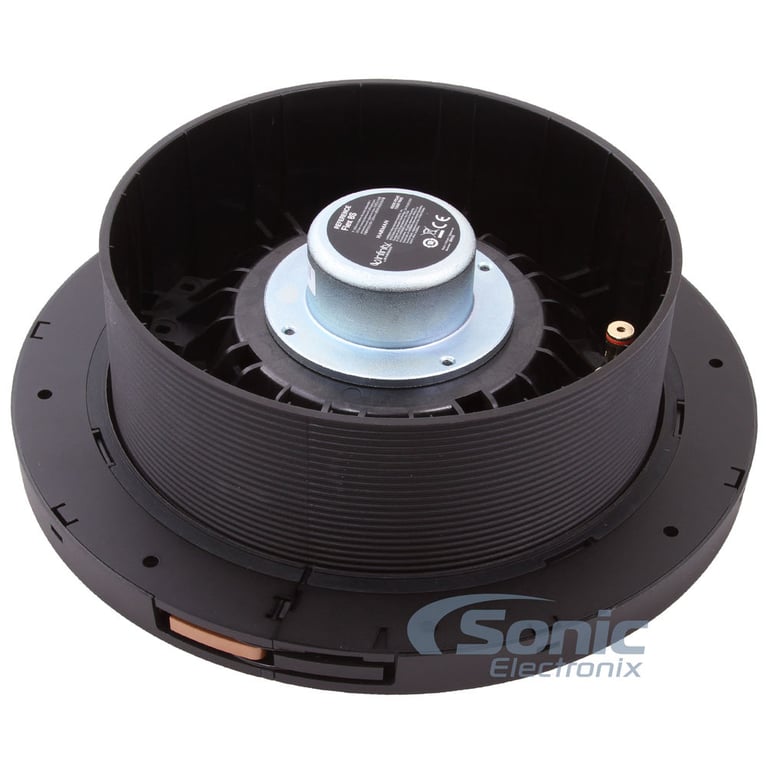

Infinity Reference-Flex8

600W Max (150W RMS) 8" Single 2 ohm Adjustable Depth Car Subwoofer for Factory Location Upgrades

Infinity
Shop all Infinity
highlight-star-icon

• 600W Max
• 150W RMS
• Polypropylene Cone
• Large Roll Rubber Surround
• Adjustable Height
• Mounts in Factory Locations
• Keeps Factory Look in Vehicles

Learn more about the refflex8s

We apologize

This item has been discontinued


Loading...
KIT-FLX1 main

iDataLink Maestro KIT-FLX1 Dash and Wiring Kit

Double DIN Dash and Wiring Kit for iDataLink-Compatible Car Stereo in select 2013-2019 Flex (Requires Maestro RR)

-17.31%

$429.99

List price $519.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$89.99

List price $107.99

XBAF68 main

NVX XBAF68

Universal 6x8" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

12
-26.68%

$21.99

List price $29.99

51KSS6804 main

Kicker KSS68 (51KSS6804)

500W Peak (250 RMS) 6x8" KS-Series 2-way 4-ohm Component Speaker System (KSS6804)

-10.71%

$249.99

List price $279.99

NSP35 main

NVX NSP35

200W Peak (70W RMS) 3.5" N-Series 2 Way Coaxial Car Speakers

55
-16.67%

$49.99

List price $59.99

ADS-MRR2 main

iDataLink Maestro RR2 Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

5
-18.75%

$259.99

List price $319.99

Description


Infinity brand icon

Authorized dealer


General Features:

  • 8" Single Voice Coil 2 ohm FLEX Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 150 watts
  • Built for installing an upgraded subwoofer in your vehicle's factory location
  • Polypropylene cone
  • Large roll rubber surround

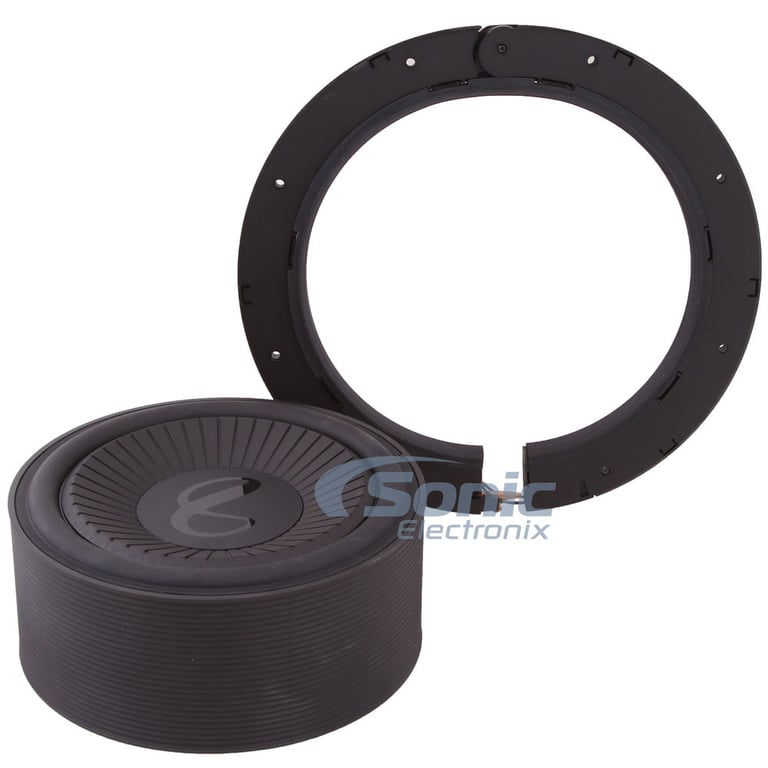

  • Adjustable height: Proprietary sliding flange helps ensure factory look when installing
  • Flange snaps in place
  • Spring-loaded terminals
  • 1-9/16" single voice coil
  • Top-mount depth: 2.5"
  • Cutout diameter: 7-9/16"
  • Frequency Response: 25 - 500Hz
  • Sensitivity: 83dB
  • Resonance Frequency (Fs): 41.3
  • Also Available as a Dual 2 Ohm Model: JBL REF-FLEX8D
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Infinity Reference-Flex8 Subwoofer

Mono Amp

Wiring Guide to Wire 2 Infinity Reference-Flex8 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Infinity Reference-Flex8 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Infinity Reference-Flex8 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

DB-SA2508 D1 small

Deaf Bonce Apocalypse DB-SA2508 D1

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 5.22"
• Sensitivity: 84.7 dB

(1)

$229.90

List price $229.90

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

SPK-8S4 small

AudioControl SPK-8S4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 4.291"
• Sensitivity: 81.9876 dB

(1)

$179.00

List price $229.00

KAPPA 83WDSSI small

Infinity Kappa 83WDSSI (INFSUBKA83WDSSIAM)

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 5.42"
• Sensitivity: 91 dB

(2)

$149.95

List price $289.95

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

CWRT84 small

Kicker CWRT84 (48CWRT84)

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 2-11/16"
• Sensitivity: 81.8 dB

(4)

$151.96

List price $209.99

Specifications & Details


Subwoofer Specifications
Series
REF-FLEX
Subwoofer Size
8"
Peak Power Handling
600 watts
RMS Power Handling
150 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
1-9/16"
Frequency Response
25 - 500 Hz
Sensitivity
84 dB
Xmax (millimeters)
4.65 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Optimum Sealed Box Volume
.4 cubic feet
Optimum Ported Box Volume
1.08 cubic feet
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
41.3 Hz
Equivalent Compliance (Vas)
13.694 liters
Total Speaker Q Value (Qts)
1.101
Electrical Q Value (Qes)
1.345
Electrical Resistance of Voice Coil (Re)
2.29 ohm
Mechanical Q Value (Qms)
6.071
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Reference-Flex8

Weight:

8.00lbs

Internal SKU:

refflex8s

Internal Product ID:

143597
