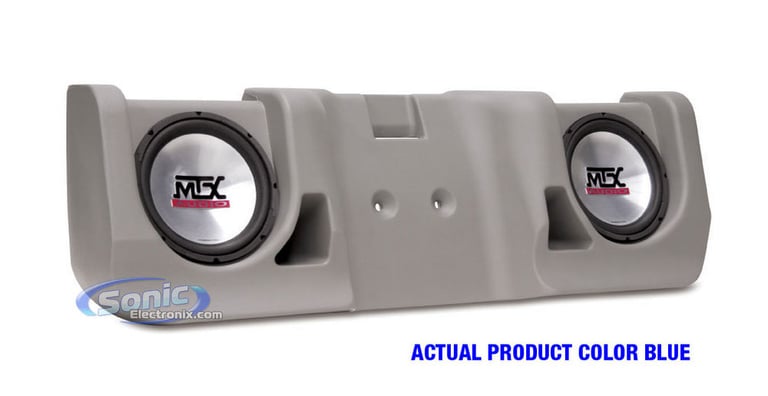

MTX Audio Thunderform CXP20AB-T45 (Blue, Amplified)

Chevrolet Extra Cab 1999-2006, Amplified 2 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure

MTX
Shop all MTX
highlight-star-icon

Dual 10" Loaded Amplified Thunderform Subwoofer Enclosure • For 1999-2006 Chevrolet Extra Cab • Also Fits 1999-2001 GMC Pick-Up Extended Cab • 900W Max • 450W RMS • Built-in 200W Amplifier

Learn more about the cxp20abt45

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

Description


MTX brand icon

Authorized dealer

Authorized MTX Dealer

Subwoofer Features:

  • Dual 10" Thunder4500 Subwoofers
  • Subwoofer Power Handling:
    • Peak: 900 watts
    • RMS: 450 watts
  • Impedance: 4 ohm
  • Carbon filled polypropylene cone
  • Polyether foam surround
  • Asymmetrical Linear Drive System (ALDS): flat progressive spider and extended pole piece for smooth, linear, piston like drive
  • Spider Plateau Venting technology, which ensures a cooler, more reliable subwoofer
  • Precision Stamped Basket for greater structural integrity
  • FEA optimized roll geometry to maximize excursion without sacrificing cone surface area
  • Stitched Cone for added durability and style
  • Long Integral Tinsel Leads are woven into the spider for better bass extension with greater durability
  • Voice coils are wound on an Apical voice coil former for high power handling
  • Industry leading thermal power handling using 428˚F High Temperature Voice Coil Wire
  • 1.5" Voice coil
  • 30oz. Strontium Ferrite magnet
  • Frequency response: 35-150 Hz
  • Sensitivity: 90 dB
  • 1-year Manufacturer's warranty

Enclosure Features:

  • Dual 10" Sealed Loaded Thunderform Subwoofer Enclosure with built-in Amplifier
  • For 1999-2006 Chevrolet Extra Cab
  • Also fits 1999-2001 GMC Pick-Up Extended Cab, 3 and 4 Door models
  • Mounts under the rear seat on the drivers side and bolts to the floor of the vehicle
  • Jack stays in factory location
  • Install hardware included
  • Built-in 200 watt Class D Amplifier
  • EBC and wire harness included
  • Made of a high density polyethylene resin, which is flexible enough to transform into a variety of shapes and sizes, yet strong enough to avoid flexing
  • Enclosure volume: 1.9 cubic feet, sealed
  • Molded factory color is Blue
  • Also available in: Charcoal, Gray, Maroon, Red, Tan
  • Dimensions: 15-1/2"D x 48-1/2"W x 10-1/2"H
Note: Since each MTX Audio Thunderform is custom made to order, it can ship within 2 to 5 business days. When ordering please allow enough time for the manufacturing and shipping of the product.
