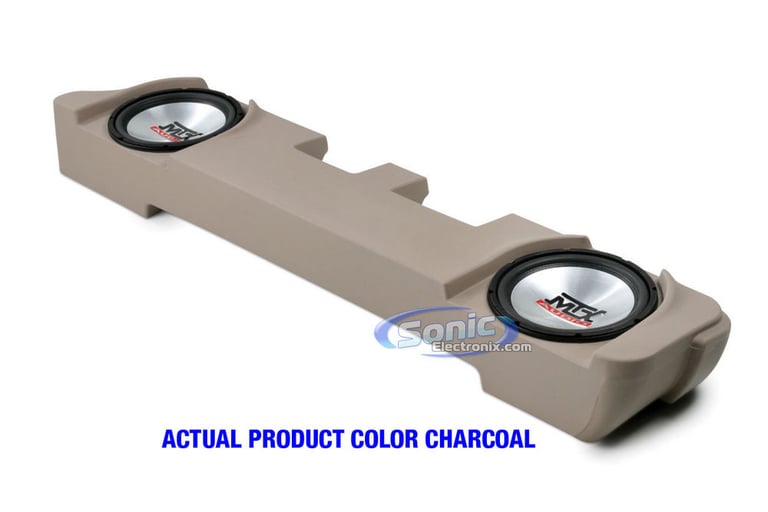

MTX Audio Thunderform F250X00C20-T45 (Charcoal, Loaded)

Ford F-250 Super Cab 2000-2007, 2 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure

MTX
Shop all MTX
highlight-star-icon

Dual 10" Loaded MTX Thunderform Sealed Subwoofer Enclosure • For 2000-2007 Ford F-250 Super Cab • Loaded with Thunder4500 Subwoofers • 900W Max • 450W RMS • 4 ohm • Carbon filled polypropylene cone

Learn more about the f250x00c20t45

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

f250x00c20tn thumbnail

MTX Audio Thunderform F250X00C20-TN

OUR PRICE: $649.95

View item

Loading...
82-5606 main

Metra 82-5606

6x9" Front Door Speaker Bracket for select 2015-2025 vehicles from Ford, Lincoln

15
-48.62%

$16.95

List price $32.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

51KSS6904 main

Kicker KSS69 (51KSS6904)

300W RMS 6x9" KS Series 2-Way 4-ohm Component Speaker System

2
-10.71%

$249.99

List price $279.99

Description


MTX brand icon

Authorized dealer

Authorized MTX Dealer

Subwoofer Features:

  • Dual 10" Thunder4500 Subwoofers
  • Subwoofer Power Handling:
    • Peak: 900 watts
    • RMS: 450 watts
  • Impedance: 4 ohm
  • Carbon filled polypropylene cone
  • Polyether foam surround
  • Asymmetrical Linear Drive System (ALDS): flat progressive spider and extended pole piece for smooth, linear, piston like drive
  • Spider Plateau Venting technology, which ensures a cooler, more reliable subwoofer
  • Precision Stamped Basket for greater structural integrity
  • FEA optimized roll geometry to maximize excursion without sacrificing cone surface area
  • Stitched Cone for added durability and style
  • Long Integral Tinsel Leads are woven into the spider for better bass extension with greater durability
  • Voice coils are wound on an Apical voice coil former for high power handling
  • Industry leading thermal power handling using 428˚F High Temperature Voice Coil Wire
  • 1.5" Voice coil
  • 30oz. Strontium Ferrite magnet
  • Frequency response: 35-150 Hz
  • Sensitivity: 90 dB
  • 1-year Manufacturer's warranty

Enclosure Features:

  • Dual 10" Sealed Loaded Thunderform Subwoofer Enclosure
  • For 2000-2007 Ford F-250 supercab
  • Also fits 2000-2007 F-350 Supercab Trucks
  • Mounts under the rear bench seat
  • Jack stays in factory location and tools relocated to under the center of enclosure
  • No loss of leg room
  • Install hardware included
  • Made of a high density polyethylene resin, which is flexible enough to transform into a variety of shapes and sizes, yet strong enough to avoid flexing
  • Enclosure volume: 1.17 cubic feet, sealed
  • Molded factory color is Charcoal
  • Also available in: Black, Gray, and Tan
  • Dimensions: 10-1/4"D x 55-1/8"W x 7"H
Note: Since each MTX Audio Thunderform is custom made to order, it can ship within 2 to 5 business days. When ordering please allow enough time for the manufacturing and shipping of the product.

Product history:

MTX F250X00C20-TN thumbnail
(newest, current model)
MTX F250X00C20-T45 thumbnail
(previous model, replaced by MTX Audio Thunderform F250X00C20-TN)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

F250X00C20A-TN small

MTX Audio Thunderform F250X00C20A-TN

• 10" Amplified Loaded Subwoofer System
• 200 watts RMS
• Built-In Class Amplifier
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Compatible with select 2000-2014 F-250 Super Duty

$929.95

List price $747.95

DRQC20AC-TN small

MTX Audio Thunderform DRQC20AC-TN (Charcoal, Amplified)

• Dual 10" Loaded Amplified MTX Thunderform Subwoofer Enclosure
• For Dodge Ram Quad Cab 2002-2014
• Loaded with Dual Terminator Series Subwoofers
• 800W Max
• 400W RMS
• 4 Ohm

(2)

$899.95

List price $802.95

C1500C-07A small

MTX C1500C-07A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

J-WRANGLER-07L small

MTX J-WRANGLER-07L

• 1 10" MTX ThunderForm Series Subwoofer
• 250 watts RMS ( Peak)
• Final Impedance: 4-ohm
• Dimensions: 17-4/5" L x 16-5/16" H x 6-9/16" W

$719.95

List price $639.95

C1500EX-07A small

MTX C1500EX-07A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

F-150C-09A small

MTX F-150C-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

DRQC20C-TN small

MTX Audio Thunderform DRQC20C-TN (Charcoal, Loaded)

• Dual 10" Loaded MTX Thunderform Subwoofer Enclosure
• For Dodge Ram Quad Cab 2002-2014
• Loaded with Dual Terminator Series Subwoofers
• 800W Max
• 400W RMS
• 4 ohm
• Polypropylene Cone

$719.95

List price $637.95

F150C04BK12A-TN small

MTX Audio Thunderform F150C04BK12A-TN (Black, Amplified)

• Amplified 12" Loaded MTX Thunderform Sealed Subwoofer Enclosure
• For 2004-2008 Ford F-150 Crew/Ext Cab
• Loaded with 12" Terminator Series Subwoofers
• 400W Max
• 200W RMS
• 4 Ohm

$719.95

List price $637.95

Specifications & Details


Subwoofer Specifications
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
450 watts
Peak Power Handling
900 watts
Woofer Surround
Poly-Foam
Woofer Composition
Carbon-Polypropylene Hybrid
Sensitivity
90 dB
Frequency Response
35 - 150 Hz
Subwoofer Size
10"
Enclosure Specifications
Number of Subwoofers
2
Height
7"
Width
55-1/8"
Depth
10-1/4"
Number of Terminals
1
Terminal Type
Spring posts
Box Exterior Color
Charcoal
Box Finish
Paint
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

F250X00C20-T45

Weight:

32.00lbs

Internal SKU:

f250x00c20t45

Internal Product ID:

14478
