Pioneer TS-WX1210A (Like New (Open Box))

1300W Peak (350W RMS) Loaded Single 12" Amplified Sealed Enclosure

Pioneer
Shop all Pioneer
highlight-star-icon

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

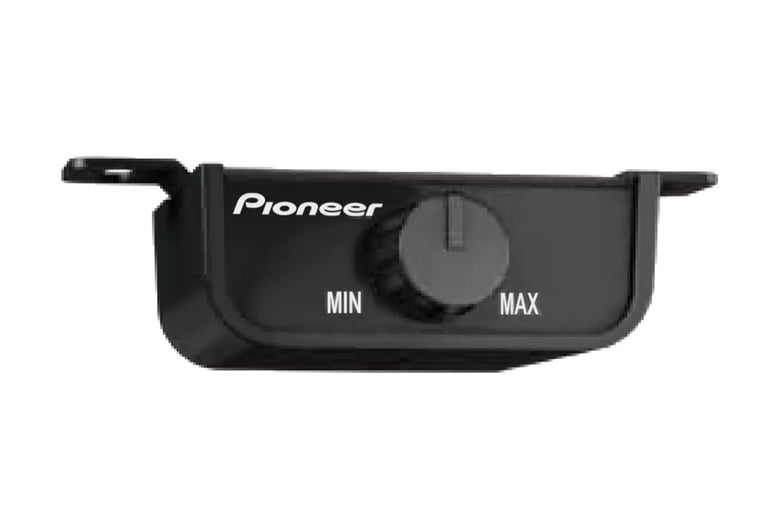

• Wired Remote Bass Level Control

Learn more about the ls-tswx1210a-u9

We apologize

This item has been discontinued

Description


Pioneer brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)


Pioneer TS-WX1210A

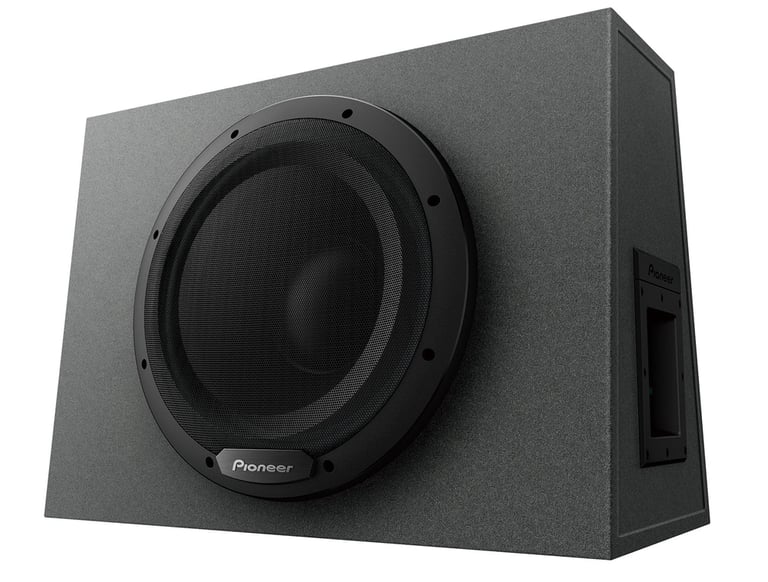

The TS-WX1210A is a powerful, sealed, pre-loaded subwoofer enclosure. It features a built-in, high-output, low-distortion, 1300W Peak Class D amplifier paired with a 12" subwoofer that has a urethane surround and an oversized magnet structure, specifically optimized for use in sealed enclosures. User-adjustable controls include an LPF, phase control, variable bass boost level, and bass boost to provide enhanced subwoofer control. To expand system flexibility, users can control the output volume using the included wired remote bass control knob.


General Features:

  • Single 12" Sealed Loaded Subwoofer Enclosure with Built-In Amplifier
  • Power Handling:
    • Peak: 1300 watts
    • RMS: 350 watts
  • Final Impedance: 4-ohm
  • Includes Remote Bass Level Controller
  • Sealed Hatchback Style, Angled Back trapezoid enclosure
  • Compatible with Pioneer's CarSoundFit app
  • Enclosure Dimensions: 11" TD x 20.75" W x 15" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Features:

  • 12" subwoofer
  • Cellulose cone
  • Urethane surround
  • Stamped metal basket material
  • Pioneer's voice coil cooling system (VCCS)
  • 33.5 oz. Ferrite magnet motor structure
  • TS Series
  • Frequency Response: 20 - 125 Hz
  • Sensitivity: 114 dB
  • Fully covered steel mesh subwoofer grille included

Amplifier Features:

  • Class D Monoblock Amplifier
  • Low-Pass Crossover Frequency: 50 - 125 Hz
  • Bass Boost: 0 - 12 dB
  • Speaker-level (high-level) inputs
  • Input sensitivity: 2 - 6 volts

Enclosure Features:

  • 12" Sealed Enclosure
  • Box Finish: Gray Carpet

Specifications & Details


Series
Series
TS Series
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 125 Hz
Low-Level Input Sensitivity
2 - 6 volts
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Subwoofer Specifications
Subwoofer Size
12"
Total RMS Power Handling
350 watts
Total Peak Power Handling
1300 watts
Woofer Surround
Urethane
Woofer Composition
Cellulose
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Copper
Magnet Type
Ferrite
Sensitivity
114 dB
Frequency Response
20 - 125 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
15"
Width
20.75"
Depth
11"
Wood Thickness
3/4"
Box Exterior Color
Gray
Box Finish
Carpet
Final Wired Impedance
4-ohm
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-WX1210A-5

Weight:

23.37lbs

Internal SKU:

ls-tswx1210a-u9

Internal Product ID:

208145
