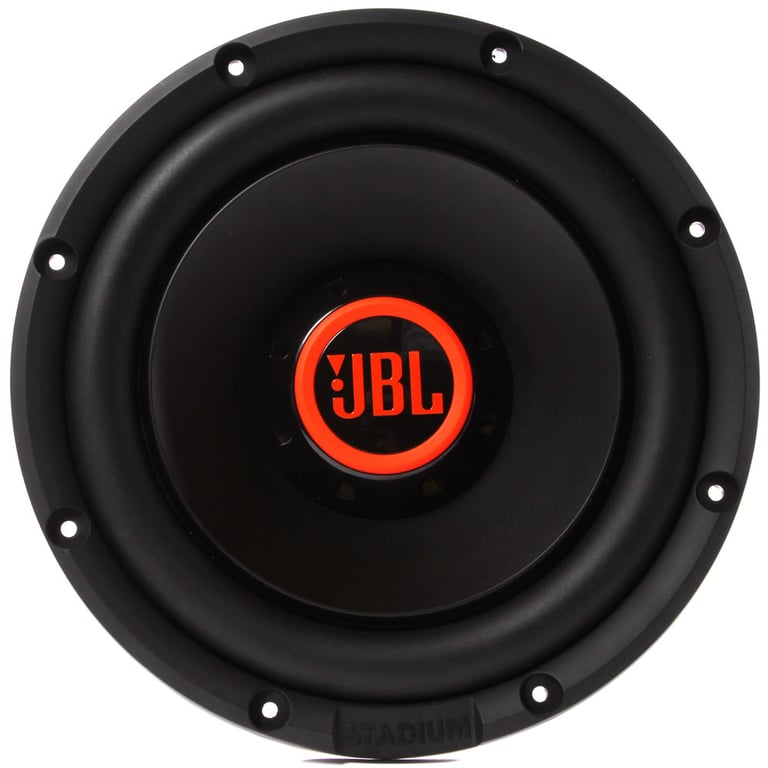

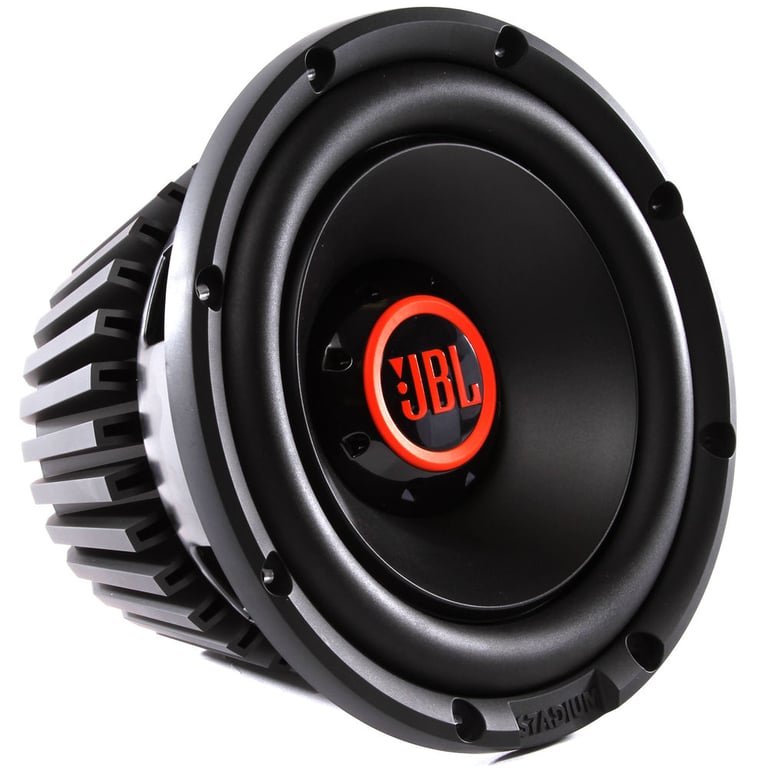

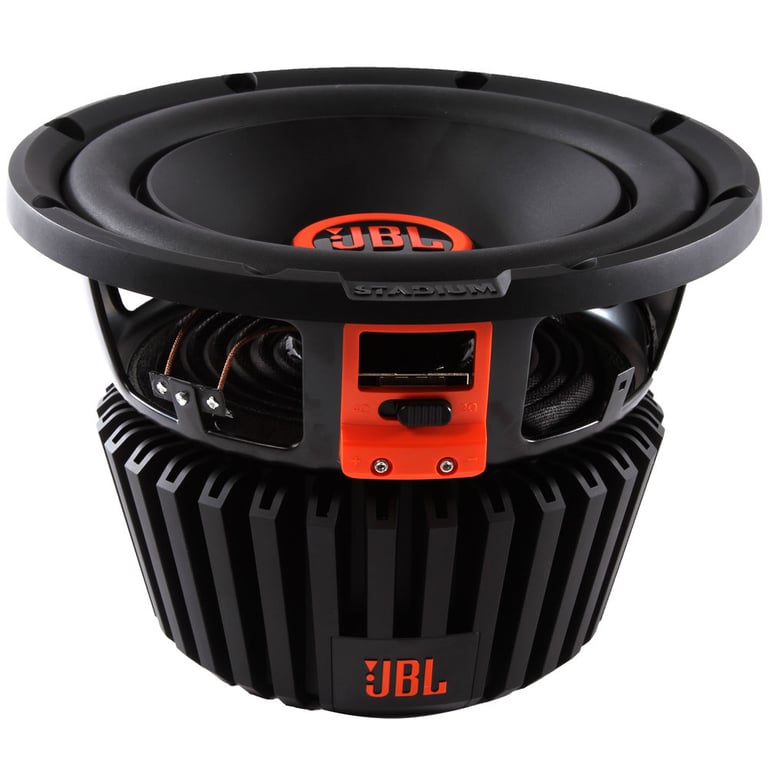

Name: JBL Stadium 1024 Open Box (Complete)
Brand: JBL
SKU: ls-stadium1024-obc10
Price: 129.95 USD
Availability: Discontinued
Rating: 4.5000 (2 reviews)

Shop all JBL

by JBL

About
Wiring Guide
Specs & Details
Reviews
Add-ons
Related Searches

Product highlights

• 1350 Watts Max
• 450 Watts RMS
• Selectable Smart Impedance: 2-4 ohm Switching Available
• Stamped Steel Basket
• Aero-Cooled Voice Coil

Learn more about the ls-stadium1024-obc10

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

10" Selectable Impedance, 2 or 4 ohm, Stadium Series Subwoofer
Power Handling:

Peak: 1350 watts
RMS: 450 watts

Selectable Smart Impedance Design: Choose your ohm rating with a flip of a switch! Go from 2 or 4 ohm depending on your application, or if you switch things up in your system
Screw-down terminals
Aero-cooled voice coil
High energy motor design
Stamped steel basket
Top-mount depth: 6-15/16"
Cutout diameter: 9-7/16"
Frequency Response: 30 - 175Hz
Sensitivity: 91dB
Resonance Frequency (Fs): 30.56 - 30.18 (depending on which ohm rating selected)
Authorized Internet Dealer
1-year Manufacturer's Warranty

Priced Individually

Subwoofer Wiring Guide

Wiring Guide to Wire 1 JBL Stadium 1024 Open Box (Complete) Subwoofer

Mono Amp

Wiring Guide to Wire 2 JBL Stadium 1024 Open Box (Complete) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL Stadium 1024 Open Box (Complete) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL Stadium 1024 Open Box (Complete) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp

Specifications & Details

Subwoofer Specifications

Series

Stadium

Subwoofer Size

10"

Peak Power Handling

1350 watts

RMS Power Handling

450 watts

Voice Coil(s)

Single

Impedance (Per Voice Coil)

2 or 4 ohm

Voice Coil Diameter

2.5"

Frequency Response

30 - 175 Hz

Sensitivity

91 dB

Xmax (millimeters)

12 mm

Subwoofer Design

Round / Circle

Main Cone Color

Black

Magnet Structure

Single Stacked

Recommended Enclosure Specifications

Recommended Enclosure Type

Ported / Vented
Sealed

Optimum Sealed Box Volume

.5 cubic feet

Optimum Ported Box Volume

1.5 cubic feet

Shallow Mount Installation

T/S Parameters (Electromechanical)

Free-Air Resonance (Fs)

30.56-30.18 Hz

Equivalent Compliance (Vas)

24.3525 - 25.202 liters

Total Speaker Q Value (Qts)

.48

Electrical Q Value (Qes)

.57 - .61

Electrical Resistance of Voice Coil (Re)

1.8 - 4.06 ohm

Mechanical Q Value (Qms)

3.11 - 2.17

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

JBL Stadium 1024 Open Box (Complete) thumbnail image

Overall rating distribution

5 star		50%
4 star		50%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		4.5
Features		5
Design		4.5
Usability		5

Customer Reviews

Sort by:

Consumer installer

The following review is for STADIUM 1024, which is a part of the bundle you are viewing.

Installed this into a band pass box. It is internally .5 cu inch sealed box its face into 1.5 cu inch box with a 3 inch port. The bass hits hard enough to shake tail of the vehicle side ways. I was very impressed. Makes me smile ear to ear.

By Anonymous on September 2, 2019

6 found this helpful

Report abuse

Jbl subs

The following review is for STADIUM 1024, which is a part of the bundle you are viewing.

These subs sound good price is at a good cost they look built the right way I would recommend these subs 8/10

By erik on March 2, 2021

5 found this helpful
