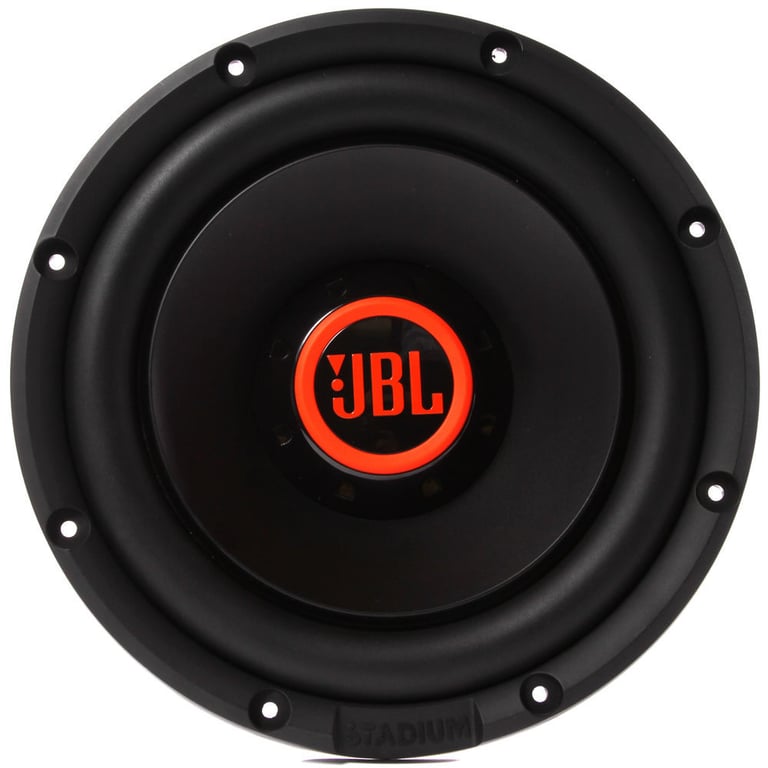

JBL Stadium 1224 Open Box (Complete)

1500W Max (500W RMS) 12" Stadium Series Single 2 or 4 ohm Car Subwoofer

JBL
Shop all JBL
highlight-star-icon

• 1500 Watts Max
• 500 Watts RMS
• Selectable Smart Impedance: 2-4 ohm Switching Available
• Stamped Steel Basket
• Aero-Cooled Voice Coil

Learn more about the ls-stadiuim1224-obc10

We apologize

This item has been discontinued

Description


JBL brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

  • 12" Selectable Impedance, 2 or 4 ohm, Stadium Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 500 watts

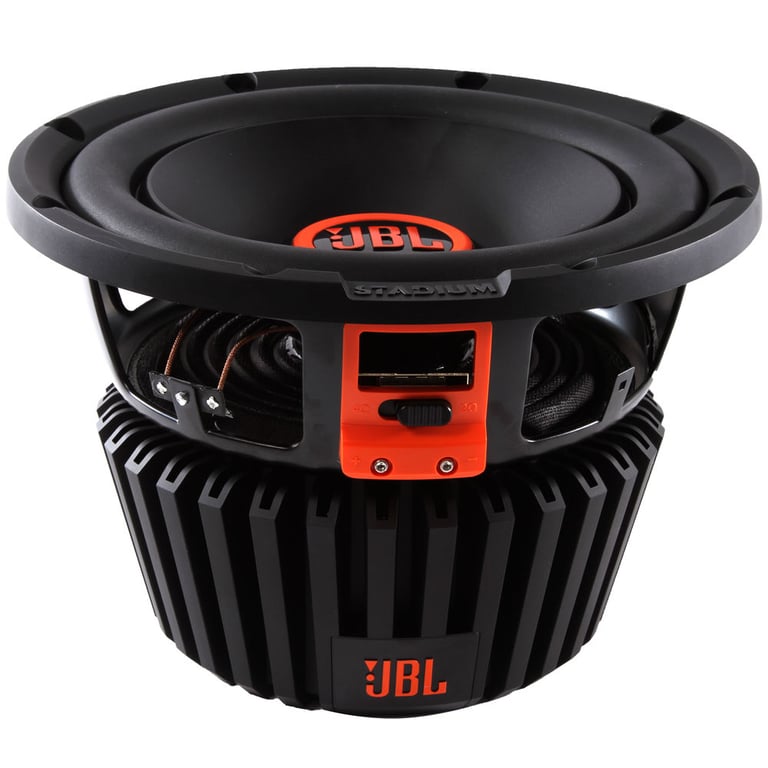

  • Selectable Smart Impedance Design: Choose your ohm rating with a flip of a switch! Go from 2 or 4 ohm depending on your application, or if you switch things up in your system
  • Screw-down terminals
  • Aero-cooled voice coil
  • High energy motor design
  • Stamped steel basket
  • Top-mount depth: 7"
  • Cutout diameter: 11-1/8"
  • Frequency Response: 25 - 175Hz
  • Sensitivity: 92dB
  • Resonance Frequency (Fs): 28.84 - 29.07 (depending on which ohm rating selected)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL Stadium 1224 Open Box (Complete) Subwoofer

Mono Amp

Wiring Guide to Wire 2 JBL Stadium 1224 Open Box (Complete) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL Stadium 1224 Open Box (Complete) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL Stadium 1224 Open Box (Complete) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Stadium
Subwoofer Size
12"
Peak Power Handling
1500 watts
RMS Power Handling
500 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Diameter
2.5"
Frequency Response
25 - 175 Hz
Sensitivity
92 dB
Xmax (millimeters)
12 mm
Subwoofer Design
Round / Circle
Magnet Structure
Single Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.75 cubic feet
Optimum Ported Box Volume
2.5 cubic feet
Top-Mount Depth (Mounting Depth)
7"
Cutout Diameter
11-1/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28.84 - 29.07 Hz
Equivalent Compliance (Vas)
54.65 - 52.59 liters
Total Speaker Q Value (Qts)
.47
Electrical Q Value (Qes)
.53 - .58
Electrical Resistance of Voice Coil (Re)
1.82 - 4.07 ohm
Mechanical Q Value (Qms)
429 - 2.56
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

stadiuim1224 Open Box

Weight:

19.89lbs

Internal SKU:

ls-stadiuim1224-obc10

Internal Product ID:

155335

Customer Ratings & Reviews


JBL Stadium 1224  Open Box (Complete) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
5
Features
4.7
Design
4.7
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

12" jbl subwoofer

The following review is for Stadium 1224, which is a part of the bundle you are viewing.

I bought this 12" jbl 1500 watts enclosure and OMG!...it ROCKS! The bass is unbelievably heart-pounding. The designed box is outstanding. My whole car vibrated like it's ready to fall apart or something.
The service is amazing. I will be buying from them from now on. My amp is next. So be ready for me again.

By Christopher on April 20, 2021

1 found this helpful


Good to get this speaker

Great ! Will work and it’s loud I put it all the way up

By Anonymous on August 24, 2019

1 found this helpful


nice subwoofer

The following review is for Stadium 1224, which is a part of the bundle you are viewing.

1. bass quality 4.9/5
2. sound quality 4.6/5
3. peak power 4.5/5
4. weight 4.7/5
5. body design 4.5/5
6. overall body detail 4.8/5
7. price 4.4/5
8. easy selectable impedance 5/5
9. overall 4.6/5 ????????
10. I really love JBL STADIUM 1224 ????????

By Suth on January 27, 2021
