Infinity Reference 9633ix (REF9633IX)

600W Peak (200W RMS) 6x9" Reference Series 3-Way Coaxial 3-ohm Car Speakers

Infinity
Shop all Infinity
highlight-star-icon

• 300 watts Peak Each, 100 watts RMS Each
• 1" Textile Edge Driven Dome tweeter
• 1" Textile Semi-Dome super tweeter
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 94 dB

Learn more about the ref9633ix

We apologize

This item has been discontinued


Loading...
GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

38
-34.45%

$117.99

List price $180.00

Description


Infinity brand icon

Authorized dealer

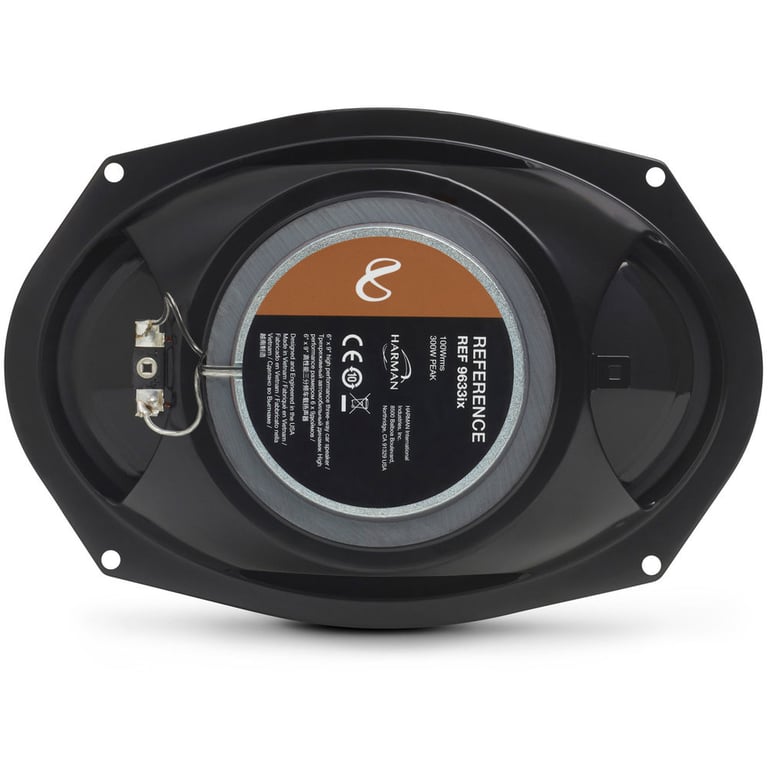

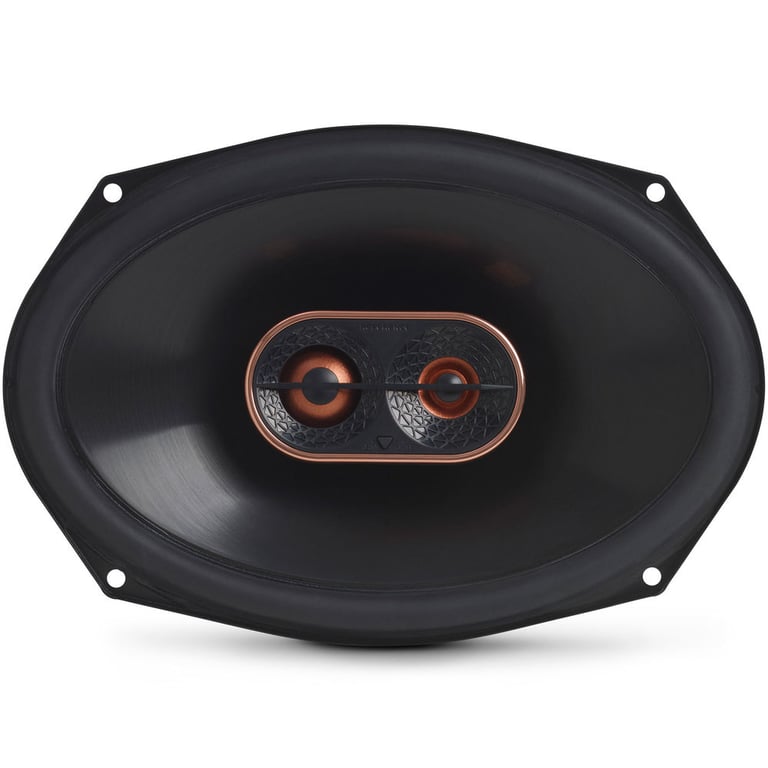

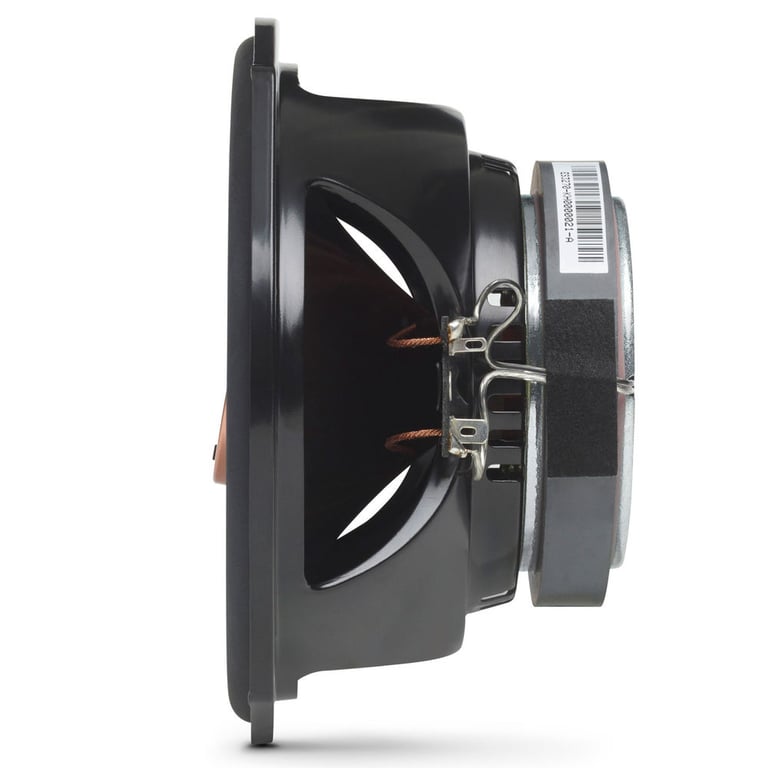

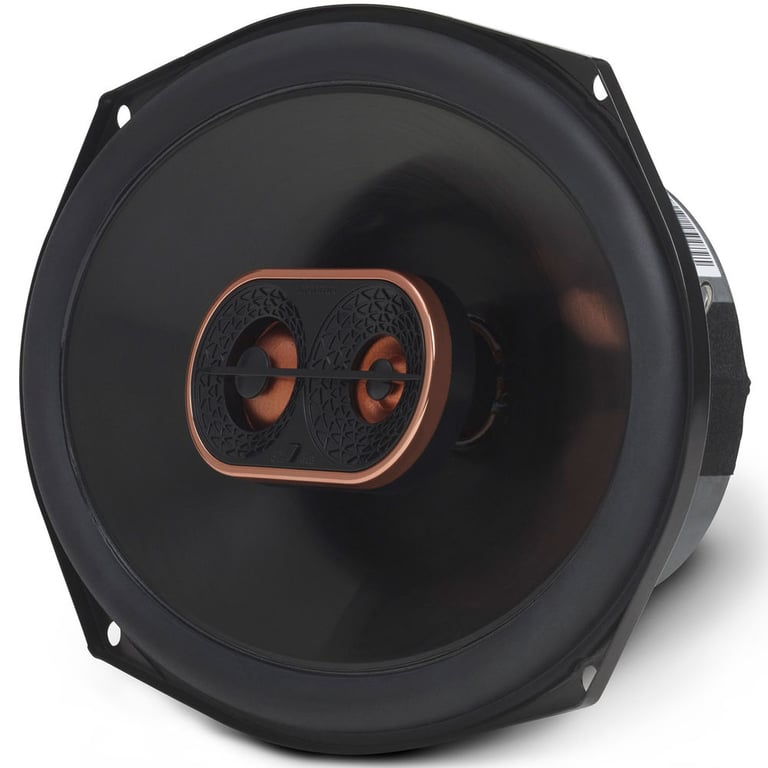

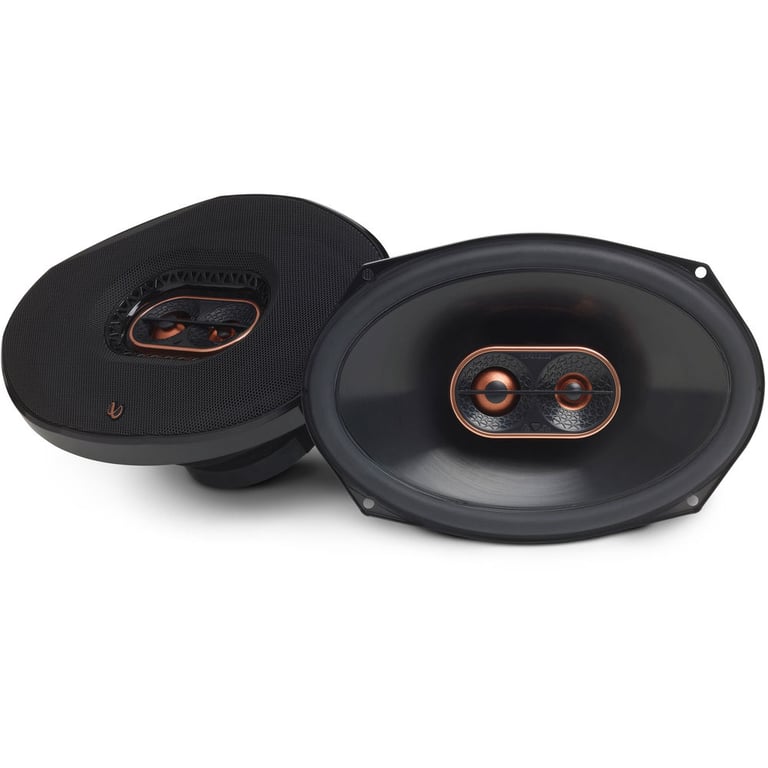

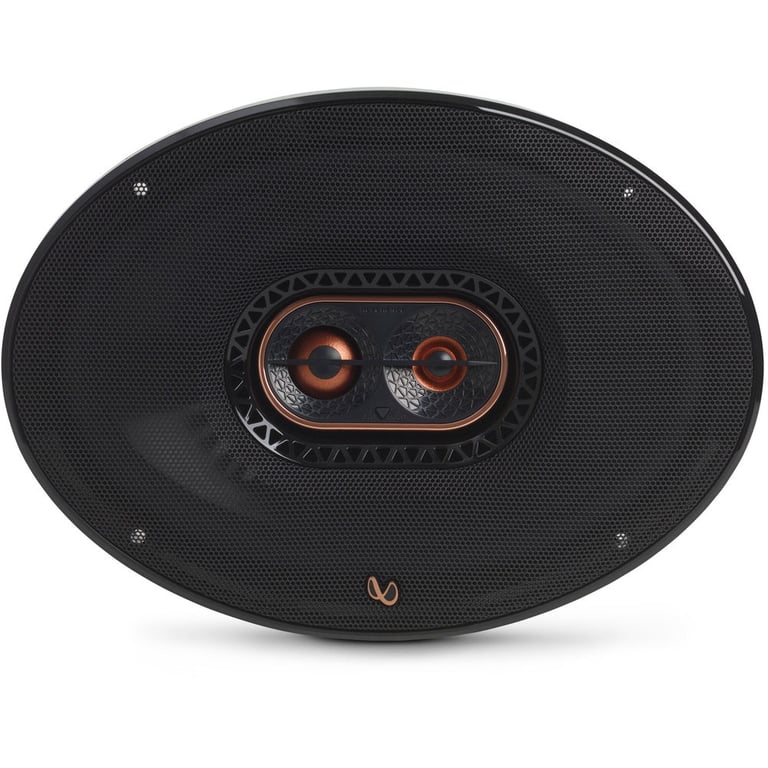

Infinity Reference 9633ix (REF9633IX)

Infinity's Reference speakers set a new standard in car audio. Every model is voiced using audiophile grade inductors and capacitors resulting in detail and accuracy unmatched by other brands in their class, and its 3 ohm design extracts every watt of power from the amplifier or head unit for exceptional performance. Kappa is how all car speakers should perform.


Product Details:

  • 6" x 9" Reference Series 3-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 600 watts per pair / 300 watts each
    • RMS: 200 watts per pair / 100 watts each
  • Polypropylene cone material
  • Hi-Roll Rubber speaker surround
  • 1" Textile Edge Driven Dome tweeter
  • 1" Textile Semi-Dome super tweeter
  • Adjustable tweeter output level function
  • Patented Plus One woofer speaker construction
  • Optimized frame size to fit into any vehicles
  • Top-mount Depth: 3-1/8"
  • Cutout Dimensions: 8-1/2 x 5-3/4
  • Impedance: 3 ohm
  • Frequency Response: 46 - 30000 Hz
  • Sensitivity: 94 dB
  • Speaker Grilles Included
  • Authorized Internet Dealer
  • MFR #: REF9633IX
  • 1-year Manufacturer's Warranty

  • Priced Per Pair


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Limited time!
RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
-15.00%

$152.96

List price $179.95


Best selling similar products

46CSC6934 small

Kicker CSC693 (46CSC6934)

• 450 watts Peak Each, 150 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(40)

$111.96

List price $159.99

SXE-6926S small

Alpine SXE-6926S

• 280 watts Peak Each, 90 watts RMS Each
• Mylar Dome tweeters
• Natural Pulp Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(13)

$56.99

List price $71.99

R169X2 small

Rockford Fosgate Prime R169X2

• 130 watts Peak Each, 65 watts RMS Each
• 1/2" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(49)

$99.99

List price $99.99

Specifications & Details


Speaker Specifications
Series
Reference Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
6" x 9"
Design
3-way Coaxial
Tweeter Design
Edge Driven Dome
Tweeter Size
1"
Tweeter Composition
Textile
Woofer Composition
Polypropylene
Woofer Surround
Hi-Roll Rubber
Peak Power Handling
300 watts
RMS Power Handling
100 watts
Total PEAK Per Pair/Set
600 watts
Total RMS Per Pair/Set
200 watts
Sensitivity
94 dB
Frequency Response
46 - 30000 Hz
Impedance (Per Voice Coil)
3 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
3-1/8"
Cutout Dimensions
8-1/2 x 5-3/4
CTA-2031 Compliant
No
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Illumination
None
Speaker Grilles
Yes
Includes Damping Kit
without Damping Kit
Compatible vehicle types
Car/Truck/SUV/Van
What is in the box?
Paperwork
User manual
WITB: Speakers
Speakers (2)
Grilles (2, attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DONOTUSETHISSKU

Weight:

6.29lbs

Internal SKU:

ref9633ix

Internal Product ID:

145803
