Alpine HCE-C105

What if you could have eyes in the back of your head? Until mankind makes this medical stride, for now, you can add a camera to the back of your vehicle. Add the Alpine HCE-C105 rear view camera for added safety and back out of parking spots with ease. This small camera (mounting bracket included) can be installed on the rear bumper by the license plate of your SUV, truck, or car, with high quality, color picture projected right onto your Alpine mobile media station. View what’s behind you, right from the convenience of your dash!

Product Specifications:

• Rearview Backup Camera with Night Vision
• High visibility day and night
• Wide viewing angle
• Output Image: Mirror image, VBCS (NTSC Color signal system)
• Output Drive Capacity: 75 Ohm
• Image Sensor: 1/4 Type Color CCD image sensor
• Aspect ratio 4:3
• Effective Number of Pixels: approximately 0.25 Mega pixels
• Lens Section: Focal length: 1.28mm
• Angle of field: Horizontal: 128º Vertical: 105º
• Automatic image adjusting function: Automatic metering and white balance adjustment
• Synchro-System: Internal synchronization
• S/N: 40dB or more
• Resolution(horizontal): 300 lines (center area)
• Illumination Range: 1.5 to 100,000 lux
• Operating Temperature Range: -22 to +158F (-30 to +70ºC)
• Storage Temperature Range: -32 to 181F (-41 to +85ºC)
• Compatible with: IVA-W505, IVA-D106, and IVA-W205
• Dimensions: 1"L x 7/8"W x 7/8"H
• 1-year SonicElectronix.com warranty

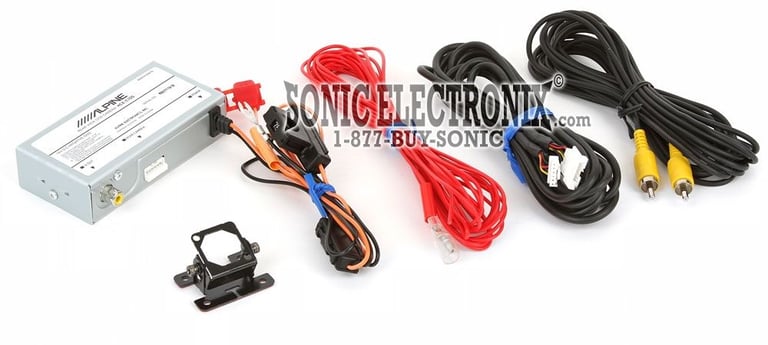

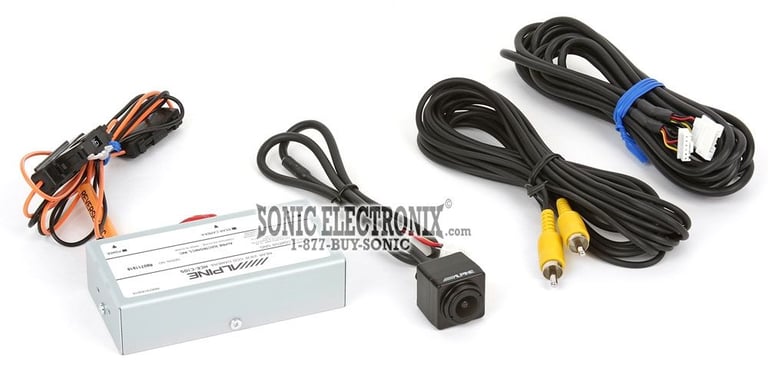

Package Includes:

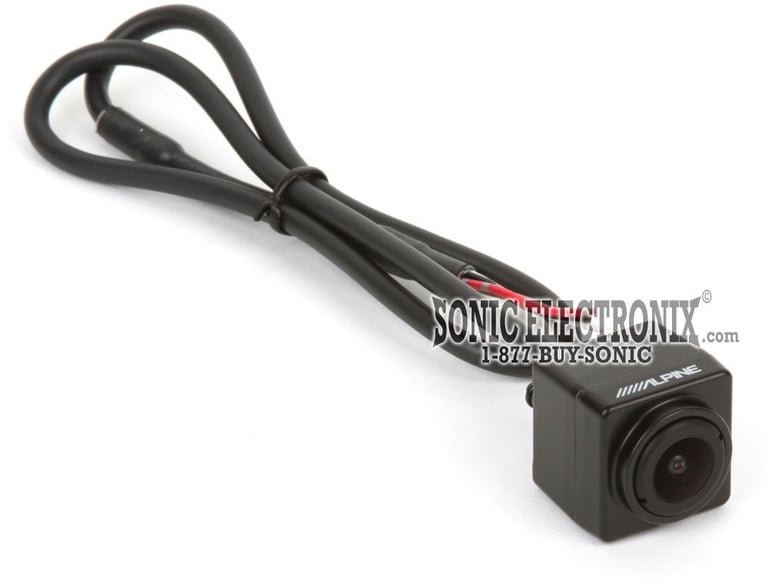

• Rearview camera
• Power Unit
• Camera Mounting Bracket
• Hex camera mounting screws
• Hexagonal wrench
• 5 meter RCA video extension cable
• 3.5 meter Camera extension cable
• Waterproofing mounting pad
• Waterproofing pad adhesive
• Wire clamps
• Velcro fasteners
• Self-tapping mounting screws
• 6 meter ACC power wire

Alpine products are warranted solely by Sonic Electronix, Inc. under the same period and terms as the original Alpine warranty. Sonic Electronix is not an Authorized Alpine Dealer and Alpine requires all merchandise purchased by Sonic Electronix customers to be returned solely to Sonic Electronix. Alpine products are also covered by our Standard Return Policy for returns on exchanges or refunds within 30 days from the date of purchase.
