Scosche GM13SR

GM/ LAN Stereo Replacement Interface Module for Select 2004 - 2008 11-Bit GM Vehicles

Scosche
Shop all Scosche
highlight-star-icon

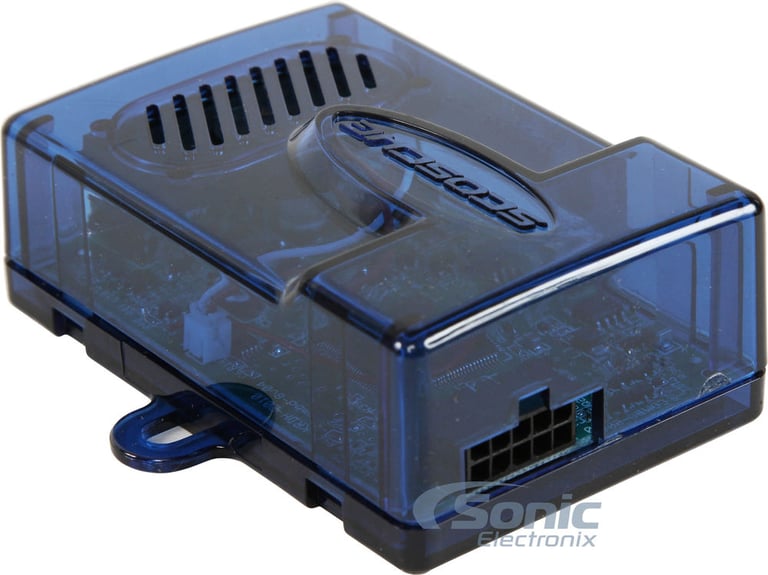

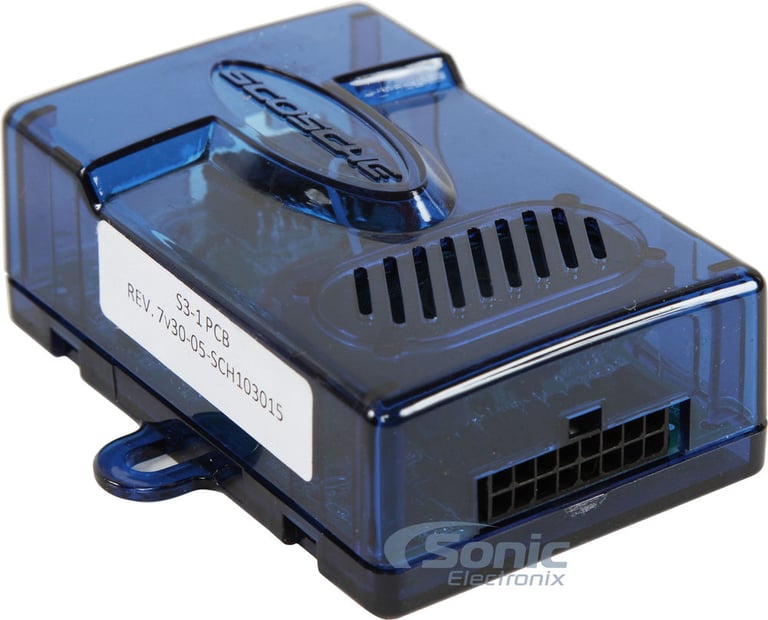

• GM/ LAN Stereo Replacement Interface Module
• Made For Select 2004 - 2008 GM Vehicles
• Stereo Replacement Module Retains All Factory Safety and Warning Chimes
• Issues "Healthy" Status
• Data-Driven
• R.A.P Output

Learn more about the gm13sr

We apologize

This item has been discontinued


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Description


Scosche brand icon

Authorized dealer

Product Features:

  • GM/ LAN Stereo replacement interface module
  • Made for select 2004 - 2008 GM vehicles
  • Stereo replacement module retains all factory safety and warning chimes

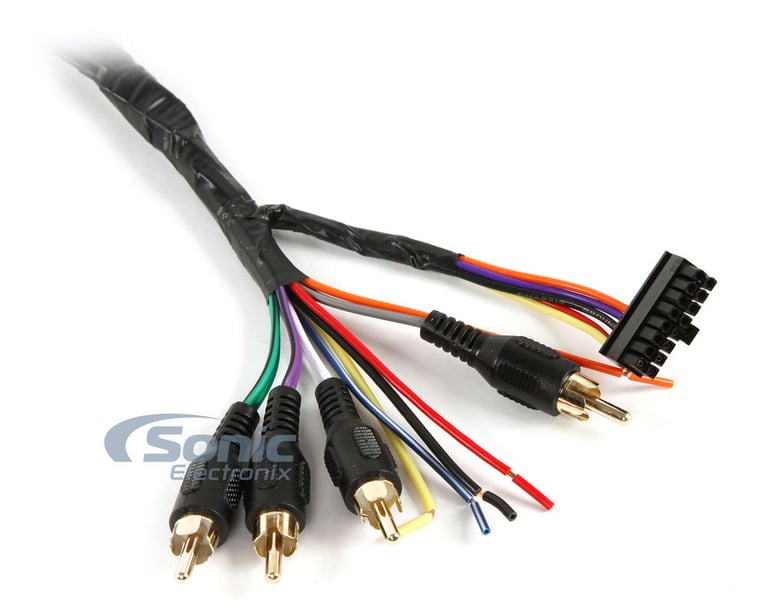

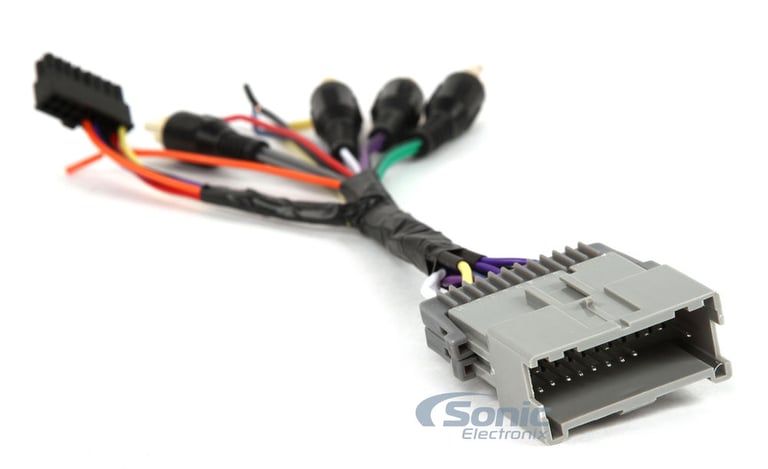

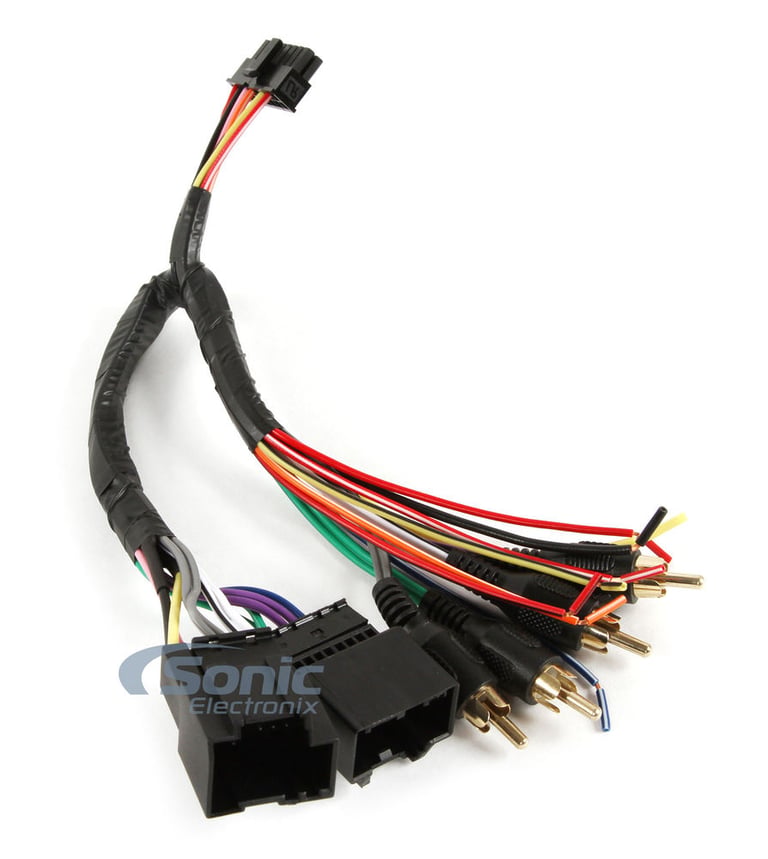

  • Includes both 24-pin connector and 16/14-pin connector set to cover all applications
  • Provides data-driven +12V accessory R.A.P output
  • For most vehicles, the GM13SR provides data-driven park brake, reverse light, AMP trigger for factory-amplified systems, vehicle speed sense (VSS) and auto illumination trigger outputs
  • Issues "Healthy" status report for OEM diagnostic scans
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Connections:

  • Yellow - 12V Constant
  • Red - 12V Accessory
  • Black - Ground
  • Orange - Dash Light Dimmer/Illumination
  • Green - Left Rear Speaker (+)
  • Green with Black Stripe - Left Rear Speaker (-)
  • White - Left Front Speaker (+)
  • White with Black Stripe - Left Front Speaker (-)
  • Purple - Right Rear Speaker (+)
  • Purple with Black Stripe - Right Rear Speaker (-)
  • Gray - Right Front Speaker (+)
  • Gray with Black Stripe - Right Front Speaker (-)
Note: On 2004-2007 Chevrolet Malibu/MAXX and 2005-2008 Pontiac G6 the driver information and menu adjustments are lost.

Best selling similar products

DKGM-49 small

Crux DKGM-49 Stereo Replacement Interface

• Stereo Replacement Interface with Dash Kit
• Fits select 2006-2020 vehicles from GMC, Chevrolet, Buick Vehicles
• Accommodates ISO Double DIN Mount
• Retain steering wheel controls and chime functions

(41)

$129.60

List price $201.60

70-1761 small

Metra 70-1761 Wiring Harness

• Direct connection to the factory radio harness
• Color coded wires for easy installation
• No cutting or splicing required

(97)

$5.99

List price $6.99

70-1771 small

Metra 70-1771

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(51)

$12.99

List price $6.99

70-5520 small

Metra 70-5520 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(56)

$9.95

List price $6.99

RP4-CH11 small

PAC RP4-CH11

• Direct connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(12)

$152.99

List price $379.00

GM02B small

Scosche GM02B Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(246)

$7.95

List price $8.99

C2R-CHY4 small

PAC C2R-CHY4 Wiring Interface

• Provides 12-Volt accessory power (RAP)
• Designed for non-amplified and amplified models
• Retains balance and fade
• Pre-wired for steering wheel audio controls

(25)

$99.99

List price $299.00

70-1858 small

Metra 70-1858 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(63)

$9.95

List price $6.99

70-7552 small

Metra 70-7552 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(34)

$10.99

List price $12.99

SWRTY-61C small

Crux SWRTY-61C

• Direct connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(2)

$112.05

List price $174.30

Specifications & Details


Harness Features
Main Harness Function
Connect/Install an Aftermarket Car Stereo
Additional Harness Features
Chime Retention
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

GM13SR

Weight:

0.50lbs

Internal SKU:

gm13sr

Internal Product ID:

15123

Customer Ratings & Reviews


Scosche GM13SR thumbnail image

5 star
50%
4 star
25%
3 star
13%
2 star
0%
1 star
13%



Durability
3.7
Value
3.9
Features
4.2
Design
4.5
Usability
4

Customer Reviews

Sort by:

Loading...

Speaker sounds cheap

Comes with two harnesses with RCA connectors. The speaker rattles sometimes.

By JosQuelqu1 on May 11, 2014

21 found this helpful


Kit needed to install car stereo

Needed to install JVC KD-HDR60 into Chevy Cobalt sedan. The instructions for self-install were fairly clear and installed easy enough. Still no problems after 6 months!

By AT on June 3, 2011

20 found this helpful


Not worth it even for free

Not a good adapter if running a deck with iPod capabilities. Burned out in two weeks of light use. I'll keep my deck hard wired.

By Liam on April 4, 2014

20 found this helpful


Works Great

It matched right up with my Cobalt's harness and the color coding match my aftermarket head units, so everything was good. The speaker for turn signal and open door is rather cheap and because my car has one built in, i was able to just cut the speaker out and everything was good.

By Matthew on June 17, 2009

17 found this helpful


gets the job done

this product covers a wide range of vehicles and it is a quality product but the internal speaker blows fast and then sound like a crying baby when it makes its sounds does get anoying but this product worked and is still in use would bye again

By Russell on March 24, 2014

16 found this helpful


Only for Cobalts/G5's

This is the only easy to use and working GM converter to retain door chimes. I love it works flawlessly and allows volume control of door chimes.

By Dan on November 17, 2009

16 found this helpful
