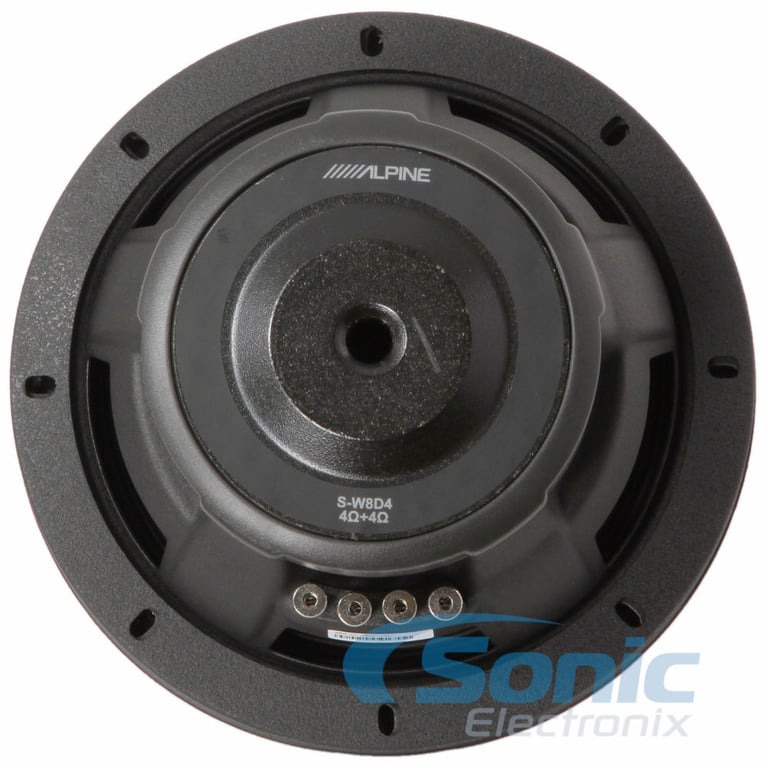

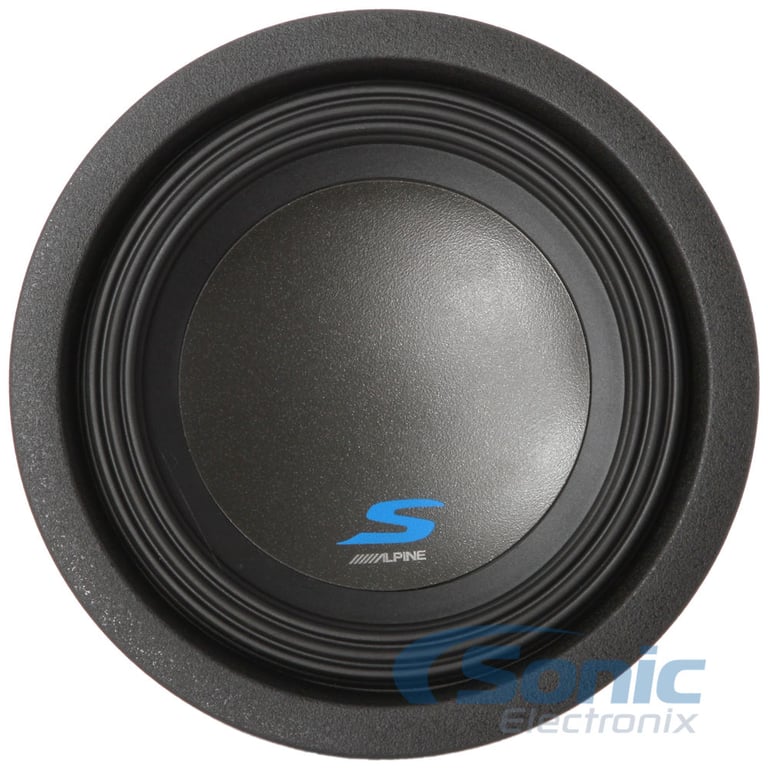

Alpine S-W8D4

900W Max (300W RMS) 8" S-Series Dual 4 Ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 900 Watts Max
• 300 Watts RMS
• Pulp/ Kevlar Cone
• High-Amplitude Multi-Roll Surround
• Concealed Mount Gasket
• 35mm Underhung Voice Coils
• Progressive Spider with Reinforced Layer Tinsel Leads

Learn more about the sw8d4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

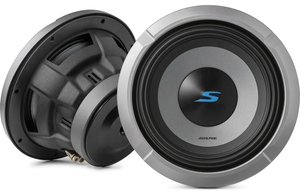

s2w8d4 thumbnail

Alpine S2-W8D4

OUR PRICE: $167.95

View item

Loading...
72-5512 main

Metra 72-5512

Install New Speakers in select 1990-2006 vehicles from Ford, Mercury, Mazda

26
-26.68%

$10.99

List price $14.99

70-1770 main

Metra 70-1770 Wiring Harness

Install a new car stereo in select 1986-2004 vehicles from Ford, Mercury, Mazda

22
-14.31%

$5.99

List price $6.99

99-5510 main

Metra 99-5510 Dash Kit

Install a new Single-DIN car stereo in select 1979-2000 vehicles from Ford, Mercury, Mazda

19
-10.81%

$32.99

List price $36.99

99-5512 main

Metra 99-5512 Dash Kit

Install a new Single-DIN car stereo in select 1989-2000 vehicles from Ford, Mercury, Mazda

8
-11.12%

$23.99

List price $26.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$99.99

List price $119.99

Description


Alpine brand icon

Authorized dealer

General Features:

  • 8" 4 Ohm Type S Series Subwoofer
  • Power Handling:
    • Peak: 900 watts
    • RMS: 300 watts
  • Recommended Power Range: 150 - 300 Watts
  • Kevlar Reinforced Pulp Cone
  • HAMR Santoprene Rubber Surround
  • Progressive Spider with Reinforced Layer Tinsel Leads
  • Compound Radius Curve Extended Pole Geometry
  • Perimeter Vented Frame with Airflow Management System
  • Recommended Sealed Box: 0.30 cubic foot
  • Recommended Vented Box: 0.71 cubic foot

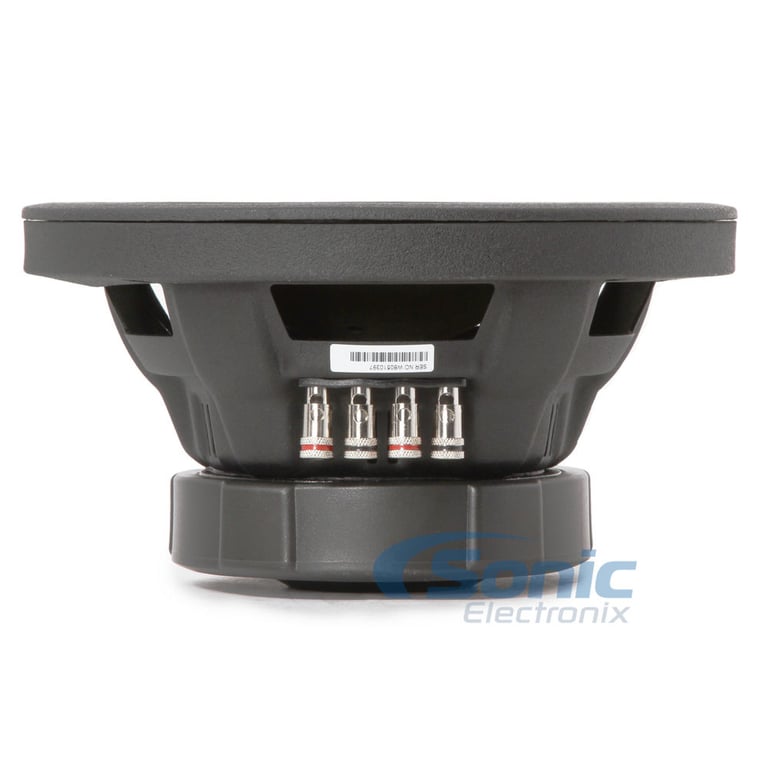

  • 10 AWG Push Terminals
  • 35mm Underhung Voice Coils
  • Concealed Mount Gasket
  • 34oz Ferrite Magnet
  • Top-mount depth: 3-3/4"
  • Cutout diameter: 6-7/8"
  • Frequency Response: 34-200Hz
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually

Product history:

Alpine S2-W8D4 thumbnail
(newest, current model)
Alpine S-W8D4 thumbnail
(previous model, replaced by Alpine S2-W8D4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine S-W8D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine S-W8D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine S-W8D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alpine S-W8D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

SW-EV68D2 small

Sundown Audio E8 v.6 D2 8" (E8V6D2)

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Pressed Foam Surround
• Mount depth: 4.98"
• Sensitivity: 82.4 dB

$169.99

List price $203.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

R2-W8D2 small

Alpine R2-W8D2

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.6 dB

$239.95

List price $360.00

SW-Z8D1 small

Sundown Audio Z-8 D1 8" (Z8D1)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Polypropylene Cone
• Mega Roll V2 Surround
• Mount depth: 9.5"
• Sensitivity: 78.24 dB

$699.99

List price $839.99

R2-W8D4 small

Alpine R2-W8D4

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 4 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.7 dB

$239.95

List price $360.00

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

Specifications & Details


Subwoofer Specifications
Series
S Series
Subwoofer Size
8"
Peak Power Handling
900 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
34 - 200 Hz
Sensitivity
83.4 dB
Xmax (millimeters)
13 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar/Pulp
Woofer Surround
High Roll Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.15 cubic feet
Maximum Sealed Box Volume
0.5 cubic feet
Minimum Ported Box Volume
0.35 cubic feet
Maximum Ported Box Volume
0.7 cubic feet
Top-Mount Depth (Mounting Depth)
3-3/4"
Cutout Diameter
6-7/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
48 Hz
Equivalent Compliance (Vas)
7.2 liters
Total Speaker Q Value (Qts)
0.53
Electrical Q Value (Qes)
0.64
Electrical Resistance of Voice Coil (Re)
1.7 ohm
Mechanical Q Value (Qms)
3.17
What is in the box?
Paperwork
User manual
Serial number card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

S-W8D4

Weight:

10.00lbs

Internal SKU:

sw8d4

Internal Product ID:

153301

Customer Ratings & Reviews


Alpine S-W8D4 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


GM06B small

Scosche GM06B

GM Class II Radio Relocation Harness for Select 2000-Up Chevrolet Vehicles

(4)

$50.95

List price $79.99

SA2625 small

Philips SA2625 (White)

2GB MP3/WMA Flash Audio Player with Direct USB

$19.99

List price $59.99

MRDST100 small

Mr DJ ST100

DJ Strobe Light with Adjustable Speed Control

(2)

$7.99

List price $29.99

AOEM-NIS1 small

PAC AOEM-NIS1

System Interface Kit to Add or Replace An Amplifier in All 1989-1994 Nissan Vehicles with Bose Audio System

$31.95

List price $53.95

NANOVERB small

Alesis NanoVerb

Digital Reverb with Delays, Mix, and Time-Decay

$82.99

List price $135.00

SPS-1729S small

Alpine SPS-1729S 6-1/2" 2 Way

$49.99

List price $99.99

KFC-XW1222D small

Kenwood eXcelon KFC-XW1222D

12" Dual 2 ohm eXcelon Series Car Subwoofer

(6)

$129.99

List price $269.99

KNA-NT100 small

Kenwood KNA-NT100

NAVTEQ Traffic Tuner for Select Kenwood In-Dash Stereo Receivers

$124.99

List price $199.99

06DS10L54 small

Kicker 06DS10L54 ( DS10L5 4 ohms)

4 ohms Dual 10" Solo-Baric L5 Subwoofers Loaded in a Vented Enclosure 06DS10L5 / DS10L54

$379.99

List price $699.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1993 Ford Ranger

1992 Isuzu Pickup

1974 Ford Courier

1969 BMW 2000

1975 Chevrolet Nova

2009 Kia Rio

2004 Toyota Avalon

2016 Lincoln MKS

2001 Acura CL

1973 Ford Torino

Vehicle
Store
Delete

2017 Can-Am Defender MAX HD8 XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
