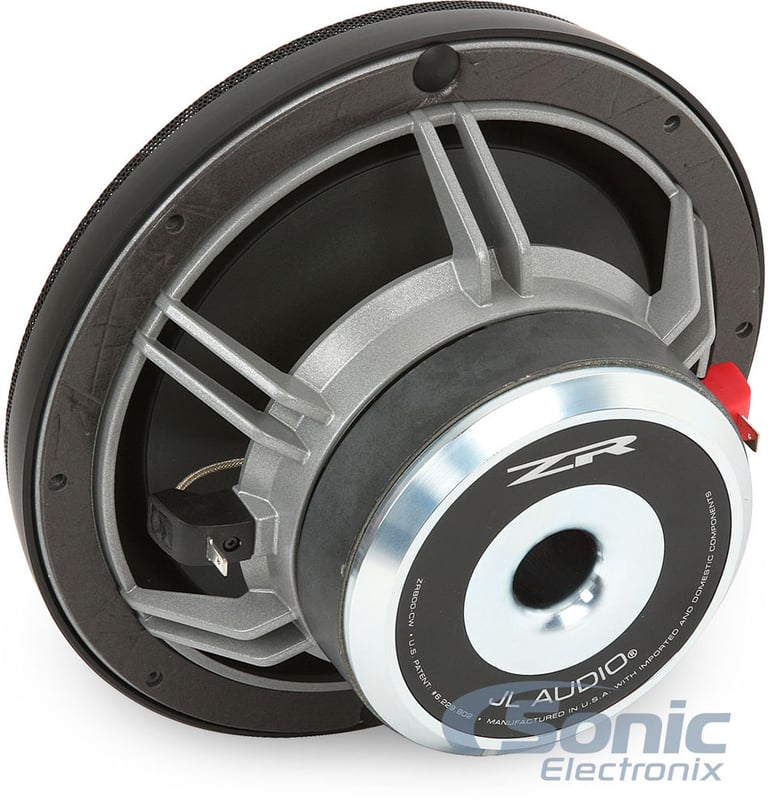

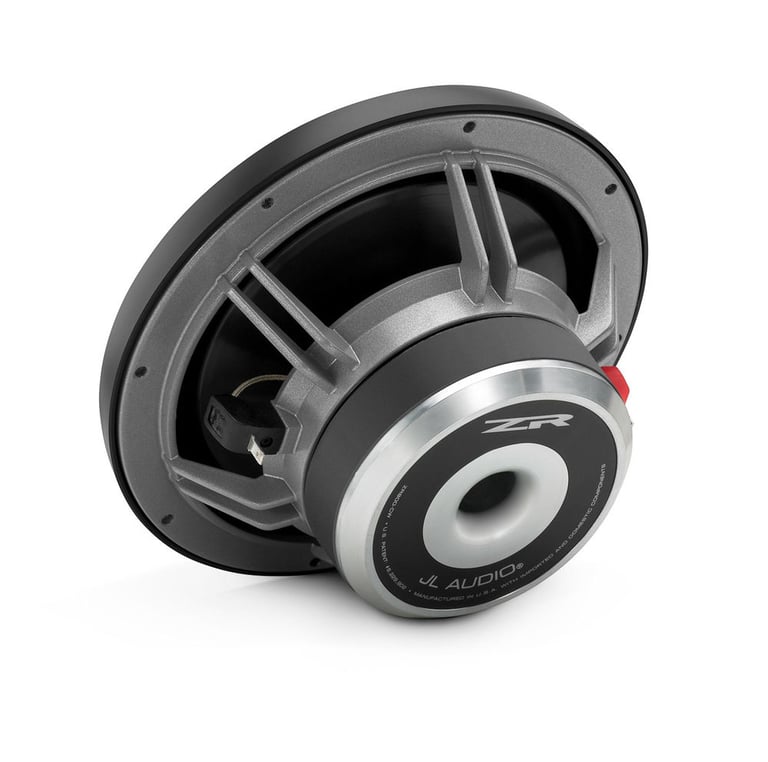

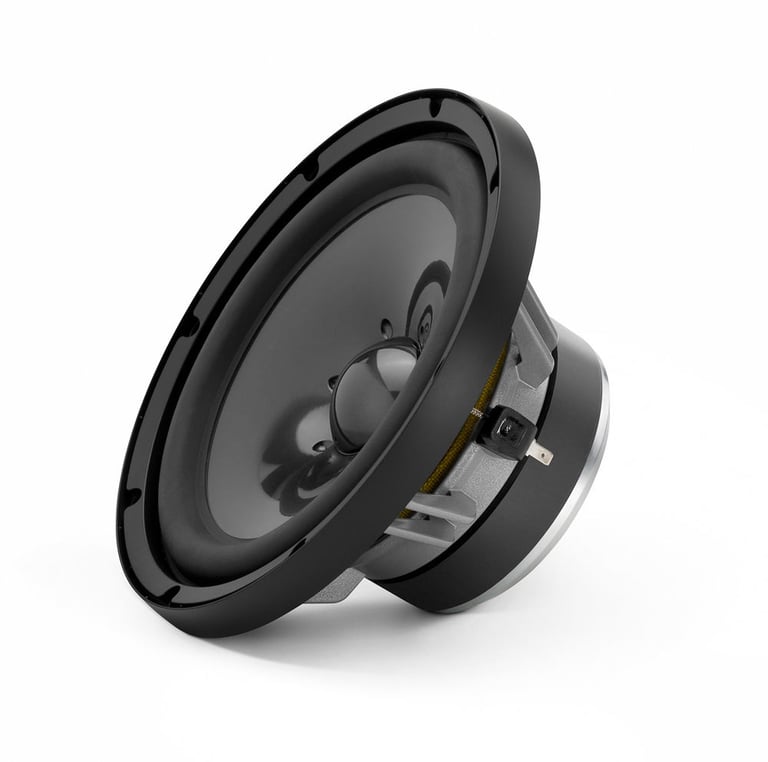

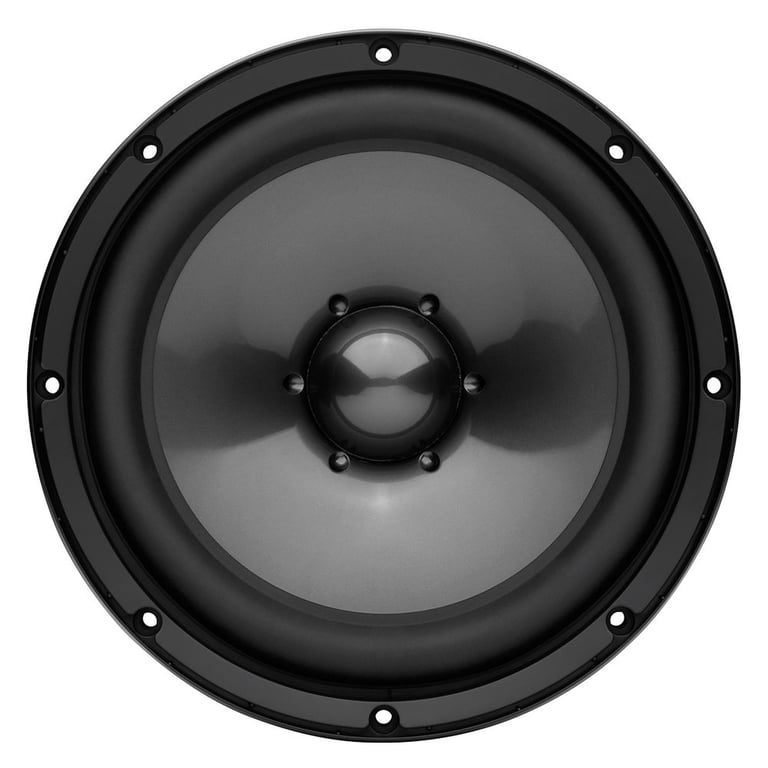

JL Audio ZR800-CW

225W 8.0" Evolution ZR Series Component Midbass Woofer Driver

JL Audio
Shop all JL Audio
highlight-star-icon

• Peak Power: 225W
• RMS Power: 125W
• 4 Ohm
• Mineral-Filled Polypropylene Cone
• Santoprene Surround
• Kapton® Former
• Progressive Roll Spider
• DMA-Optimized Motor System

Learn more about the zr800cw

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


JL Audio brand icon

Authorized dealer

JL Audio Evolution® ZR Series Component Woofer

The car audio industry has multiple levels of quality that range from good, better, best, and then there is JL Audio quality. JL Audio's reference quality ZR component woofers are made for those seeking the highest possible levels of audio performance and are the pinnacle of the JL Audio component speaker lineup.

DMA is JL Audio's proprietary Dynamic Motor Analysis system and is aimed at improving dynamic motor behavior. As a result of DMA optimization, Evolution ZR motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate low end. In addition, JL Audio turns to their partners at Germany's Dr. Kurt Müller & Co. for critical cone and suspension elements that provide unparalleled woofer performance.


General Features:









  • 8.0" Evolution ZR Series Midbass Driver
  • Made In Germany
  • Power Handling:
    • Peak: 225 watts
    • RMS: 125 watts
    • Recommended Power Range: 50 - 125 watts RMS each
  • Mineral-filled polypropylene woofer
  • Santoprene Surround
  • Cast Aluminum Woofer Baskets
  • DMA Optimized Motor
  • Ferrite Magnet
  • 1.75" Voice Coil, on Kapton Former
  • JL Audio's patented Elevated Frame Cooling design
  • Dr. Kurt Muller & Co. symmetrical-roll, hybrid-weave spiders
  • Dr. Kurt Muller & Co. cone and suspension

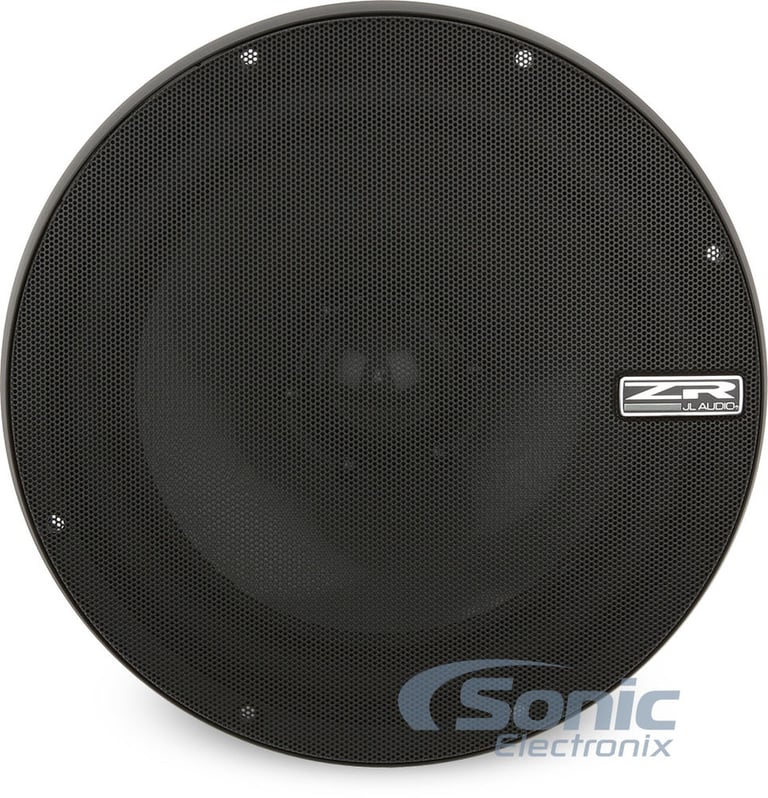

  • Black steel mesh grille is included
  • Top-mount Depth: 3.39"
  • Cutout Dimensions: 7.125"
  • 4 ohm impedance
  • Frequency Response: 50 - 500 Hz ± 3
  • Sensitivity: 87.0 dB
  • Black Steel Mesh Grille with JL Audio Logo Included
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Best selling similar products

CF-350mt small

JL Audio CF-350mt

• 3-1/2" CF Series Midtweeters
• 35 watts RMS Each
• 4 ohm Impedance

(4)

$229.99

List price $229.99

C165 small

Hertz C165

• 210 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$199.99

List price $230.00

C165F small

Hertz C165F

• 180 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$199.99

List price $230.00

AP-M61SE small

Deaf Bonce Apocalypse AP-M61SE

• 260 watts Peak Each, 130 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 101.5 dB

(8)

$109.90

List price $109.90

CF-275mt small

JL Audio CF-275mt

• 2-3/4" CF Series Midtweeters
• 30 watts RMS Each
• 4 ohm Impedance

(12)

$169.99

List price $169.99

AP-M61SE Pro small

Deaf Bonce Apocalypse AP-M61SE Pro

• 300 watts Peak Each, 150 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102.80 dB

$119.90

List price $143.99

51KSC2704 small

Kicker KSC270 (51KSC2704)

• 100 watts Peak Each, 50 watts RMS Each
• Composite Paper cone material
• Impedance: 4 ohm
• Sensitivity: 85 dB

(3)

$59.99

List price $69.99

AP-M60SQL small

Deaf Bonce Apocalypse AP-M60SQL

• 300 watts Peak Each, 150 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 97.5 dB

(4)

$119.90

List price $119.90

P3V2-25 small

Rockford Fosgate Punch P3 P3V2-25

• 150 watts Peak Each, 75 watts RMS Each
• 20-40% Mica reinforced Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 82 dB

$224.99

List price $299.99

AP-M67AN small

Deaf Bonce Apocalypse AP-M67AN

• 600 watts Peak Each, 300 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102 dB

(2)

$449.90

List price $449.90

Specifications & Details


Speaker Specifications
Series
ZR Series
Priced Per
Each Speaker
Number of Speakers
1
Speaker Size
8"
Design
Subwoofer
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Santoprene Rubber
Peak Power Handling
225 watts
RMS Power Handling
125 watts
Sensitivity
87 dB
Frequency Response
50 - 500 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
3.39"
Cutout Dimensions
7-1/8"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZR800-CW

Weight:

8.00lbs

Internal SKU:

zr800cw

Internal Product ID:

15355

Customer Ratings & Reviews


JL Audio ZR800-CW thumbnail image

5 star
57%
4 star
43%
3 star
0%
2 star
0%
1 star
0%



Durability
4.6
Value
4.2
Features
4.3
Design
4.5
Usability
4.5

Customer Reviews

Sort by:

Loading...

MID-Bass

These drivers made a GREAT difference in my setup depending on what you listen to, they really bring out the missing midrange BASS that the 6.5" midrange drivers simply can't pick up. An absolute MUST for a (complete) front stage...

By Rudolf on June 23, 2013

25 found this helpful


great speaker

I hooked these two bad boys up to a JL 300/4 bridge to 2 channel, and they sound pretty damn good. I would definitely recommend them.

By MIGUEL on May 3, 2012

20 found this helpful


Strong transition driver.

I bought this midbass as a bridge between dual 12" subs and a 6.5" mid/hi set of components. These high pass as low as 50Hz while taking 175-watts RMS and will very like take more wattage with a high pass of 60Hz or 70Hz. This is not a midrange speaker. This is a very application specific driver that should be used in 4-way active systems to transition from a very strong bass section to clean midrange section. My results so far have been beyond my expectations. The only weakness this driver has (if you can call it that) is that it isn't much good above 500Hz, so make sure you set your lowpass at 500Hz or less.

I have rated this driver according to fair criteria.

Overall = 4 (This is still the best driver in it's class for what it is used for.)

Value = 3 (It should cost less for what it does, it's not a full range driver, nor would it be considered a top subwoofer.)

Look/design = 5 (This midbass has a nice grill and look to it, and should blend in most installs aesthectically.)

Durability = 5 (This midbass can take a beating, is made of water resistant and wear resistant materials and will likely outlast 2 or 3 cars easily in it's lifetime.)

Features = 3 (I will use this for "versatility". This is a very specific and limited application driver to be used as a midbass. It's not good for much else.)

Ease of use = 2 (This driver will require professional installation or modification to most doors in order to fit properly. This midbass should be only purchase for a very specific project where it's intended use is well understood.)

By tspence on June 12, 2009

20 found this helpful


works great

I was looking to simply replace my stock sub in my '02 Tahoe. The shallow Pioneer would not fit so I had to send that speaker back. The new sub rocks. No extra amp. I did not know the stock sub came from the factory already built into a box. The JL dropped in with zero modification. Truly sounds 5 times better than the original. I was worried about the oHms not matching and RMS ratings. Worry not. If I turn it up I can shake a window if I want.

By Cp on August 19, 2013

18 found this helpful


JL ZR800-CW

Excellent Midbass driver. I'm running a 4 way active system, and use these for 80hz - 250hz.. They fill that range superbly. I wouldn't recommend this driver for anyone UNLESS they're running 4 way active, because these speakers are only happy within this small frequency range.

By Jim on December 4, 2012

18 found this helpful


JL Audio ZR800-CW

I replaced the 6.5” stock woofers in my 2008 Mustang GT with these to match with the JL 5X7s in the upper door and in the back also a JL 10” sub. These speakers really filled a whole in my sound. I'm driving them with a Sound Ordinance 2X75W amp which does a great job. They perform as advertised and I highly recommend them for any system if you have room in the doors. The only issues they posed is they don't drop in with no modification as advertised, we had to file away some of the plastic framing to get them to fit. My System sounds PDG, it' clean, full of detail, nicely staged and full of nuance. I got a great deal on the price and delivery compare to what I would have had to pay everywhere else I priced the speakers.

Thanks again Sonic.

Gerald

By GSR on August 16, 2012

16 found this helpful


Don't know anything about subs; price point decided purchase

This sounds great !! I don't have anything to compare it too, other than the stock FJ cruiser sub, which sounded good, but it outshined by the JL.

By MIchael on August 31, 2016
