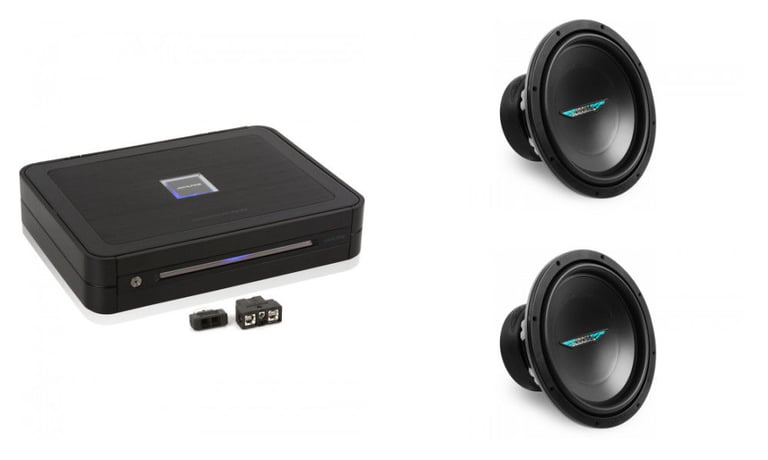

(2) Image Dynamics IDQ12 D2 V.4 12" Subwoofers + Alpine PXD-M12 1200W Amplifier

1200 Watt RMS Sound Quality Bass Package

highlight-star-icon

• 750W RMS
• Mica-Reinforced Cone Woofer
• NBR Surround
• Conex Spider with Integrated Tinsel Leads
• Fiberglass Composite Basket

Learn more about the idq12d2v4_pdxm12

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-7501 main

Metra 82-7501

Speaker Brackets for select 2013-2023 vehicles from Mazda - Pair

3
-48.85%

$21.99

List price $42.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

T2652-S main

Rockford Fosgate Power T2 T2652-S

400W Peak (200W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

42
51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

Club 34F main

JBL Club 34F (JBLSPKCB34F)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

4
-27.29%

$79.95

List price $109.95

P1650 main

Rockford Fosgate Punch P1 P1650

220W Peak (110W RMS) 6.5" Punch P1 Series 2 Way Coaxial 4-ohm Speakers

61
XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42

Description


Image Dynamics brand icon

Authorized dealer

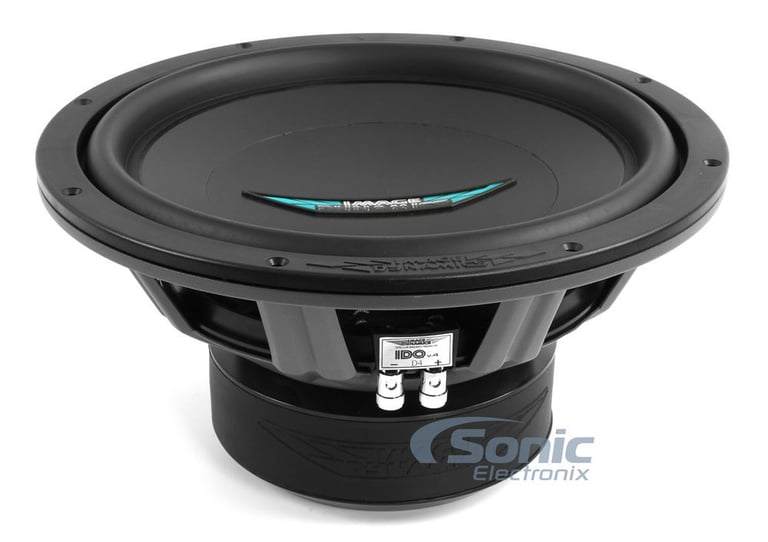

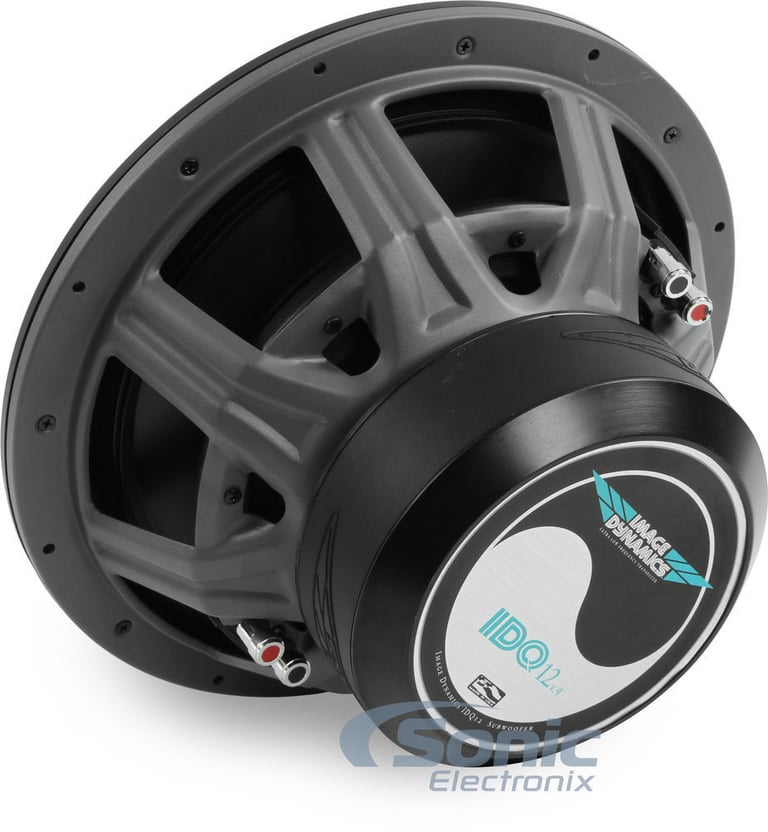

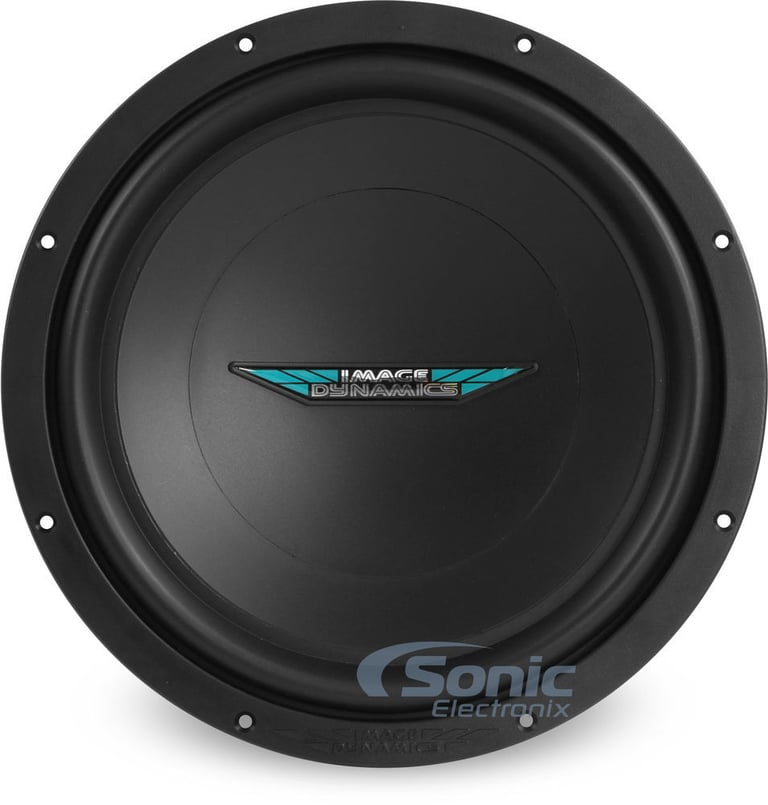

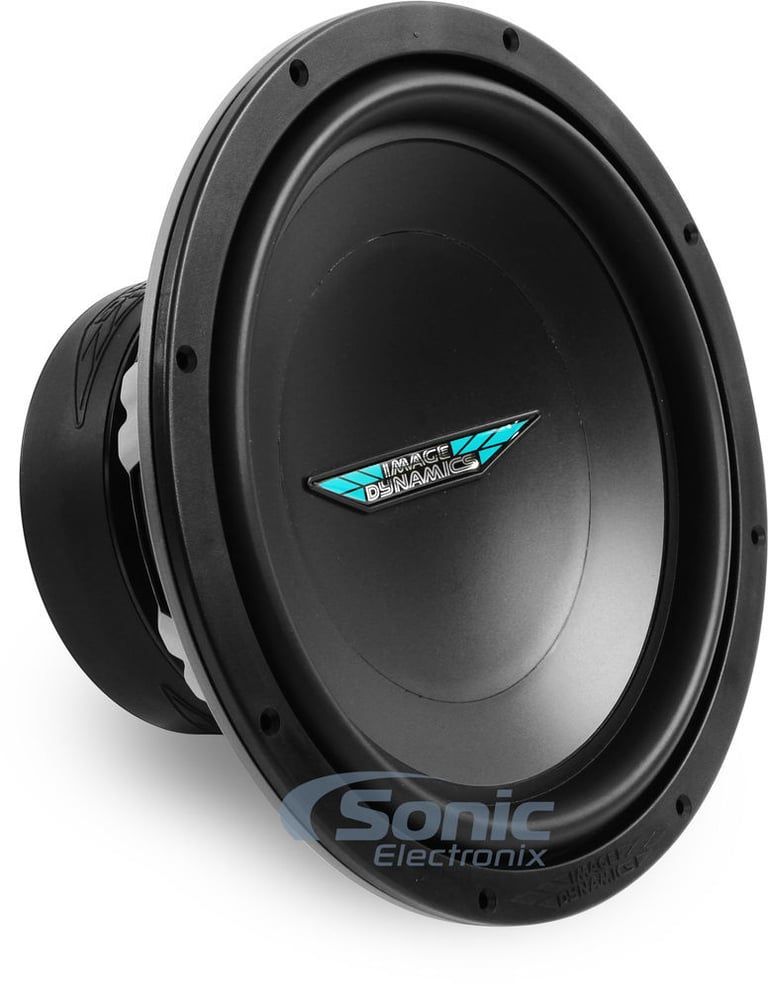

Image Dynamics IDQ12 D2 V.4

750W 12" IDQ V.4 Series Dual 2 ohm Subwoofer
Quantity: 2

General Features:

  • 12" Dual 2 ohm IDQ V.4 Series Subwoofer
  • Power Handling:
    • RMS: 750 watts
  • Recommended Power Range: 50-750 watts
  • Mica-reinforced polypropylene cone woofer
  • Parabolic roll surround
  • Removable core assembly for easy and quick replacement
  • Ability to custom match the basket color to your personal installation
  • Conex spider with integrated tinsel leads
  • Fiberglass composite basket
  • High-temperature aluminum voice coil
  • Proprietary voice coil attachment design
  • Also found as: IDQ12D2 V.4, IDQ12 D2 V.4, IDQ12 D2, IDQ12D2, IDQ12V.4 D2, IDQv4
  • Sensitivity: 87.22dB
  • Mounting depth: 5-13/16"
  • Cutout dimensions: 11"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

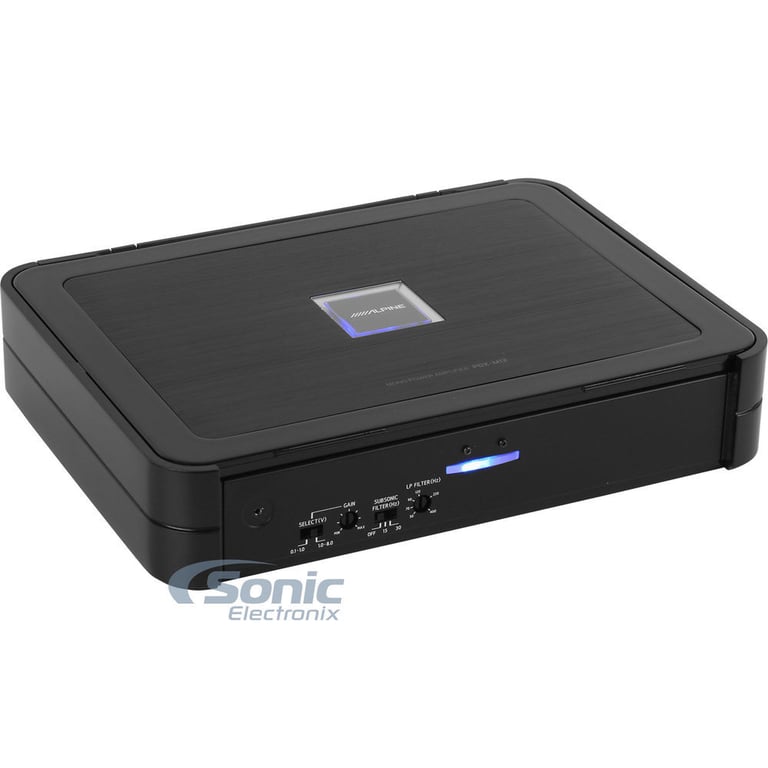

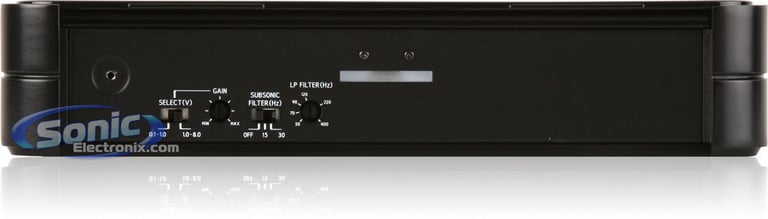

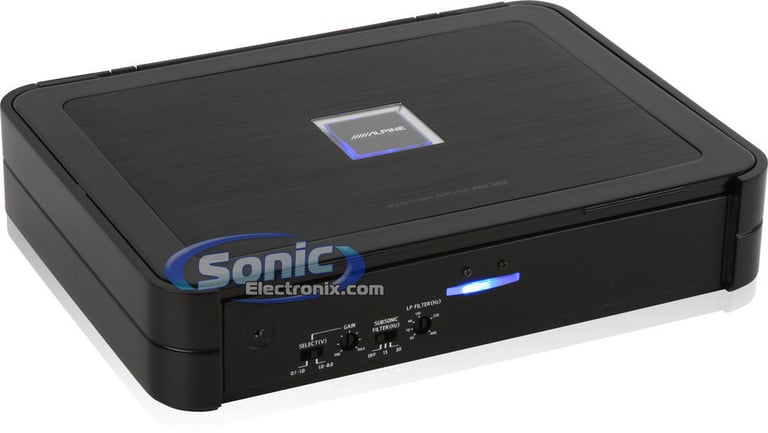

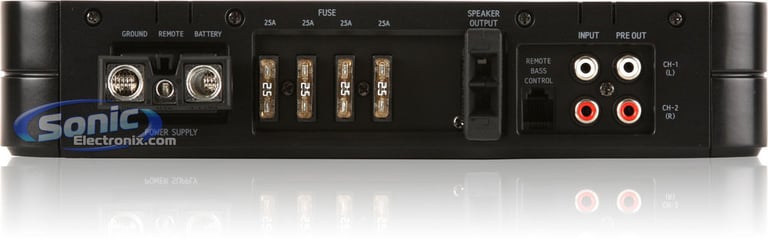

Alpine PDX-M12

1200W RMS PDX Series Monoblock Power Density Class D Digital Car Amplifier
Quantity: 1


General Features:

  • PDX Series 1-Channel Class D Car Amplifier
  • RMS Power Rating (@ 14.4V):
    • 4 ohm: 1200 watts x 1 chan.
    • 2 ohm: 1200 watts x 1 chan.
  • Total RMS output: 1200 watts
  • DC-DC PWM Power supply with STAR circuitry
  • Blue LED power/status indicator conveniently located on the top
  • Discrete pre-amp stage
  • 6-Layer glass epoxy PC board
  • Automatic over-current protection system
  • Soft start turn-on prevent initial system popping
  • 1-Channel monoblock operation
  • 1 Set of pre-amp outputs
  • Optional Alpine RUX-KNOB.2 available
  • System Protection circuitry keeps the amp running properly
  • Large aluminum alloy heatsink for extreme heat dissipation
  • Gold-plated RCA level inputs

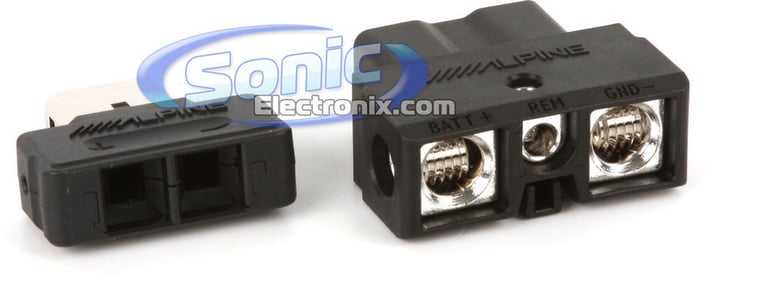

  • Proprietary screw terminals ensure a solid and secure connection
  • Input sensitivity: 0.1-8 V with input level
  • Variable low-pass filter (50-400 Hz, 24 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 5-100,000 Hz

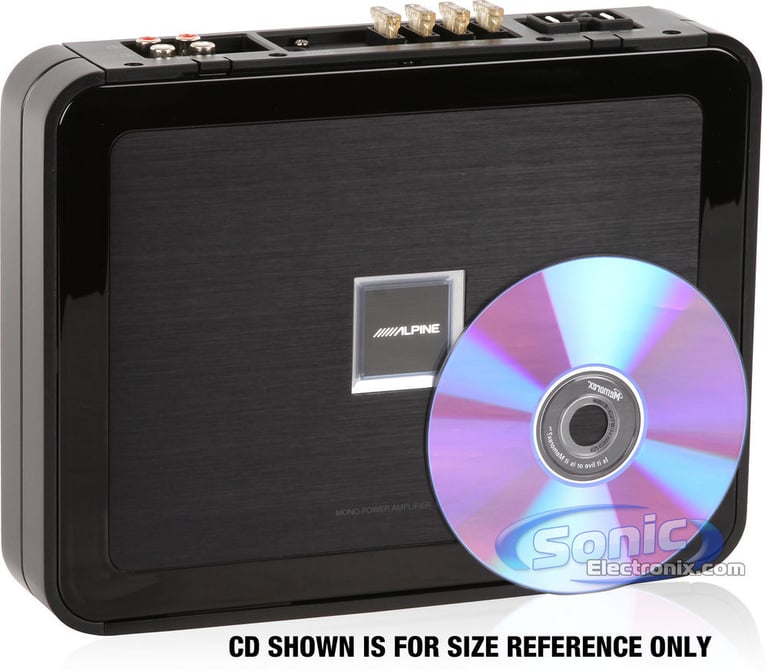

  • Dimensions: 7-9/16"D x 10-1/8"W x 2"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 (2) Image Dynamics IDQ12 D2 V.4 12" Subwoofers + Alpine PXD-M12 1200W Amplifier Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 (2) Image Dynamics IDQ12 D2 V.4 12" Subwoofers + Alpine PXD-M12 1200W Amplifier Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 (2) Image Dynamics IDQ12 D2 V.4 12" Subwoofers + Alpine PXD-M12 1200W Amplifier Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 (2) Image Dynamics IDQ12 D2 V.4 12" Subwoofers + Alpine PXD-M12 1200W Amplifier Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.96

List price $2282.96

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.97

List price $2479.97

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1456.96

List price $2074.96

KWZ1000AW_MRR2_FLFO1 small

JVC KW-Z1000AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ford
• 10.1" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(7)

$1601.80

List price $2348.97

DAX8000S_MRR_S8FO2_S small

Kenwood DAX8000S Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• 4 Camera Inputs Function

(37)

$1348.96

List price $1923.96

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1348.96

List price $1973.96

DAX800XR_MRR_S8GM3_CI small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1605.96

List price $2254.96

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

DAX8000S_MRR2_S8FO1_S small

Kenwood DAX8000S Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• 4 Camera Inputs Function

(8)

$1423.96

List price $2093.96

Specifications & Details


Subwoofer Specifications
Series
IDQ V.4 Series
Subwoofer Size
12"
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
87.22 dB
Xmax (millimeters)
14.00 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.90 cubic feet
Optimum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
5-13/16"
Cutout Diameter
11"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

IDQ12 D2 V.4, PDX-M12

Weight:

38.00lbs

Internal SKU:

idq12d2v4_pdxm12

Internal Product ID:

154209

Customer Ratings & Reviews


(2) Image Dynamics IDQ12 D2 V.4 12

5 star
96%
4 star
4%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
5
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

AWESOME

The following review is for PDX-M12, which is a part of the bundle you are viewing.

This amp is worth every penny!! Its powering a JL Audio 10W7 in a ported box. I also have the matching Alpine PDX-F6 great combo and they work beyond expectations.

By Darkness on April 5, 2011

50 found this helpful


WOW

The following review is for PDX-M12, which is a part of the bundle you are viewing.

I just bought this amp to replace the new JL 1000/D that I was pushing my two alpine type r's the newer 1223/D model I have them in a dual slot ported box in an 03 tiburon and this amp slams I can beat on them from one town to the other with this amp and it barely gets toasty I would recommend this amp to anyone who is looking for some serious power.

By Meracle on March 15, 2011

49 found this helpful


A powerhouse, but take your time to set it up right

The following review is for PDX-M12, which is a part of the bundle you are viewing.

When I first installed this PDX-M12, it sounded a little "thin" compared to my previous 500W Class D amplifier. Turned out that I needed to adjust the gains somewhat. Now it delivers all the clean power that I, or almost anyone, would ever need from a subwoofer amp. And it's small enough to fit below the front seats of most vehicles. Great product.

By Brian on June 5, 2012

46 found this helpful


Great little amp.

The following review is for PDX-M12, which is a part of the bundle you are viewing.

I have had this amp running for a few months now. I upgraded my old pdx 1.1000 to this amp (old is still sweet) There was a noticeable power and sound difference where amps clipped used smd dd1. This amp uses a lot less power, than the old one. Light dimming went away without an extra battery or big 3. I was disappointed by the fact that the mounting holes are in diff spots and had to fix up amp rack to hide holes. Just fyi, these don't stack with the old pdx amps. I'm running two 13w6v2's on this amp, and it barely warms up after a couple hours of working hard. It puts out better sq than old pdx, producing richer bass. This amp is great, but lacks a couple features eg. bass boost. or at least they could include the volume (rux) knob for the price.

By KC on April 1, 2012

46 found this helpful


VERY pleased!

The following review is for PDX-M12, which is a part of the bundle you are viewing.

I bought the PDX-M12 along with the PDX-F6 and both perform beyond expectations. Driving a pair of 12W6's, sealed; Sharp. Crisp. LOUD. Slight warmth felt after an hr pounding. I'm very pleased with my purchases. There is only one smell better than a new car smell and that's new AMP smell!!

By Fortitude253 on April 6, 2011

48 found this helpful


POWER,SOUND,SEXY !

The following review is for PDX-M12, which is a part of the bundle you are viewing.

Bought this amp very happy and please I'm using this amp with 2 12" Alpine Type R in sealed box it SLAM and HARD POUND ! Sound very CLEAN AND CLEAR AND LOUD. BEST AMPLIFIER !

By B on December 1, 2010

47 found this helpful


Alpine M-12 worth weight in Gold

The following review is for PDX-M12, which is a part of the bundle you are viewing.

This amplifier is in a class of it's own. No other amplifier pushes my RF T2 12 like the Alpine M-12. This amplifier never gets hot, has amazing clarity and is easy to tune. I do not want to list the amps that I have used to compare this with but the M-12 wins hands down. The price paid for this amp is worth it's weight in Gold.

By MJH on November 16, 2014

44 found this helpful


super efficient

The following review is for PDX-M12, which is a part of the bundle you are viewing.

although i didnt buy this amp from sonic, cuz it wasnt in stock when i needed it jus like most items are never in stock when you need them with sonic, i got this and hooked it up to a RF T2412D and this little guy is so powerful and efficient, doesn't heat up, doesn't draw too much current and im still running stock electrical and a optima yellow top, but just to be on the safe side i have a 2 farad RF cap to keep things running smooth, this amp delivers. i would buy it again if i ever need to

By itsajeepthing on May 4, 2014

47 found this helpful


Amazing!!

The following review is for PDX-M12, which is a part of the bundle you are viewing.

I have had this amp in my truck for almost three years now powering my JL audio W7 and no problems what so ever. I love this amp and i plan to get three more of them.

By Gustavo on October 1, 2012

45 found this helpful


Great Amp

The following review is for PDX-M12, which is a part of the bundle you are viewing.

Not the most powerful amp I have ever owned but definitely by far the cleanest. A bit pricey for the power but you probably won't find cleaner sound from any other company or amp. Very small and compact easy to hide (if you want to that to this beautiful amp). Made my 2 12's not only pound but very musical. Would recommend to anyone who wants a super clean system.

By Will on June 14, 2014

43 found this helpful



Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Mazda 6

2011 Kia Optima

2010 Ford Edge

2011 Nissan Maxima

2001 GMC Sonoma

2004 Subaru Impreza

2014 Buick Regal

2009 MINI Cooper

2018 Honda Pilot

2014 Lexus RX350

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
