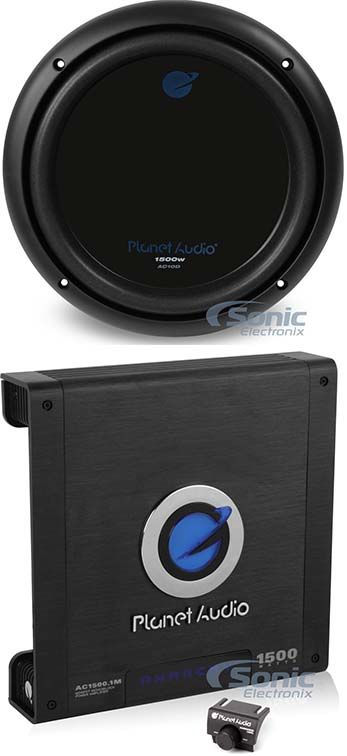

Planet Audio AC10D 10" 1500W Car Audio Subwoofer + AC15001M 1500W MONO Amplifier

750W 10" Anarchy Series Dual 4 Ohm Car Subwoofer Package

highlight-star-icon

• Peak Power: 1500W
• RMS Power: 750W
• Sensitivity: 87 dB

Learn more about the ac10d_ac15001m

We apologize

This item has been discontinued


Loading...
70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

82-8146 main

Metra 82-8146

6x9" Speaker Bracket for select 2002-2024 vehicles from Toyota, Subaru, Lexus

31
-46.07%

$19.95

List price $36.99

95-8208 main

Metra 95-8208 Dash Kit

Install a new Double-DIN car stereo in select 2004-2010 Sienna

4
-10.00%

$26.99

List price $29.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

49
-42.51%

$22.99

List price $39.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-16.67%

$119.99

List price $143.99

DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

H7694 main

Cerwin Vega H7694

800W Peak (150W RMS) 6x9" HED Series 4-Way Coaxial 4-ohm Speakers

32
-25.93%

$79.99

List price $107.99

Description


Planet Audio brand icon

Authorized dealer

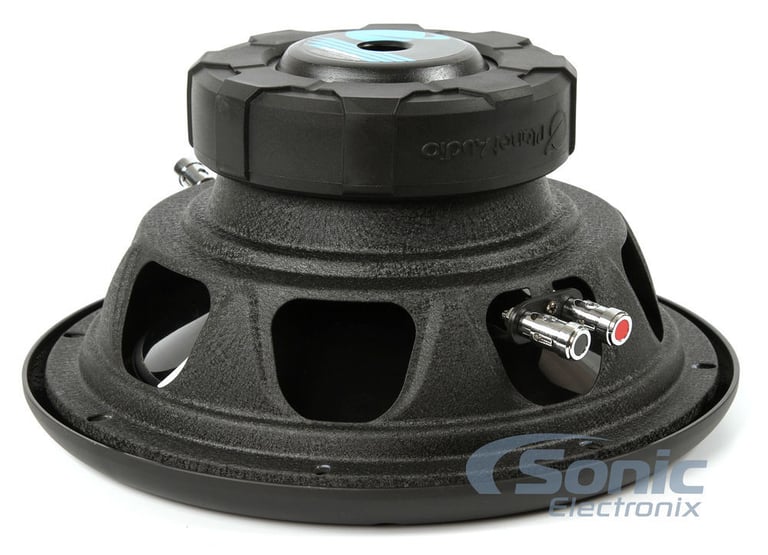

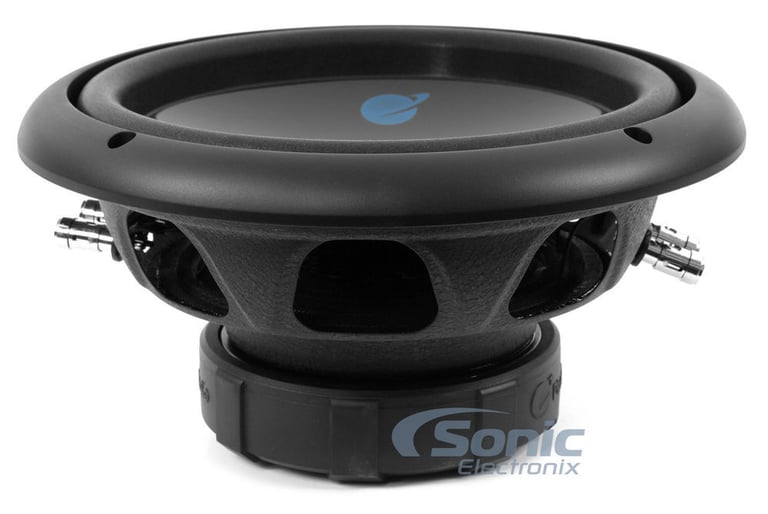

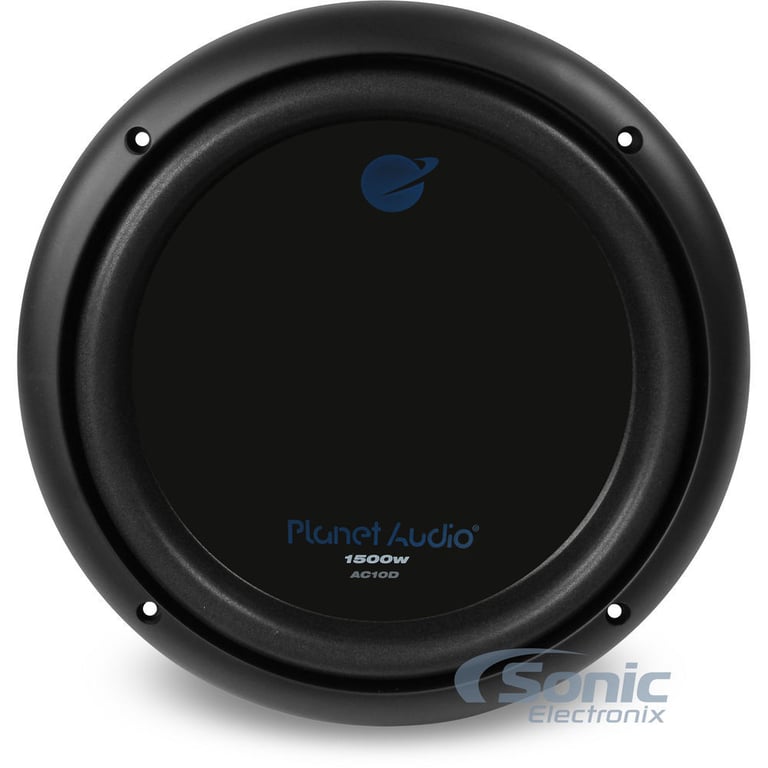

Planet Audio AC10D

1500W Peak (750W RMS) 10" Anarchy Series Dual 4-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 10" Dual 4 ohm Anarchy Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 750 watts
  • Injection Molded Polypropylene - IMPP cone
  • Foam surround
  • high-temperature voice coil
  • 10 mm Xmax
  • Ferrite magnet motor structure
  • Resonance Frequency (Fs): 39 Hz
  • Sensitivity: 87 dB
  • Recommended sealed box volume: 1 cubic feet
  • Recommended ported box volume: 2 cubic feet
  • Top-mount depth: 4-3/4"
  • Cutout diameter: 9-1/8"
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty

  • Priced Individually

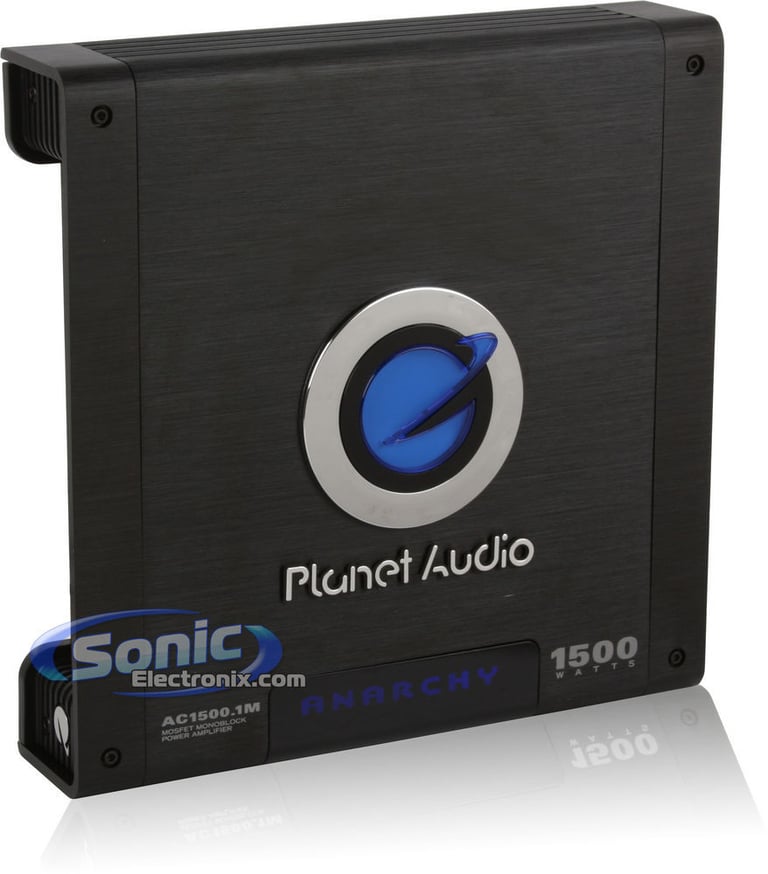

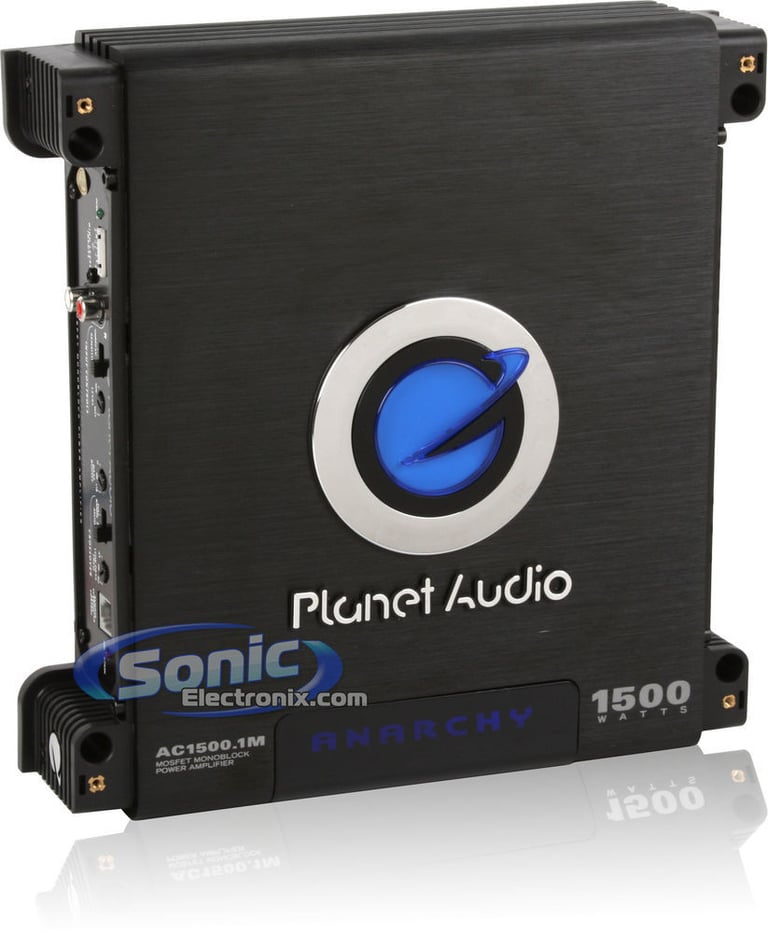

Planet Audio AC1500.1M

1500W Peak Anarchy Series Class-A/B Monoblock Power Amplifier
Quantity: 1

Planet Audio Authorized Dealer

General Features

  • Anarchy Series Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 563 watts x 1 chan.
    • 2 ohm: 1100 watts x 1 chan.
  • Max power output:
    • 2 ohm: 1500 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

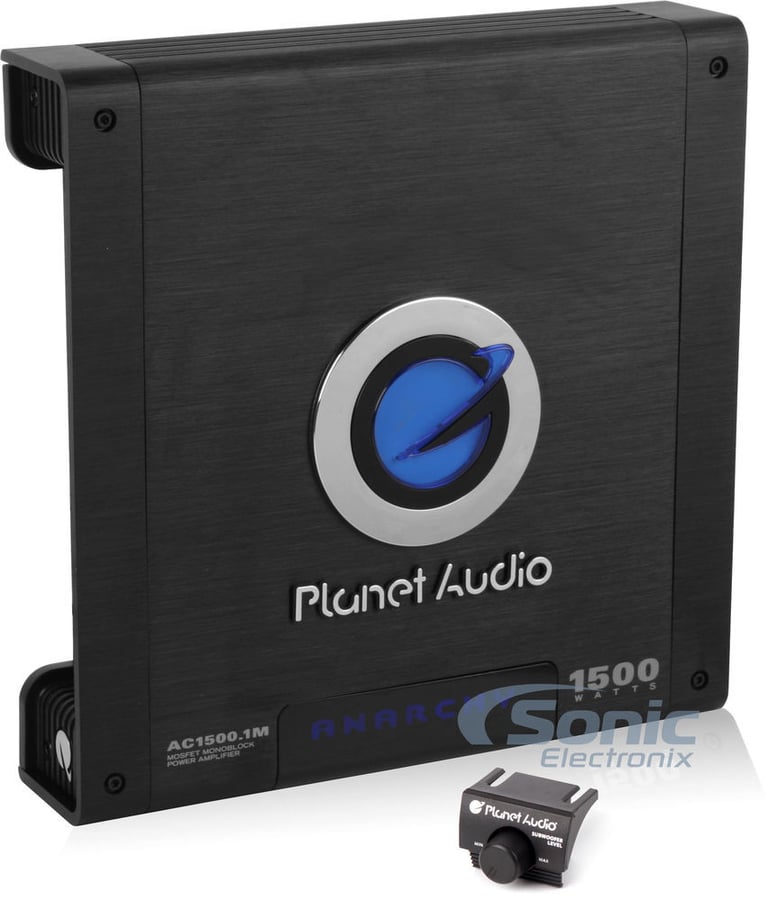

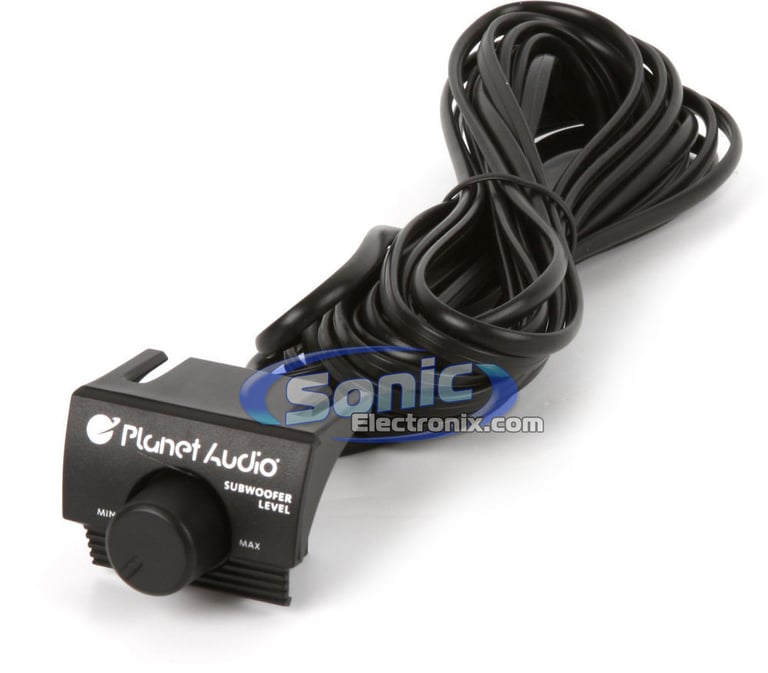

  • Convenient remote subwoofer control
  • LED power (green) and protect (red) indicators
  • Chrome-plated connections enhance durability
  • Variable low pass crossovers
  • Illuminated logo
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Low level and high level inputs

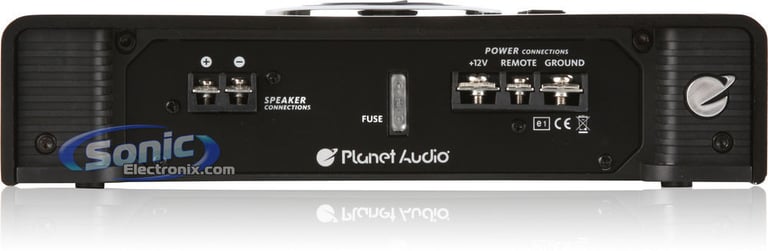

  • Heavy-duty set-screw terminals
  • Nickel-plated contacts

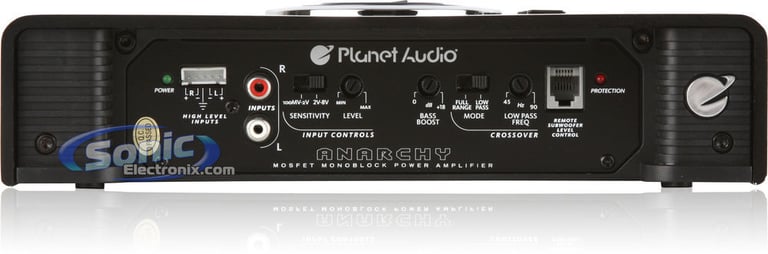

  • Input sensitivity:
    • Low level: 100mV-2V
    • High level: 2V-8V
  • Variable low-pass filter: 45 - 90 Hz, 24 dB/octave
  • Variable Bass Boost 0 to +18 dB
  • Signal-to-Noise Ratio: 102 dB
  • Dampening Factor: 125+
  • Frequency response: 15 - 20,000 Hz
  • Dimensions: 10"L x 10"W x 2-3/16"H
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Platinum Internet Dealer

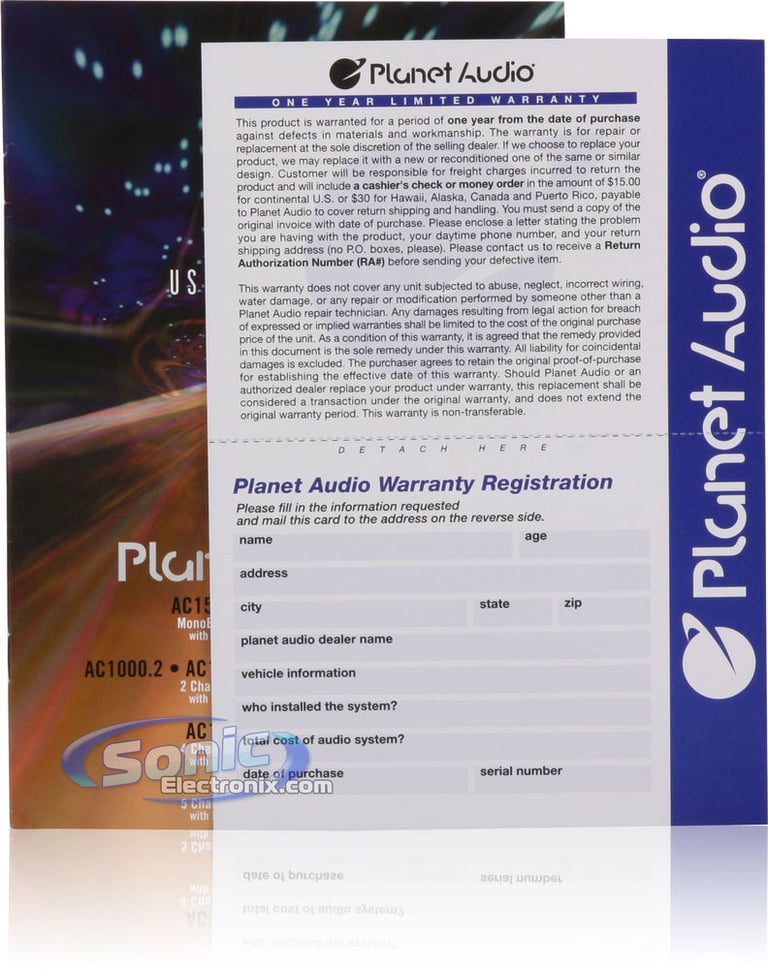

  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

Planet Audio AC1500.1M owner’s manual


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

Specifications & Details


Subwoofer Specifications
Series
Anarchy Series
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
750 watts
Peak Power Handling
1500 watts
Minimum Sealed Box Volume
1 cubic feet
Maximum Sealed Box Volume
1 cubic feet
Maximum Ported Box Volume
2 cubic feet
Sensitivity
87 dB
Xmax (millimeters)
10 mm
Top-Mount Depth (Mounting Depth)
4.75"
Cutout Diameter
9.125"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AC1500.1M,AC10D

Weight:

18.00lbs

Internal SKU:

ac10d_ac15001m

Internal Product ID:

154811
