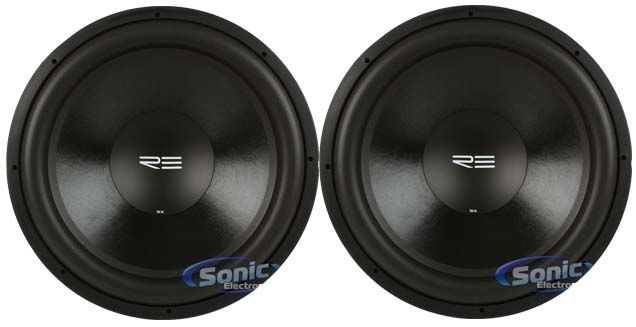

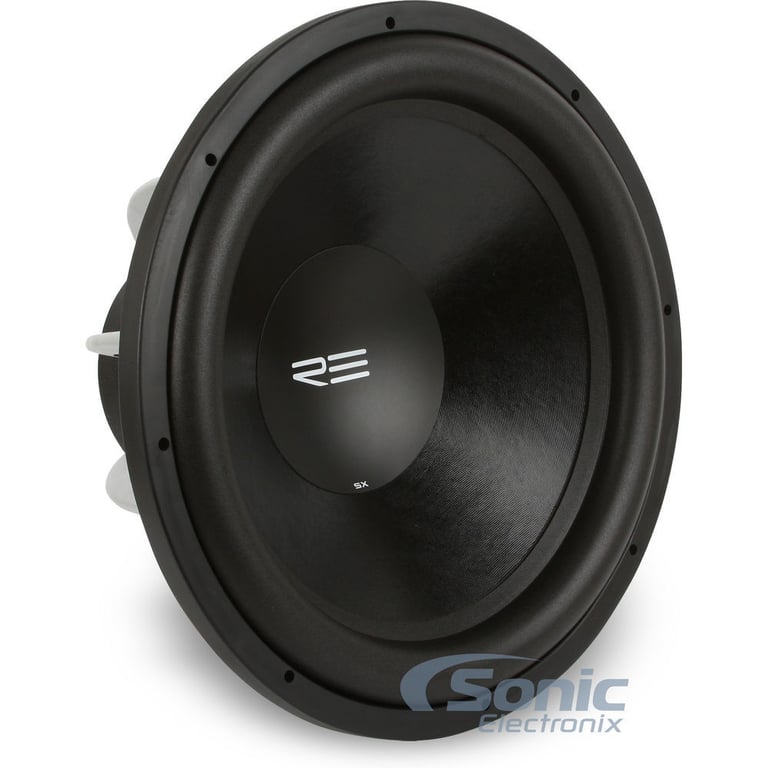

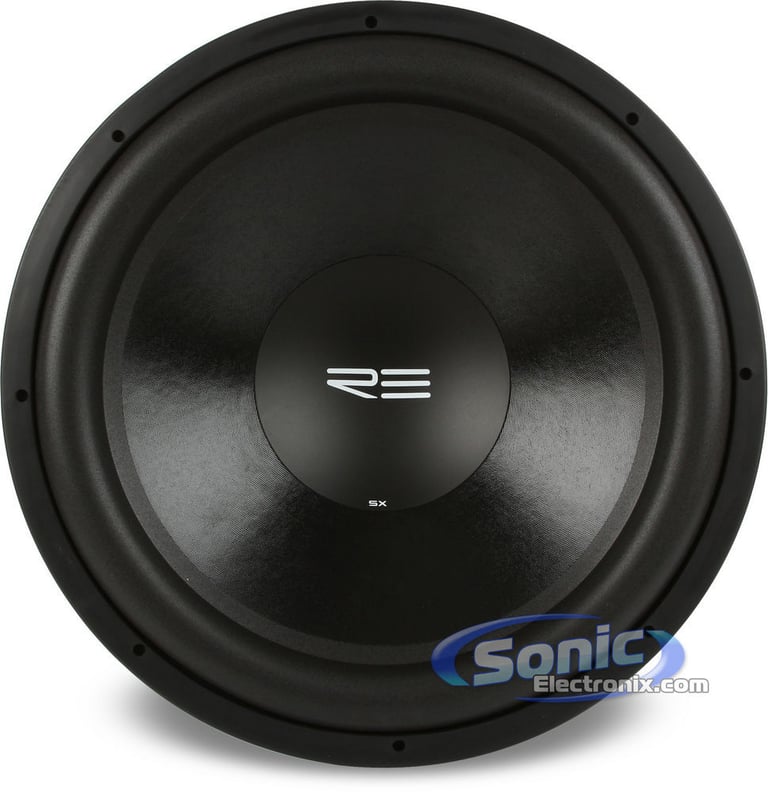

Pair Re Audio SX18D4 SX 18" D4 4000 Watt Peak 2000W RMS Car Subwoofers Subs

1000W 18" SX Series Dual 4 ohm Subwoofer Package

RE Audio
Shop all RE Audio
highlight-star-icon

• RMS Power: 1000W
• Dual 4 ohm
• Rubatek Foam Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Progressive Spiders
• Triple Stacked Magnets

Learn more about the sx18d4_2

We apologize

This item has been discontinued


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
ZXI-44 main

DS18 ZXI-44

300W Peak (100W RMS) 4" ZXI Series 2-way 4-ohm Coaxial Car Speakers

51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

Description


RE Audio brand icon

Authorized dealer



RE Audio SX Subwoofers

RE Audio raises the bar for high output with the SX line of their competition grade, high excursion subwoofers. With an impressive power handling rating of 1000 Watts RMS – this subwoofer shows you it’s meant for those serious about quality bass.

Every single component of this subwoofer has been crafted with precision in mind to obtain full, impactful bass. From its 3” eight layer aluminum flat voice coil, to its triple stacked magnets this high powered subwoofer will output with fine clarity.

The entire SX line of subwoofers can handle an impressive 1000 watts of RMS continuous power, no matter the size! With its large Rubatek Foam surround and FEA optimized motor structure; this woofer can handle large amounts of power, while maintaining durability. The RE Audio SXX Subwoofers series is certainly one subwoofer manufactured with hi-fidelity audio in mind.

RE Audio SX18D4 (SX18 D4)

1000W 18" SX Series Dual 4 ohm Subwoofer
Quantity: 2

Subwoofer Features:
  • 18" Dual 4 ohm SX Series Car Subwoofer
  • Power Handling:
    • RMS: 1000 watts
  • Impedance: 4 ohm
  • Dual composite 2-piece cone

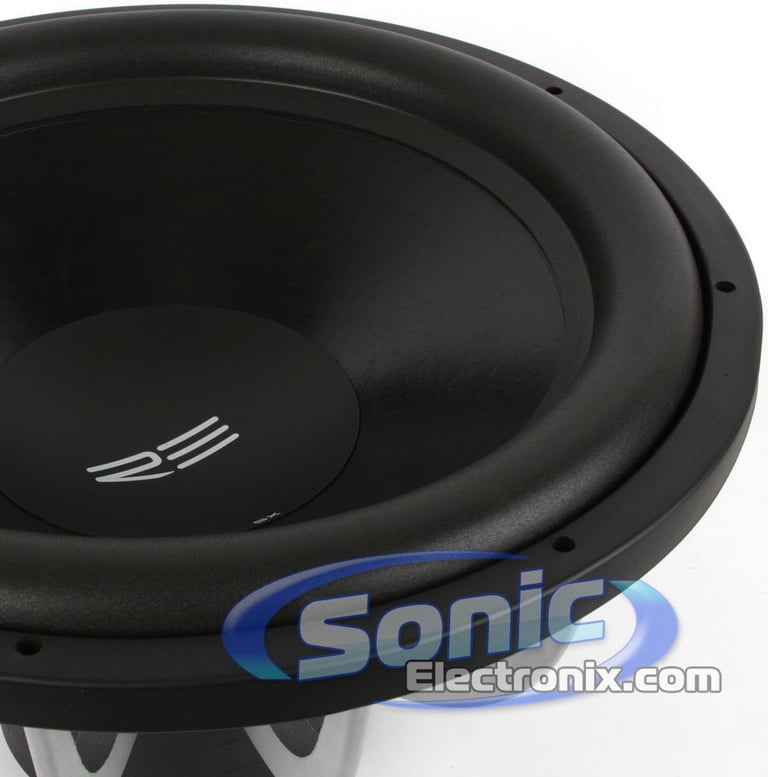

  • Rubbertek Foam Surround

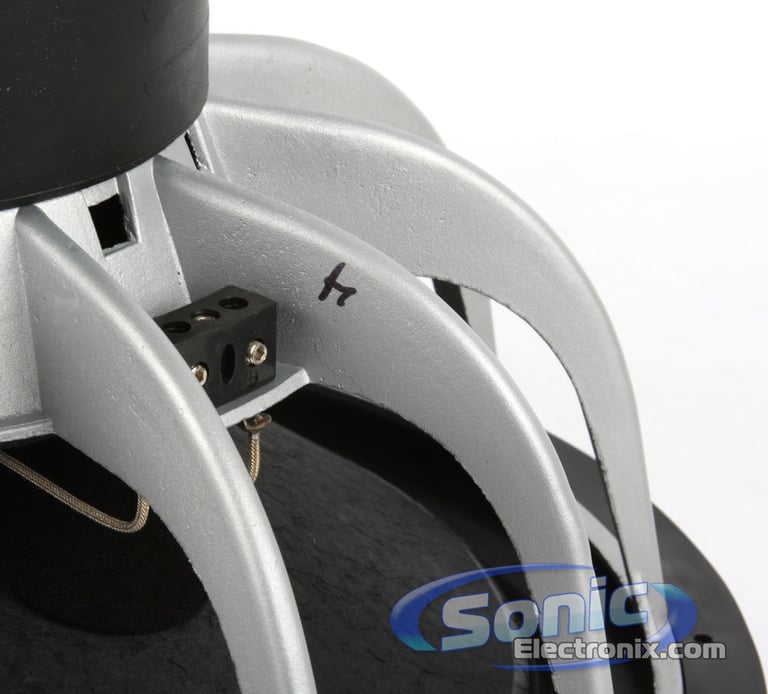

  • Tork-Tite terminals

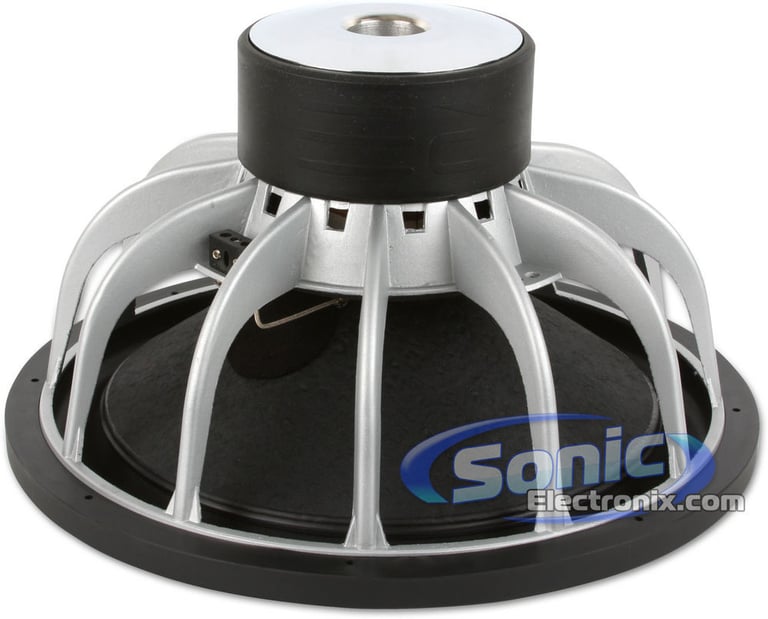

  • Cast aluminum basket
  • 3" 8-layer aluminum voice coil
  • Triple stack magnets
  • Hand-built in the USA
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Dimensions:

  • Mounting Depth: 9.5"
  • Mounting Hole Diameter: 16.75"
  • Overall Diameter: 18.5"
  • Bolt Hole Circle: 17.5"
  • Motor Width: 6.5"
  • Motor Depth: 3.25"
  • Basket Depth: 6.25"
  • Displacement: 0.22 cu. ft.
  • Weight: 28 lbs.
SX 18" T/S Parameters
  • Electrical Q Value -Qes: 0.53
  • Mechanical Q Value -Qms: 6.1
  • Total Speaker Q Value -Qts: 0.48
  • Free Air Resonance -Fs: 33.2 Hz
  • Equivalent Compliance -Vas: 159 liters
  • One-Way, Linear Excursion -Xmax: 22 mm
  • Efficiency -SPL 1W/1m: 92.7 dB SPL
  • Effective Piston Area -Sd: 1210 cm^2
  • DC Resistance -Re: 1.9 ohm
  • Nominal Impedance -Znom: Dual 4 ohm
  • Thermal Power Handling -Pe: 1000 W
  • Force Factor -Bl: 21

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pair Re Audio SX18D4 SX 18" D4 4000 Watt Peak 2000W RMS Car Subwoofers Subs Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pair Re Audio SX18D4 SX 18" D4 4000 Watt Peak 2000W RMS Car Subwoofers Subs Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pair Re Audio SX18D4 SX 18" D4 4000 Watt Peak 2000W RMS Car Subwoofers Subs Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Pair Re Audio SX18D4 SX 18" D4 4000 Watt Peak 2000W RMS Car Subwoofers Subs Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.97

List price $2479.97

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1456.96

List price $2074.96

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(39)

$1383.97

List price $1778.97

DAX800XR_MRR_S8GM3_CI small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1605.96

List price $2254.96

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1348.96

List price $1973.96

DAX800XR_MRR_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1403.96

List price $2053.96

KWZ1000AW_MRR2_FLFO1 small

JVC KW-Z1000AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ford
• 10.1" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(7)

$1601.82

List price $2348.97

Specifications & Details


Subwoofer Specifications
Series
SX Series
Subwoofer Size
18"
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Sensitivity
92.7 dB
Xmax (millimeters)
22 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual composite 2-piece cone
Woofer Surround
Rubatek Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Minimum Ported Box Volume
5.5 cubic feet
Maximum Ported Box Volume
8.0 cubic feet
Top-Mount Depth (Mounting Depth)
9-1/2"
Cutout Diameter
16-3/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33.2 Hz
Equivalent Compliance (Vas)
159 liters
Total Speaker Q Value (Qts)
0.48
Electrical Q Value (Qes)
0.53
Electrical Resistance of Voice Coil (Re)
1.9 ohm
Mechanical Q Value (Qms)
6.1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SX18D4-3

Weight:

84.00lbs

Internal SKU:

sx18d4_2

Internal Product ID:

156545

Customer Ratings & Reviews


Pair Re Audio SX18D4 SX 18

5 star
73%
4 star
27%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
4.7
Design
4.4
Usability
5

Customer Reviews

Sort by:

Loading...

Great Subwoofer

The following review is for SX18D4, which is a part of the bundle you are viewing.

This thing is LOUD. Some people claimed that this subwoofer was only good for SPL and that it lacked sound quality. Well I'm nothing but impressed with this thing. I have it in a 1.2 cubic foot box tuned to 28 Hz in the back of a 20006 Expedition Limited. People are shocked when they hear how loud and low it gets.

Pros: Priced fairly, LOUD, DEEP, durable

Cons: Takes up a lot of room, things in my car are starting to break, (Specifically in my doors) Hearing loss.

By Dexter on December 15, 2011

39 found this helpful


Durable DD sub

The following review is for SX18D4, which is a part of the bundle you are viewing.

I am currently running 2 RE Audio SX18D4 subs off of an Audioque AQ3500.1D amplifier @ 1 ohm. The subs are rated at 1000 watts rms, and the amplifier puts out 4300 watts rms @ 1 ohm. Yeah these are that durable and under rated. I honestly didn't expect them to last very long at all. The truck has a 320 amp alt, 2 yellowtops, 4 runs of 0 ga, and 8ga wire to each sub so the amp is giving them hell, and they just slam and take it. I only smell the voice coils when it hits the low 15-25hz notes for long periods of time. With clean clip free power, these subs will play forever on around 1k watts. I had them on a Hifonics BRZ2400.1D and it could really only make one loud at a time. They have a sweet spot for longevity and sound at somewhere around 1500 watts rms.

By James on April 23, 2012

34 found this helpful


impressd

The following review is for SX18D4, which is a part of the bundle you are viewing.

I bought this amazing shipping time, good quality!!!!!!

By casper on October 6, 2011

34 found this helpful


Very good value

The following review is for SX18D4, which is a part of the bundle you are viewing.

The RE SX18D4 are awesome subs for entry level as well as the serious competitor.

By shudo64 on October 19, 2012

33 found this helpful


Awesome Sub!

The following review is for SX18D4, which is a part of the bundle you are viewing.

This sub is impressive! It may be rated 1000 watts thermal power handling but if it were rated 2000 watts RMS, it would be conservative. The XMAX on this sub is true and not just total linear movement. I am using it for car audio competition and it doesn't disappoint,150+ db by itself in stock and street beat. Plus, that is without beginning to tune and modify to gain ever little db possible. This thing has an incredible voice coil when you look at it through the spider. This thing is built to last, pound and made in USA! This is one of the most incredible subs I have ever seen in its class. If you buy this thing, you made the right decision, you won't be disappointed.

By Jordan on October 13, 2014

30 found this helpful


all i can say is Baaaaaaassssssss!!!

The following review is for SX18D4, which is a part of the bundle you are viewing.

I have 2 of these monster in my suv and damn,,,,,real top of the line hard hitters i love them,matter of fact im thinkin bout ordering 2 more

By Dubank on February 13, 2013

30 found this helpful


Great product

The following review is for SX18D4, which is a part of the bundle you are viewing.

I have 2 of these running off of a Hifonics Zeus ZRX 3000 and its crazy. Break them in properly and they will be your friend forever. I have them ported through my rear dash and if I try to look into the port it has me breathing like Hannibal Lecter in "Silence of the Lambs" when he said "I ate his liver with some Fava beans and a nice Chianti"

By Mike Frost on June 12, 2012

30 found this helpful


GOOD 18? 4 the price$$$

The following review is for SX18D4, which is a part of the bundle you are viewing.

DEEP-LOUD-CLEAN-CHEAP= BUY IT NOW-MAKE ROOM WHAT YOU WAITING FOR HA! HA!

By DIExNxRAGE on May 31, 2011

30 found this helpful


2 18's re audio sx

The following review is for SX18D4, which is a part of the bundle you are viewing.

these speakers pound so hard, each 18 is ran by 1000/1 jl amp..

By jack on April 2, 2012

30 found this helpful


A Monster

The following review is for SX18D4, which is a part of the bundle you are viewing.

I got this thing shipped across the country in 6 days. It's way bigger in person. The spider is stiff as a board. Be sure to ease into flexing the thing at full tilt. I had it running free air on 2000 watts at 4 ohms. I couldn't push the cone up or down but apparently when 2000 watts of power is pushing it, it has an inch of excursion. It shook my truck more than my two orion 10's AND ITS NOT EVEN IN THE BOX YET.
I put it in a 10ft. cubed box sealed. When the low note hit on White Girl, all i could do is laugh and gasp for air. I went inside my restaurant because thats the only place i could test this thing without the cops being called. I could feel the bass on the counters! And the doors were shaking. I was around 15 feet away from the door at the time. I went home and on my way there i stopped at a red light. Obviously i turned it up to the Maxx and the trucks tailgate in front of me was rattling. I AM TRULY PLEASED WITH THE RUCKUS I CAN CAUSE WITH THIS THING.

By Cody on January 31, 2012

30 found this helpful




6832cf small

Infinity 6832cf

6" x 8" Reference Series 2-way Car Speakers (also mounts in most 5" x 7" locations)

(20)

$69.95

List price $149.95

FORDAH small

Peripheral FORDAH

Radio Replacement Interface for Select Ford, Lincoln and Mercury Vehicles with Factory Systems

$89.99

List price $129.95

RA10 small

DLS Reference RA10

780W RMS, Class A/B Monoblock Amplifier (Reference RA 10 -- 10-32010)

$449.99

List price $749.99

CSP14 small

Coby CSP14BLK (CS-P14) Personal Mini Portable Speaker

Personal Mini Stereo Speaker System

$3.99

List price $13.99

HLA600 small

Absolute HLA600

2-Channel High / Low Level Converter

(4)

$6.99

List price $24.99

HA1573B small

Scosche HA1573B / HA1573 Dash Kit

Install a new Single-DIN car stereo in select 2003-2007 Accord and Accord Hybrid (Black)

(13)

$24.99

List price $26.59

SYSTEM-240MKII small

Dynaudio System 240MKII

7" 2-way Component System (System 240 mk II, System 240 MKII)

$519.99

List price $759.99

HCCA154CK small

Orion HCCA154CK Recone Kit

15" Dual 4 ohms Orion HCCA Subwoofer Replacement Cone (Re-cone) Kit for HCCA154 Sub

$239.99

List price $279.99

VR650-CSI small

JL Audio VR650-CSi

6-1/2" Evolution VR Series 2-way Component Speakers System (VR650CSi)

(5)

$159.99

List price $399.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1998 Volvo S90

1973 Jeep CJ5

2002 Dodge Intrepid

2021 Nissan Rogue Sport

1951 GMC 250

2014 BMW X6 M

2020 Nissan Rogue Sport

2004 Buick Park Avenue

1983 Subaru GL

2009 Volkswagen Beetle

Vehicle
Store
Delete

2003 Harley Davidson FLHTC/I Electra Glide Classic

1950 Harley Davidson EL

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
