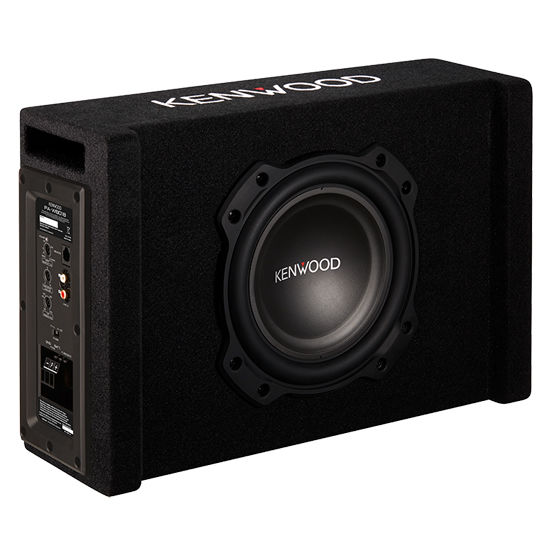

Kenwood PA-W801B

8" Powered Subwoofer in Vented Enclosure

Kenwood
Shop all Kenwood
highlight-star-icon

• 400W Max Power Class-D Amplifier
• Down Firing Ported Enclosure
• Detachable Power Connector
• Optimized Magnetic Circuit
• Reinforcing Ridges
• Air Cooling System
• Side panel

Learn more about the paw801b

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Description


Kenwood brand icon

Authorized dealer

400W Max Power Class-D Amplifier

The High efficiency Class-D amplifier provides strong deep bass.

Down Firing Ported Enclosure

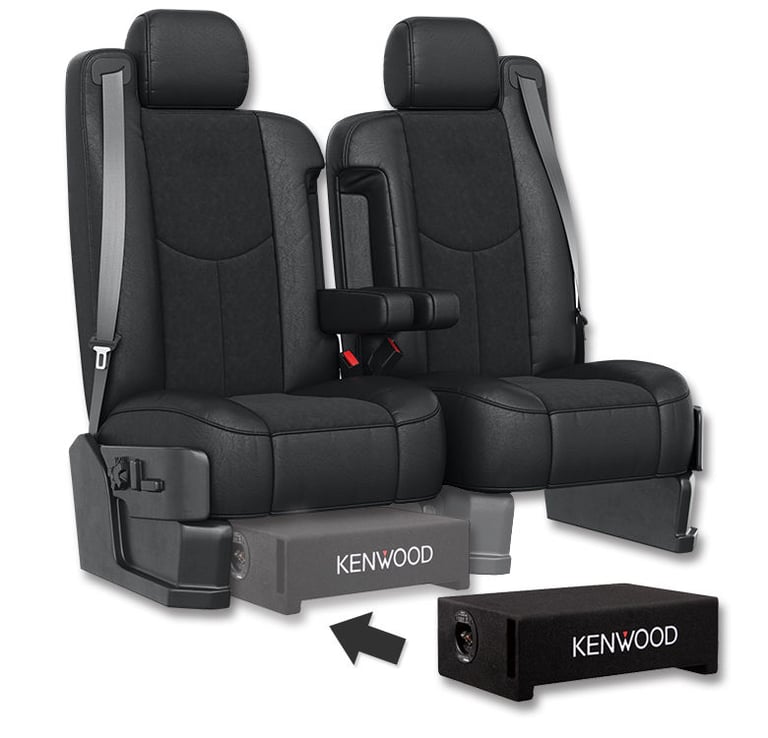

With the compact design and a height of 5-7/8", the Kenwood PA-W801B can be easily installed under your seat. Enjoy DEEP BASS regardless of the car type, by effectively using the space inside the car.

Product Details

  • 8" Powered Subwoofer in Vented Enclosure
  • Power Output:
    • RMS: 200 Watts
    • Peak: 400 Watts
  • Impedance: 0.4Ω

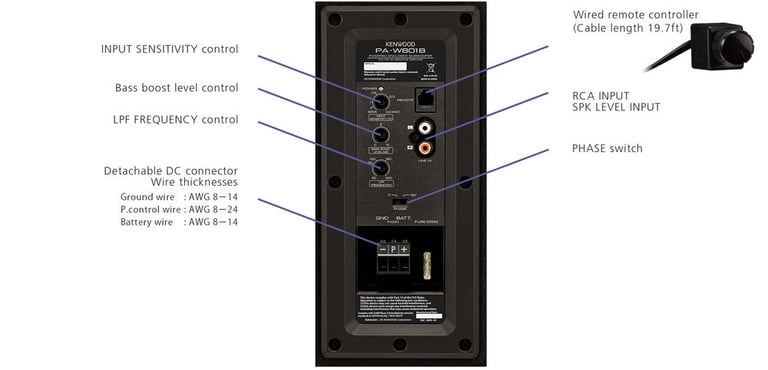

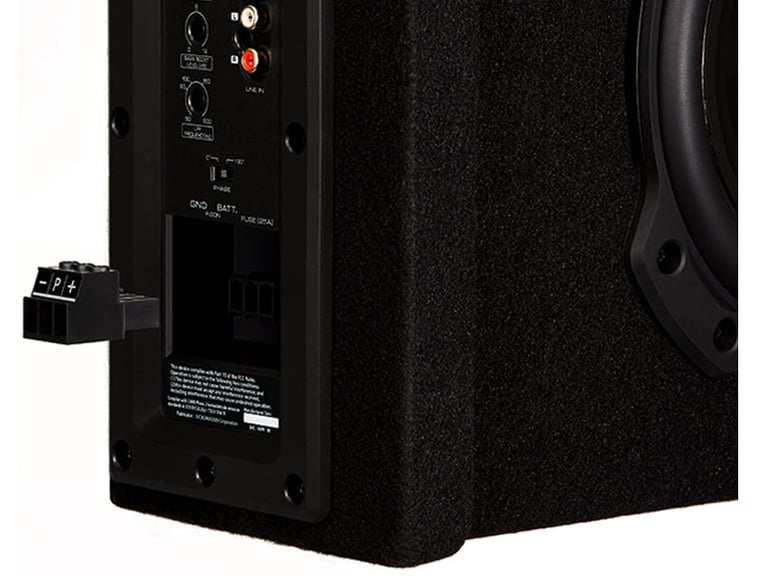

  • Detachable Power Connector: A detachable power connector provides for easy box removal when extra space is needed.

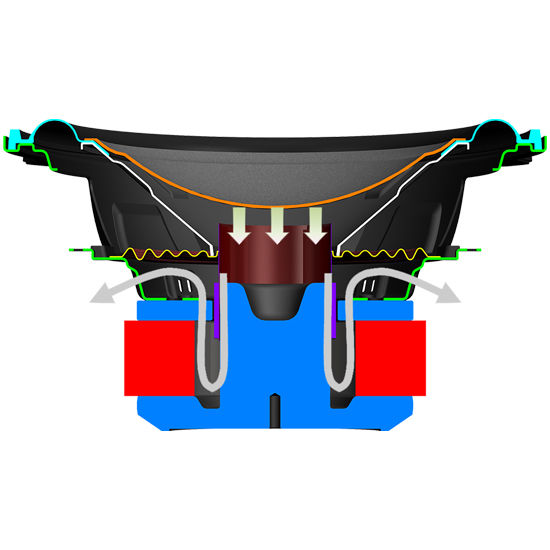

  • Optimized Magnetic Circuit: By optimizing the magnetic circuit, even small boxes like this can produce DEEP BASS.
  • Reinforcing Ridges: Reinforcing ridges are added to the cone for reduced distortion, resulting in better sound.
  • Dual Area Cap: Two curved surfaces help to retain its shape, reproducing tight, solid BASS.
  • Air Cooling System: Airflow cooling system allows air to flow from the cap, cooling the voice coil.
  • High Durability Stress Controlled Spider
  • Sensitivity (dB @ 1m): 80dB
  • Frequency Response: 32-250Hz
  • Dimension (W x H x D): 17-11/16" x 11-13/16" x 5-7/8"
  • Weight: 18.52 lbs.
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Best selling similar products

CP210-W0v3 small

JL Audio BassWedge CP210-W0v3

•Dual 10" 10W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(9)

$349.99

List price $349.99

DL7R122 small

Kicker DL7R122 (45DL7R122)

• Ported enclosure with 2 12" Solo-Baric L7R Series Subwoofer
• 1200 watts RMS (2400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 15-7/8" H x 15-1/4" W x 20-3/8" W2

(8)

$519.96

List price $699.99

CP112-W0v3 small

JL Audio BassWedge CP112-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$279.99

List price $279.99

47QL7R122 small

Kicker 47QL7R122

• Ported enclosure with 4 12" Solo-Baric L7R Series Subwoofer
• 2400 watts RMS (4800 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 28" L x 20-1/4" H x 35-7/8" W

(2)

$1199.96

List price $1599.99

F250X00C20A-TN small

MTX Audio Thunderform F250X00C20A-TN

• 10" Amplified Loaded Subwoofer System
• 200 watts RMS
• Built-In Class Amplifier
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Compatible with select 2000-2014 F-250 Super Duty

$929.95

List price $747.95

DL7S122 small

Kicker DL7S122 (44DL7S122)

• Ported enclosure with 2 12" Solo-Baric L7S Series Subwoofer
• 1500 watts RMS (3000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 16" H x 16-1/4" W x 19-1/2" W2

(14)

$849.99

List price $949.99

BE-TOY-PRIG3 small

NVX Loaded BOOST Box - 2010-2015 Toyota Prius - BE-TOY-PRIG3

• Custom-Fit Sealed BOOST enclosure with 1 10" S Series Subwoofer
• Fits select 2010-2015 Prius
• 350 watts RMS (700 watts Peak)
• Final Impedance: 2-ohm

(5)

$349.99

List price $437.99

DCWR122 small

Kicker DCWR122 (48DCWR122)

• Ported enclosure with 2 12" CompR Series Subwoofer
• 1000 watts RMS (2000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 32-3/8" L x 16" H x 14" W x 17-1/4" W2

(2)

$439.96

List price $599.99

CP110-W0v3 small

JL Audio BassWedge CP110-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$229.99

List price $229.99

P1-2X12 small

Rockford Fosgate Punch P1-2X12

• Two 12" Punch Series Stage 1 Subwoofers
• Kevlar Reinforced Paper Cone
• Tear and Fatigue Resistant
• Proprietary Spider Venting/Cooling Technique
• Solid 5/8" MDF Construction

(17)

$439.99

List price $489.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
8"
RMS Power Handling
200 watts
Peak Power Handling
400 watts
Sensitivity
80 dB
Frequency Response
32 - 250 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Number of Subwoofers
1
Box Style/Shape
Truck Style, Slim with Angled Front
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

PA-W801B

Weight:

18.52lbs

Internal SKU:

paw801b

Internal Product ID:

157029
