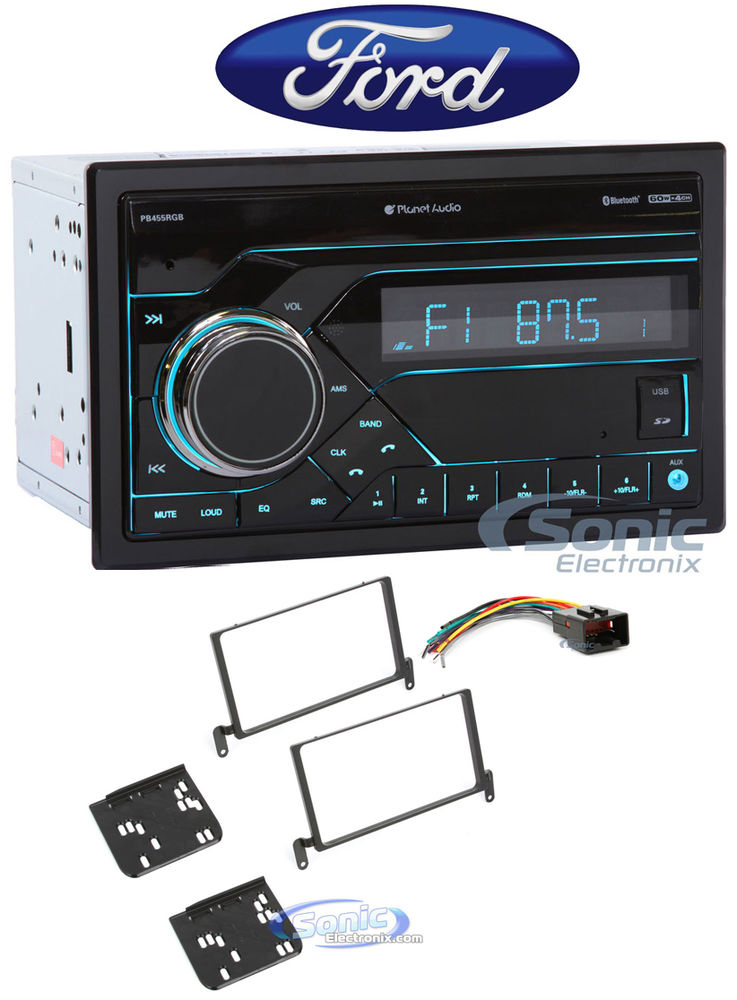

Digital Media Bluetooth Receiver w/USB/AUX+Remote Stereo For 1999-03 Ford F-150

Product Details:

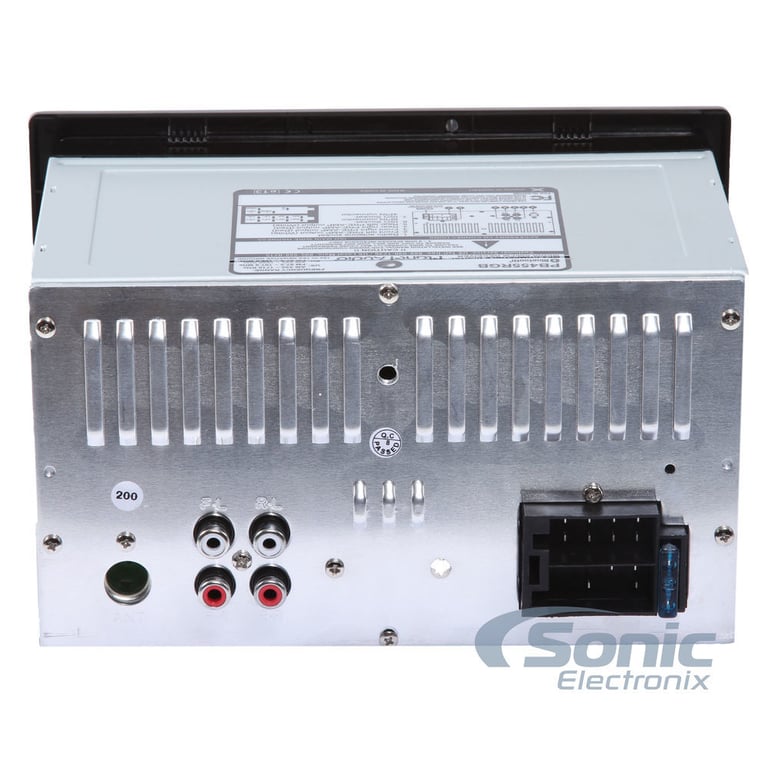

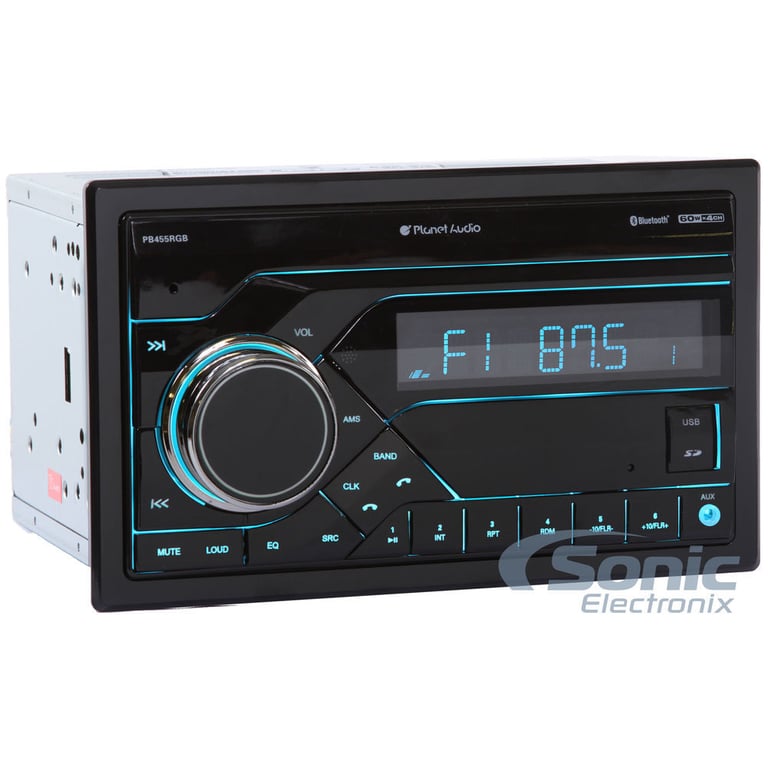

• Planet Audio PB455RGB In-Dash Receiver

Power Handling:

• Peak: 60 watts x 4 channels
• RMS: 17 watts x 4 channels
• CD text information display
• MP3 ID3 Tag Display (Title/Artist/Album)
• AM/FM tuner with 18FM/12AM presets

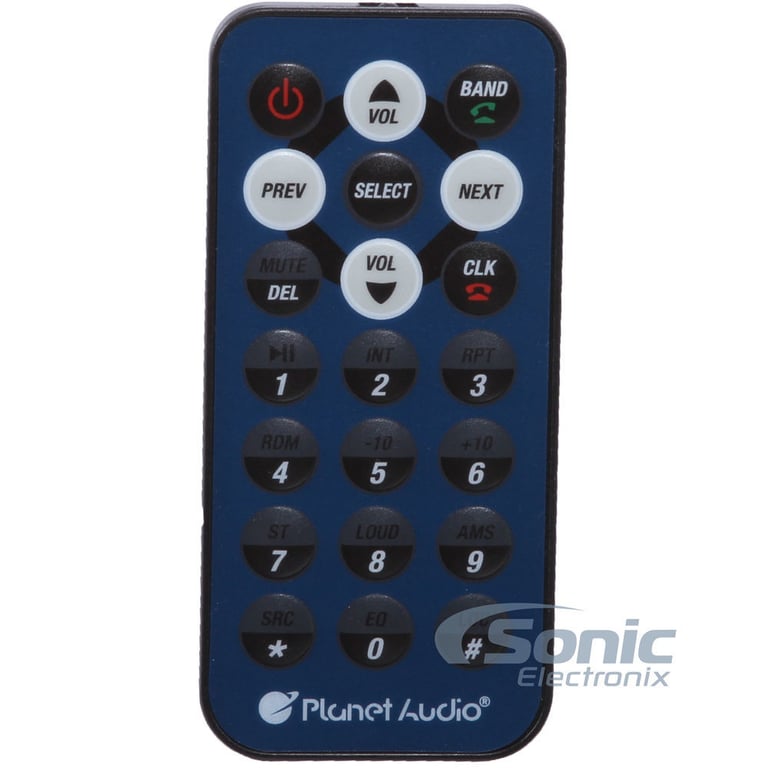

• Remote control included
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Playback and Audio Features:

• MP3/WMA Playback via USB
• Compatible with Apple iPhone 6/6+ and iOS 8 software
• Equalizer with selectable presets
• 3.5mm Front Audio Auxiliary Input
• Front USB Input
• SD Card reader for audio playback
• 2 Sets of preamp outputs (front, rear and subwoofer)

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Bluetooth Profiles Supported:
• HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
• A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
• Works with most Bluetooth enabled cell phones
• Includes a built-in microphone for clear, convenient, distortion-free talking
• Maximum communication rage: 32.8 feet (approx, line of sight)

Product Features:

• Allows for installation of an aftermarket Double-Din car stereo
• Compatible with select 1997-2004 vehicles from Ford, Lincoln
• Made from the highest quality ABS plastic for an original factory-like fit and finish

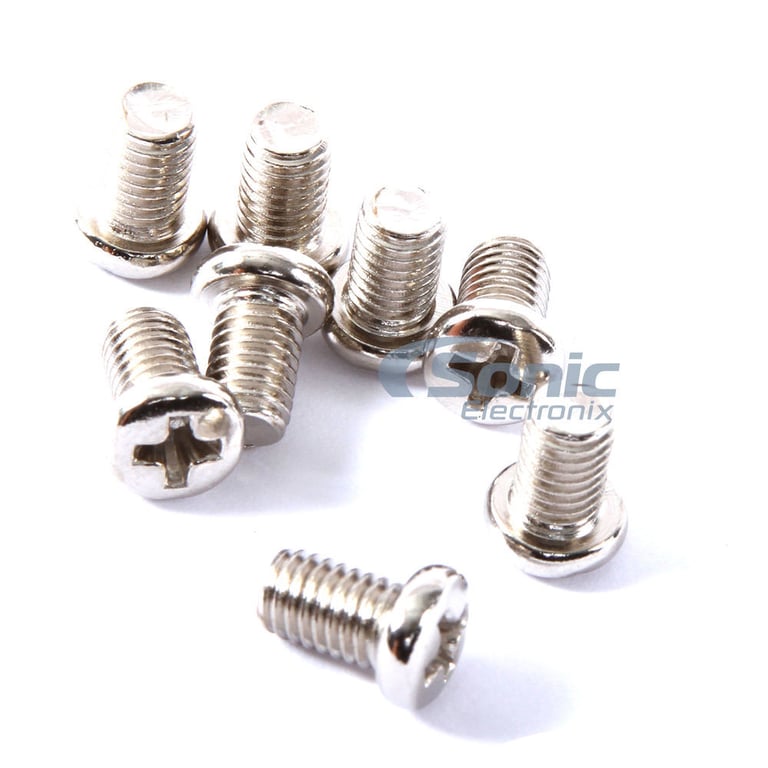

• Includes brackets and hardware parts needed with detailed installation instructions
• *Sub-dash modifications required*
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

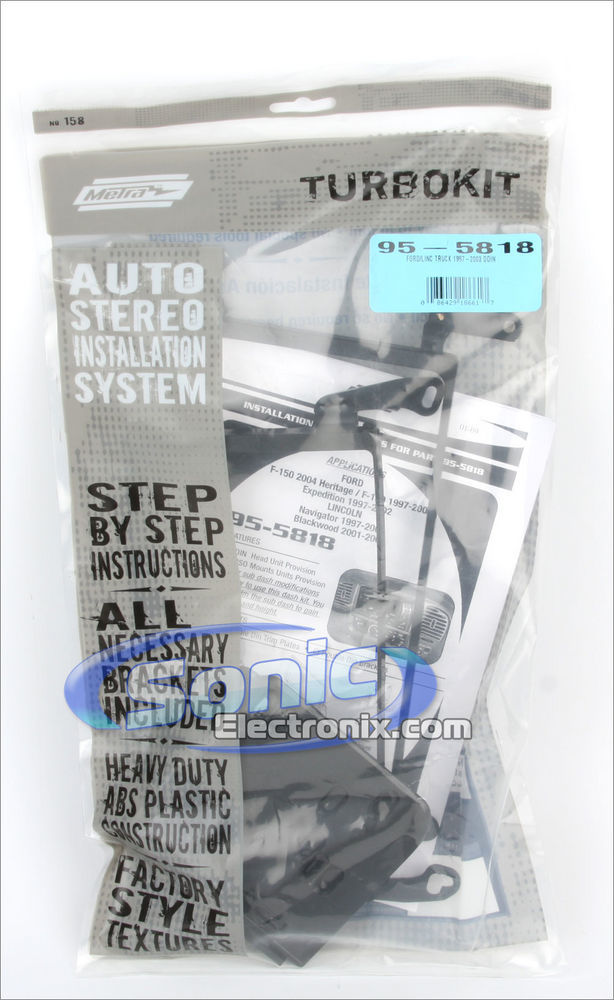

Kit Includes:

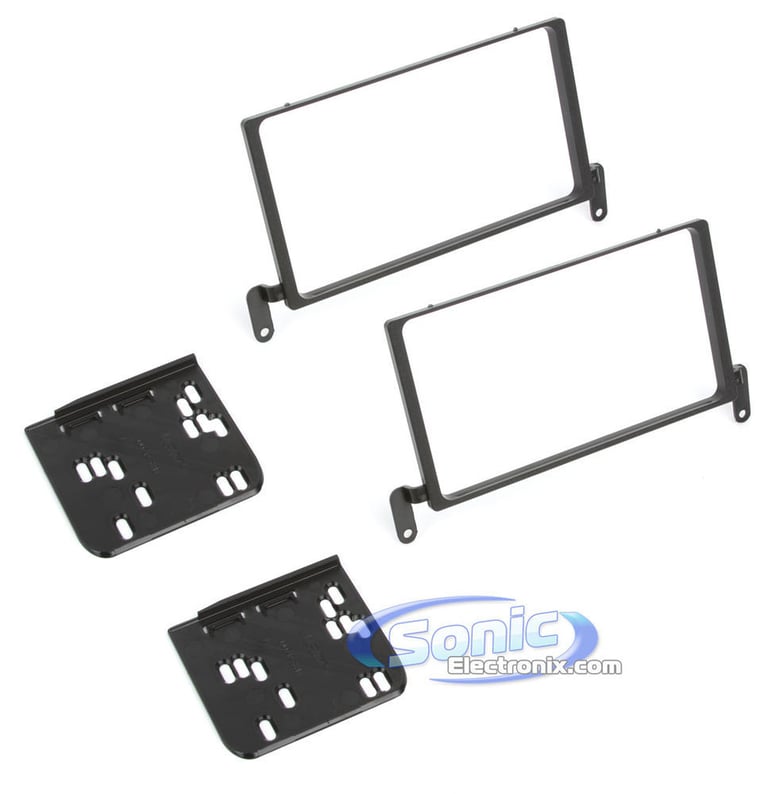

1. (2) ISO DDIN Trim Plates
2. ISO DDIN Radio Brackets

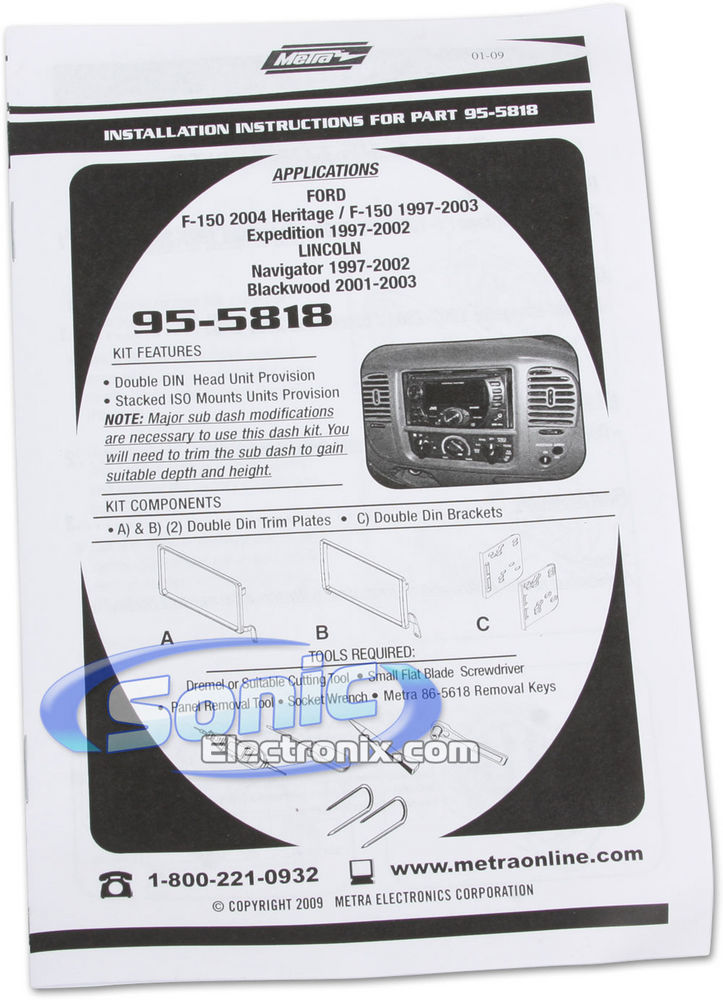

3. Step by step instructions

Product Features:

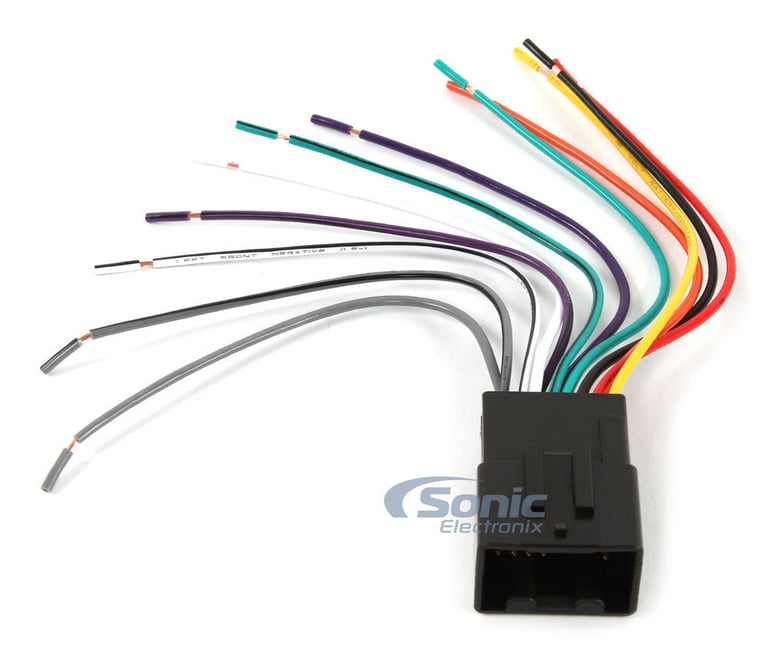

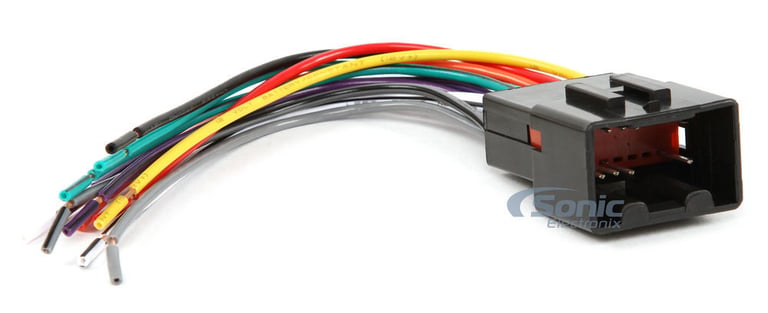

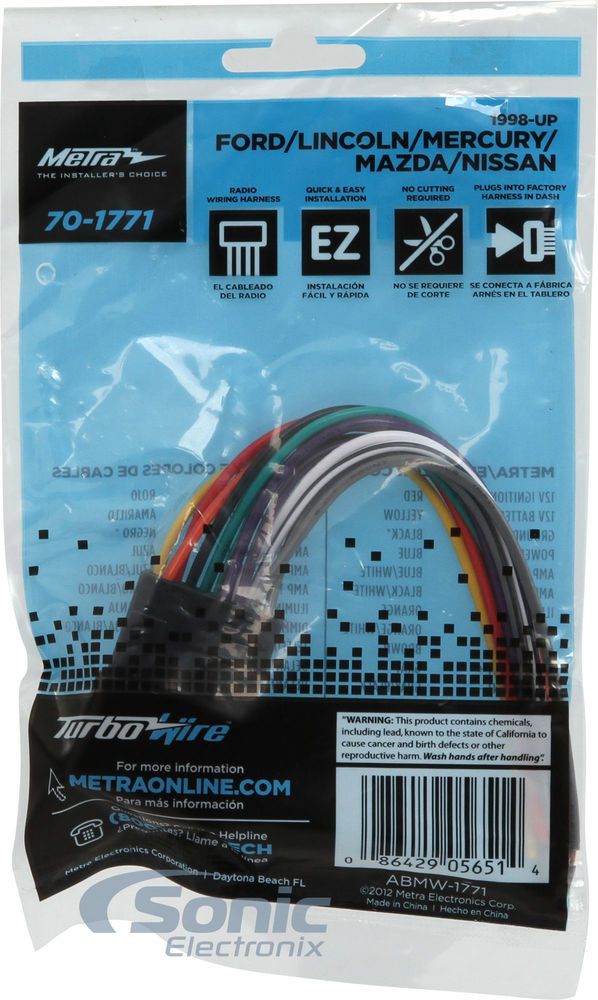

• Wire harness to install a new car stereo
• Compatible with select 1998-2011 vehicles from Ford, Mazda, Mercury
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Basic Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Blue - Power
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
