Digital Media Bluetooth Receiver w/USB/AUX+Remote For 2012-2015 SCION IQ

Product Details:

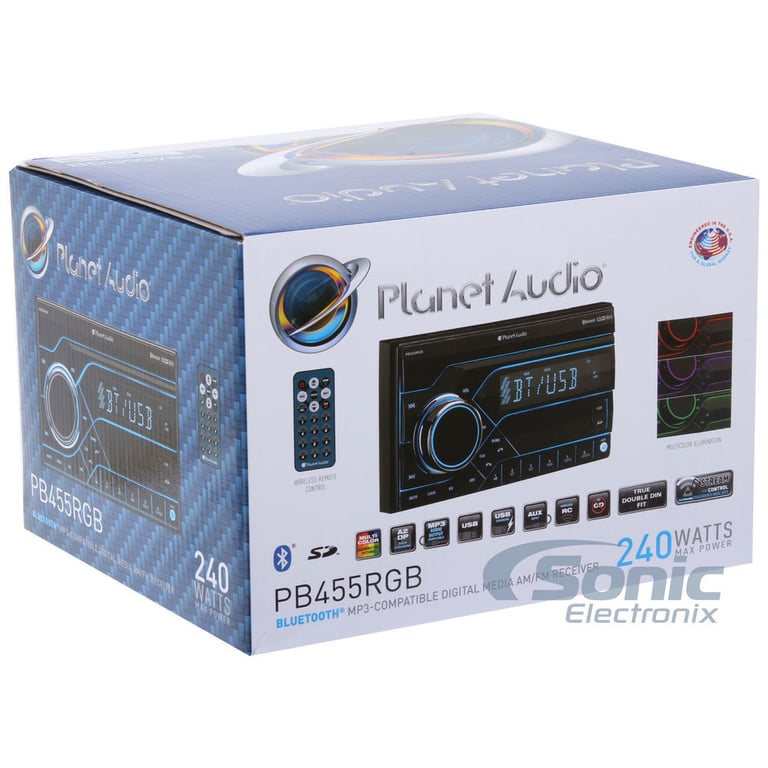

• Planet Audio PB455RGB In-Dash Receiver

Power Handling:

• Peak: 60 watts x 4 channels
• RMS: 17 watts x 4 channels
• CD text information display
• MP3 ID3 Tag Display (Title/Artist/Album)
• AM/FM tuner with 18FM/12AM presets
• Remote control included
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Playback and Audio Features:

• MP3/WMA Playback via USB
• Compatible with Apple iPhone 6/6+ and iOS 8 software
• Equalizer with selectable presets
• 3.5mm Front Audio Auxiliary Input
• Front USB Input
• SD Card reader for audio playback
• 2 Sets of preamp outputs (front, rear and subwoofer)

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Bluetooth Profiles Supported:
• HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
• A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
• Works with most Bluetooth enabled cell phones
• Includes a built-in microphone for clear, convenient, distortion-free talking
• Maximum communication rage: 32.8 feet (approx, line of sight)

Product Details:

• Installation Dash Kit for 4" Aftermarket Double DIN Headunits
• Compatible with select 2000-2020 vehicles from Toyota, Subaru, Scion Vehicles
• Accommodates ISO Double DIN mount
• Designed and manufactured with precision tolerances
• Gapless fit between the dash and the kit
• Painted to match factory dash color
• Factory matched texture style
• High-grade ABS plastic construction
• Color: Black
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit Includes:

1. Two brackets
2. Installation instructions

Product Features:

• Compatible with select 1984-2022 vehicles from Toyota, Subaru, Scion
• Includes one 8" power/front speaker harness and 7.5" rear speaker harness
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• 1-year Manufacturer's Warranty

Power Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Blue - Power Antenna
• Orange – Dash Light Dimmer/Illumination
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
• Green – Left Rear Speaker (+)
• Green with Black Stripe - Left Rear Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
