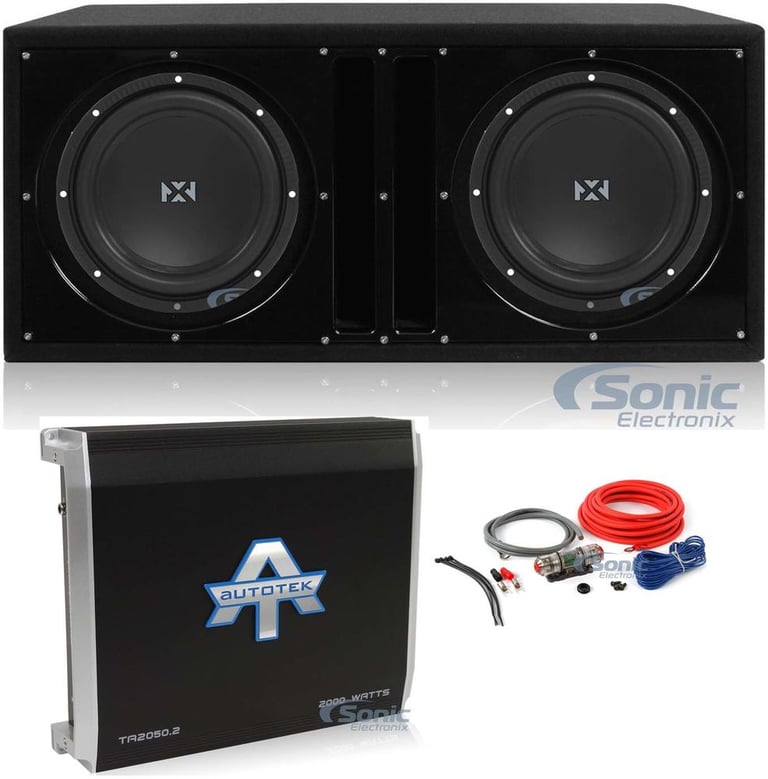

(2) NVX NSW104V2 (NSW104 v2) + Ported Sub Box + Mono Amplifier + Amp Kit (Black)

Product Details:

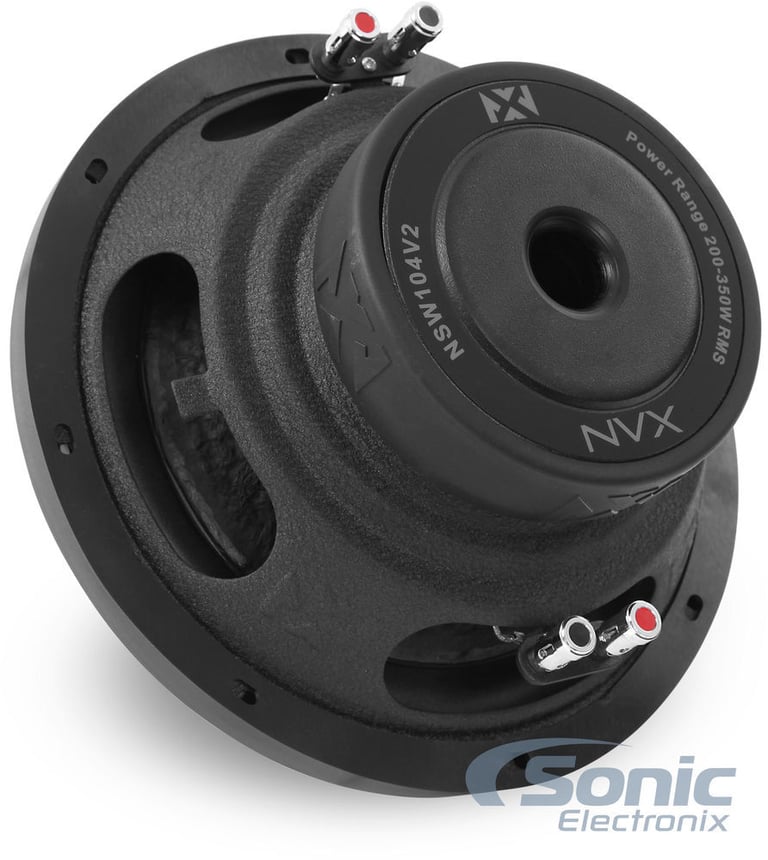

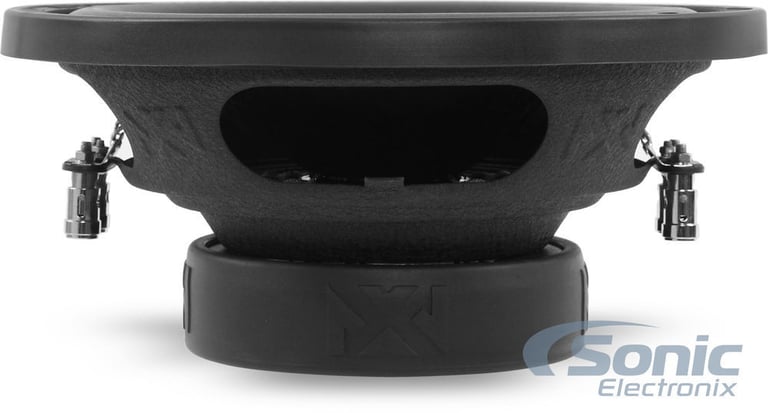

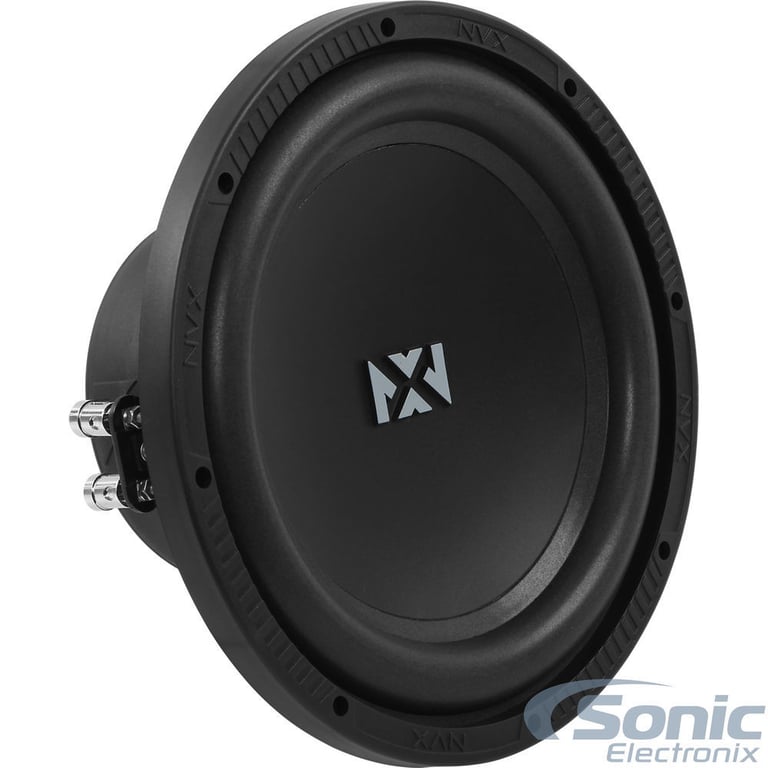

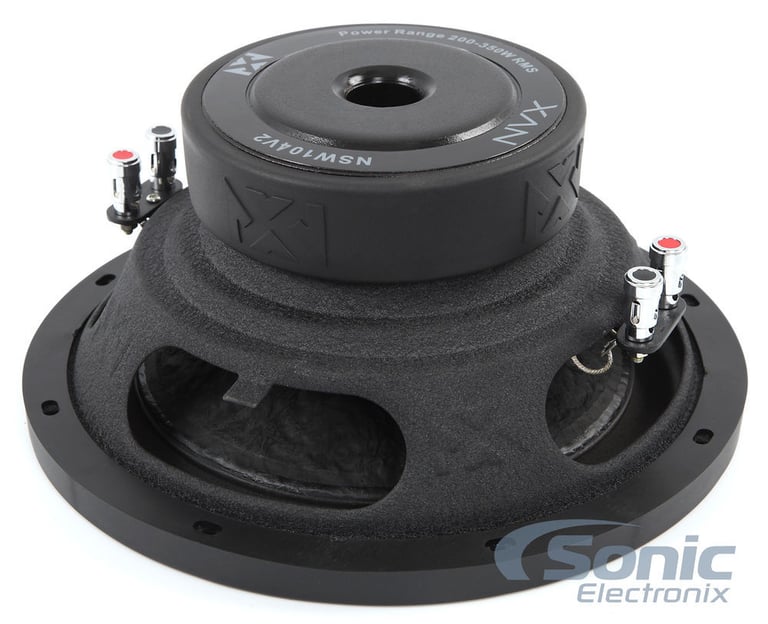

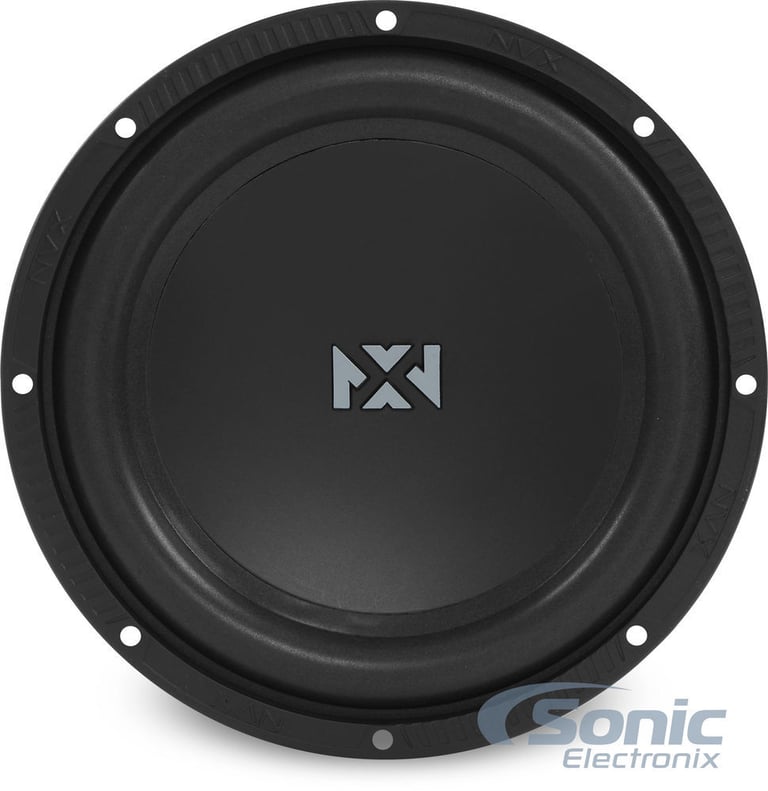

• 10" Dual 4 ohm N-Series Subwoofer
• Power Handling:
• Peak: 1000 watts
• RMS: 500 watts
• 12.5 mm Xmax
• Enhanced Pressed Paper Cone
• High-Roll Foam Surround
• Stamped Steel Vented Basket with NVX Punched Logo
• 2" High Temperature Copper Voice coil with Aluminum Former
• Progressive Roll Single-layer Spider with Integrated Tinsel Leads
• Optimized High-Velocity Pole Vent
• 112 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
• Frequency Response: 20 - 200 Hz
• Resonance Frequency (Fs): 36.91 Hz
• Sensitivity: 85 dB
• Recommended sealed box volume: 0.60 cubic feet
• Recommended ported box volume: 1.5 cubic feet
• Top-mount depth: 5.36"
• Cutout diameter: 8.97"
• CTA-2031 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually

Built for Bass

You've got an awesome subwoofer there, pal. But where's it gonna go? You can't just throw that thing in the trunk and call it a day. Don't worry, Belva's got your back. With superior construction, great features and everything you need for bass, you'll be ready to pass up that entry-level box you've been eyeballing.

You get quality boxes with solid 3/4" MDF because nothing else will do the job right. You want to flex your windshield, not your box's innards. You get polyfill built into the box, making sure your subs perform perfectly. On top of that, you get a box that's CARB Phase 2 Compliant, meaning your box won't emit as much nasty formaldehyde as the competition. Better for your bass and better for you.

	Look, nobody buys a subwoofer and says, 'Aw man, I just want a teeny bit of thump.' Naw man, you want something that kicks you in the chest, but you need a box that's gonna put up with it. That's where Belva comes in. While other brands use less-than-optimal 1/2-inch MDF, we've got 3/4-inch MDF to make sure you get all the bass you can handle. Why risk a busted box? Belva's the obvious choice when it comes to giving your sub a good home and giving you the low end you're looking for.

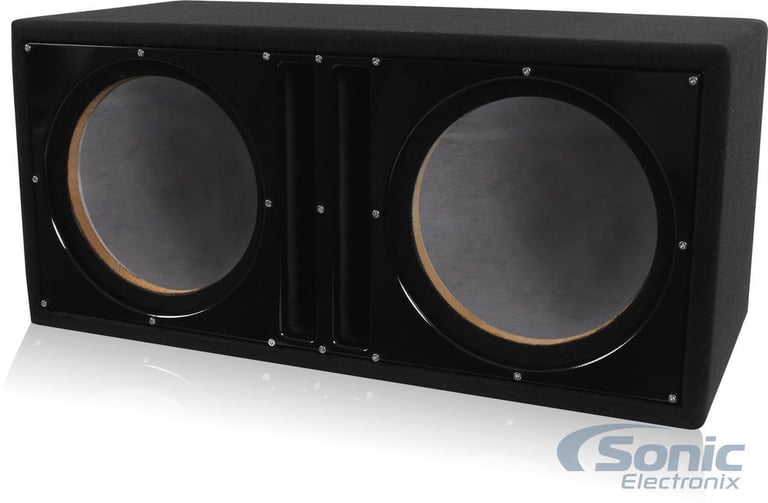

General Features:

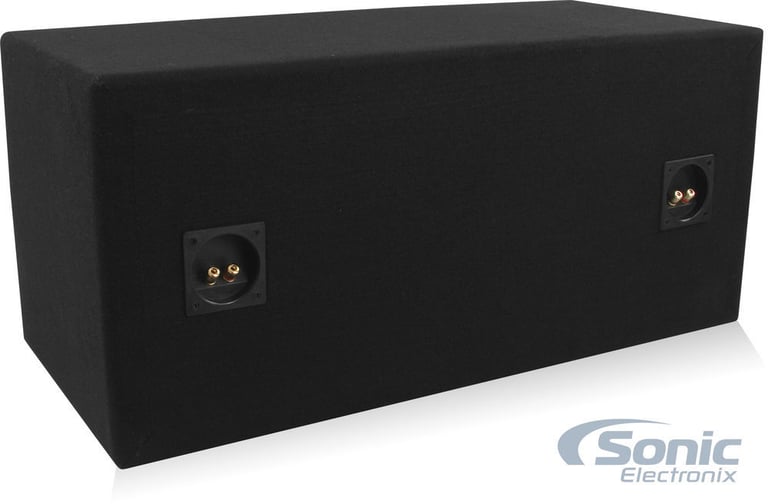

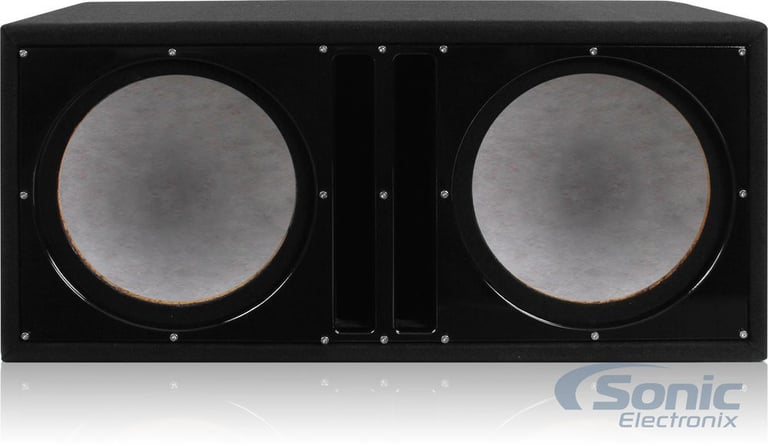

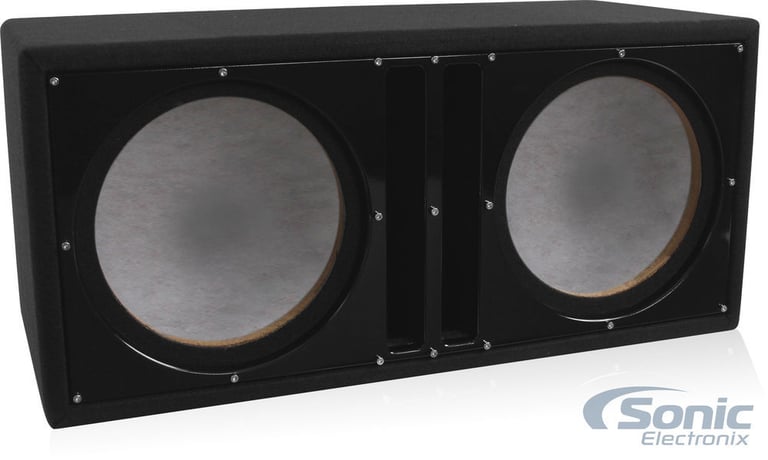

• 10" Dual Ported Subwoofer Enclosure
• Black high gloss front face board
• Covered in black carpet
• Durable 3/4" Medium Density Fiberboard (MDF) construction
• Subwoofer mounting depth: 10"
• Subwoofer cutout diameter: 9.5"
• Mounting Ring Width: .75"
• Box volume: 0.71 cubic feet (per chamber)
• Total box volume: 1.42 cubic feet
• Dimensions: 14"D x 30.5"L x 14"H
• Also available in Blue and Red
• Authorized Internet Dealer
• 30-Day Return Policy
>

Port Specifications:

• Rectangular Slot Port
• Number of ports: 2
• Estimated port tuned frequency (fb): 40 Hz
• Port dimensions: 11.675"Length 11.5"Depth

General Features:

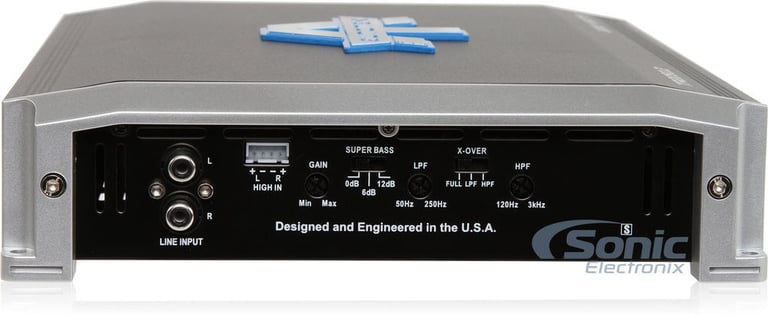

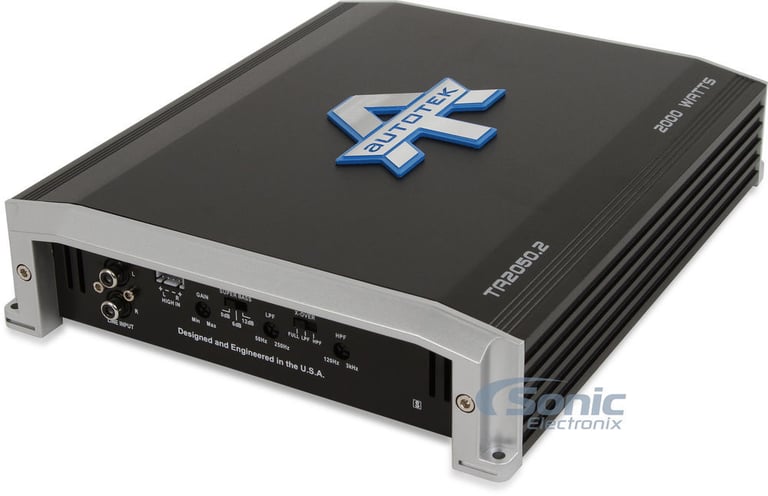

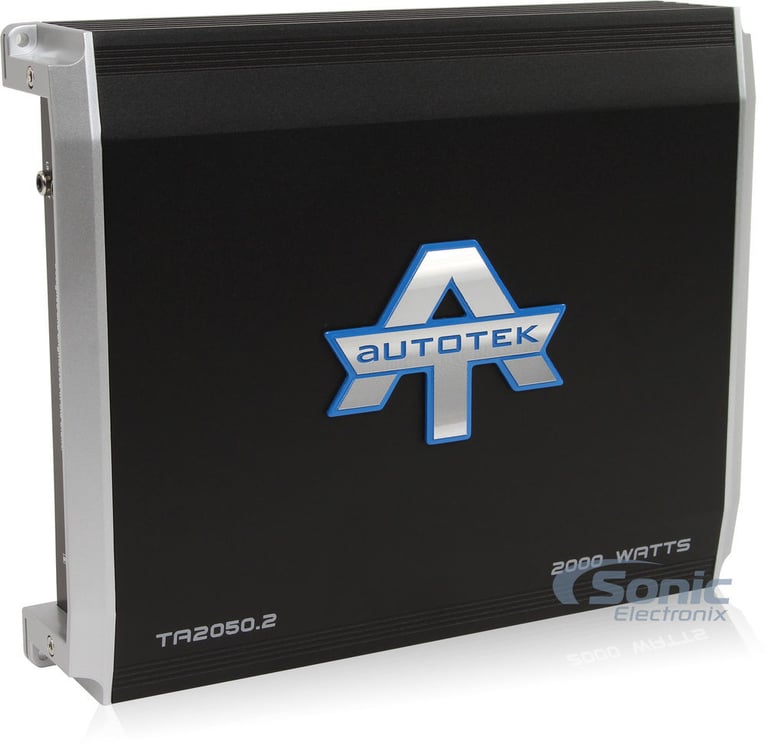

• Autotek TA Series TA2050.2
• Class-A/B 2-Ohm Stable 2-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 250 watts x 2 chan.
• 2 ohm: 500 watts x 2 chan.
• Bridged, 4 ohm: 1000 watts x 1 chan.
• Total power output: 2000 watts
• Pro- Fi High Speed MOSFET power supply
• LED power (green) and protect (red) indicators
• Soft start turn-on
• 2 or Mono channel operation
• Speaker-level (high-level) inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Variable high-pass filter: 120 - 3000 Hz, 12 dB/octave
• Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
• Fuse Rating: 40 A x 1
• 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: 11.4"W x 14.7"L x 4"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

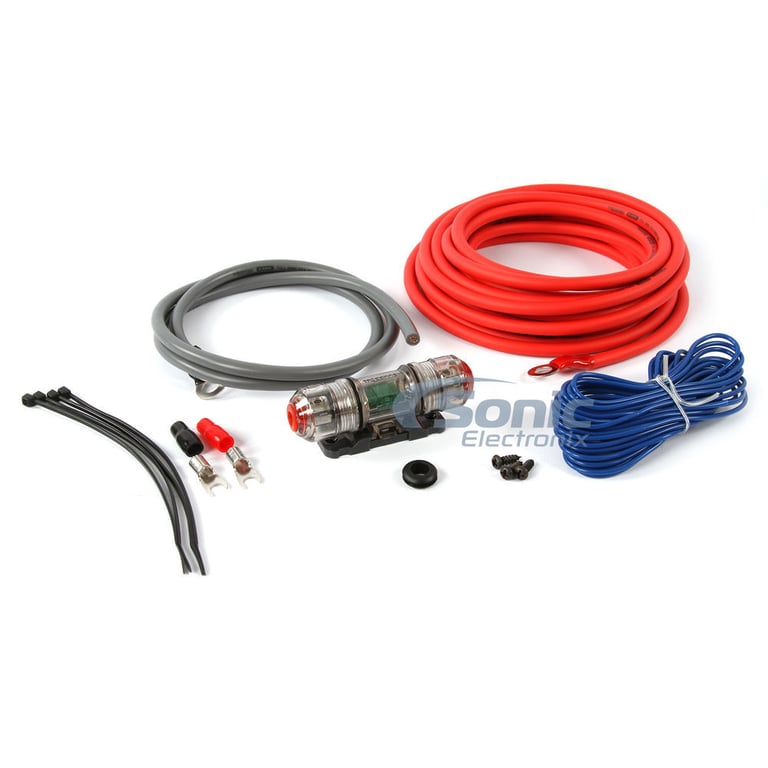

• 8 Gauge 2-Channel Complete Amplifier Installation Kit
• Designed for car audio systems up to 600 watts RMS
• Made from 100% Copper-Clad Aluminum (CCA)
• Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• RCA Interconnect Cable
• Twisted-pair construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Red 8 gauge power wire
2. 3 ft. Black 8 gauge ground wire
3. 17 ft. Gray 18 gauge remote lead wire
4. 20 ft. 16 gauge speaker wire
5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
6. One Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 8 Gauge Chrome Plated ring terminals
9. Five 16 Gauge Spade terminal
10. One 18 Gauge Red butt connectors
11. Ten 4" Black zip ties
