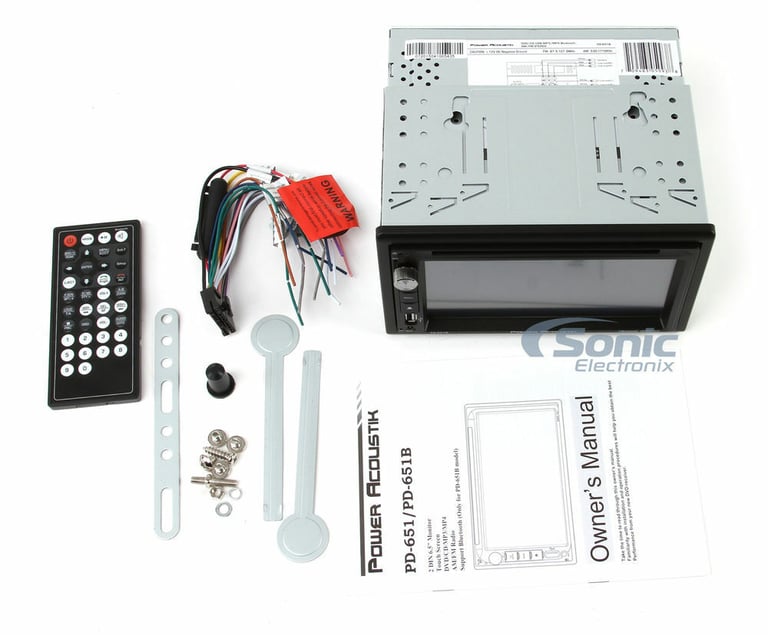

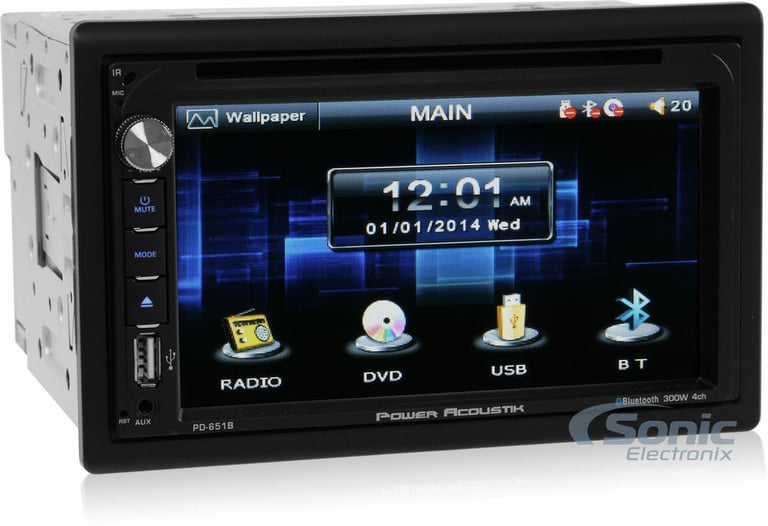

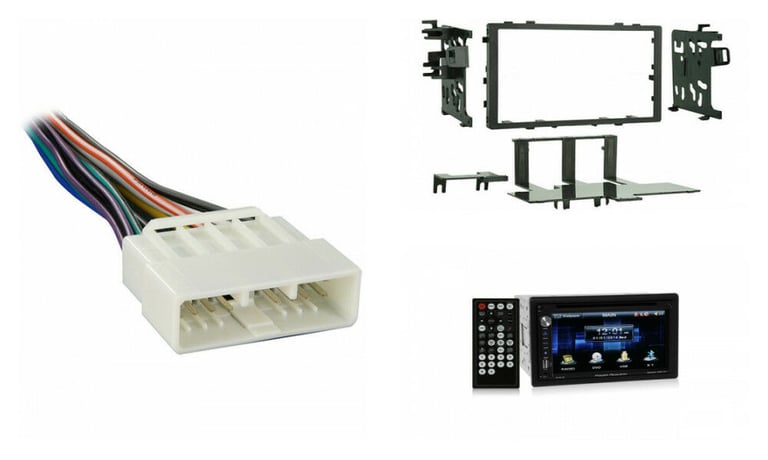

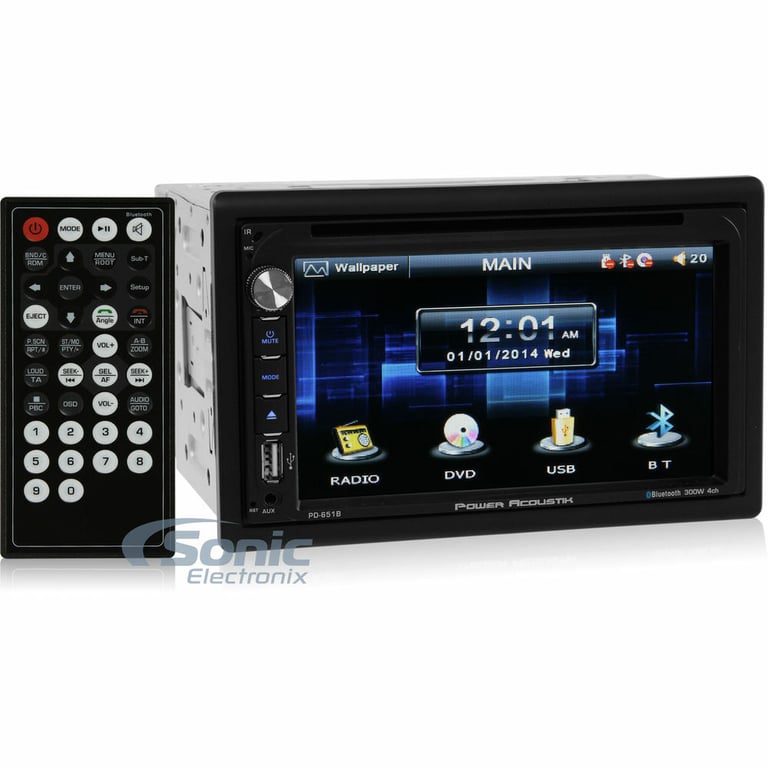

In-Dash 6.5” DVD/CD Player Receiver Monitor w/Bluetooth For 1992-94 Acura Vigor

Product Details

• Double DIN In-Dash Bluetooth DVD Receiver
• 6.5" TFT-LCD Display
• Power Output:
• Peak: 75 watts x 4 channel
• Bluetooth hands-free calling and audio streaming

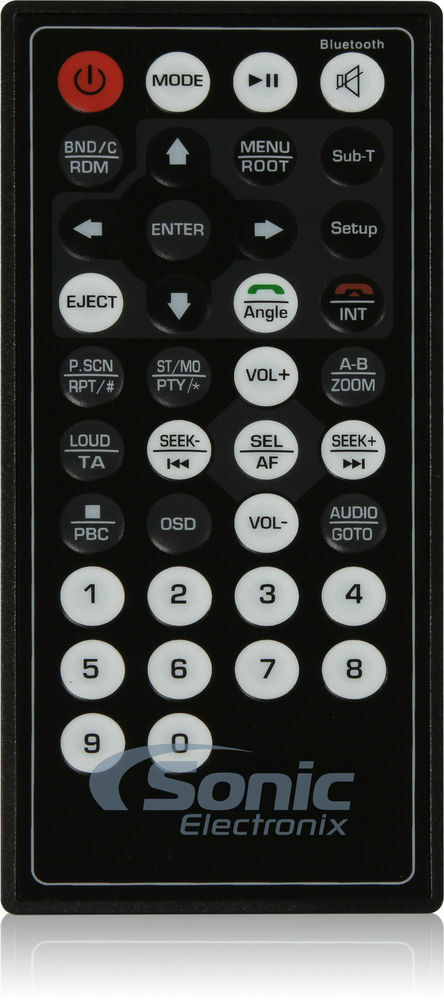

• Wireless remote control included

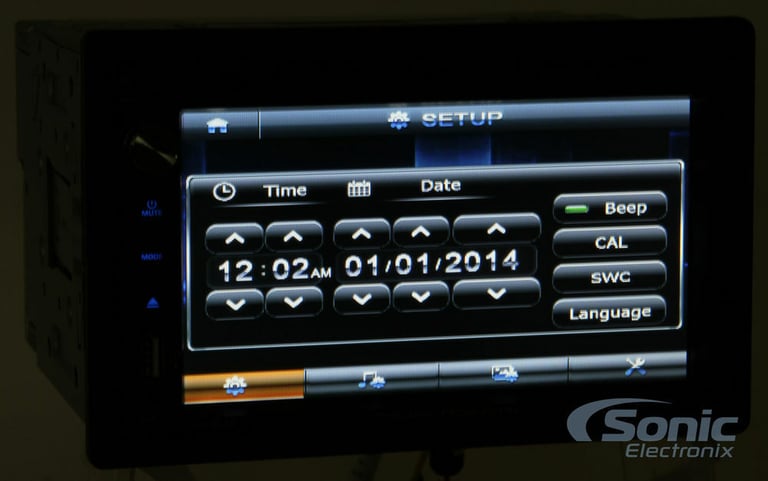

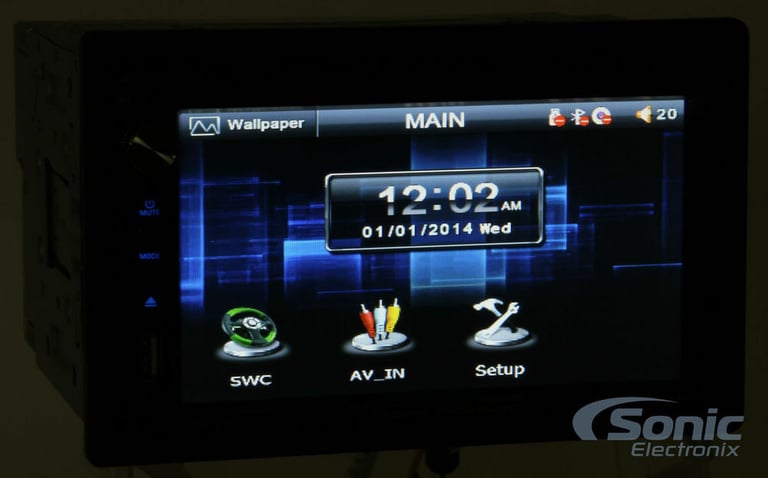

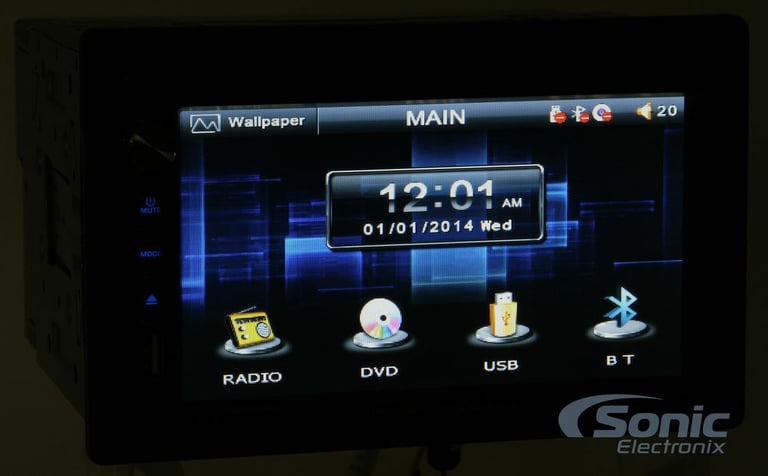

• SmartSense clear glass resistive touchscreen
• Integrated Class A/B amplifier
• 7-color RGB illumination
• Mounting sleeve included
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: PD-651B

Smartphone Features

• Display and control music, navigation, and other apps with Android
• Wired phone-mirroring for select Android devices via Android PhoneLink

Playback and Audio Features

• CD | CD-R | MP3 | WMA Audio Playback
• DVD | DVDR | XVID | DVIX | MP4 | WMV Video Playback

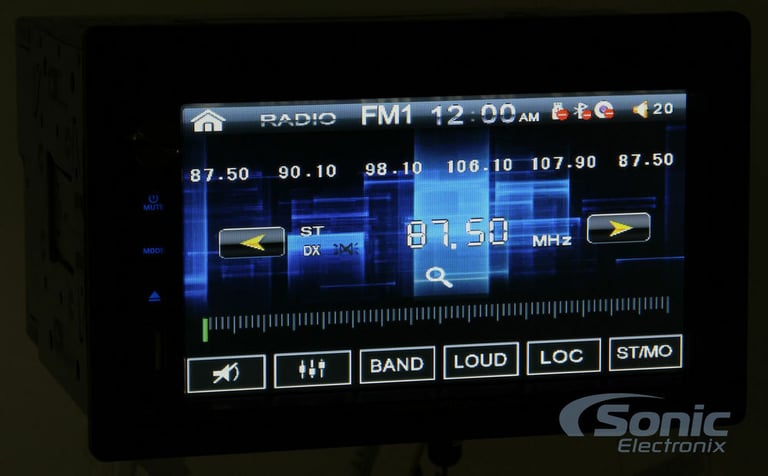

• AM/FM tuner with 18 FM / 12 AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 8-Band Equalizer

Expandability Options

• Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately

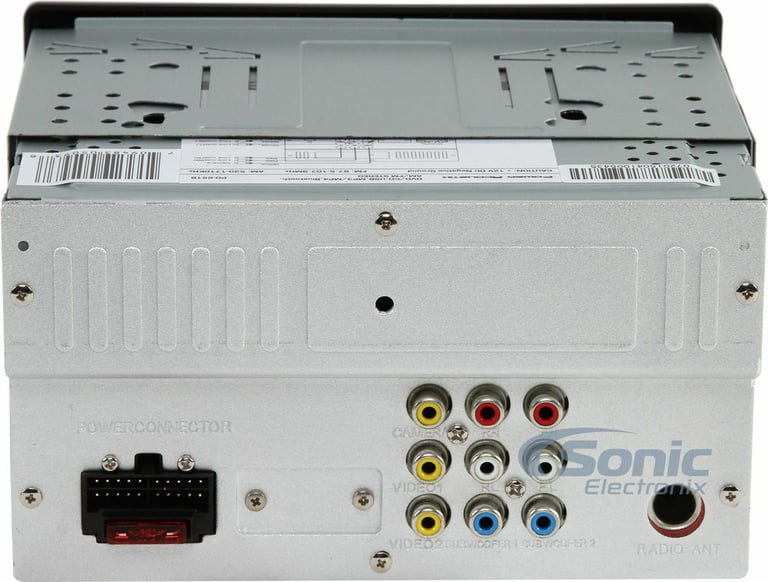

Audio/Video Inputs and Outputs

• 3 sets of 4 volts preamp outputs (front, rear, and subwoofer)
• Front Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Front USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Front-view Camera Input: Used for universal cameras with an RCA composite input
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes a built-in microphone for clear, convenient, distortion-free talking

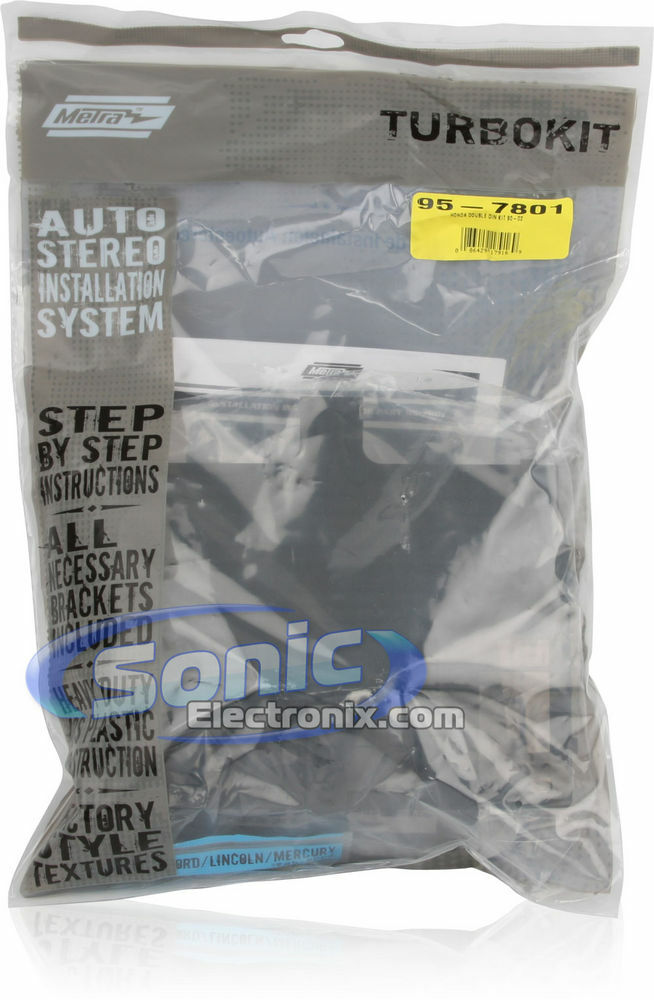

Product Features:

• Allows for installation of an aftermarket Double-Din car stereo
• Compatible with select 1988-2006 vehicles from Honda, Acura, Isuzu
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes brackets and hardware parts needed with detailed installation instructions
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

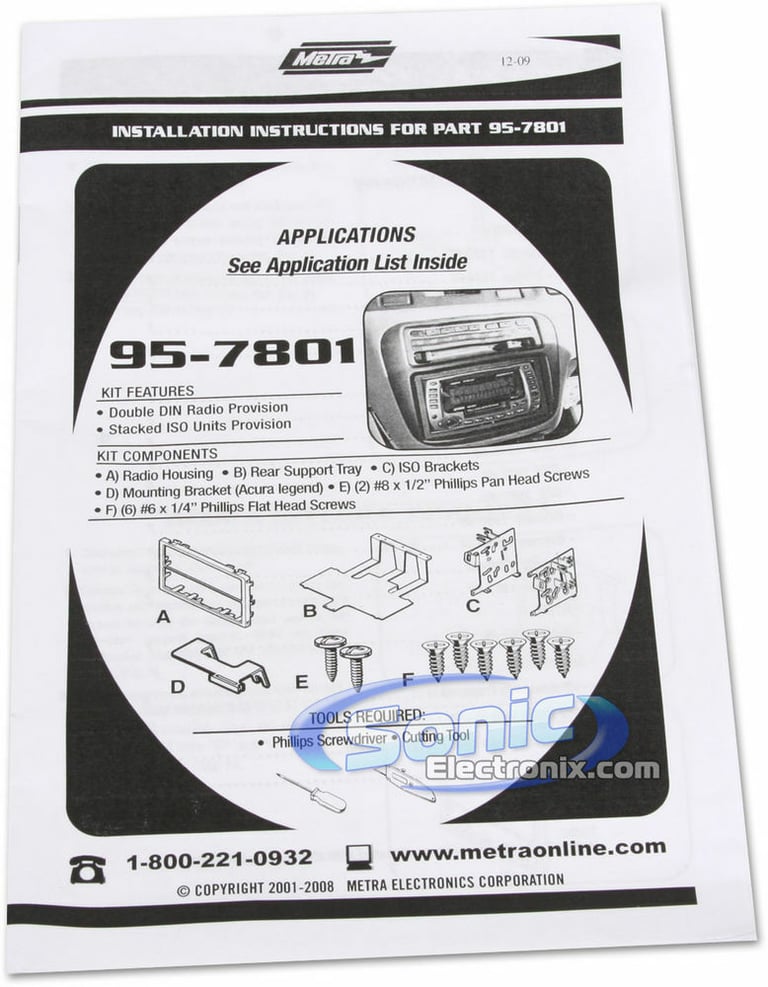

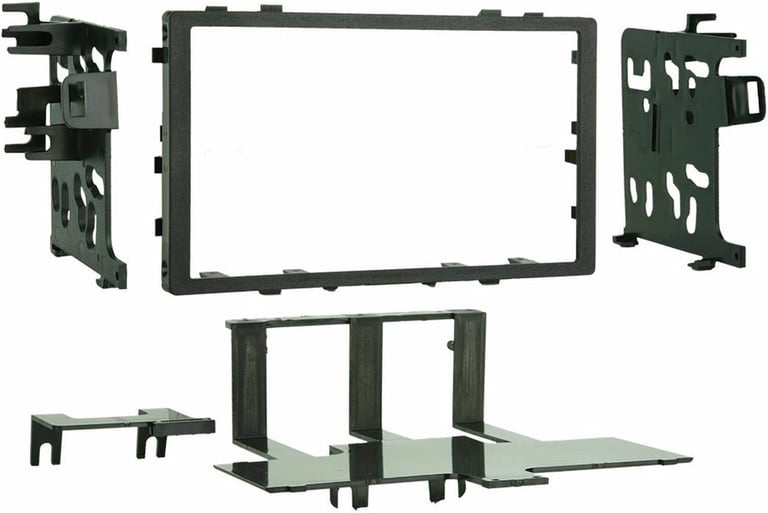

Kit Includes:

1. Radio housing
2. Rear support tray
3. ISO brackets
4. Mounting bracket (Acura Legend)
5. (2) #8 x 1/2” Phillips screws
6. (6) #6 x 1/4” Phillips screws
7. Step by step instructions

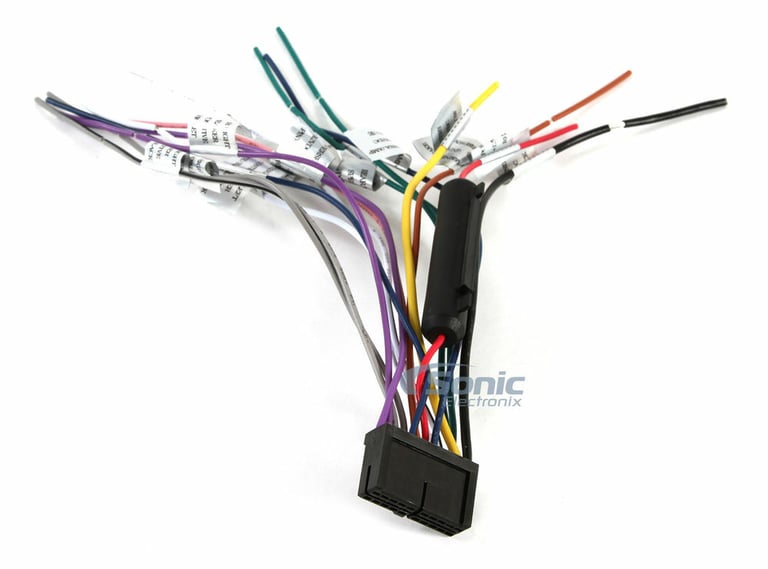

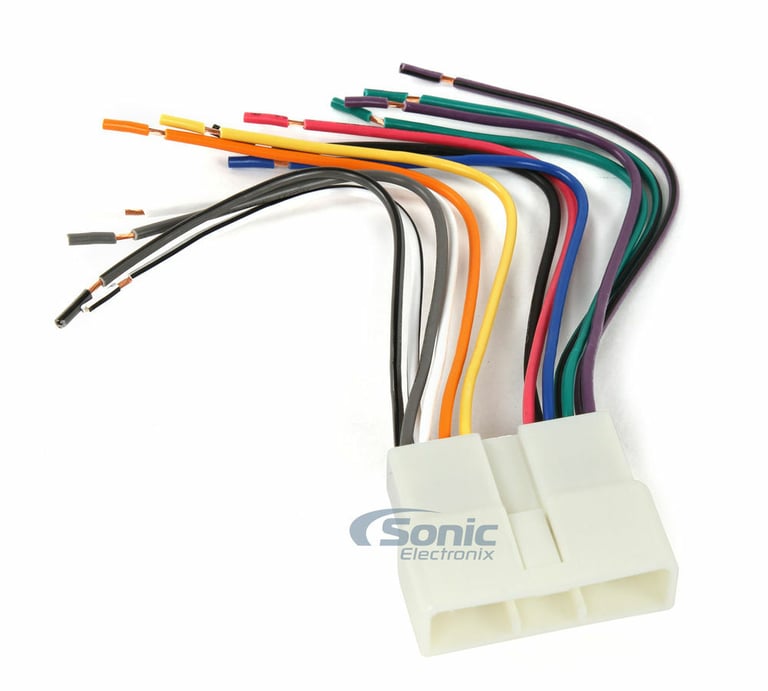

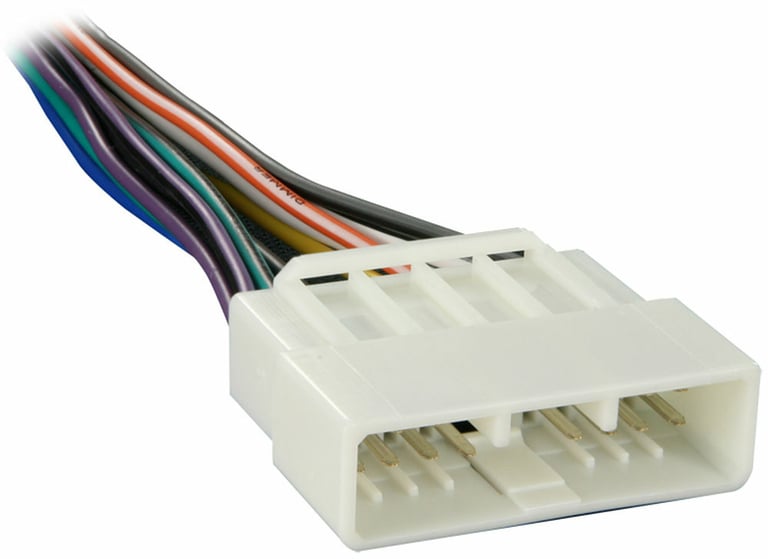

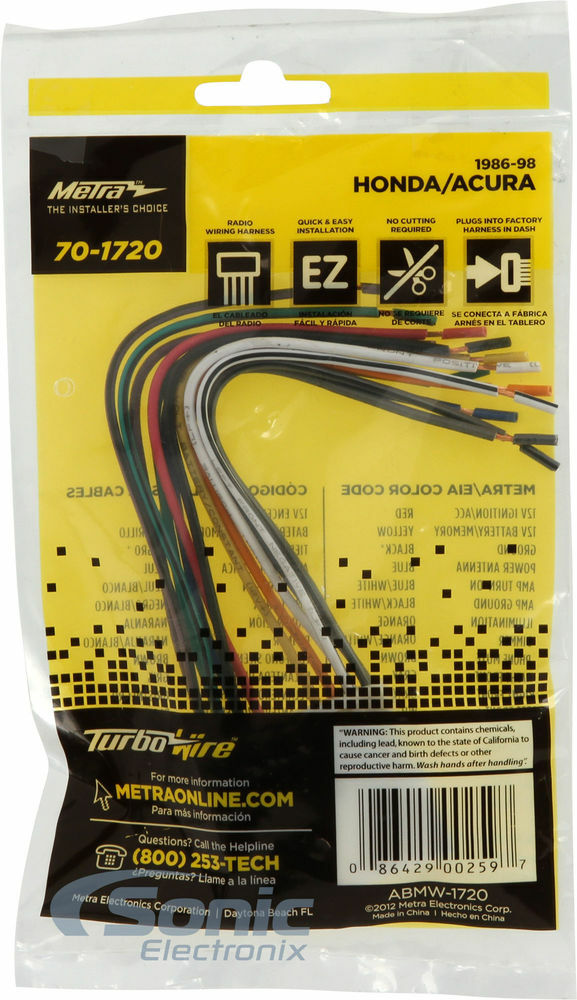

Product Features:

• Wire harness to Install a new car stereo in Compatible with select 1986-2005 vehicles from Honda, Acura, Isuzu
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• 1-year Manufacturer's Warranty

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
