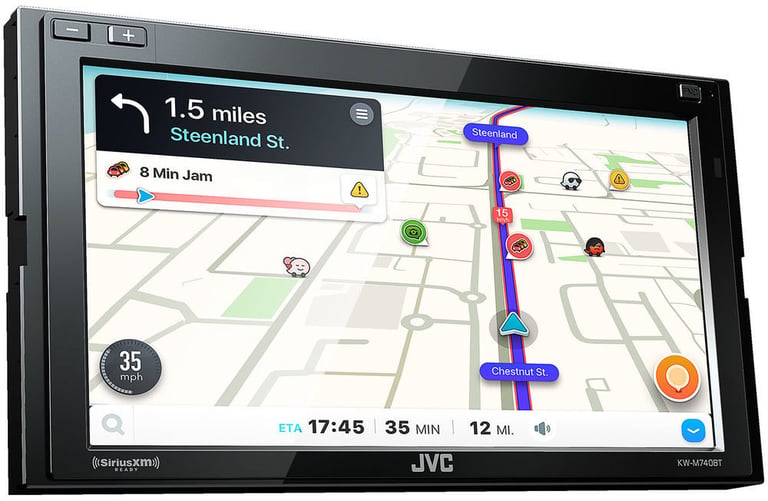

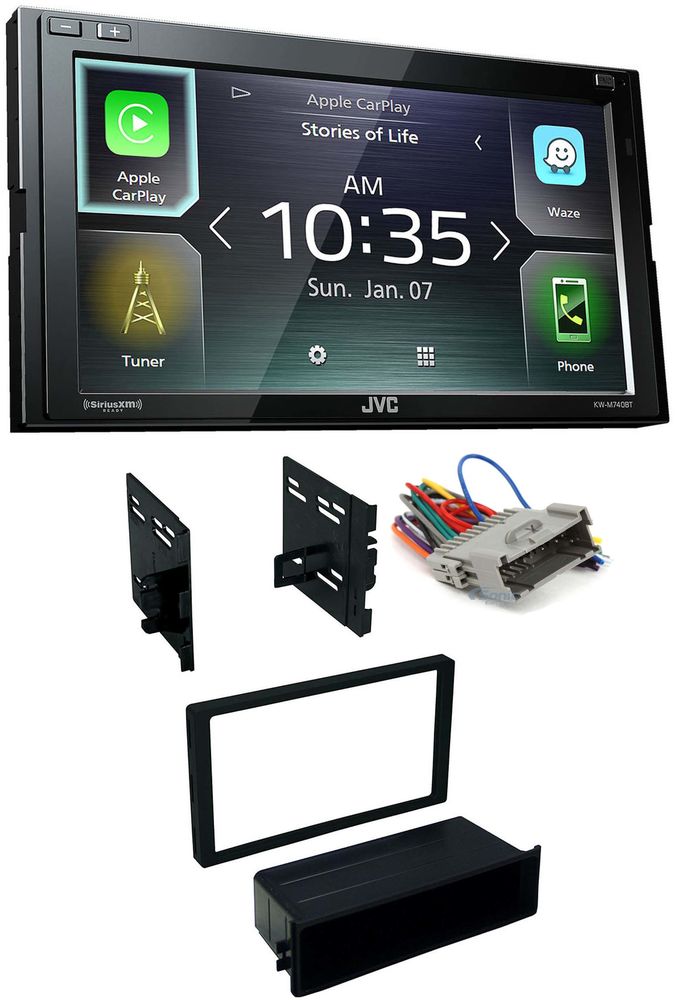

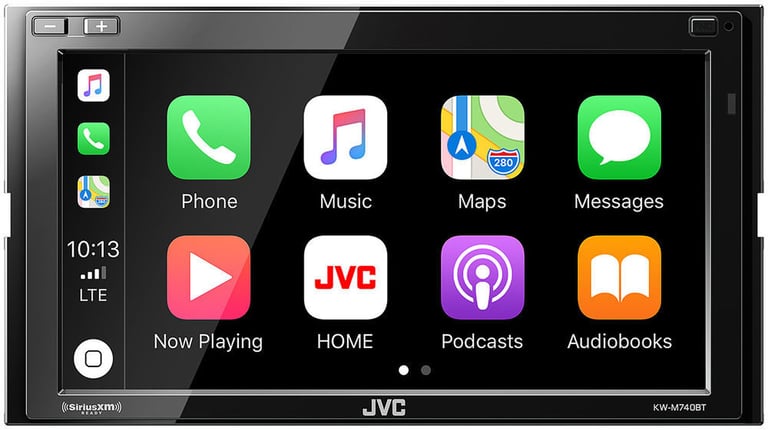

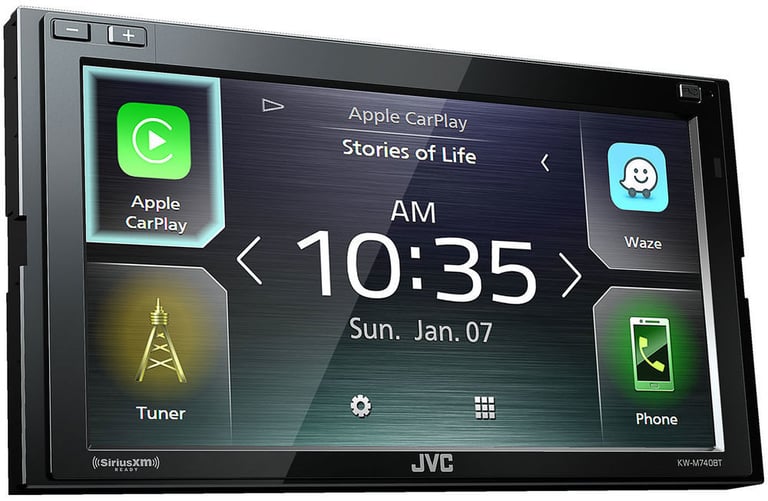

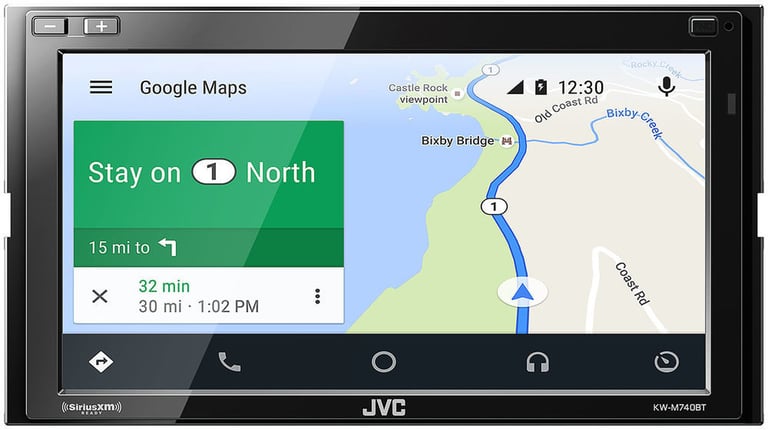

JVC KW-M740BT Double Din Car Media Player Install Kit Apple CarPlay Android Auto

Product Details

• Double DIN In-Dash Bluetooth Multimedia Receiver
• 6.8" Resistive Touchscreen Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 22 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Optional wireless remote control JVC RM-RK258 (sold separately)
• Viewing Angle adjustment: (0 - 20 degree, default : 0 degree) 4 steps
• Multilingual display
• Shallow chassis
• K2 Technology
• Live wallpaper feature
• Control stereo using JVC's free Remote S app
• Customizable display background with Blue key illumination color
• Gesture Touch Control corresponding to finger movements
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: KW-M750BT

Smartphone Features

• Apple CarPlay and Android Auto compatible
• Display and control music, and other apps with iPhone and Android
• Pandora, iHeart Radio, Slacker Radio and Spotify capable
• Siri Eyes Free control for select iPhones
• Wired phone-mirroring for select devices via USB
• Features higher level of voice recognition accuracy
• Streaming DJ allows 5 Bluetooth audio source devices to be connected

Playback and Audio Features

• MP3 | WMA | WAV (Hi-Res) | AAC | FLAC (Hi-Res) Audio Playback
• AVI | MP4 | MPG |MOV and WMV Video Playback
• JPEG | PNG | BMP File playback via USB
• AM/FM tuner with 15FM/5AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Graphic Equalizer with 8 Selectable Preset

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately
• iDataLink ADS-MRR module compatible. In a wide selection of vehicles, this module lets you keep factory features you'd otherwise lose when installing a new radio.

Audio/Video Inputs and Outputs

• 3 sets of 4 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Front-view Camera Input: Used for universal cameras with an RCA composite input
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes an external 10" wired microphone for clear, convenient, distortion-free talking

Product Features:

• Allows for installation of an aftermarket Double-Din car stereo
• Compatible with select 2000-2007 vehicles from Saturn
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes brackets and hardware parts needed with detailed installation instructions
• Painted scratch-resistant black
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

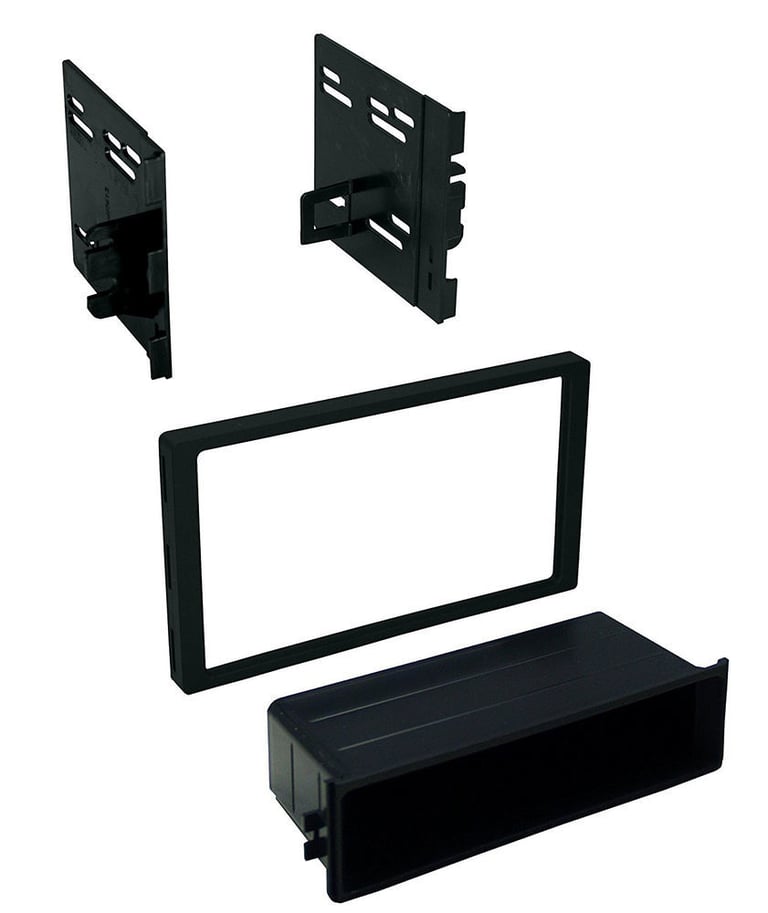

Kit Includes:

1. Radio Trim Panel
2. Brackets
3. Pocket
4. #8 x 3/8” screws
5. Step by step instructions

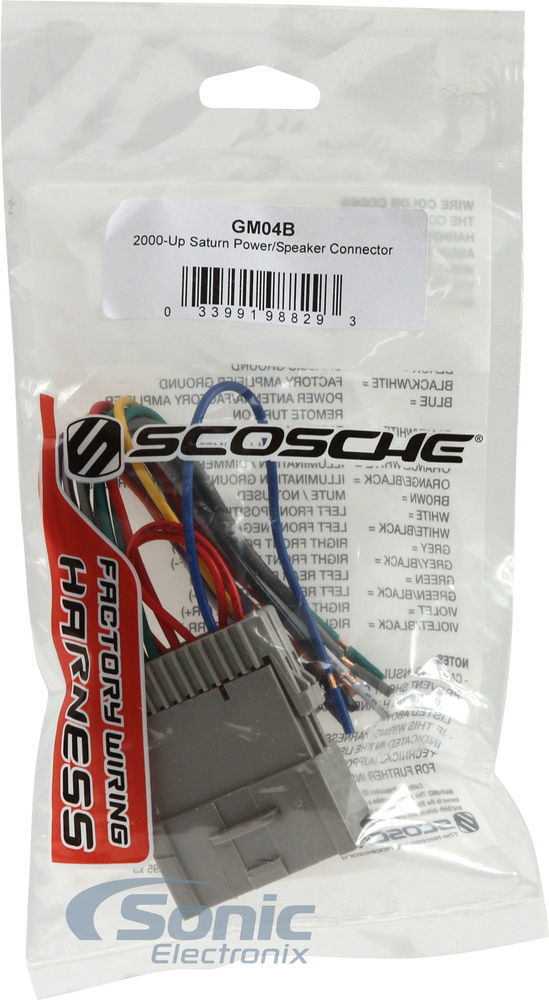

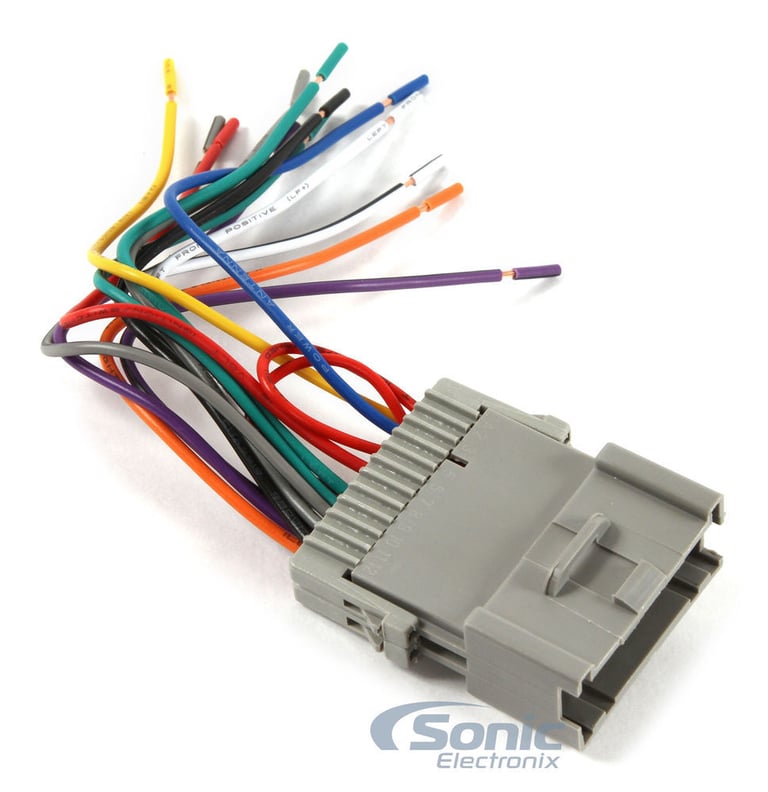

Product Features:

• Wire harness to Install a new car stereo in Compatible with select 2000-2005 vehicles from Saturn
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• 1-year Manufacturer's Warranty

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Black with White Stripe - Amp Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
