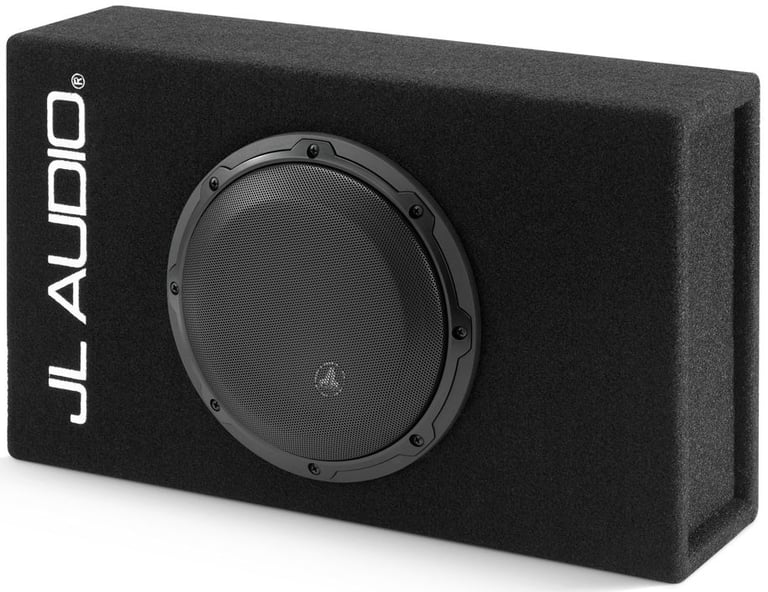

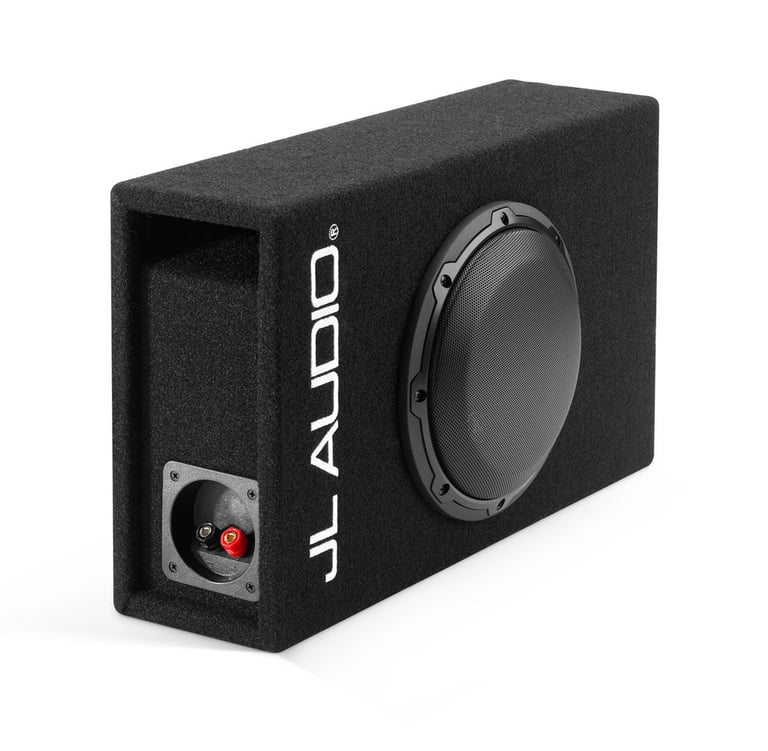

JL Audio MicroSub CP108LG-W3v3 (Open Box, Missing Bag)

250 Watt RMS Single 8" 8W3v3-4 Subwoofer Loaded in a Slot-Ported MicroSub Enclosure (4 ohms Final Impedance)

JL Audio
Shop all JL Audio
highlight-star-icon

• RMS: 250W Power Handling
• Mineral-Filled Polypropylene Cone
• Single 4 Ohms
• Vented Reinforcement Collar
• Elevated Frame Cooling
• Floating Cone Attach Method (FCAM)

Learn more about the ls-cp108lgw3v3-obc7

We apologize

This item has been discontinued

Description


JL Audio

Authorized dealer


Amazing Bass For Limited Space

The CP108LG-W3v3 MicroSub is a compact bass solution for vehicles with limited space such as trucks or convertibles. This slot-ported enclosure is loaded with one 4-ohm 8W3v3-4 woofer. The W3v3 subwoofer is one of the cleanest, most efficient, and best sounding subwoofers in its class. The W3v3 features a DM Optimized Motor System that provides constant and strong linear excursion that result in reduced distortion and higher bass reproduction. These woofers also feature Elevated Frame Cooling technology that delivers cool air directly to the voice coil of the woofer. This increases power handling and sound quality. The W3v3 series subwoofers offer many more patented technologies that truly make this series stand out above the rest. If you are struggling on a decision, JL Audio will never disappoint.

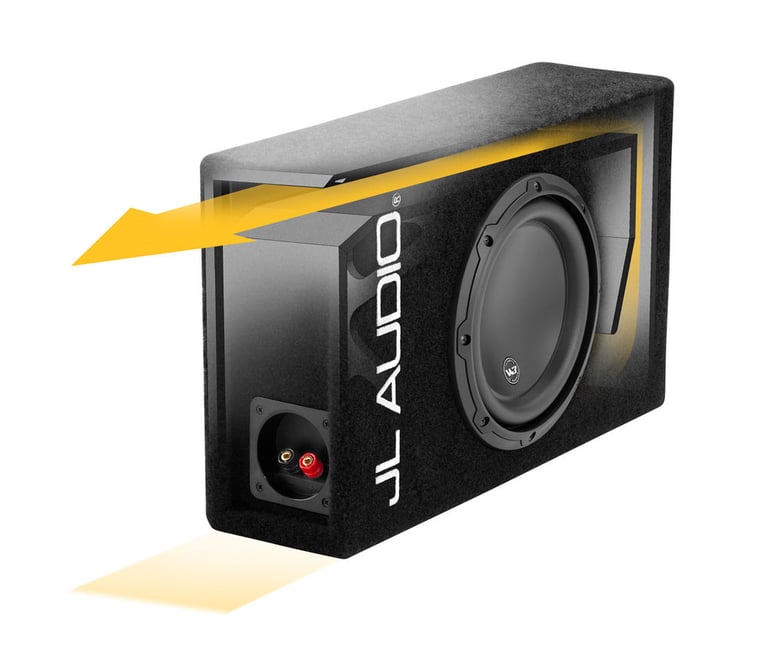

The enclosure features top quality MDF (medium density fiberboard), cut using state-of-the-art CNC woodworking equipment, and covered with high-grade automotive carpeting. Extensive interior bracing permits the use of thinner MDF that maximizes the enclosure's internal volume relative to its exterior volume. Each driver is also protected by a black steel-mesh grille. It also features a side firing slot port. The flared port opening minimizes turbulence and improves overall fidelity.

Subwoofer Specifications:

  • 8" W3v3 Series Subwoofer Driver
  • Power Handling:
    • RMS: 250 watts
  • Recommended Power Range: 75 - 250 watts
  • Impedance: Single 4-Ohm
  • Injection-molded, mineral-filled polypropylene cone
  • Nitrile butadiene rubber surround
  • Stamped steel basket
  • Customization trim ring
  • Floating-cone attach method
  • Highly linear, DMA-Optimized motor system
  • Insert molded suspension, coil and terminal sub-assembly
  • Patented vented reinforcement collar (VRC)
  • Elevated frame cooling design
  • Nickel plated brass spring terminals
  • Engineered lead-wire design and attachments
  • Black Steel-Mesh Grille Insert Included
  • Sensitivity: 83.24 dB
  • Xmax: 10.0 mm
  • Matching Amplifiers:
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Enclosure Specifications:

  • Slot-Ported MicroSub Enclosure Box
  • Low-profile slot-ported carpeted enclosure
  • Black carpeted finish
  • Steel mesh grille for protection
  • Dimensions: 5-1/8"D x 18-5/8"W x 11"H

JL Model Comparison
From entry level woofers to competition grade, JL has them all. Let us find which one works for you.

Model RMS Power Cone Material Surround Material Sensitivity (dB) Frequency Response Xmax (mm Terminals Made In America
W7 Series 500-1500 Watts Polypropylene Foam Overroll 82.7 - 86.3 15-250 Hz 19-32 Push Terminals
W6 Series 600 Watts Polypropylene Rubber 82.7 - 85.4 20-200 Hz 19 Push Terminals
W3 Series 150-600 Watts Polypropylene Rubber 80.5-87.90 20-250 Hz 8.89-15.5 Push Terminals
W1 Series 150-300 Watts Polypropylene Rubber 83.9-86.1 22-200 8-11 Push Terminals
W0 Series 300-500 Watts Polypropylene Foam 84-88.20 20-250 Hz 11.4-12.7 Push Terminals
WX Series 200 Watts Polypropylene Foam 86-87.17 22-250 Hz 10 Spade Terminals


This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Item Details


Manufacturer:

Model Number:

CP108LG-W3v3

Weight:

19.00lbs

Internal SKU:

ls-cp108lgw3v3-obc7

Internal Product ID:

171375
