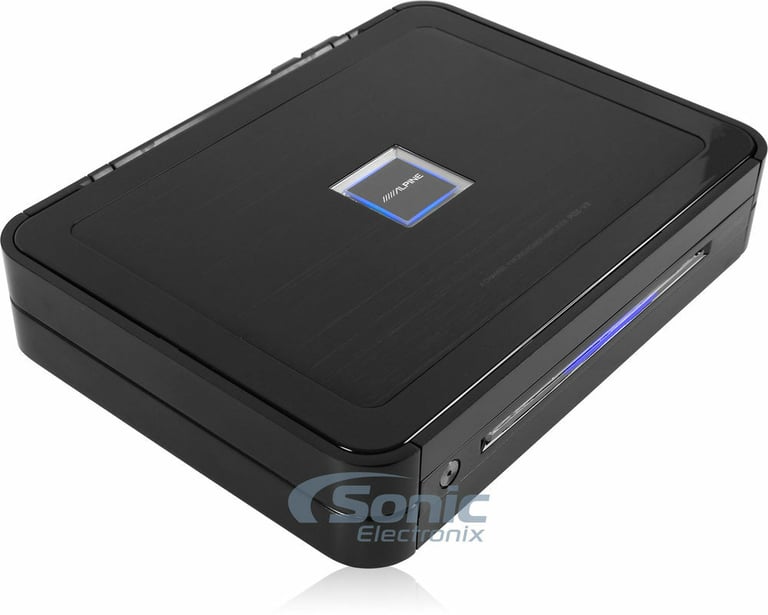

Alpine PDXV9 (Open Box, Complete)

1600W Max, 5-Channel PDX Series Car Amplifier

Alpine
Shop all Alpine
highlight-star-icon

• Full-Range RMS: 100W x 4 @ 4 ohm, 100W x 4 @ 2 ohm
• Subwoofer RMS: 500W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• CEA-2006 Compliant
• Super Efficient PDX Power Supply >90%
• Power Management Processor
• Dimensions: 10-5/8"W x 7-1/2"D x 2"H

Learn more about the ls-pdxv9-obc6

We apologize

This item has been discontinued

Description


Alpine brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

  • 5-Channel PDX Series Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 chan. + 500 watts x 1 chan.
    • 2 ohm: 100 watts x 4 chan. + 500 watts x 1 chan.
    • Bridged, 4 ohm: 200 watts x 2 chan.
  • PDX Technology for increased performance and durability
  • Sleek Aggressive Design w/ End Caps
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 5/4/3 channel operation
  • Wired Bass Remote Ready
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
  • Variable high-pass filter (30-600 Hz, 24 dB/octave)
  • Variable low-pass filter (30-600 Hz, 24 dB/octave)
  • Variable Subsonic filter (3-30 Hz)
  • Damping factor: >500
  • CEA-2006 compliant amplifier
  • Frequency response: 5-45,000 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 10-5/8"W x 7-1/2"D x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Alpine pdxv9 thumbnail
(newest, current model)
Alpine PDX-5 thumbnail
(previous model, replaced by Alpine PDXV9 (Open Box, Complete))

Item Details


Manufacturer:

Model Number:

pdxv9

Weight:

8.00lbs

Internal SKU:

ls-pdxv9-obc6

Internal Product ID:

171435
