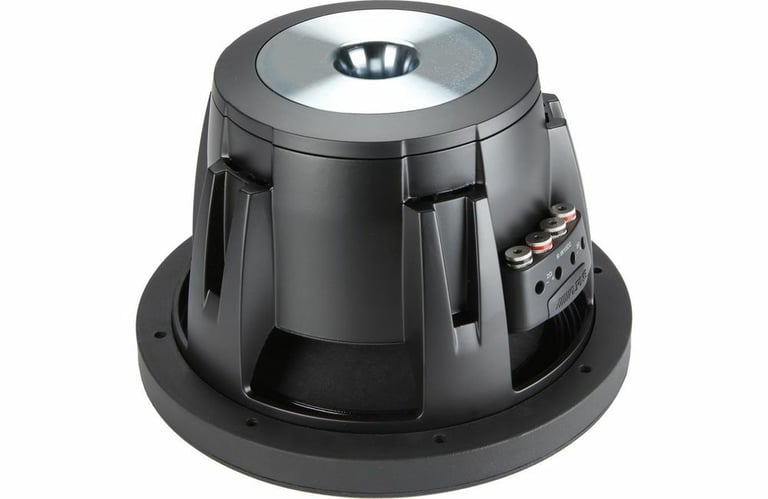

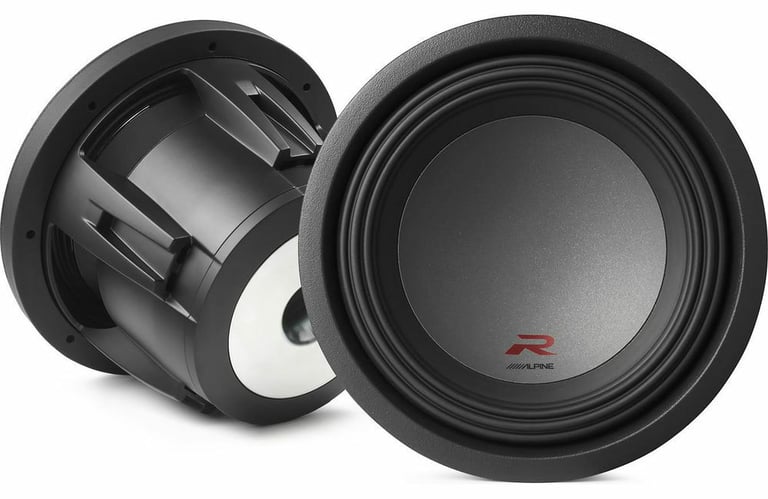

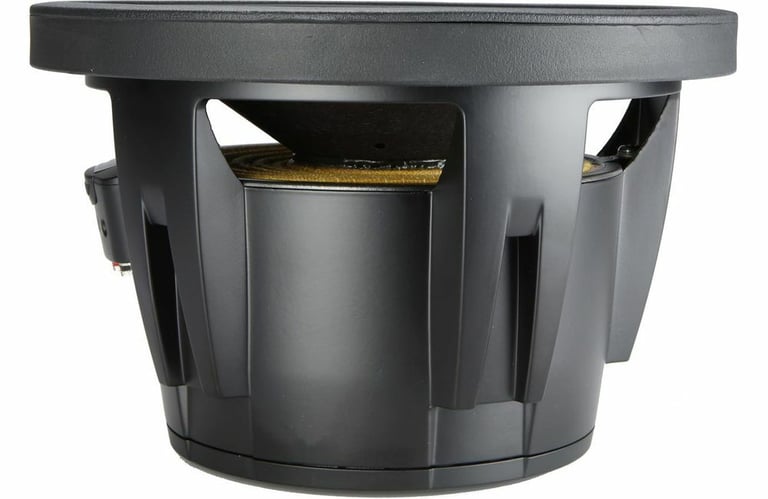

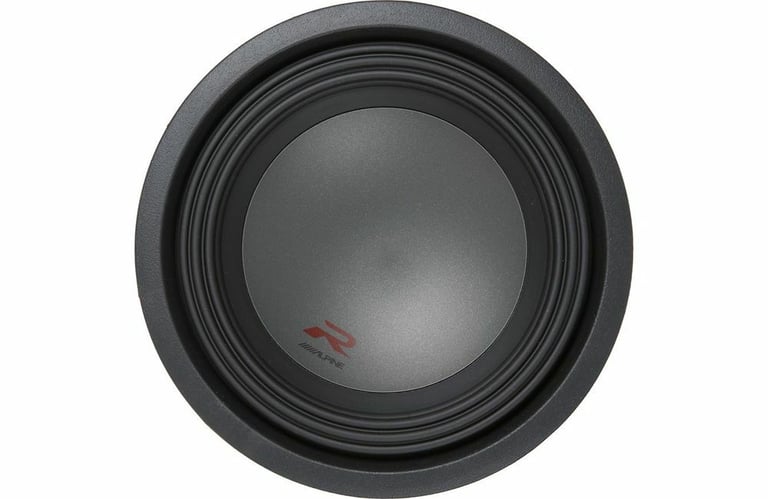

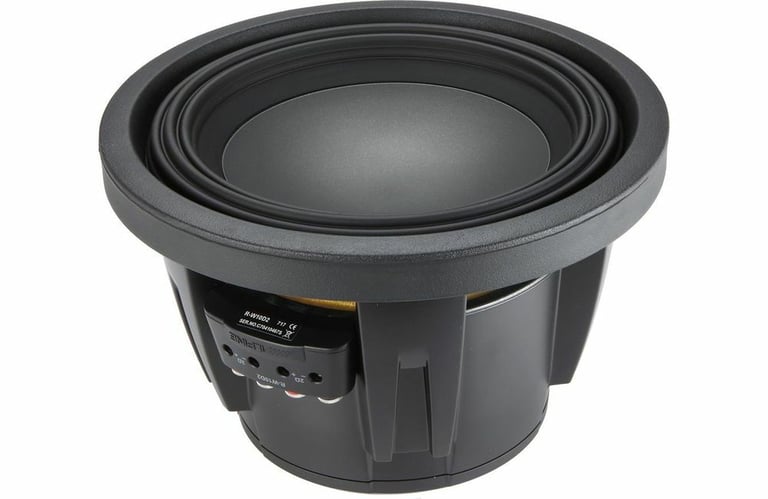

Alpine RW10D2 (Open Box, Complete)

2250W Max (750W RMS) 10" R-Series Dual 2-Ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 2250W Max
• 750W RMS
• Parabolic pulp/kevlar cone
• H.A.M.R. surround
• Cast aluminum frame with integral shorting sleeve
• Polypropylene, mica and talc dust cap
• 111 oz. Strontium ferrite segmented magnet

Learn more about the ls-rw10d2-obc8

We apologize

This item has been discontinued

Description


Alpine brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

  • 10" Dual 2 ohm Type-R Subwoofer
  • Power Handling:
    • Peak: 2250watts
    • RMS: 750 watts
  • Recommended power range: 300 - 750W RMS
  • CTA-2031 compliant power ratings
  • Parabolic pulp/kevlar cone
  • H.A.M.R. surround
  • Polypropylene, mica and talc dust cap
  • Reinforced cone neck and spider joint
  • Cast aluminum frame with integral shorting sleeve
  • 8AWG push terminals with VC configuration jumpers
  • 2.6" High excursion overhung voice coil
  • 111 oz. Strontium ferrite segmented magnet
  • Top-mount depth: 5-7/8"
  • Cutout diameter: 9-1/16"
  • Frequency Response: 26 - 200Hz
  • Sensitivity: 82.4dB
  • Resonance Frequency (Fs): 30Hz
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually



PROP 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Product history:

Alpine rw10d2 thumbnail
(newest, current model)
Alpine SWR-10D2 thumbnail
(previous model, replaced by Alpine RW10D2 (Open Box, Complete))
Alpine SWR-1023D thumbnail
(previous model, replaced by Alpine Type-R SWR-10D2)
Alpine SWR-1022D thumbnail
(previous model, replaced by Alpine SWR-1023D)
Alpine SWR-1021D thumbnail
(previous model, replaced by Alpine SWR-1022D)

Subwoofer Wiring Guide


Item Details


Manufacturer:

Model Number:

rw10d2

Weight:

10.00lbs

Internal SKU:

ls-rw10d2-obc8

Internal Product ID:

171475

Customer Ratings & Reviews


Alpine RW10D2 (Open Box, Complete) thumbnail image

5 star
77%
4 star
23%
3 star
0%
2 star
0%
1 star
0%



Durability
4.6
Value
5
Features
4.9
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

great deal !!

The following review is for R-W10D2, which is a part of the bundle you are viewing.

they came today !!! waiting on box design ...will update on sound once installed.

By Anonymous on May 15, 2019 Checkmark Icon Verified purchase

17 found this helpful


Jackpot

The following review is for R-W10D2, which is a part of the bundle you are viewing.

All the bass you need. The sub will never fail you

By JOSE ERNIE on April 29, 2018

17 found this helpful


Great Speakers

The following review is for R-W10D2, which is a part of the bundle you are viewing.

These are very nice speakers and also powerful. Great customer service and selection. Love it.

By marlon on July 23, 2020 Checkmark Icon Verified purchase

16 found this helpful


Great Subwoofer!

The following review is for R-W10D2, which is a part of the bundle you are viewing.

This Sub is really good for it's price, Performance is amazing in a Ported Box at .87cu. I know it's rated for a bigger box but I'll build my own Soon. I have a RF 500rms pushing this Sub and it Pounds! If you can afford this Subwoofer Get It!

By Anonymous on September 18, 2019 Checkmark Icon Verified purchase

16 found this helpful


Alpine R-W10D2

The following review is for R-W10D2, which is a part of the bundle you are viewing.

One of the best subwoofers ive ever owned (right up there with my kicker L7s as far as performance goes) i have a pair of these in a sealed box even tries them inverted and they sound great no matter what amp is pushing them, and they dont care what genre of music you play. all around great speaker.

By Anonymous on June 7, 2018

16 found this helpful


Perfect!!!!

The following review is for R-W10D2, which is a part of the bundle you are viewing.

All the bass you need! It is worth with every penny you spent!

By John Hoe on April 19, 2018

16 found this helpful


Bumps Hard!

The following review is for R-W10D2, which is a part of the bundle you are viewing.

These Type R's are sure to make you smile! I've had them about a month now and they sound amazing! 2 10inch in a Bassworx ported box powered by a Teraamp's Smart 3 3000w amp wired with 1/0gauge wire.

By Thomas on August 12, 2020 Checkmark Icon Verified purchase

15 found this helpful


Greatest value and service!!!!

The following review is for R-W10D2, which is a part of the bundle you are viewing.

Best decision made buying this ALPINE TYPE R and for the price!! My friend helped me install this in my truck I built the sealed box it sits in and during the install he said I WOULDNT BE SATISFIED. Well he was 100% WRONG. It shakes the walls in my house while I’m jamming in my driveway. If I needed more I’d buy this sub every time. If your on the edge trying to figure out what sub to buy please think of sonic electronics and Alpine Type R series I promise you will not be disappointed. I only have 500w rms pushing it and it’s rated for 300-750w Rms. I can’t thank you enough for such a great deal on this sub. Thanks again my business will be back soon!!

By Anonymous on September 8, 2019 Checkmark Icon Verified purchase

15 found this helpful


Really impressed

The following review is for R-W10D2, which is a part of the bundle you are viewing.

Love the sub. In a .6 cubic foot sealed box the bass is tight and responsive. Using a zapco 1100.1 to power it. Really works great together. Plays a wide variety of music, but it does tend to be geared more toward hip hop/pop music.

By Jennifer on February 9, 2018

14 found this helpful


Second one.

The following review is for R-W10D2, which is a part of the bundle you are viewing.

I love this sub and have had it since September of 2020 but recently on some notes, the sub will make a plopping noise not sure what to do about that. I’m pushing only 500 RMS 2 ohm. I’ve had my wires, and amps checked by stereo shops multiple times said everything looks good. Not bumping it super hard either. And it sucks to see the price shoot up from 229 to 300... it’s put in a recommend alpine box by you guys specific fit and when I got that the sub didn’t fit so I had a shop make the hole slightly bigger.

By At on April 10, 2021
