Focal KitE30KX

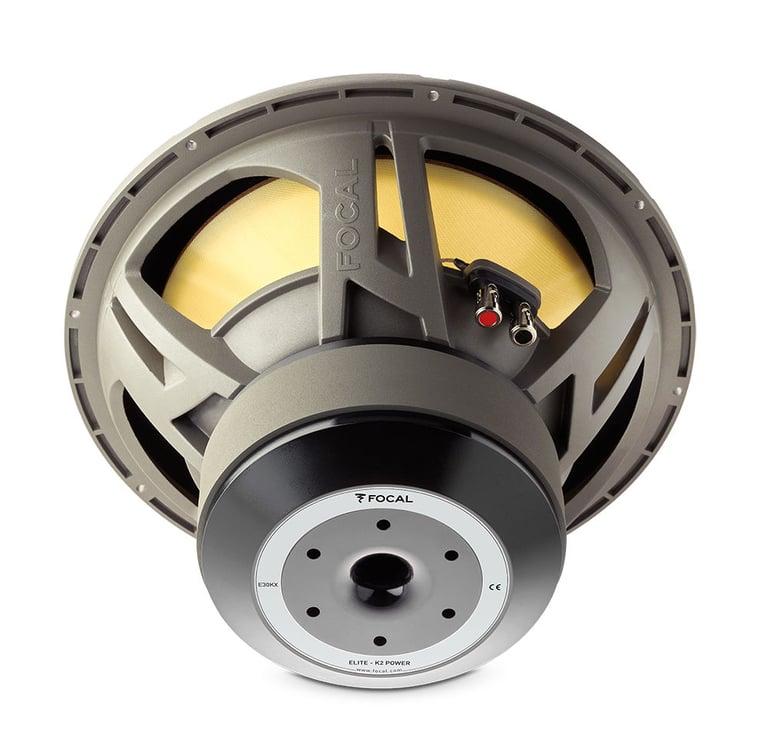

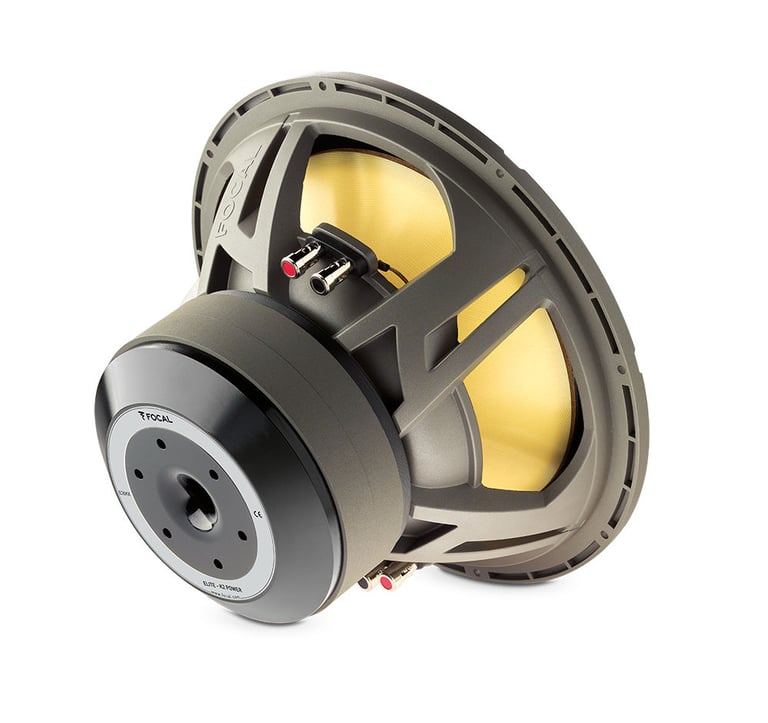

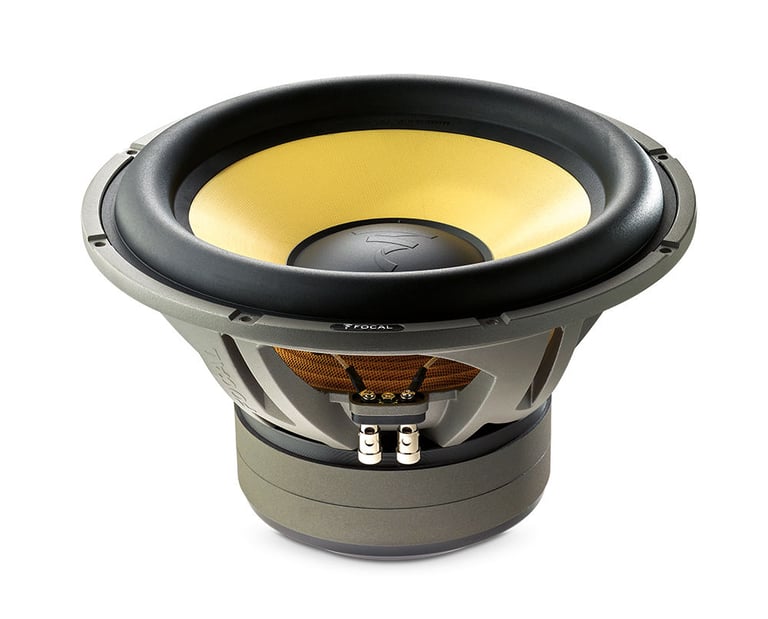

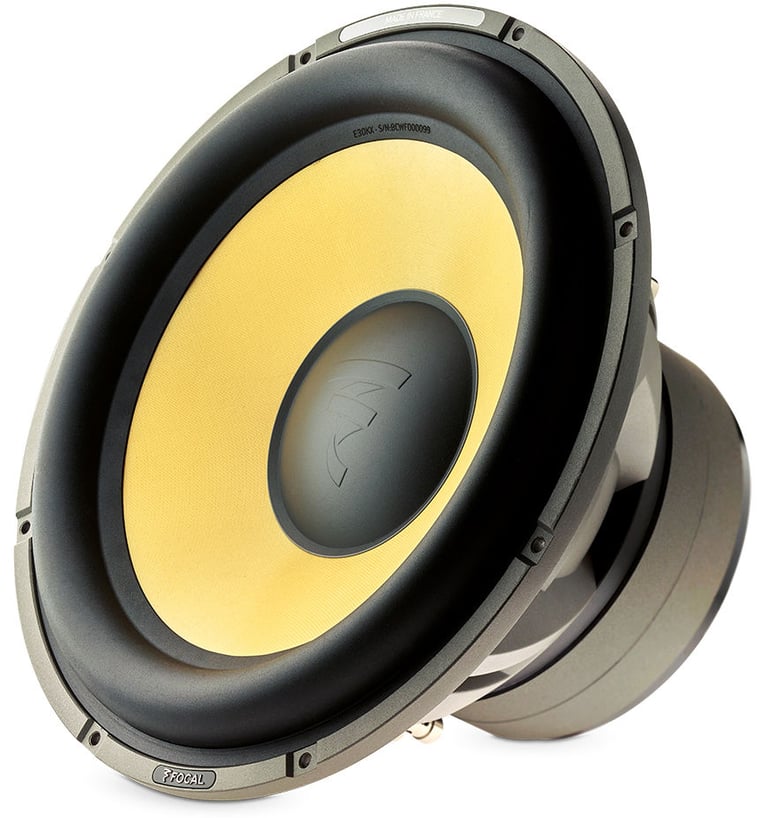

K2 Power Line 12" Dual 4Ω Voice Coil Component Subwoofer

Focal
Shop all Focal
highlight-star-icon

• 12" Dual 4Ω Voice Coil Component Subwoofer
• Power Handling: 800W RMS
• K2 Kevlar sandwich cone
• “Radial VC” Cooling
• Motor "dual magnet"

Learn more about the kite30kx

We apologize

This item has been discontinued


Loading...
99-7006 main

Metra 99-7006 Dash Kit

Install a new Single-DIN car stereo in select 1995-1999 Eclipse and Talon

-10.00%

$35.99

List price $39.99

KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00

iLX-407 main

Alpine iLX-407

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

7
-16.93%

$539.95

List price $650.00

Limited time!
KFC-1066S main

Kenwood KFC-1066S

440W Peak (42W RMS) 4" Sport Series 2-Way Coaxial 4-ohm Car Speakers

4
-38.75%

$49.00

List price $80.00

Limited time!
Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-33.34%

$199.95

List price $299.95

Limited time!
XR-1701 main

Kenwood eXcelon XR-1701

600W Peak (200W RMS) 6.5" eXcelon Reference Series 2-Way Coaxial 3-ohm Car Speakers (Hi-Res Audio Certified)

3
-38.28%

$179.00

List price $290.00

Description


Focal brand icon

Authorized dealer

Product Details:

  • 12" Dual 4Ω Voice Coil Component Subwoofer
  • Power Handling:
    • Peak Power: 1600W
    • RMS Power: 800W
  • Impedance: 4+4Ω
  • Sensitivity (2.83 V/1 m): 90 dB
  • Frequency response: 25Hz - 500Hz
  • Xmax: 22.5mm
  • Kevlar Sandwich Cone
  • Aluminum chassis new design
  • Surround: Butyl
  • Motor "dual magnet" 4 Ω
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Dimensions:

  • Voice Coil diameter: 65mm (29/16")
  • Net Weight: 11.2kg (24.7lbs)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Focal KitE30KX Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Focal KitE30KX Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Focal KitE30KX Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Focal KitE30KX Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
K2 Power
Subwoofer Size
12"
Peak Power Handling
1600 watts
RMS Power Handling
800 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2-9/16"
Frequency Response
25 - 500 Hz
Sensitivity
90 dB
Xmax (millimeters)
22.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Yellow
Woofer Composition
Kevlar Fiber
Woofer Surround
Butyl Rubber
Magnet Structure
Double Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.23 cubic feet
Optimum Ported Box Volume
1.76 cubic feet
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29 Hz
Equivalent Compliance (Vas)
50 liters
Total Speaker Q Value (Qts)
0.46
Electrical Q Value (Qes)
0.49
Mechanical Q Value (Qms)
6.1
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

E 30 KX

Weight:

38.00lbs

Internal SKU:

kite30kx

Internal Product ID:

172063
