RYDEEN CM-APL3

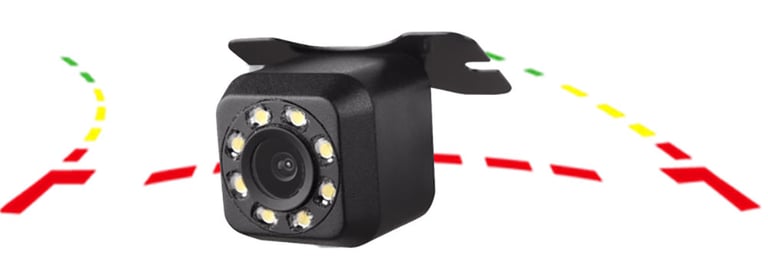

MINy APL3 Backup Camera with Moving Parking Lines (Trajectory) and LED

Rydeen
Shop all Rydeen
highlight-star-icon

• Sensor: 1/3 CMOS
• Resolution: 720(H) x 480(V)
• TV Line: 600
• Lens: 1.7mm
• Min illumination: 0 Lux

Learn more about the cmapl3

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

7
-10.01%

$8.99

List price $9.99

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85
FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

51KSS6804 main

Kicker KSS68 (51KSS6804)

500W Peak (250 RMS) 6x8" KS-Series 2-way 4-ohm Component Speaker System (KSS6804)

-10.71%

$249.99

List price $279.99

R1T-S main

Rockford Fosgate PRIME R1T-S

160W Peak (80W RMS) 1" PRIME Series Mylar Balanced Dome Car Tweeters

34

JBL SHOCK WAVE 150W65 (JBLSPKSW150W65)

600W Peak (300W RMS) 6.5" Shock Wave Series 4-ohm Midrange Speakers

5
-7.70%

$119.95

List price $129.95

Description


Rydeen brand icon

Authorized dealer

RYDEEN CM-APL3

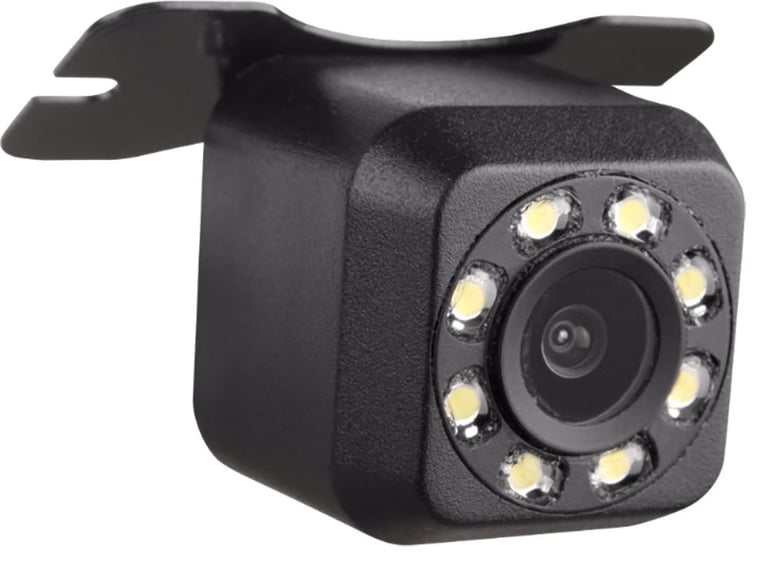

The CM-APL3 is the latest in the line of backup cameras in the MINy category. The key design of these cameras is based on their reduced size, making them very easy to install without a huge visual impact to your vehicle. The camera transmits a higher than standard full color signal to any compatible monitor or display. The built-in night vision operates in near black surroundings, making backing up easier where street lights are not as common. The standard casing also ensures your camera will work in rain or shine weather conditions.

The CM-APL3 camera comes in a black, waterproof casing with an IP67 rating, 170° viewable angle, and a full color resolution display to assist with blind spot visibility. This high-tech backup camera is a perfect choice for your vehicle where you don’t want to miss anything that could end up behind you.

Product Details:

  • Sensor: 1/3 CMOS
  • Resolution: 720(H) x 480(V)
  • TV Line: 600
  • Lens: 1.7mm
  • Min illumination: 0 Lux
  • Video system: NTSC (Color)
  • Body color: Black (B)
  • Waterproof: IP67
  • View angle: 170°
  • Voltage & current consumption: (Range of operational voltage) 9 ~ 16V; Max operational circuit: 90mA
  • Operation temp.: -22º+158º
  • Storage temp.: -40º~ +105º
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
