Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

Infinity
Shop all Infinity
highlight-star-icon

• 75 watts Peak Each, 25 watts RMS Each
• 1/2" Textile Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 91 dB

Learn more about the ref3032cfxam

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


Infinity brand icon

Authorized dealer


Infinity Reference 3032cfx (REF3032CFXAM)

New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener’s preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus, our newly engineered baskets are optimized to fit most factory speaker locations. Available in a range of standard sizes, they’re the perfect upgrade from factory speakers.


Product Details:

  • 3-1/2" Reference Series 2-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 150 watts per pair / 75 watts each
    • RMS: 50 watts per pair / 25 watts each
  • Polypropylene cone material
  • Hi-Roll Rubber speaker surround
  • Patented Plus One woofer speaker construction
  • 1/2" Textile Balanced Dome tweeters
  • Adjustable tweeter output level function
  • Optimized frame size to fit into any vehicles
  • Smooth, non-fatiguing sound even at high output levels
  • Top-mount Depth: 1.4"
  • Cutout Dimensions: 2.97"
  • Impedance: 3 ohm
  • Frequency Response: 85 - 21000 Hz
  • Sensitivity: 91 dB
  • Authorized Internet Dealer
  • MFR #: REF3032CFXAM
  • 1-year Manufacturer's Warranty

  • Priced Per Pair

Product history:

Infinity REF3032CFXAM thumbnail
(newest, current model)
Infinity REF-3022cfx thumbnail
(previous model, replaced by Infinity Reference 3032cfx (REF3032CFXAM))
Infinity REF-3002cfx thumbnail
(previous model, replaced by Infinity REF-3022cfx)

Best selling similar products

Club 322F small

JBL Club 322F (SPKCB322FAM)

• 75 watts Peak Each, 25 watts RMS Each
• 1" Silk Dome tweeters
• UV-Resistant Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 89 dB

(1)

$79.95

List price $109.95

JS35K small

Jensen JS35K

• 75 watts Peak Each, 25 watts RMS Each
• 1/2" Silk Dome Tweeters
• Woven Aramid Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 83 dB

$79.99

List price $79.99

51KSC3504 small

Kicker KSC35 (51KSC3504)

• 100 watts Peak Each, 50 watts RMS Each
• 1/2" Silk Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(4)

$79.99

List price $89.99

Specifications & Details


Speaker Specifications
Series
Reference Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
3-1/2"
Design
2-way Coaxial
Tweeter Design
Balanced Dome
Tweeter Size
1/2"
Tweeter Composition
Textile
Woofer Composition
Polypropylene
Woofer Surround
Hi-Roll Rubber
Peak Power Handling
75 watts
RMS Power Handling
25 watts
Total PEAK Per Pair/Set
150 watts
Total RMS Per Pair/Set
50 watts
Sensitivity
91 dB
Frequency Response
85 - 21000 Hz
Impedance (Per Voice Coil)
3 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
1.4"
Bottom-Mount Depth
1.79"
Cutout Dimensions
2.97"
CTA-2031 Compliant
No
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Illumination
None
Speaker Grilles
No
Includes Damping Kit
without Damping Kit
Compatible vehicle types
Car/Truck/SUV/Van
What is in the box?
Paperwork
User manual
WITB: Speakers
Foam Gasket
Speakers (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

REF3032CFXAM

Weight:

1.55lbs

Internal SKU:

ref3032cfxam

Internal Product ID:

174183

Customer Ratings & Reviews


Infinity Reference 3032cfx (REF3032CFXAM) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
5
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Awesome sound!

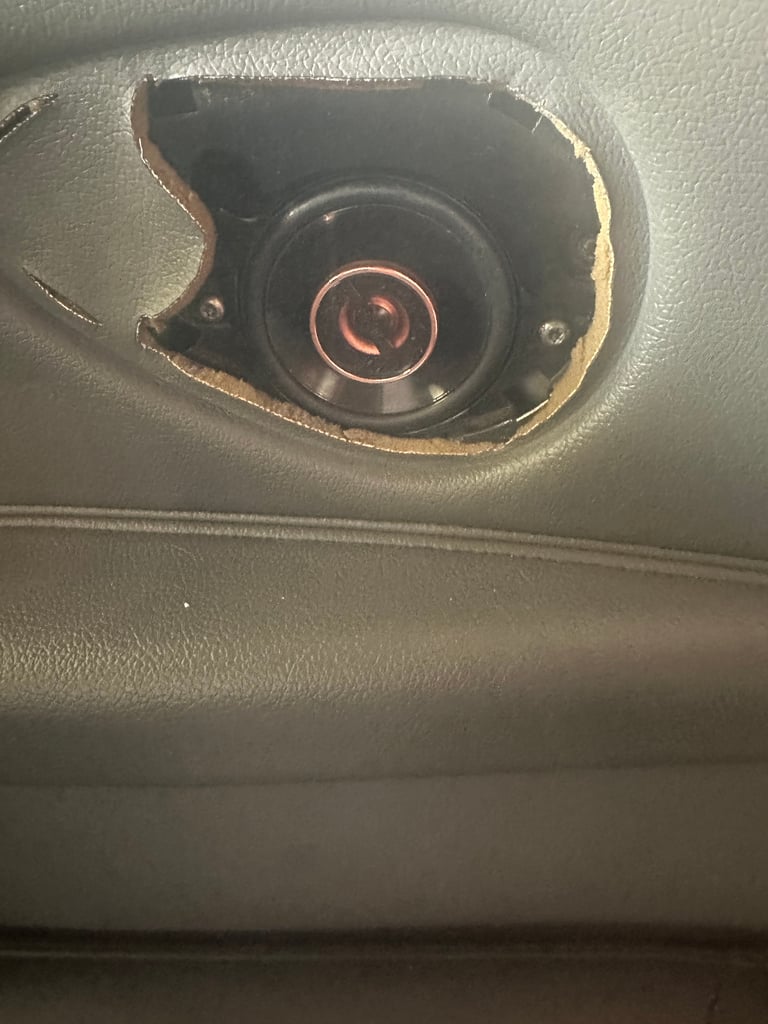

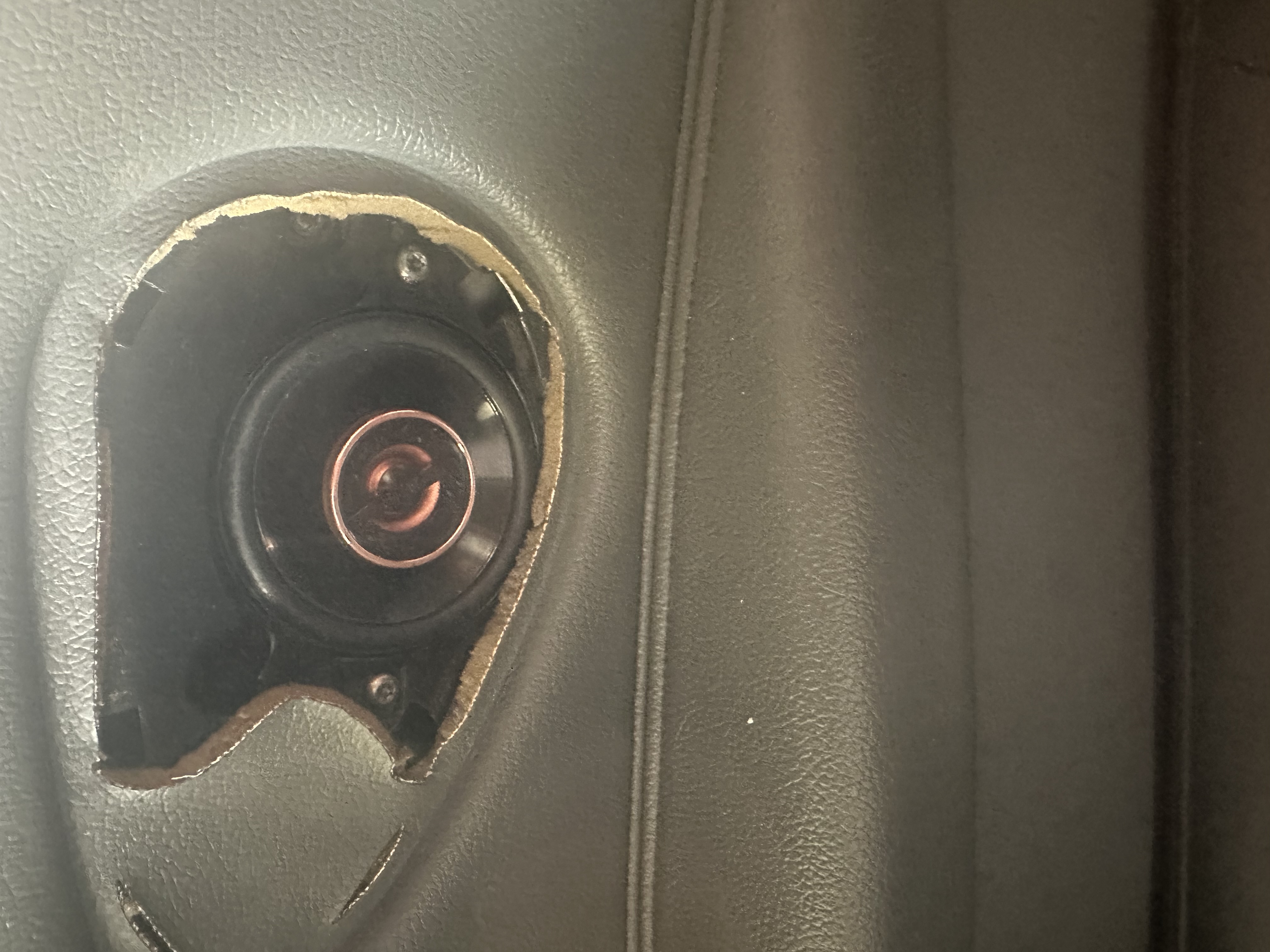

I had to trim the mounting tabs but other than that they fit just fine.

By Rudy on August 26, 2023 Checkmark Icon Verified purchase
2016 Jeep Wrangler Unlimited

33 found this helpful


By Dave on October 20, 2022 Checkmark Icon Verified purchase
2015 Ford F-150

32 found this helpful


2022 tundra

Installed in dash of 2022 tundra much better than factory not a perfect fit but got them installed very happy with purchase.

By Johnny on October 16, 2023 Checkmark Icon Verified purchase

26 found this helpful


By Guillermo on November 6, 2022 Checkmark Icon Verified purchase
2019 Ram 1500

25 found this helpful


Huge upgrade

These speakers are great with or without an amp. Im running them on my 23 Jeep Grand Cherokee factory alpine amp and being there 3 ohm its a near perfect match! Sound is great and level of sound is clear and loud! Price point makes these and no brainer!

By Evan on December 3, 2023 Checkmark Icon Verified purchase
2022 Jeep Grand Cherokee

24 found this helpful


By Cesar on January 22, 2024 Checkmark Icon Verified purchase
2018 Toyota Highlander

15 found this helpful


By John on June 17, 2024 Checkmark Icon Verified purchase
2018 Toyota 4Runner

5 found this helpful


By Derrick on May 14, 2024 Checkmark Icon Verified purchase
2017 Jeep Renegade

5 found this helpful


By Gary on August 24, 2024 Checkmark Icon Verified purchase
2019 Jeep Cherokee

3 found this helpful


By Gregory on April 16, 2025 Checkmark Icon Verified purchase
2024 Toyota Tacoma
