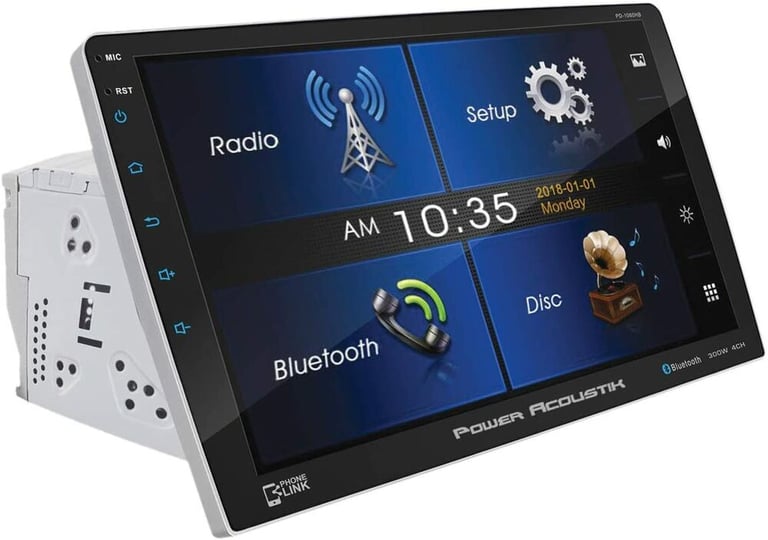

Power Acoustik PDN-1060HB

Double-DIN Head Unit w/ GPS NAV, Phonelink, Bluetooth, Swivel 10.6" LCD

highlight-star-icon

• 75W x 4 Chan. Max
• Built-In Bluetooth 4.0

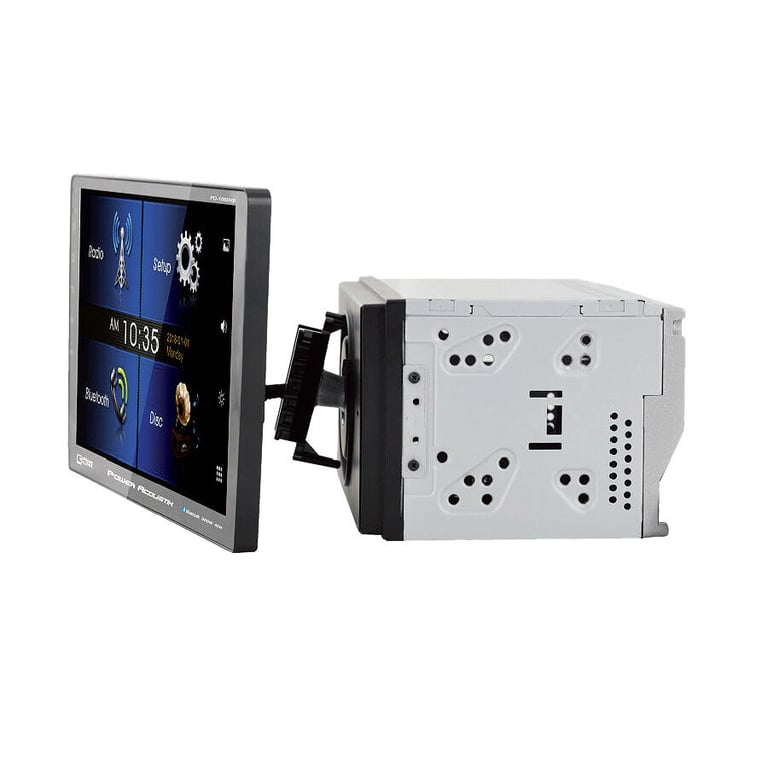

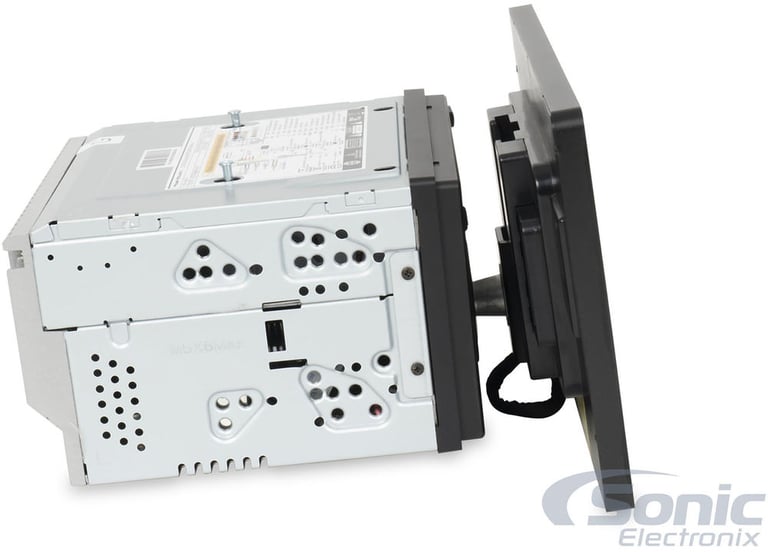

• 10.6” Manual Angle Screen
• LCD Screen (1024×600) supports 1080p video playback
• GPS turn-by-turn Navigation for all 50 states

Learn more about the pdn1060hb

We apologize

This item has been discontinued

Description


Power Acoustik brand icon

Authorized dealer
















Product Details:

  • Power Acoustik PDN-1060HB In-Dash Receiver
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 75 watts x 4 channels
  • 10.6” Manual Angle Screen
  • LCD Screen (1024×600) supports 1080p video playback
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • AM/FM tuner with 18FM/12AM presets
  • MHL PhoneLink for compatible Android phones enables you to have complete 2-way control and mirrors your phone on the radio’s screen
  • Accepts OEM Steering Wheel Control Interfaces
  • GPS turn-by-turn Navigation for all 50 states
  • Set your Destination to one of nearly 17 million points of interest
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • CD/CD-R/RW, DVD/DVD-R/RW, MP3/MP4 Playback
  • MP3/WMA/MPEG1/MPEG2/AVI Playback via USB
  • Multi-band graphic equalizer with selectable tone curves
  • 3.5mm Front Audio Auxiliary Input

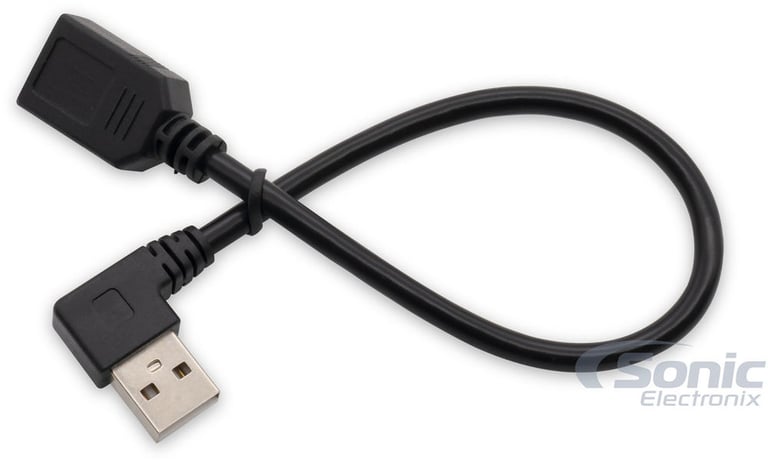

  • Front USB Input
  • 64GB SD Card reader for audio and video playback

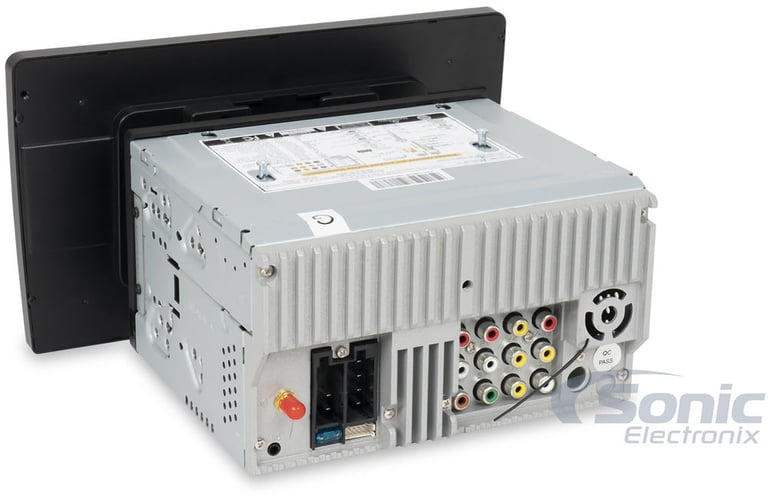

  • 2 Sets of preamp outputs (rear)

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 4.0
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • HSP: Headset Profile enables a Bluetooth headset to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • Works with most Bluetooth enabled cell phones
  • Includes a built-in microphone for clear, convenient, distortion-free talking
  • Maximum communication rage: 32.8 feet (approx, line of sight)

Expandability Options:

  • Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
  • Rear RCA Video Output: Used for connection to separate monitors and other devices
  • Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Specifications & Details


Key Features
Key Features
USB input
Aux input
Touchscreen
Floating Touchscreen
In-Dash Receiver Specifications
Receiver Size
Double DIN
Peak Power Output
75 watts x 4 channel
Preamp RCA Outputs
2 Sets (4-Channel)
Built-In Equalizer
Multi-band Audio Equalizer w/ Presets
Display Type
Capacitive Touchscreen Display
Touchscreen
Yes
Screen Size
10.6"
Display Adjustment
Brightness
Color
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Android
Android Control
Mirroring Control
Expandability Features
Inputs
Auxiliary (Rear)
Backup Camera
USB (Rear)
Memory Card Slot
SD
Steering Wheel Control Compatible
DO NOT USE - Yes
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
12
Radio Data System (RDS)
Yes
Navigation Features
Map Database
Not Specified by Manufacturer
Maps
Complete 50 USA
What is in the box?
Paperwork

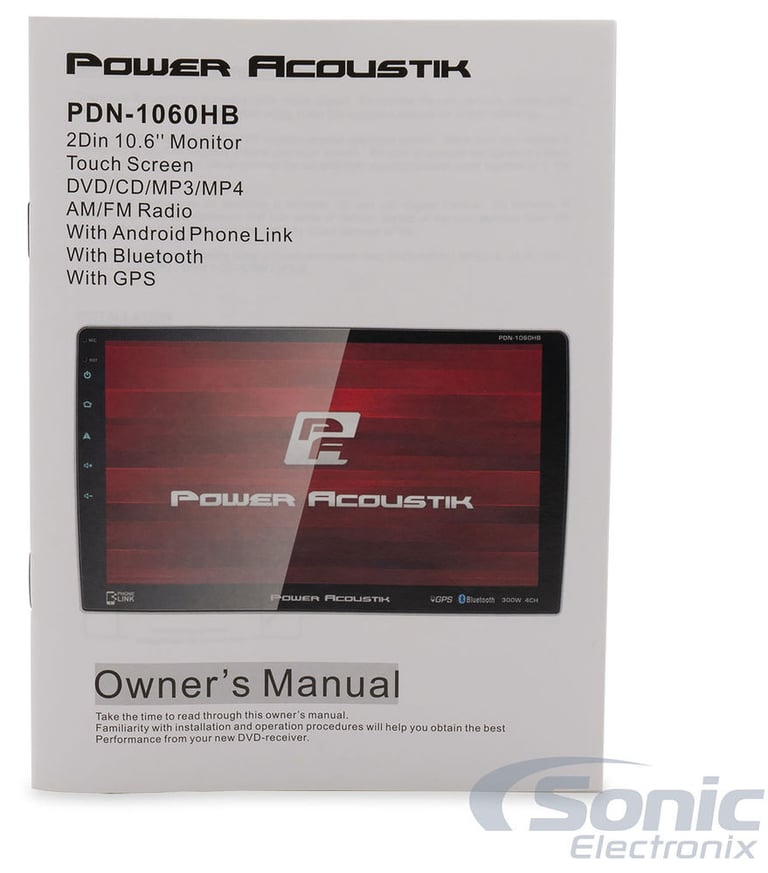

User manual
Warranty/Registration card
Product and accessories

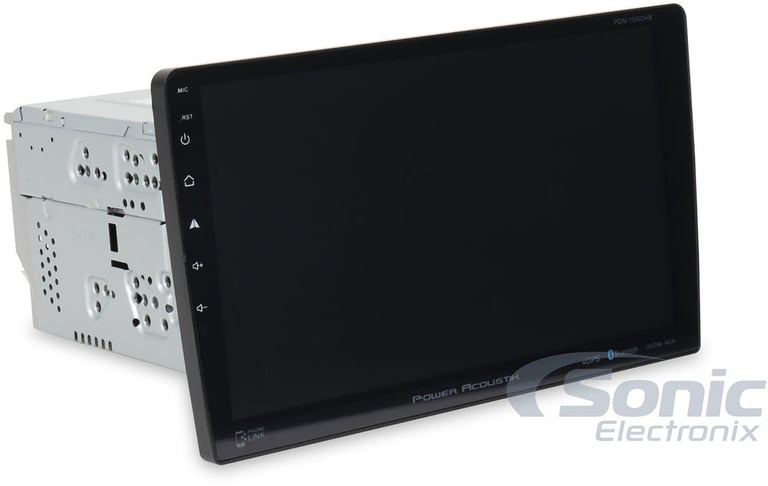

In-dash receiver

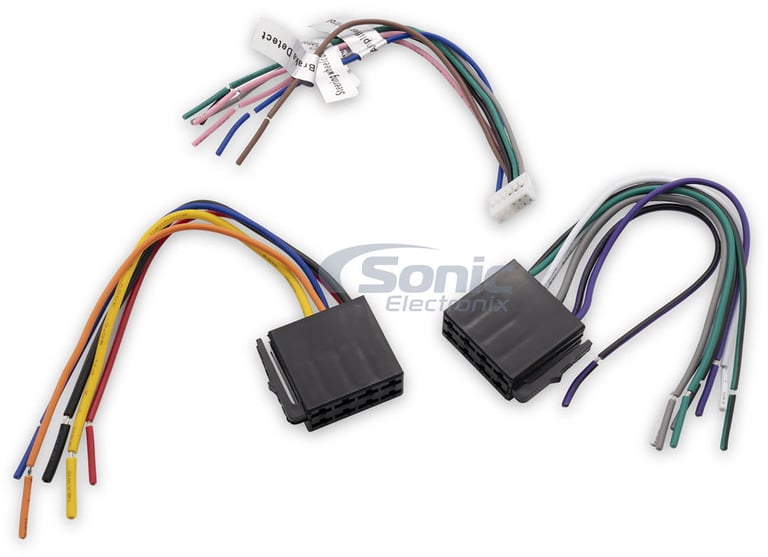

Wiring harness with all connections
Trim ring (attached)
Battery/batteries for remote

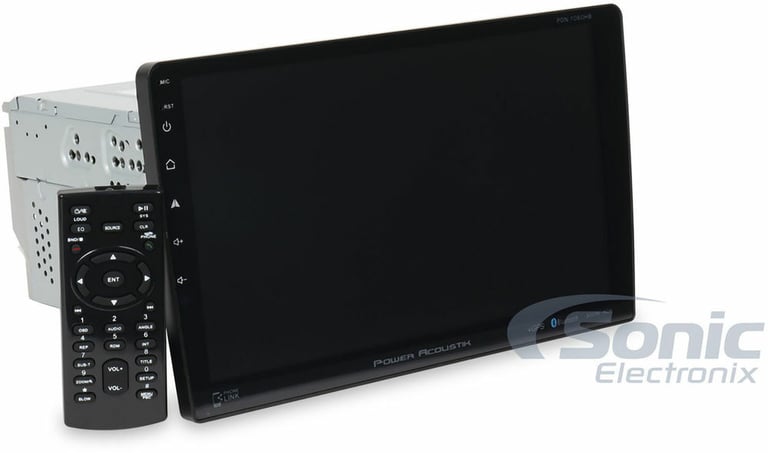

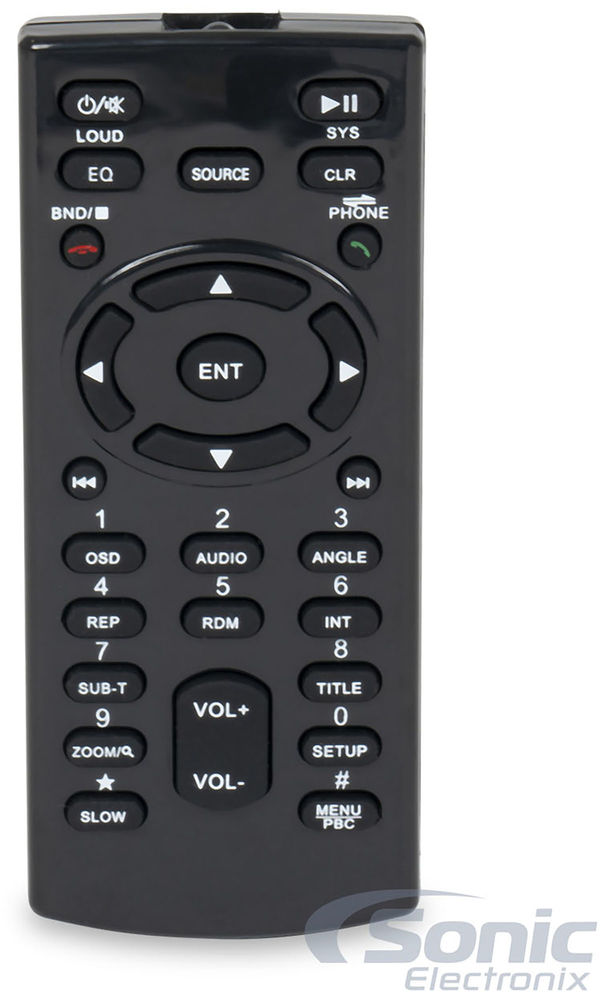

Remote control

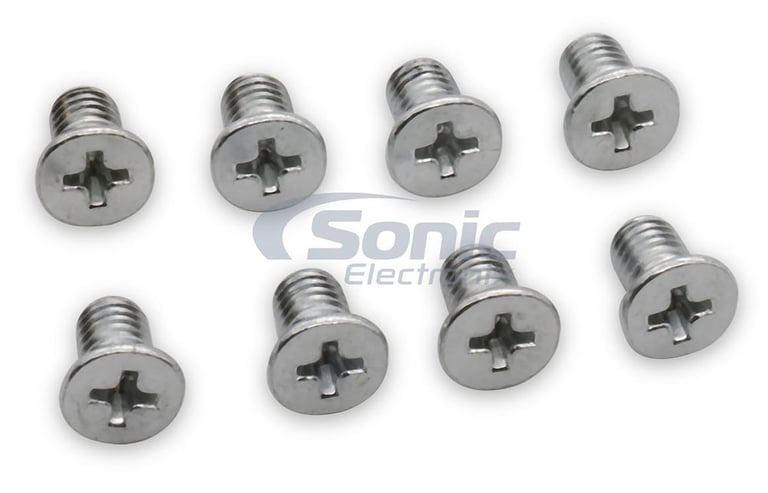

Self-tapping screw
See below for additional accessories
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PDN-1060HB

Weight:

6.80lbs

Internal SKU:

pdn1060hb

Internal Product ID:

174381

Customer Ratings & Reviews



5 star
14%
4 star
14%
3 star
0%
2 star
14%
1 star
57%



Durability
2.6
Value
2.6
Features
3
Design
3.3
Usability
2.9

Customer Reviews

Sort by:

Loading...

Junk

Bluetooth speaker doesn't work. Backup camera doesn't work. Steering wheel controls don't work. Pretty crappy radio. This does not have android auto. It has a really shotty app you have to download that does not work with modern smartphones. No intentions to make the app work. Stay away from this one.

By BobbyJoe on December 2, 2020

52

found this helpful.

Sirusxm

Yall need to take that sirusxm ready off of yalls add. Doesn't have sirusxm capability. Stop lying so y'all can sell more of them

By Big dawg on February 22, 2021

11

found this helpful.

Better than expected

This unit does everything advertised. It has amazing sound and video. The DVD and Bluetooth are flawless. Amazing unit for the price and it was an easy install.

By Chip on February 26, 2021

8

found this helpful.

Don’t buy

I highly recommend against this product. After I had it installed how does not work, can’t get anyone to make it right. Nothing but a run around. This head unit is garbage. Run away from this radio, and this seller

By Dan on February 8, 2022

7

found this helpful.

Junk

Received it, and gps does not work. Tried to request an exchange with no luck, tried calling support with no luck, they allowed my return, if I lay for return shipping on their defective merchandise. Shop elsewhere. This place is a joke

By Daniel on January 25, 2022 Checkmark Icon Verified purchase

7

found this helpful.

SONIC ELECTRONICS IS HOT GARBAGE

Save yourself the trouble and the money and do not order this stereo or anything else from sonic electronics. You'd honestly be better off just sending your money to me and never receiving a product. I bought a stereo from sonic electronics and the item description both didn't upset as there were many options that didn't exist. Then when I try to return it they never responded to me. Fast forward less than one month the front speaker's quit working.. still won't work with me on a exchange or refund. DO NOT BUY FROM SONIC ELECTRONICS

By Drew on January 17, 2022 Checkmark Icon Verified purchase

7

found this helpful.

Wait till price drops

I went with this model for the screen size and backup cam feature and let me tell you it’s working fine except it’s laggy if you start the car and immediately go in reverse it has to power on and load other than that my stock cam works. the big screen makes it easier to see when backing up compared to the stock 4-5”- screen I’m still playing with the other features the navigation is cheap and slow does not work with iOS Only via bt. The screen is easily scratchable the number of times I had to remove and reinstall because of fitment or connections I had to adjust I had to buy 1 additional harness to be able to use the stock cam. Contact me for additional info regarding stock cam retention oh and I’m still figuring out the steering wheel control retention I’m trying to spend minimal money in case burglars I recommend additional installation security it’s hard to hide such a big screen

By Angel on January 23, 2021

8

found this helpful.
