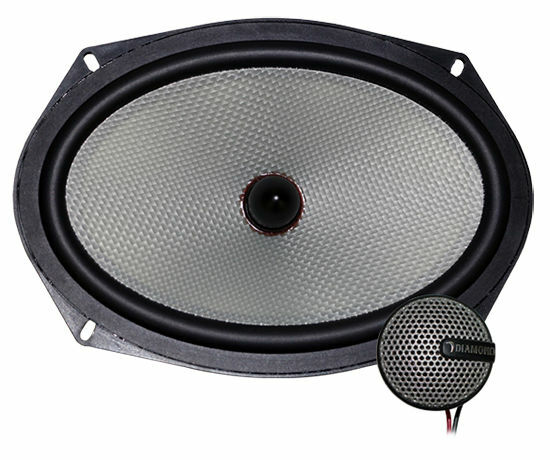

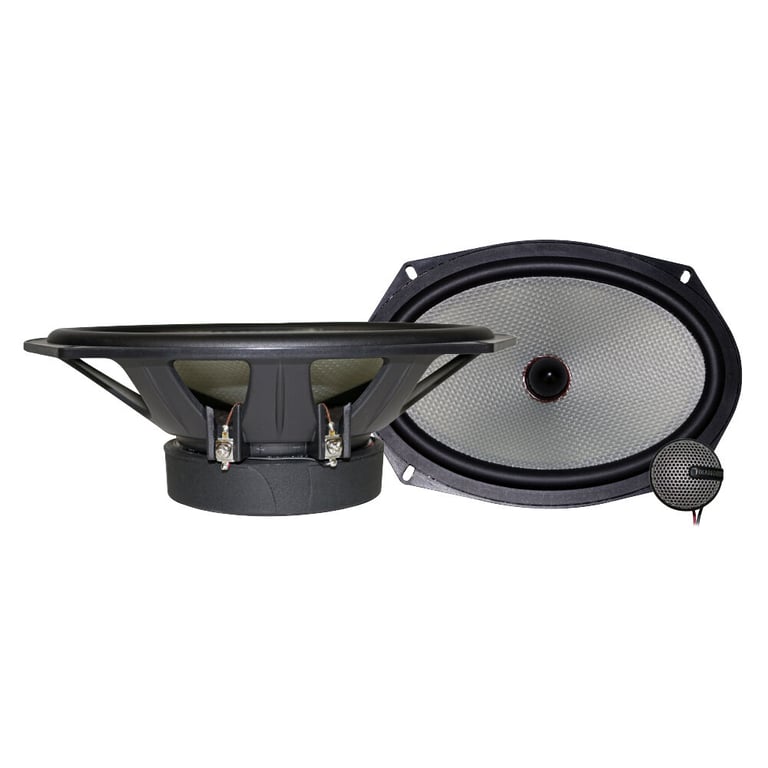

Diamond Audio DMD69V

280W Peak (140W RMS) 6x9" DMD Series 2-way 4-ohm Convertible Coaxial/Component Car Speakers

Diamond Audio
Shop all Diamond Audio
highlight-star-icon

• 140 watts Peak Each, 70 watts RMS Each
• 3/4" Silk Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB

Learn more about the dmd69v

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

dmdx69c thumbnail

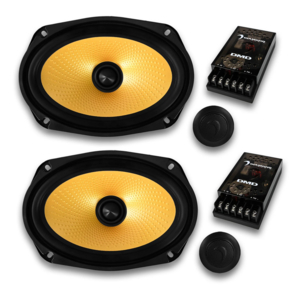

Diamond Audio DMDX69C

OUR PRICE: $279.99

View item

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


Product Details:

  • 6" x 9" DMD Series 2-way Component System Car Speakers
  • Power Handling:
    • Peak: 280 watts per pair / 140 watts each
    • RMS: 140 watts per pair / 70 watts each
  • Polypropylene cone material
  • Rubber speaker surround
  • 3/4" Silk Dome ferro-fluid cooled tweeters
  • Cone with internal dampening and reinforced stamped pattern
  • FEA optimized high-power ferrite motor
  • High-strength ABS injection molded frame with integral terminals
  • Separate optimized crossover module for component system
  • Klippel® DA optimized motor and suspension symmetry
  • Top-mount Depth: 2.75"
  • Cutout Dimensions: 8.46 x 5.79
  • Impedance: 4 ohm
  • Frequency Response: 60 - 20000 Hz
  • Sensitivity: 86 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Per Pair

Product history:

Diamond Audio DMDX69C thumbnail
(newest, current model)
Diamond Audio DMD69V thumbnail
(previous model, replaced by Diamond Audio DMDX69C)

Best selling similar products

PNW-69CS2 small

AudioControl PNW-69CS2

• 125 watts RMS Each
• 1" rear-dampened Hybrid Silk Dome tweeters
• Rigid Poly Mica cone material
• Impedance: 3 ohm
• Sensitivity: 88.78 dB

(1)

$349.00

List price $369.00

KFC-XP6902C small

Kenwood eXcelon KFC-XP6902C

• 300 watts Peak Each, 100 watts RMS Each
• 6x9" Woofer and 2.75" Midrange
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 84 dB
• Custom fit for select 2002-2024 vehicles from Toyota, Dodge, Chevrolet

(5)

$209.00

List price $320.00

REF697CF small

Infinity REF697CF (INFSPKRF697CFUS)

• 375 watts Peak Each, 125 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

$279.95

List price $309.95

Specifications & Details


Speaker Specifications
Series
DMD Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
6" x 9"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Size
3/4"
Tweeter Composition
Silk
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Peak Power Handling
140 watts
RMS Power Handling
70 watts
Total PEAK Per Pair/Set
280 watts
Total RMS Per Pair/Set
140 watts
Sensitivity
86 dB
Frequency Response
60 - 20000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2.75"
Cutout Dimensions
8.46 x 5.79
CTA-2031 Compliant
No
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Illumination
None
Speaker Grilles
No
Includes Damping Kit
without Damping Kit
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Speakers
Speakers (2)
Mounting screws (8)
Mounting clips (8)
Speaker connection cables (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DMD69V

Weight:

9.00lbs

Internal SKU:

dmd69v

Internal Product ID:

174581
