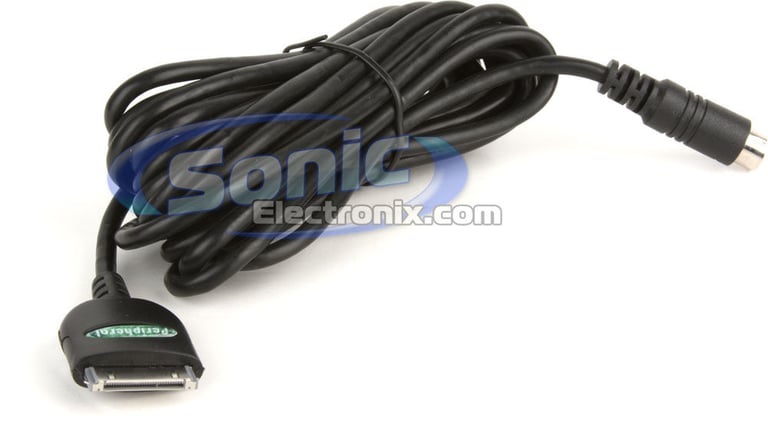

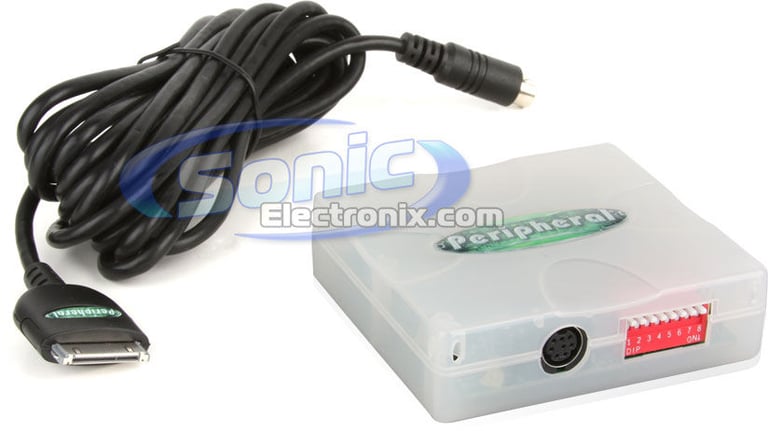

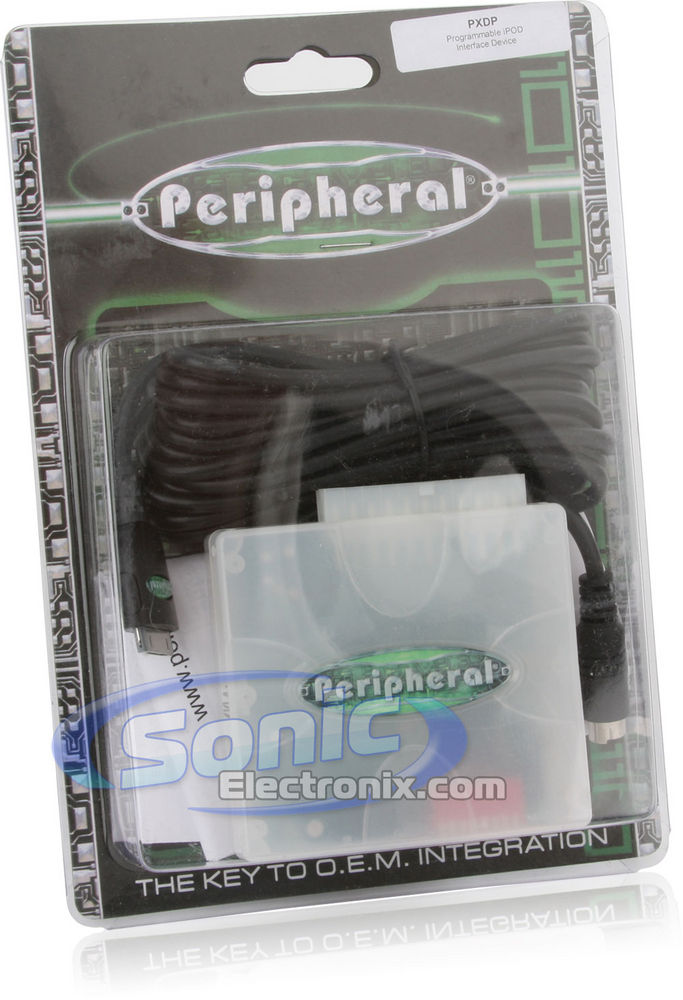

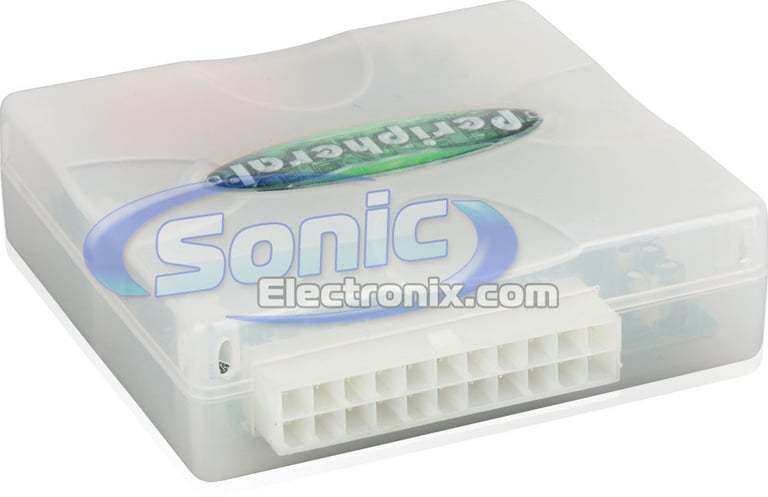

iSimple iPod2Car (PXDP)

Factory iPod Interface for Select Vehicles

iSimple
Shop all iSimple
highlight-star-icon

• Factory iPod Interface for Select Vehicles
• Interface Delivers CD Quality Sound To Factory System
• Eliminates Use Of Noisy RF Modulators

Learn more about the pxdp

We apologize

This item has been discontinued


Loading...
P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85

Description


iSimple brand icon

Authorized dealer

The Peripheral PXDP is an iPod interface that allows you to control an iPod directly from the Factory Radio. The PXDP interface delivers CD quality sound into the factory sound system via the CD Changer port and eliminates the use of noisy RF modulators. The factory radio enables track selection, and forward/rewind just like when using a CD Changer.

General Features:

  • Factory iPod Interface for Select Vehicles
  • Plug and play installation maintains factory wiring
  • Direct audio inputs for excellent sound quality
  • Programmable for multiple vehicle applications
  • Requires a vehicles specific harness to install (Click Here for these harnesses)

Vehicle Requirements:

  • For all vehicles, radio must be CD Changer or Satellite capable.

    Not compatible with any factory external audio source such as XM Tuner, CD Changer, or Cassette player. These devices must be disconnected during the installation and will no longer function.

  • Acura:
    • Not compatible with factory radios that have an in dash 6 disc CD Changer
    • Not compatible with navigation radios
  • Audi:
    • Vehicles with Symphony sound systems must use special adapter harness PXHAD2 as well as PXHVW2 and connect at radio
  • GM:
    • Compatible with Buick/Cadillac/Chevrolet/GMC/Oldsmobile/Pontiac/Hummer
    • 1998–2004 GM vehicles equipped with a factory slave may not be able to support an external device and the PXDP may not be compatible
  • Chrysler/Dodge/Jeep
    • Compatible with select 2002-2005 vehicles
    • Factory radio must have "Disk ^" on preset 1
    • Vehicle must be non-CANBUS
    • REF, REC, RAQ, or RAK Series radios are not compatible
    • 1999 Chrysler vehicles with a "square" face will use the PXHCH1 harness and vehicles with a "round" face will use the PXHCH2 harness
  • Ford/Lincoln/Mercury:
    • Not compatible with factory radios with built-in 6-disc CD changers
    • Compatible with factory navigation radios
  • Toyota:
    • When using the PXHTY3 with 2006-2007 vehicles the green wires must be cut on the harness
    • Fully compatible with factory installed Toyota Navigation Systems
    • Not compatible with Hybrid vehicles
  • Volkswagen:
    • Not compatible with vehicles equipped with a factory Navigation system
    • When possible, use the PXHVW2 or PXHVW3 harness to avoid the possibility of noise problems
    • Double DIN (4” Tall) VW radios require the PXHVW3 to connect behind the radio
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Read more about the PXDP at our blog.
